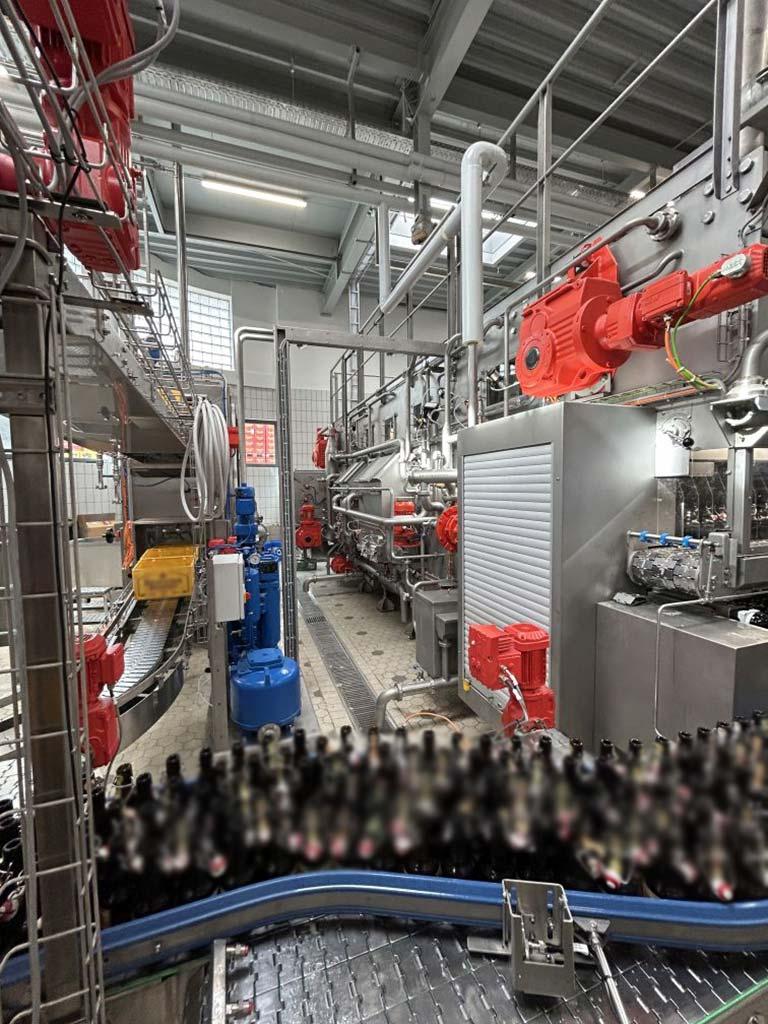

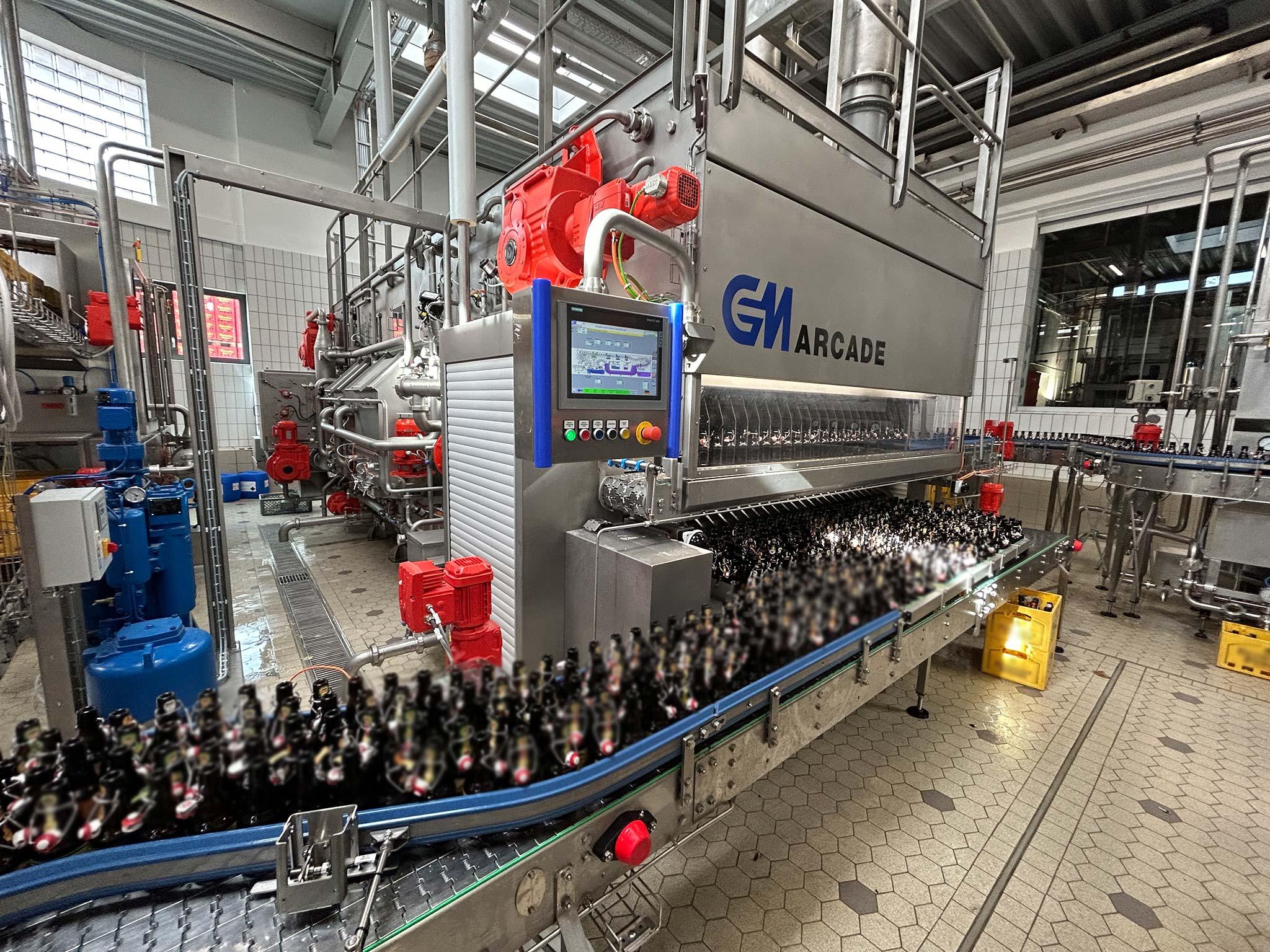

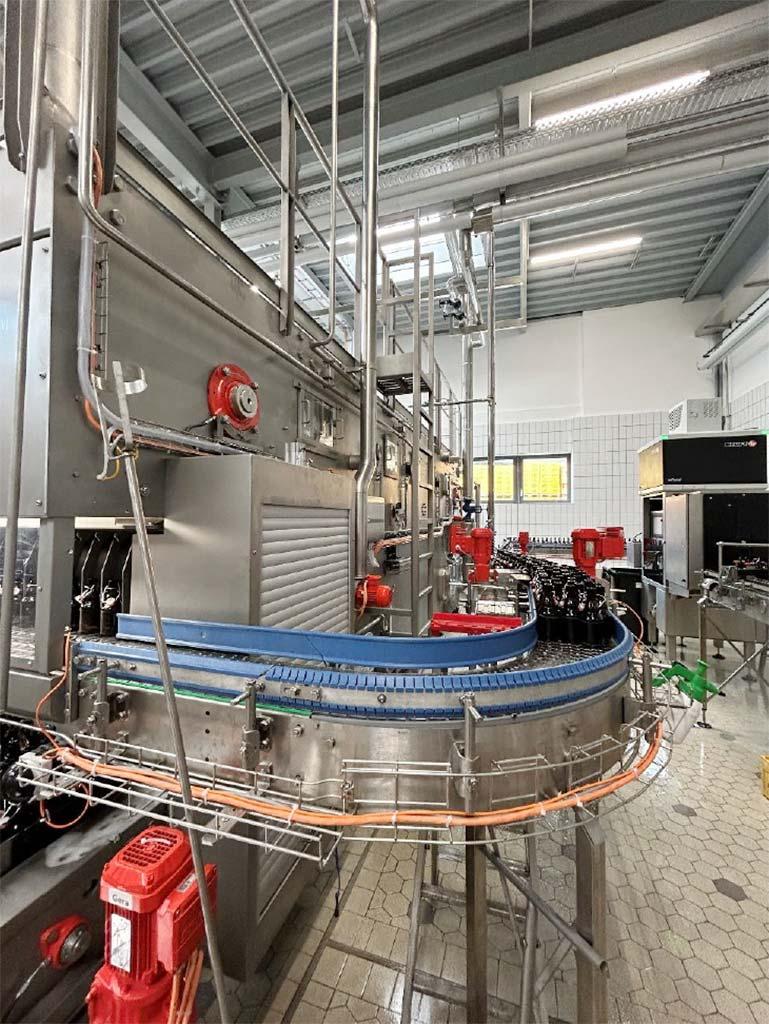

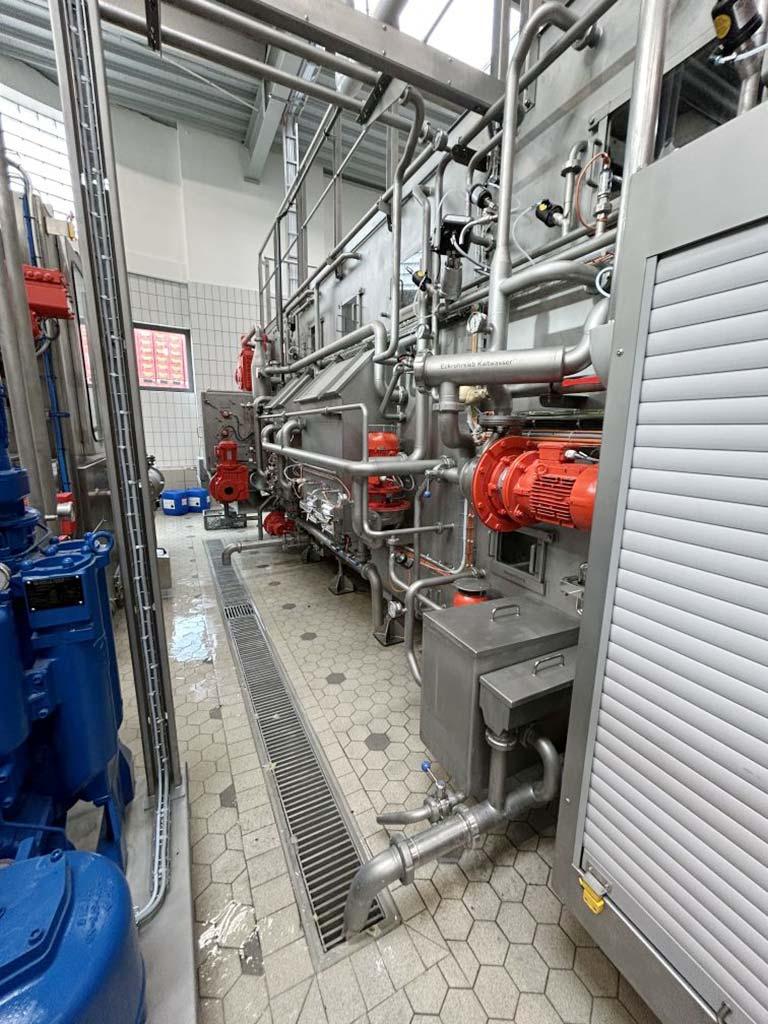

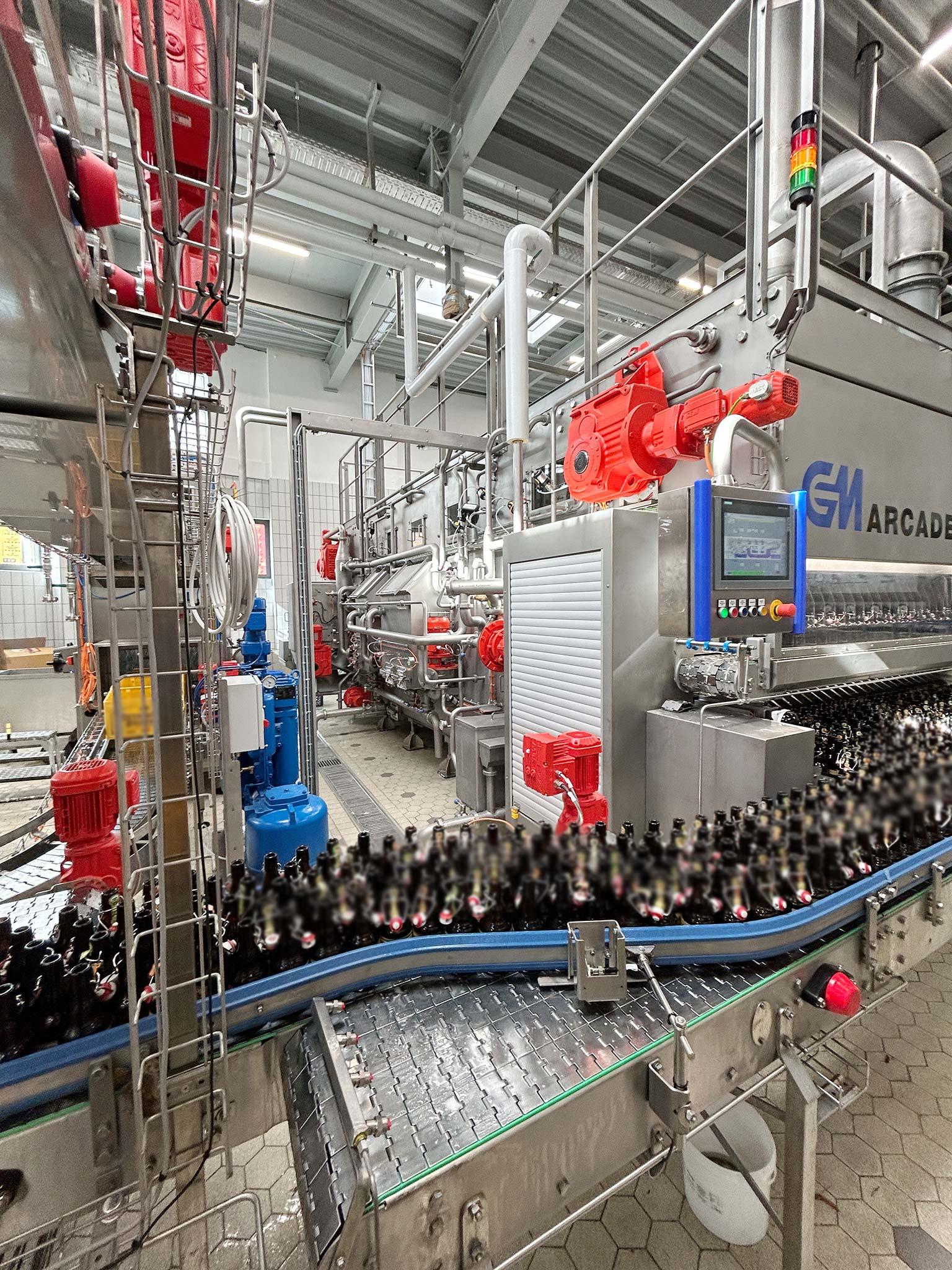

Bottle Cleaning Machine Gm Arcade ARCADE GEK 2.1 RV1

Germany

Description

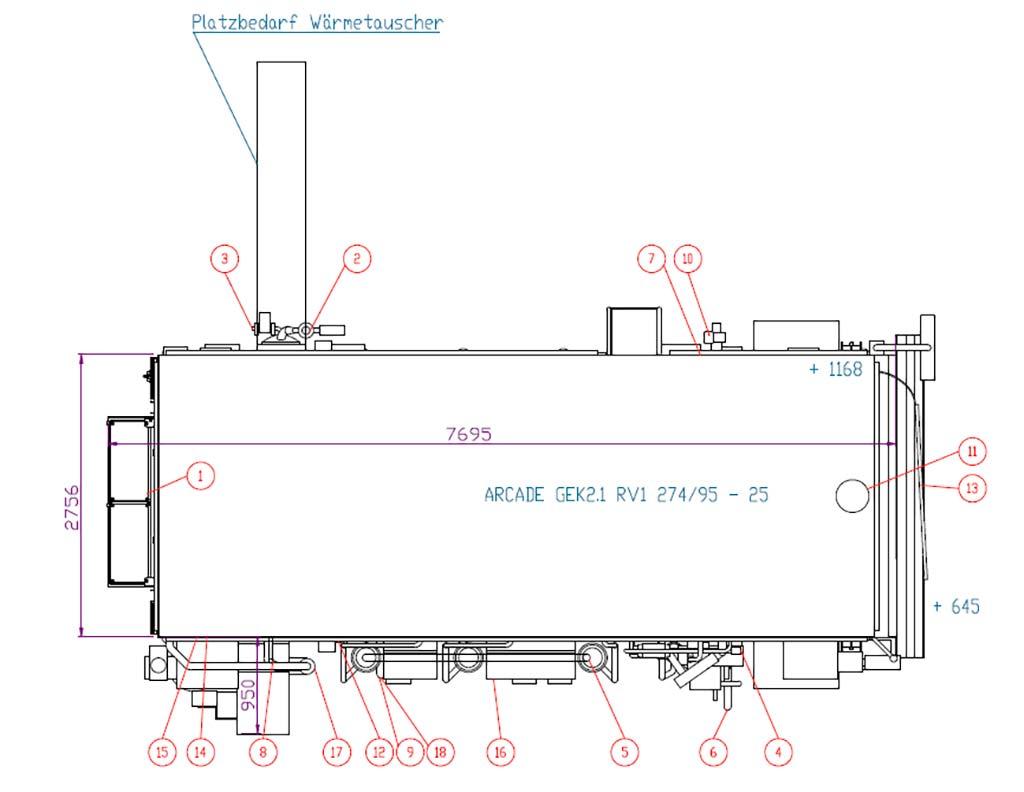

Nominal output: 9500 bottles/h (based on 0.5 litre NRW bottle, 68x260mm, 370g), mechanical control range: 3800-10,450 bottles/h, cycle time: 9.47s, total bottle cells: 3375, filled: 3175, per row: 135 basket rows, cell pitch: 95mm, chain pitch: 140mm, drive lanes: 3 lanes, discharge lanes: 3 lanes. Total throughput time: 21.32min, total immersion time: 7.24min, caustic immersion time: 5.34min, caustic filling time: 7.05 min, caustic contact time: 9.91min, total rinse time: 123s, total spray time: 47s, water consumption: 2.61m³/h, 275 ml/bottle, heat consumption (operation): 721. 715 kJ/h = 172,247 kcal/h, 75.97 kJ/bottle = 18.1 kcal/bottle, heat consumption (heating): 2,880 MJ = 687,467 kcal, total installed power: 27.2kW, pump power: 20.4kW, drives: 5.7kW, compressed air consumption (at 6bar): 0.2m³/h, dimensions housing: 7162x2740x2500mm. Overall dimensions: 7162x3540x2730mm, minimum access opening (W x H): 3840x2000mm, minimum ground clearance: 75 ± 25mm, height of infeed/outfeed: 645/1165mm, empty weight: 11,680kg, operating weight: 31,563kg, floor load: 8690kg/m², load per spherical base: 2130kg, number of spherical bases: 12. The machine has been running for approx. 6 months, so it is almost as good as new, including documentation. An on-site inspection is possible.
