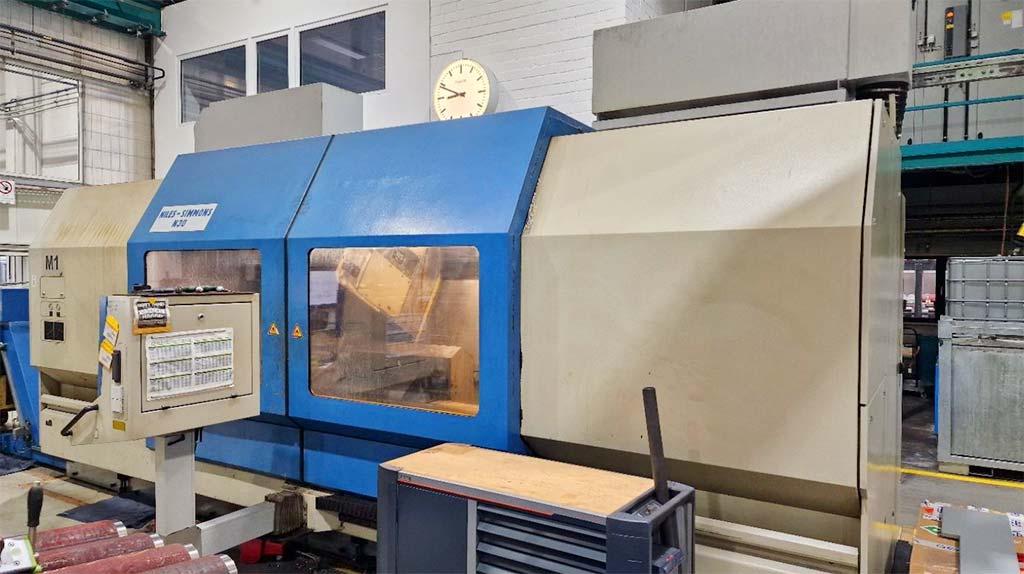

CNC Turning- and Milling Center Niles-simmons N30/2500 MC

Germany

Description

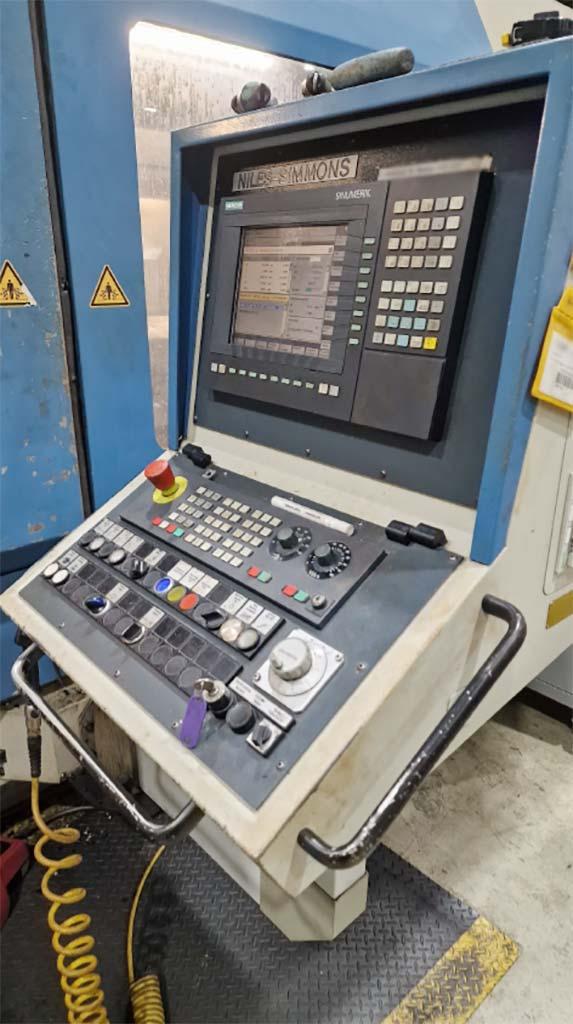

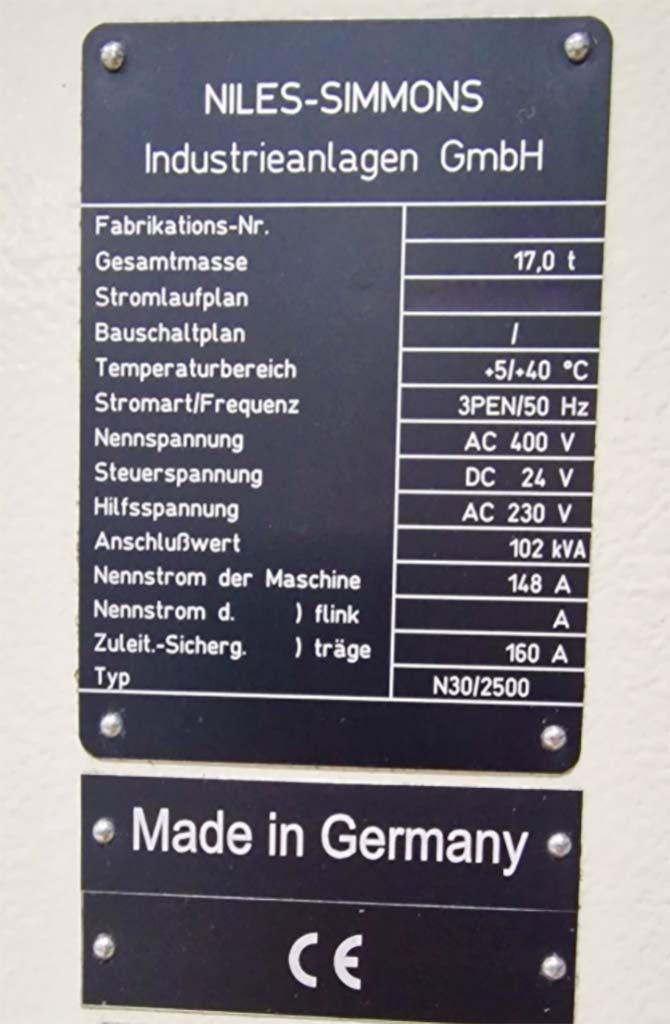

With two machining modules, X-axis: -50 to 725mm, Y-axis: -200 to 300/ -250 to 250mm, rapid traverse X-, Y-, Z-axis: 18/12/30m/min, turning lengths: 1500/2000/2500/3200/4000/4500/6500mm, swing diameter: 780/ 880mm, turning spindle bore: 92/123mm, main spindle speed range: 0-3000/0-3000/2000/min, max. Turning/milling unit speed: 5000/6000/10000/min, max. tool length: 900/600/1000/300/900mm, quill stroke: 160/170mm, connected load: 102kVA, control system: SINUMERIK ONE / SINUMERIK 840D sl, drive system control: SINAMICS S120, weight: 17t. On-site inspection is possible.
