Can Line Ima/cremer/cbv/deckert/uhlmann UN 800S/CF1220/Servo/AVM 738/Sensitive 350

Germany

Description

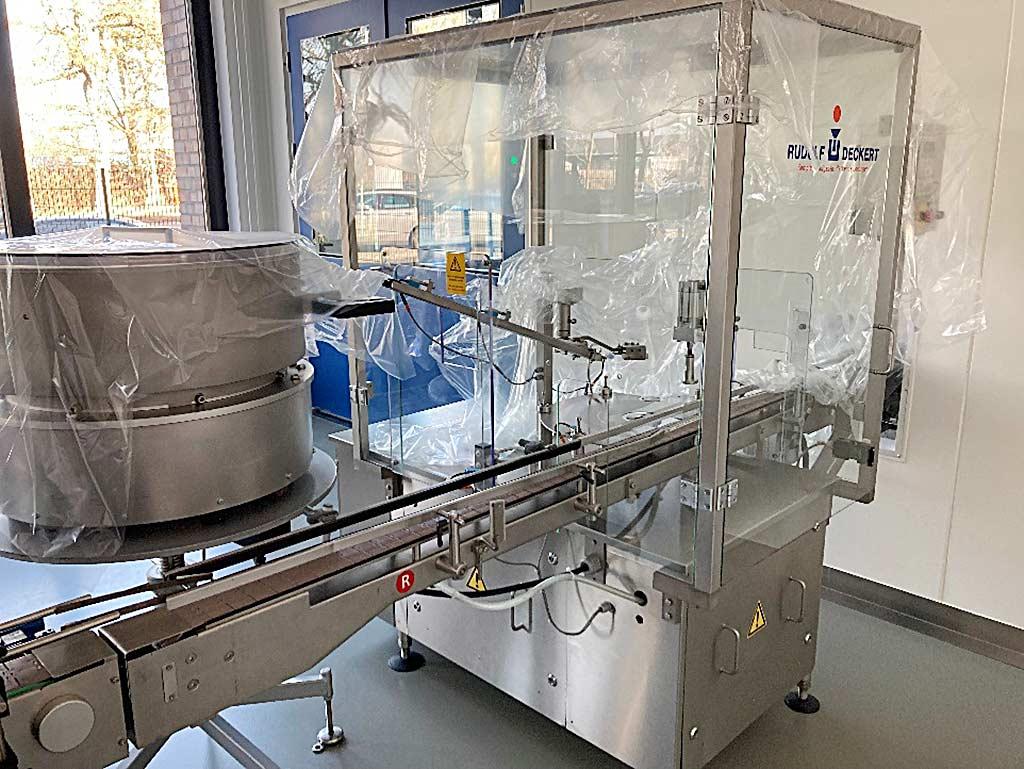

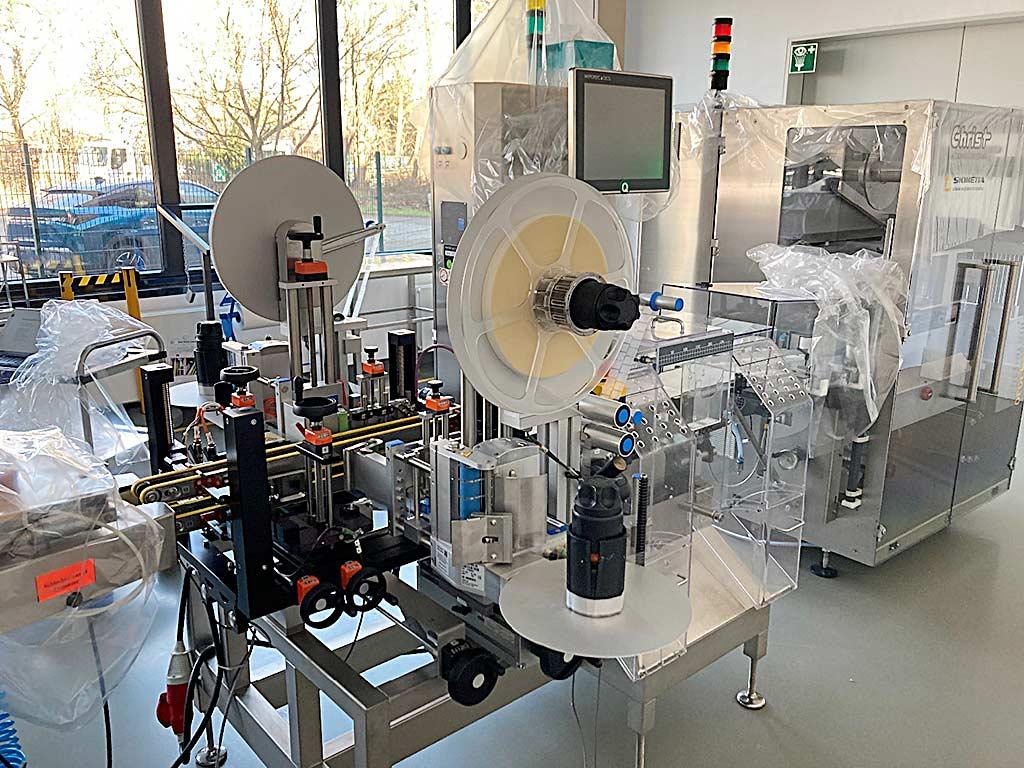

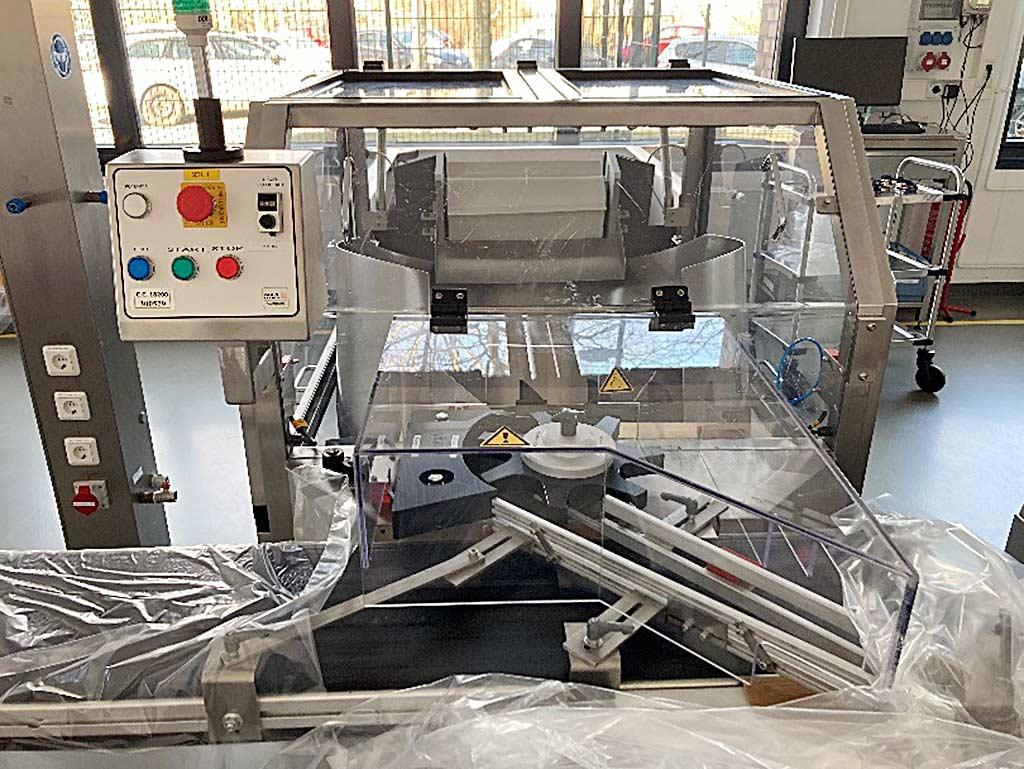

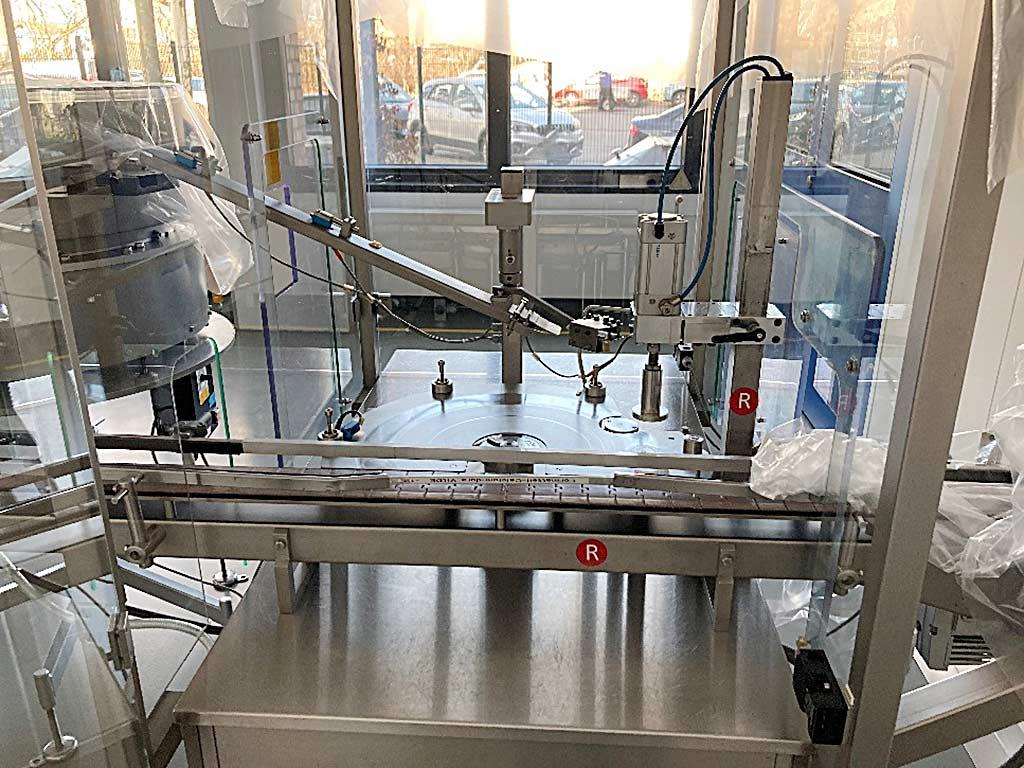

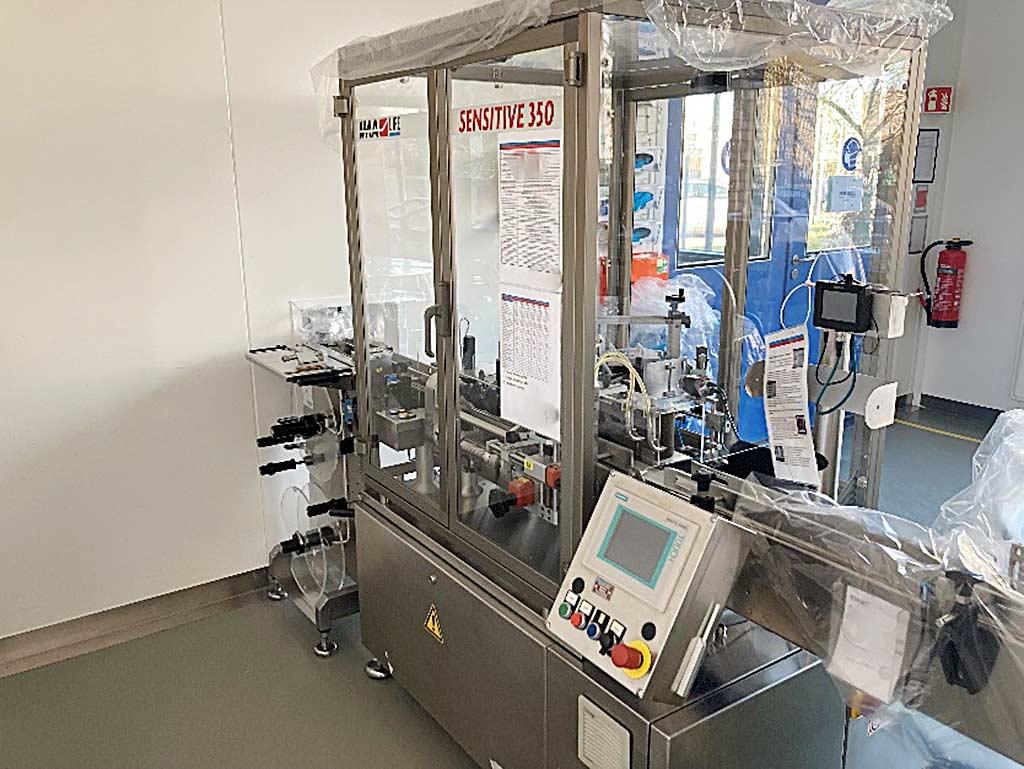

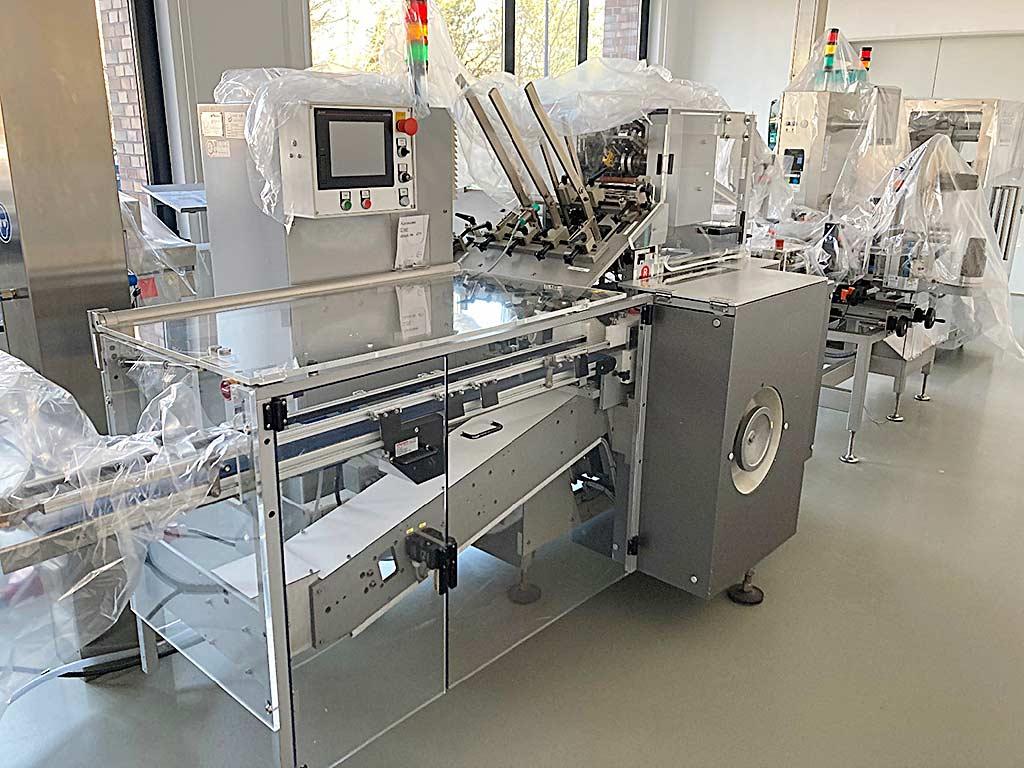

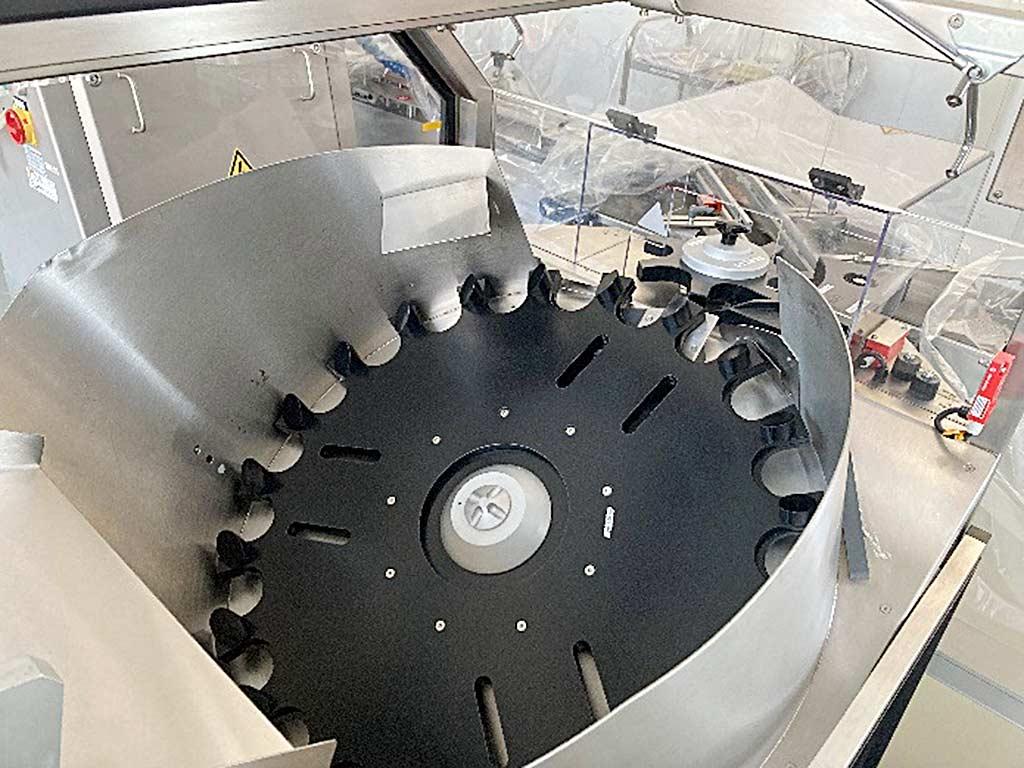

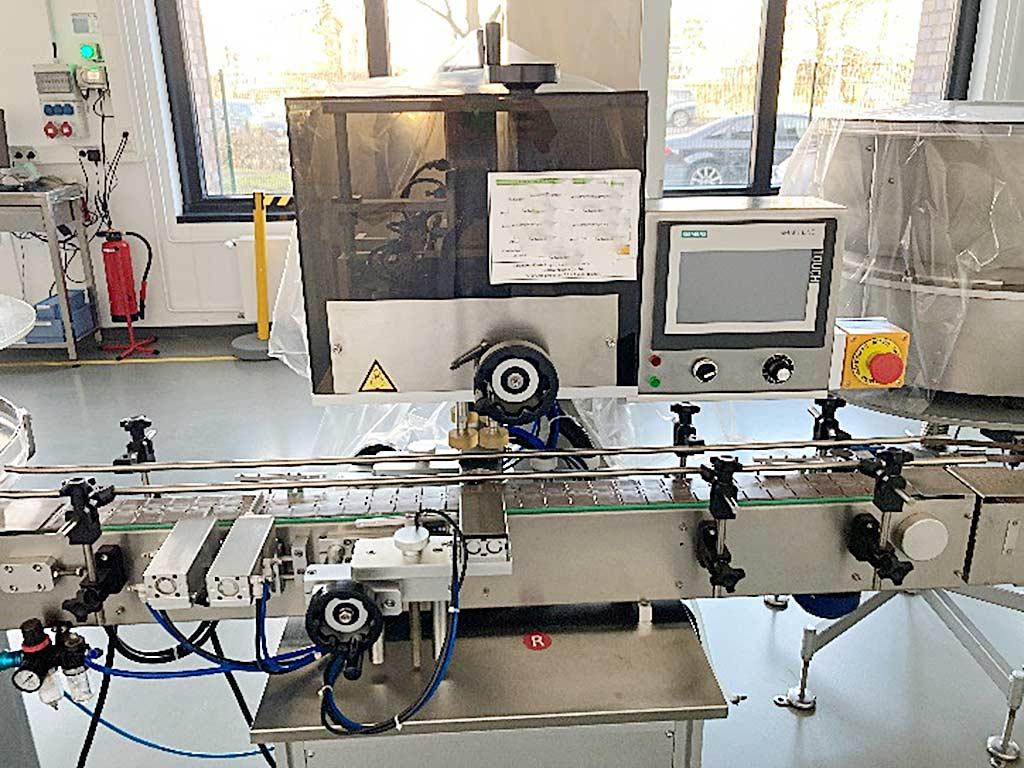

A complete can erecting, counting and seaming system including labeling and cartoning is available. 1) Can unscrambler IMA Swiftpack UN 800S, year of manufacture: 2007, unscrambling capacity: 60 cans/min, formats diameter/height: 45mm/51.5mm, 45mm/84mm, 45mm/96mm, 60mm/80mm, 60mm/122mm. 2) Counting machine Cremer CF 1220, year of construction: 2002, counting capacity: 1000 products/min, counting heads: 1, channels: 12, formats: Capsules (HGK & WGK) and tablets (round & oblong), including one cylinder for storage flaps as spare part. 3) 2x rotary plate Höflinger & Karg S1, plate diameter: 1000mm. 4) CBV Servo lid closing machine (screw capper), year of manufacture: 2019, closing capacity: 40 closing operations/min, lid diameter range: 23mm-100mm. 5) Rudolf Deckert AVM 738 can seamer (crimper), year of manufacture: 2003, seaming capacity: 50 cans/min, can diameter: 45mm/60mm, lid formats diameter/height: 42.4mm/17.15mm, 50mm/12mm. 6) Can and bottle labeler IMA Sensitive 350, year of construction: 2009, labeling capacity: 350 labels/min, can and bottle diameter range: 15mm-78mm, max. product height: 220mm, label length range: 15mm-220mm, label height range: 10mm-140mm, equipped with hot stamping Allen Coding Set S-Compact 50/30 and camera Keyence IV 500 CA. 7) Can and bottle cartoner Uhlmann C100, year of construction: 1988, cartoning capacity: 70 cans/min, max. Can/bottle diameter and height: 60mm/120mm, folding carton length range: 30mm-113mm, folding carton width range: 15mm-85mm, folding carton height range: 70mm-130mm, the machine was converted to cans and bottles in 2017 and equipped with a Mitsubishi D700-SC control system, including GUK Cartonac 91 folder, 3x code reader and luminescence control. 8) Wipotec TQS-HC-A coding and inspection device for serialization, temper evident and weighing, year of manufacture: 2017, inspection capacity: 300 products/min, including 2x Herma 400 label dispenser, dual print head (2 cartridges), camera for print inspection, load cell with weighing belt and hand scanner. 9) Christ FilmTeq 3030 banding machine, year of manufacture: 2011, infeed capacity: 50-200 folding boxes/min, outfeed capacity: 7-50 packs/min, folding box length range: 15mm-400mm, folding box width range: 15mm-90mm, folding box height range: 60mm-150mm, bundle length range: 60mm-400mm, bundle width range: 60mm-150mm, bundle height range: 30mm-230mm. Documentation available. On-site inspection is possible.
