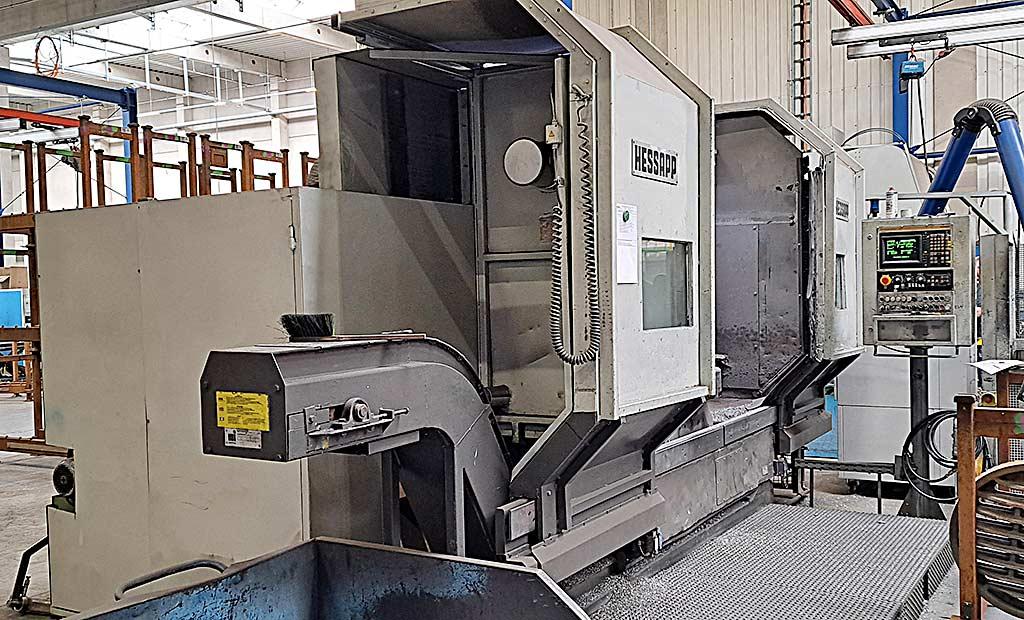

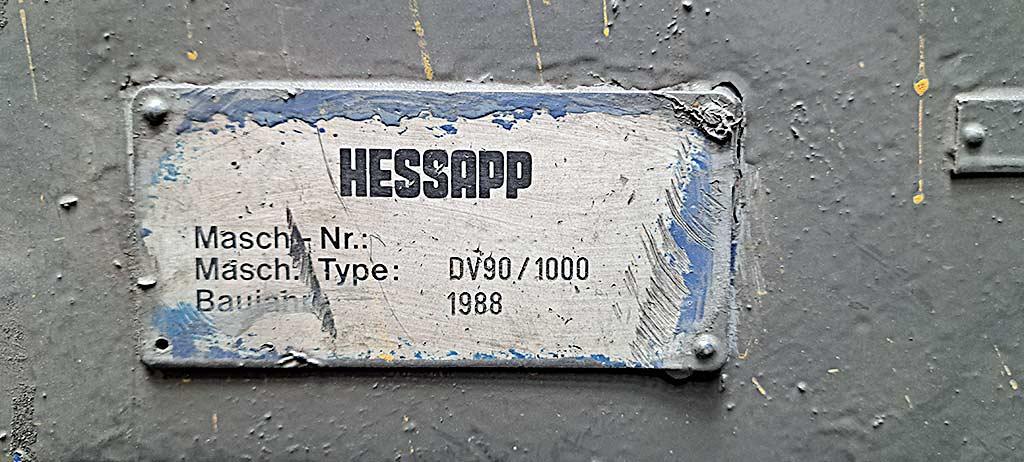

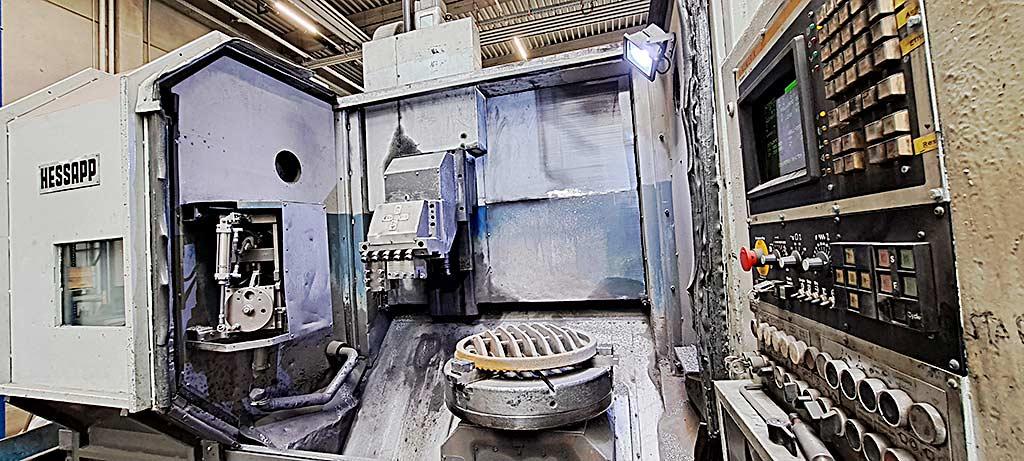

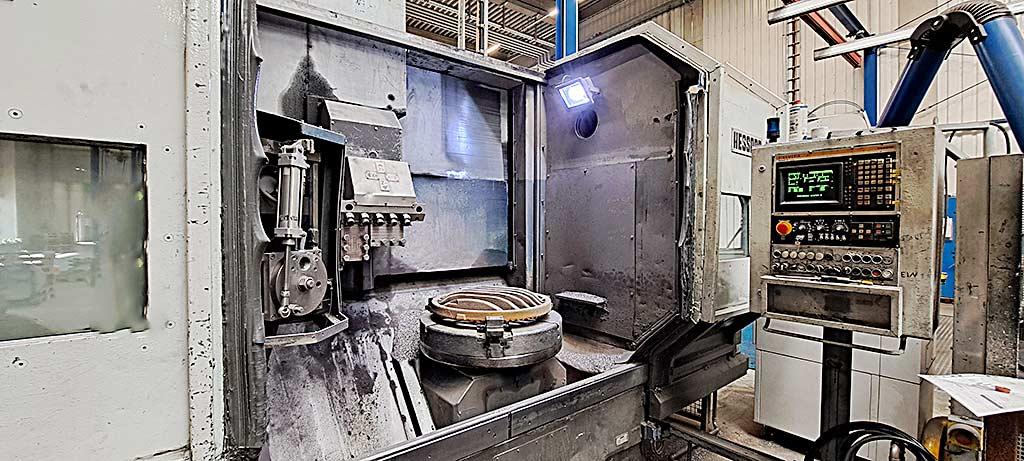

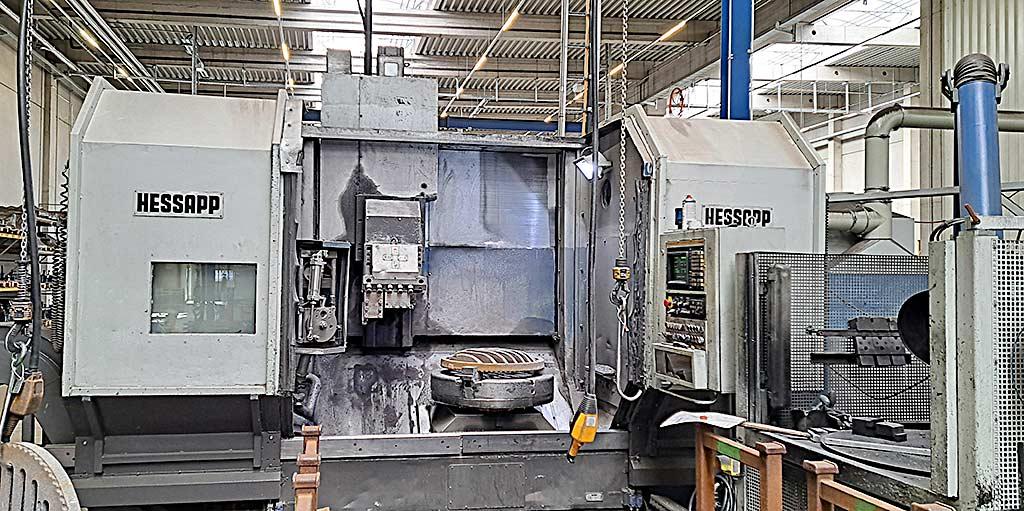

CNC Vertical Lathe Hessapp DV90/1000

Germany

Description

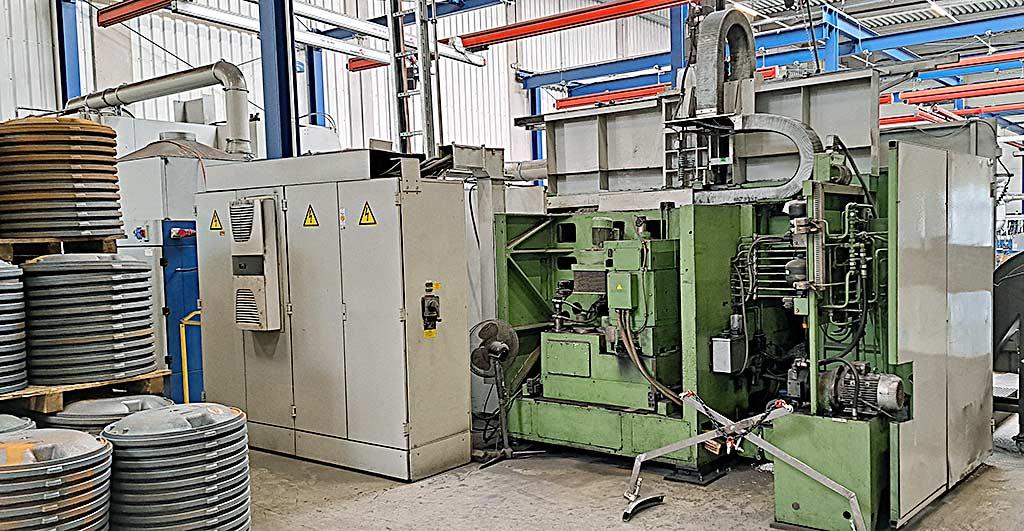

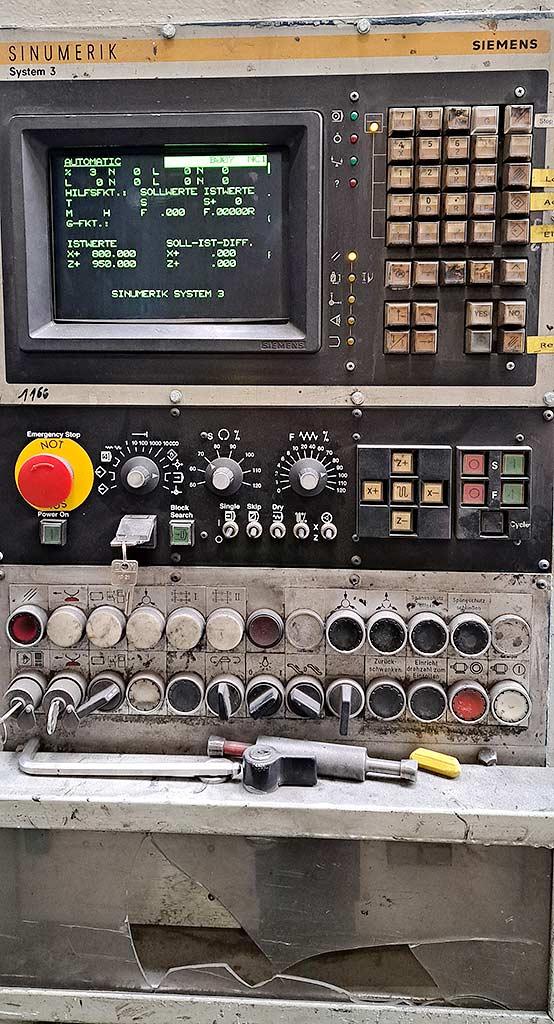

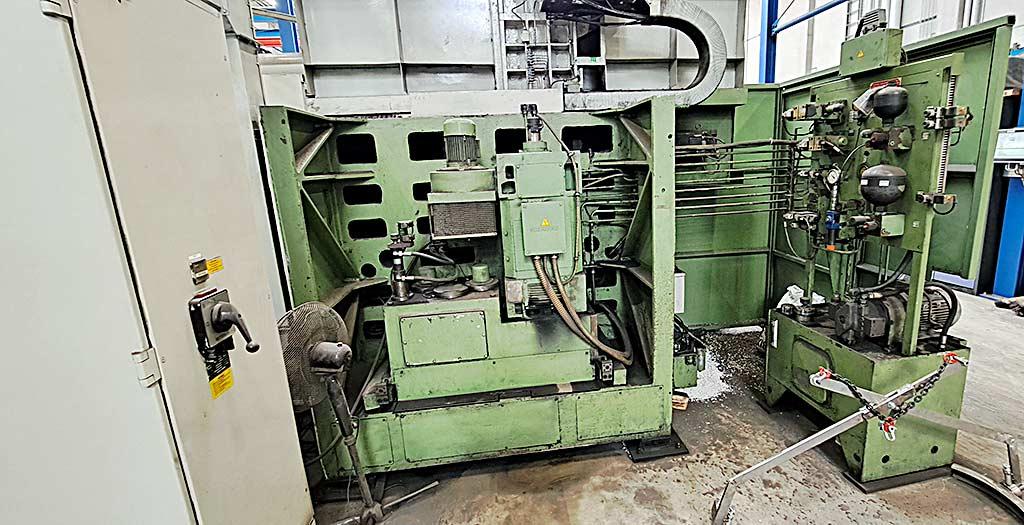

Center height: 420mm, turning length: 600mm, orbital diameter over bed/face slide/in the offset: 900mm/1150mm/800mm, max. workpiece weight: 2500kg, spindle diameter in front bearing: 203mm, face plate diameter: 800mm, max. torque: 8000Nm, spindle bore: 100mm, max. chuck diameter: 1150mm. Bed slide longitudinal stroke: 600mm, face slide face stroke: 600mm, feed X/Z: 5m/min, speed: 710rpm. Machine weight: approx. 15000kg, control: Siemens Sinumerik System 3, repairs carried out: Cross slide (2022), guideways/wedge power, control components, main spindle motor, wiper (annually), V-belts and ball screws. Including dry casting machining (without cooling lubricant system), hydraulic unit, automatic door and chip conveyor. Documentation available. On-site inspection is possible.
