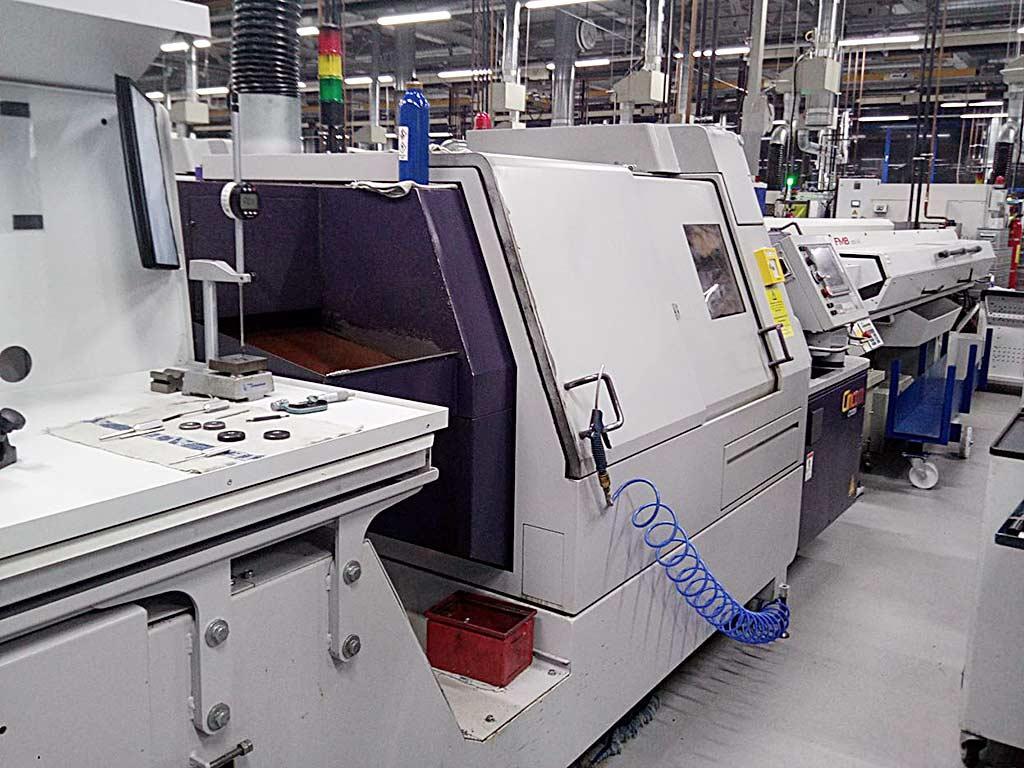

CNC Automatic Lathe Citizen M32 III

Germany

Description

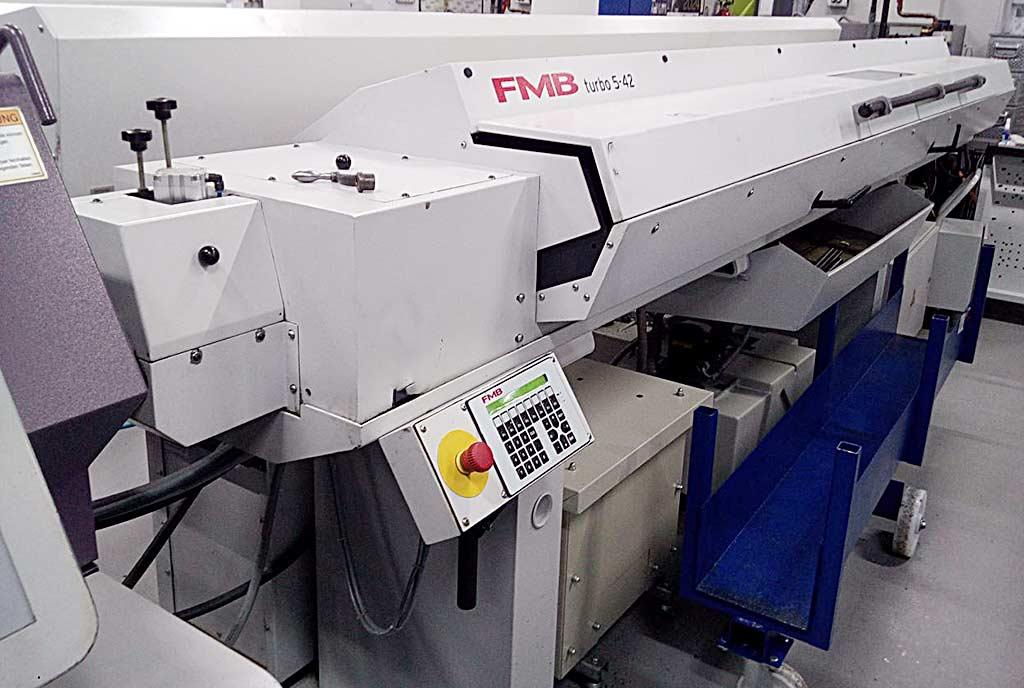

A Citizen CNC precision lathe is available. Turning diameter: 32mm, turning length: 320mm, front drilling diameter: 12mm, front thread cutting: M10, bar capacity: 36mm, C-axis resolution: 0.001°, Y-axis: +/-500mm, counter spindle clamping range: 32mm, speed: 7000U7min, back machining length: 145mm, tool positions: 10, weight: approx. 3000kg, control: Mitsubishi Meldas M635, operating hours: approx. 80000h. Including coolant unit with 30bar high-pressure cooling, parts catcher, bar feeder FMB Turbo 5-42, collet chuck F37 and chip conveyor Knoll with a year of manufacture of 2009. Documentation available. On-site inspection is possible.

Additional Details
