Rotary Indexing Table Taktomat TT315-04-270-RH-20

Germany

Description

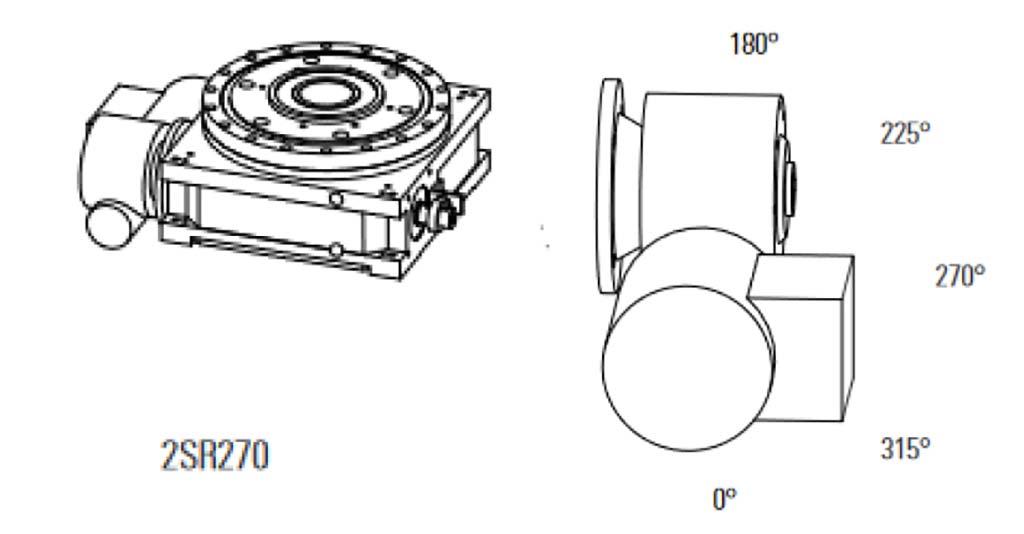

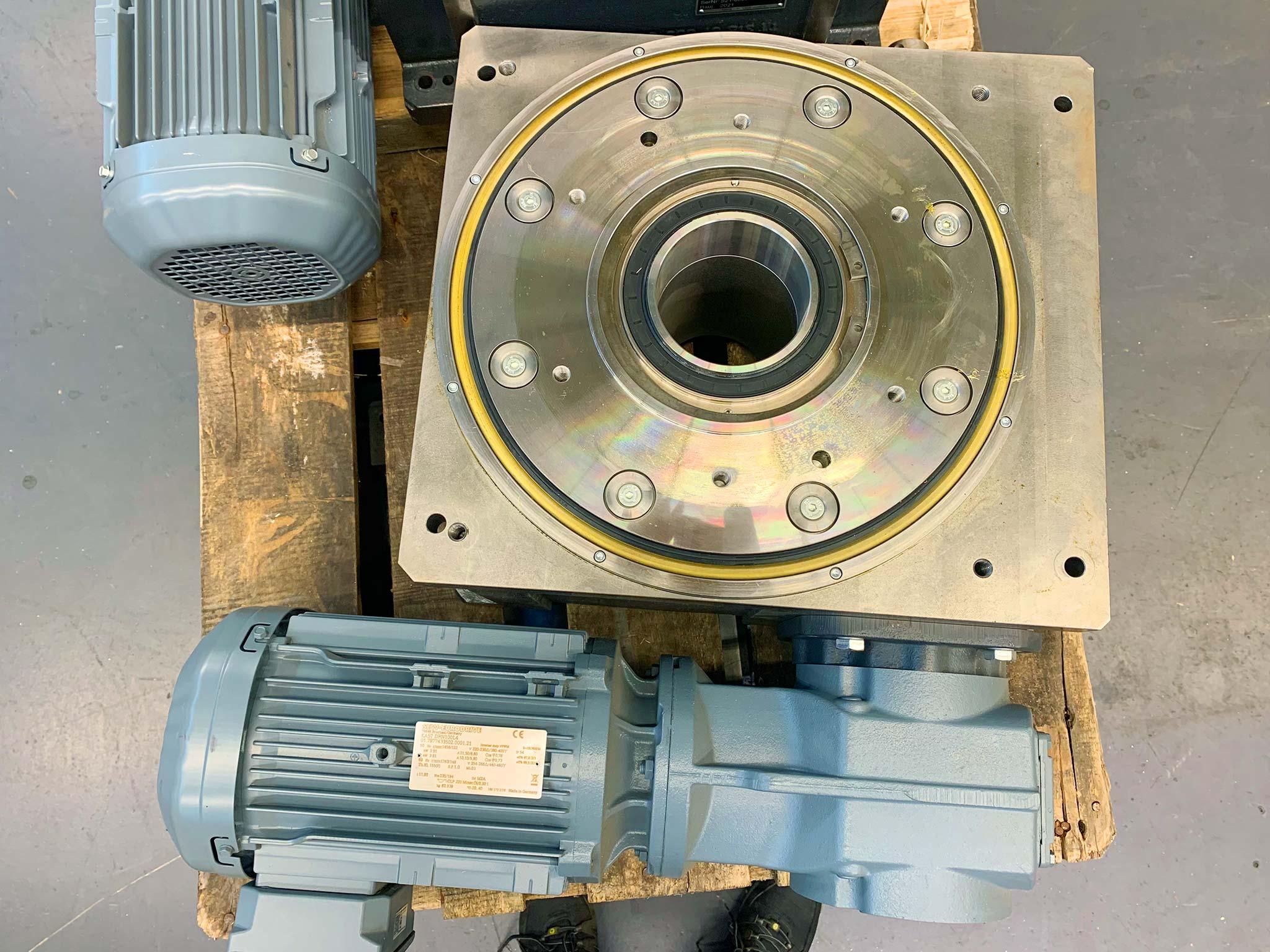

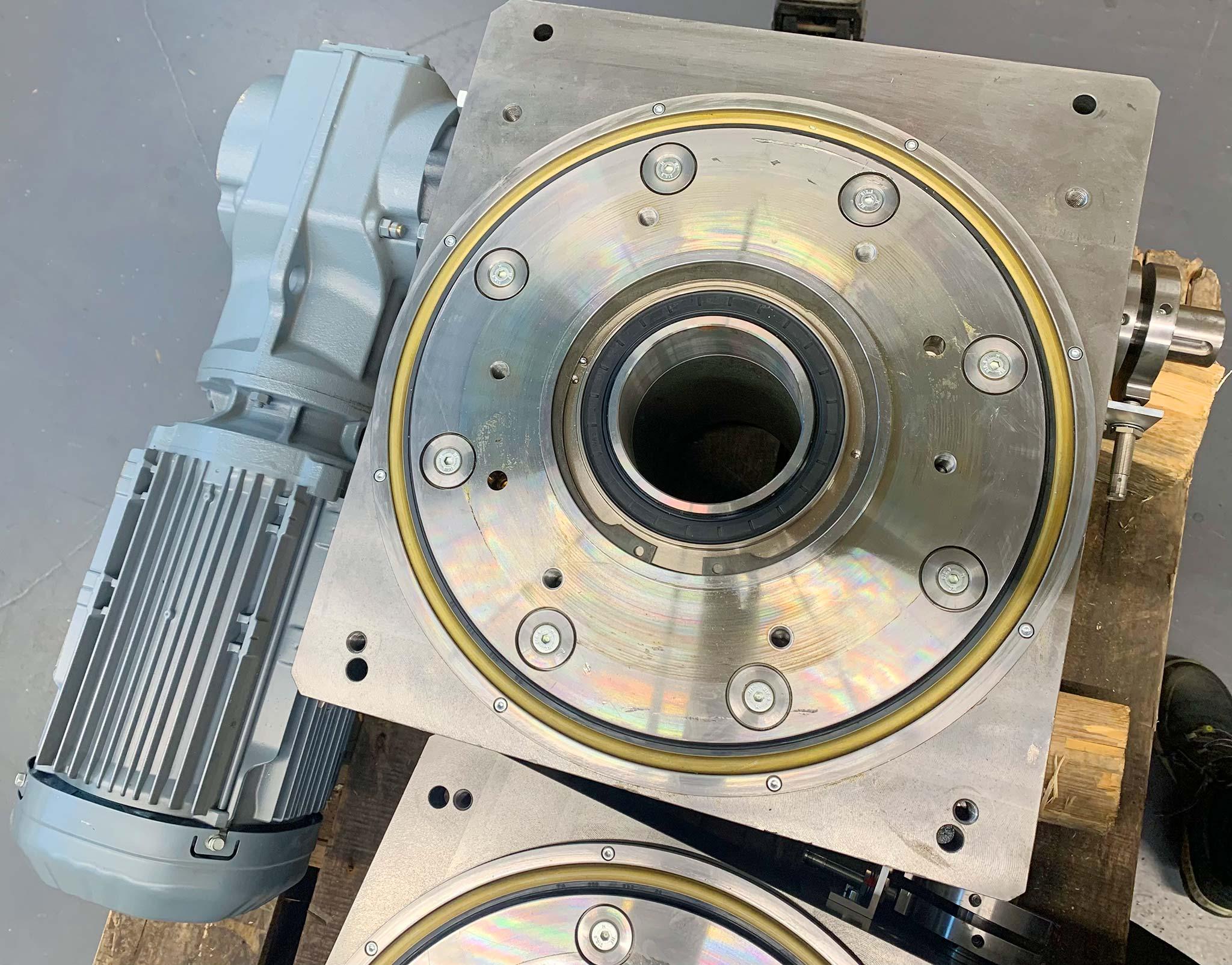

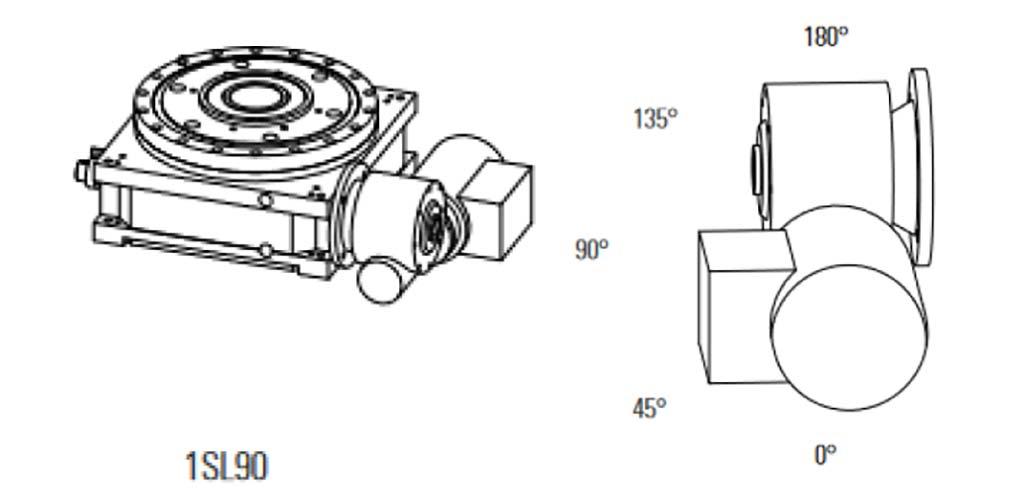

Two almost identical rotary indexing tables are available, 1x TT315-04-270-RH-20-3 KA57 DRN100L4-M2A and 1x TT315-04-270-RH-20-1 KA57 DRN100L4-M5B, diameter output flange: 360mm, overall height (screw-on surface output flange) 243.5, center diameter: 90mm, max. recommended mounting plate size Ø: 2800mm, weight of output flange: 193kg, load on output flange axial force: 32kN, radial force: 17kNm, tilting moment: 5kNm. mounting plate size Ø: 2800mm, rotary table weight: 193kg, load output flange axial force: 32kN, radial force: 17kN, tilting moment: 5kNm, load center column axial force: 28kN, tilting moment: 4kNm, accuracies partial accuracy: ±22mm, axial runout at output flange: ±0.01mm, radial runout at output flange: ±0.01mm. With documentation, on-site inspection is possible.
