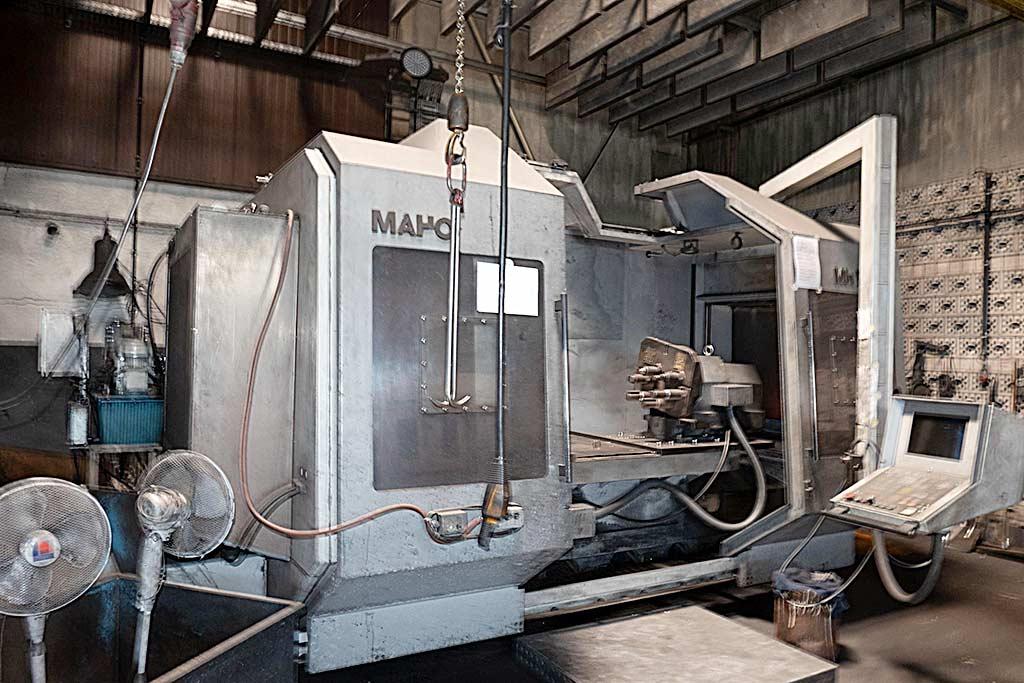

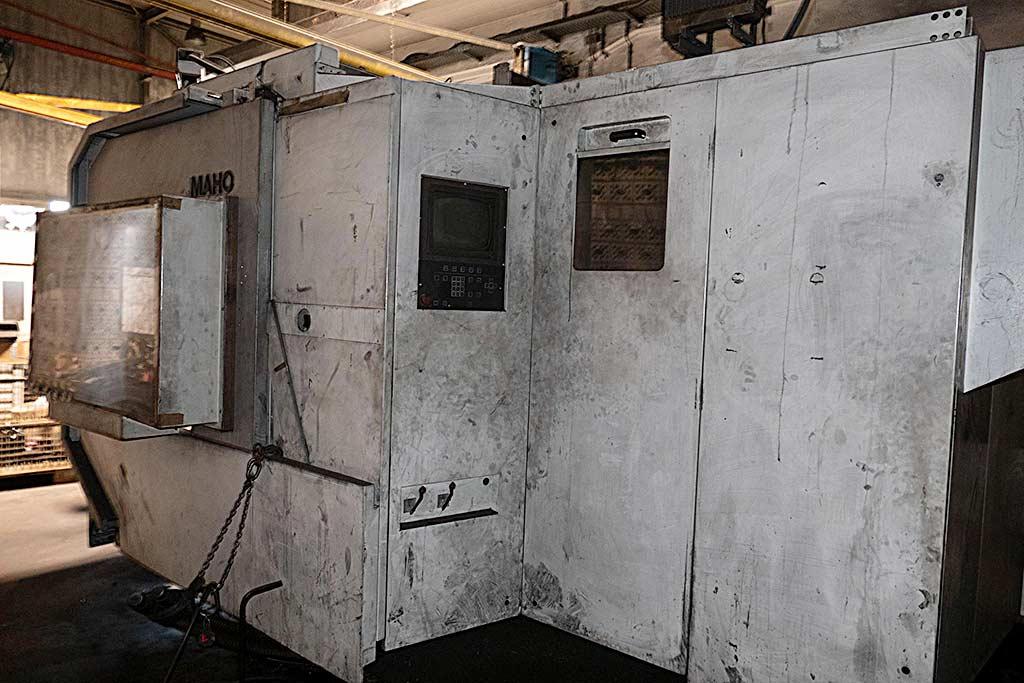

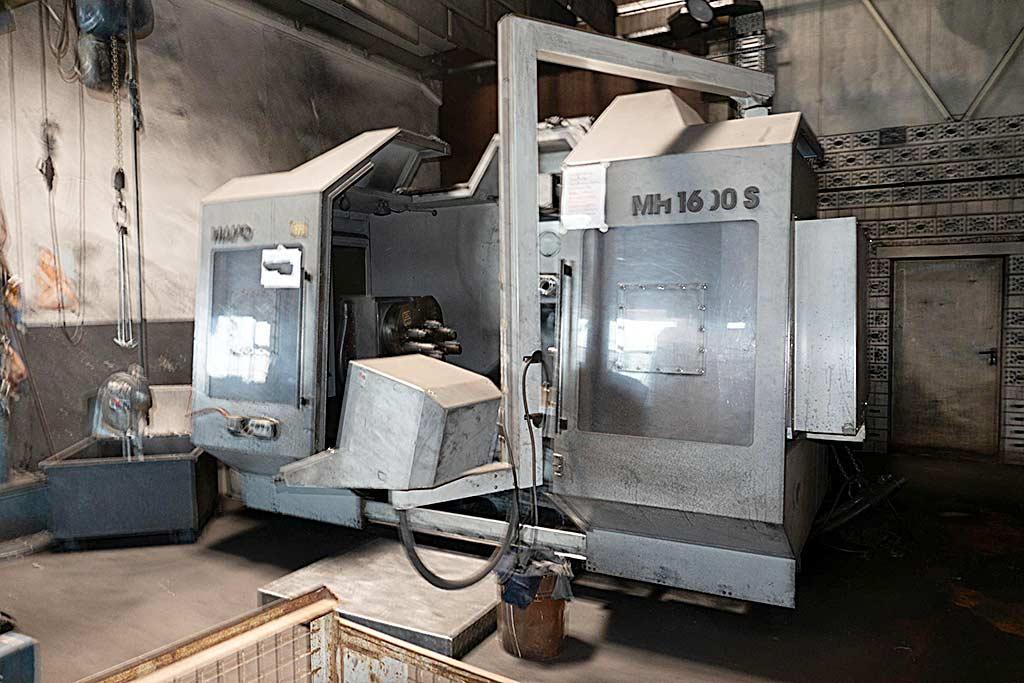

CNC Bed Milling Machine Maho MH 1600 S

Germany

Description

A Maho CNC 4-axis universal bed-type milling machine is available. Travel X/Y/Z: 1600mm/800mm/800mm, table dimensions X/Y: 1250mm/800mm, max. table load: 3000kg, spindle mount: SK50, main spindle speed: 4000rpm, power: 22kW. Tool positions: 36, max. tool diameter: 160mm/210mm, max. tool length: 315mm/400mm, max. tool weight: 15kg, feed rate: 4m/min, rapid traverse: 10m/min. Machine dimensions X/Y/Z: approx. 5000mm/3700mm/3000mm, weight: approx. 16000kg, control: Philips CNC 232. An on-site inspection is possible.
