Punching Line Raster/kohler 100/1400NL

Germany

Description

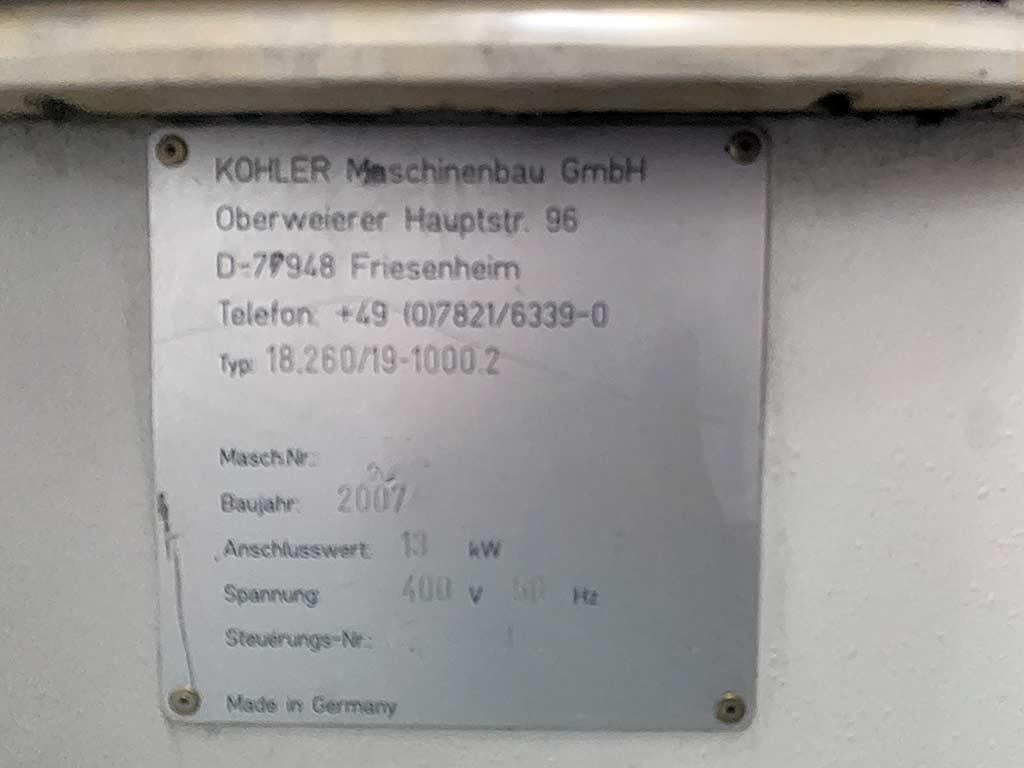

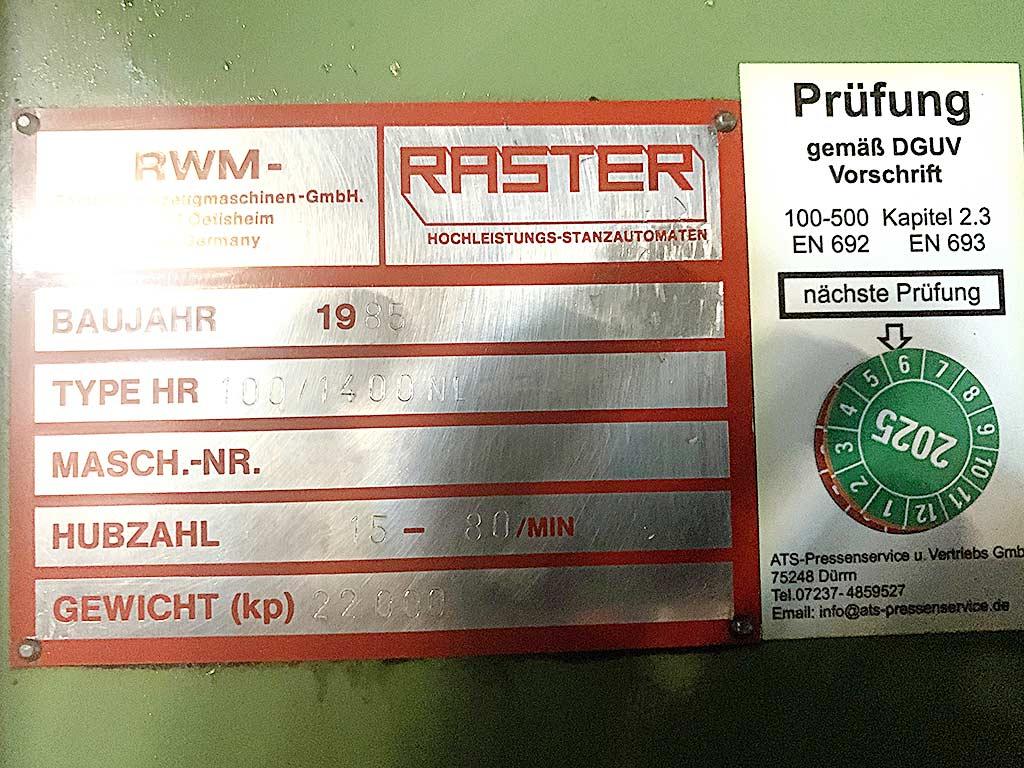

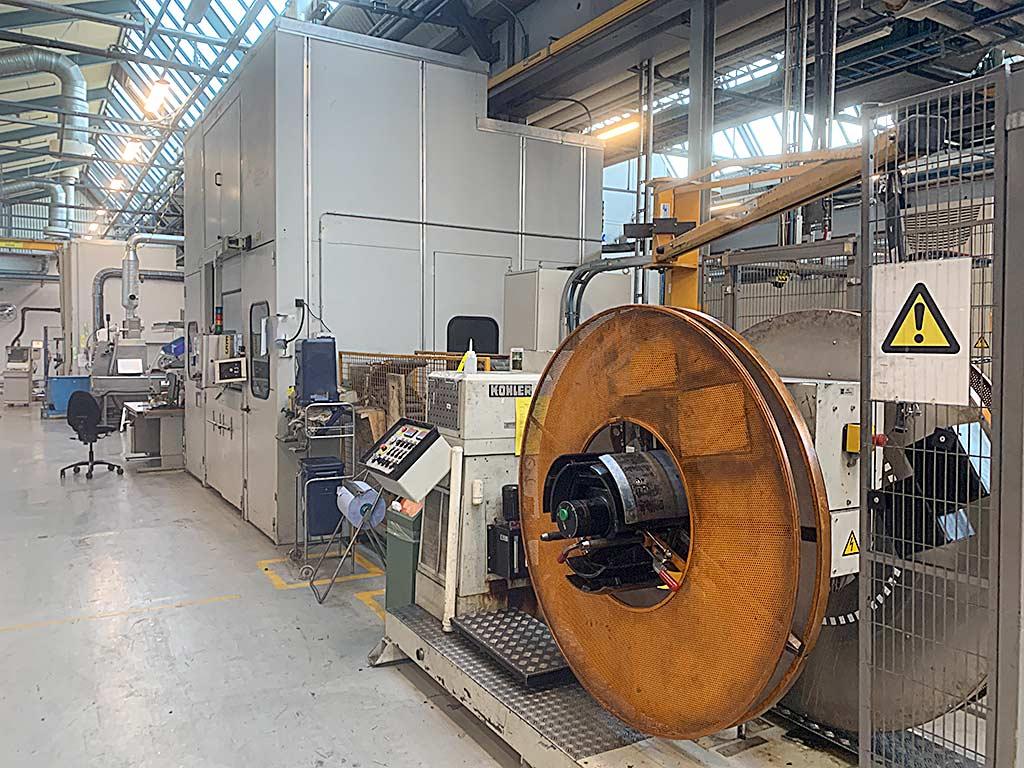

An automatic punching press Raster in need of overhaul with a Kohler coil line (2007), a Kohler roll feed and various accessories is available. Number of connecting rods: 2, table ram distance min./max.: 390mm/550mm, table dimensions X/Y: 1500mm/700mm, throat hole dimensions X/Y: 1200mm/100mm, ram dimensions X/Y: 1400mm/500mm, ram stroke min. /max.: 20mm/1200mm, max. slide adjustment: 60mm, stroke rate: 15-80 strokes/min, normal pressure: 100MPa/1000kN, cutting capacity at K3 40kg/mm²: 2500mm², press weight: approx. 22000kg. The press is worn, an overhaul of the main bearings, the connecting rod bearings, the clutch and the brake must be carried out. Documentation available. On-site inspection is possible.
