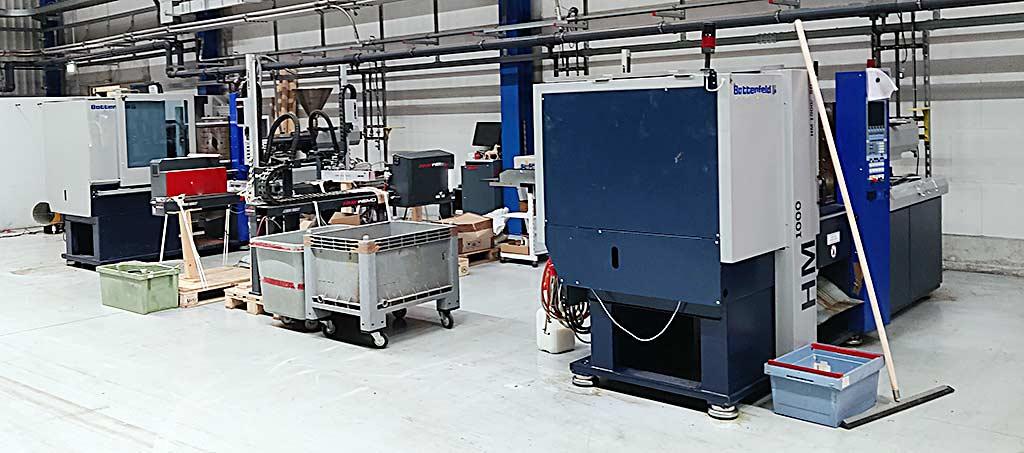

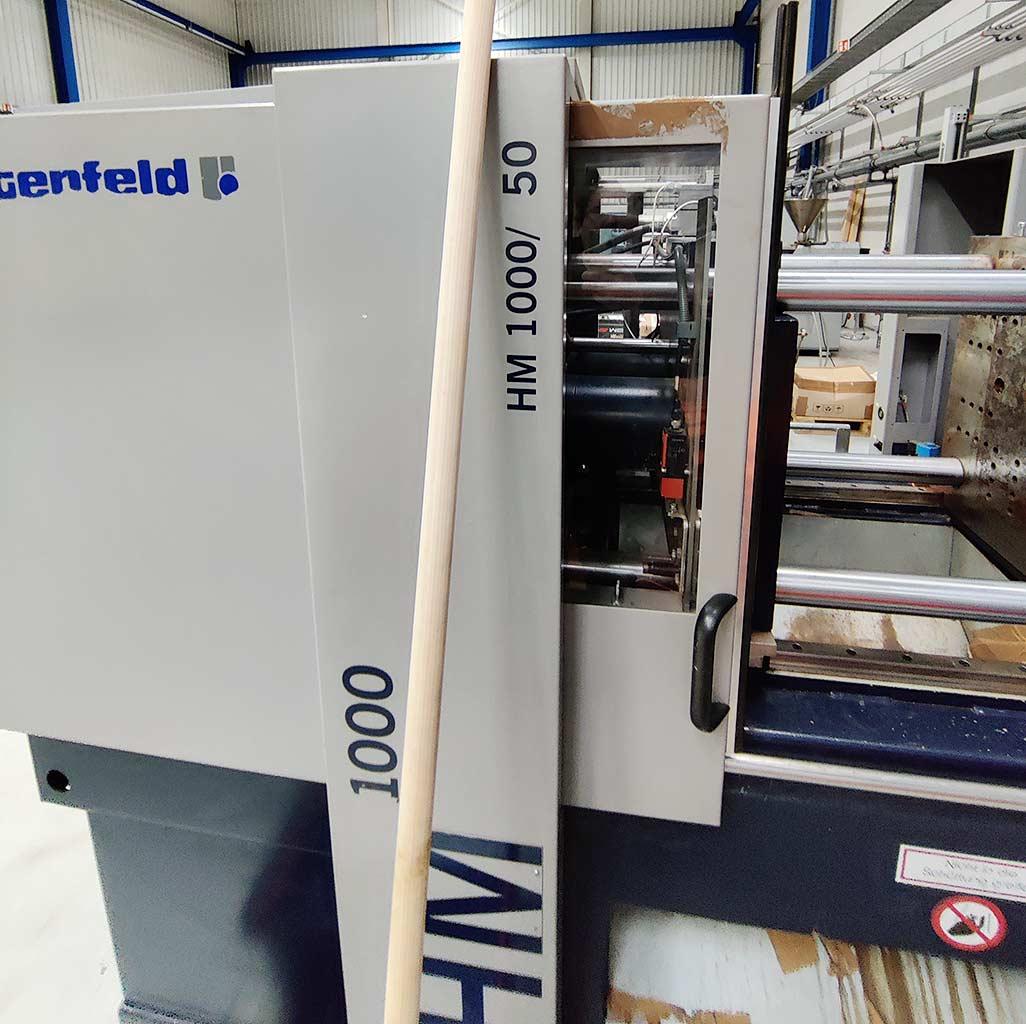

Injection Moulding Machine Battenfeld HM 1000/750
Specifications
Germany
Description
Two similar Battenfeld injection molding machines are available, each with a core pull. 1) Battenfeld HM 1000/750, year of manufacture: 2004, tie bars: 4, clamping force: 1000kN, opening stroke: 500mm, hole spacing extension: by 300mm, min. mold installation height: 250mm, tie bar spacing: 520mm/470mm, clamping table diameter: 125mm, ejector stroke: 150mm, heating capacity: 14kW, injection weight: 400g, screw diameter: 45mm, injection pressure: 2100bar, total output: 36kW, machine weight: approx. 4600kg. Handling included. 2) Battenfeld HM 1000/750, year of manufacture: 2008, tie bars: 4, clamping force: 1000kN, opening stroke: 500mm, min. mold installation height: 250mm, tie bar distance: 470mm/420mm, clamping table diameter: 125mm, ejector stroke: 150mm, heating power: 14kW, injection weight: 500g, screw diameter: 50mm, injection pressure: 1714bar, total power: 36kW, machine weight: approx. 4600kg. Documentation available. On-site inspection is possible.
