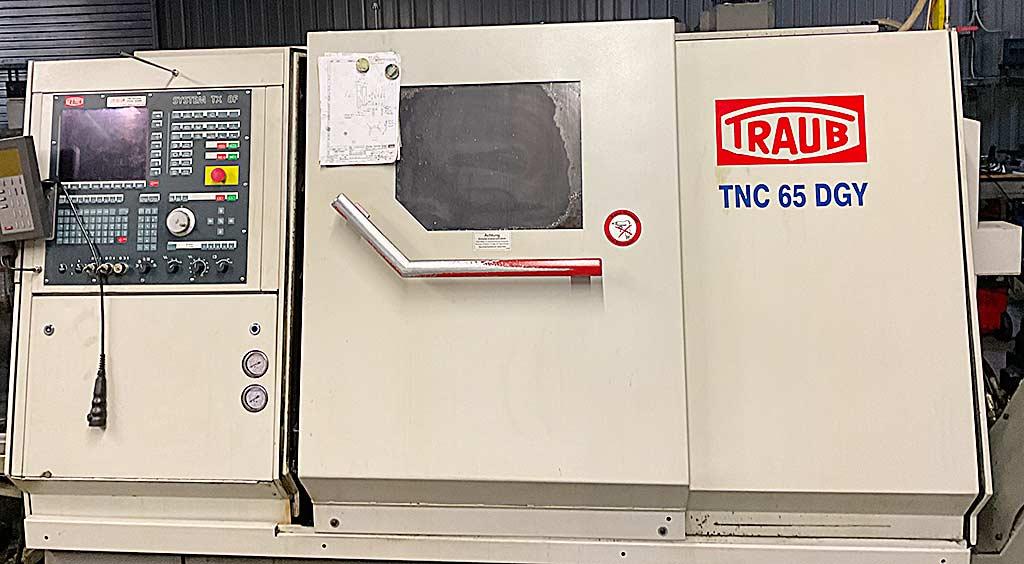

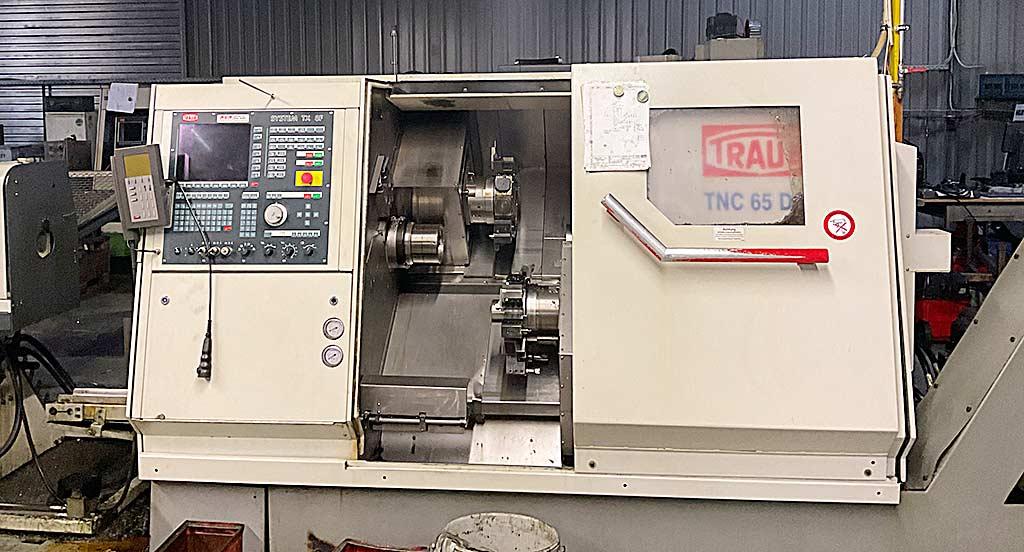

CNC Double Spindle Lathe Traub TNC 42/65 DGY

Germany

Description

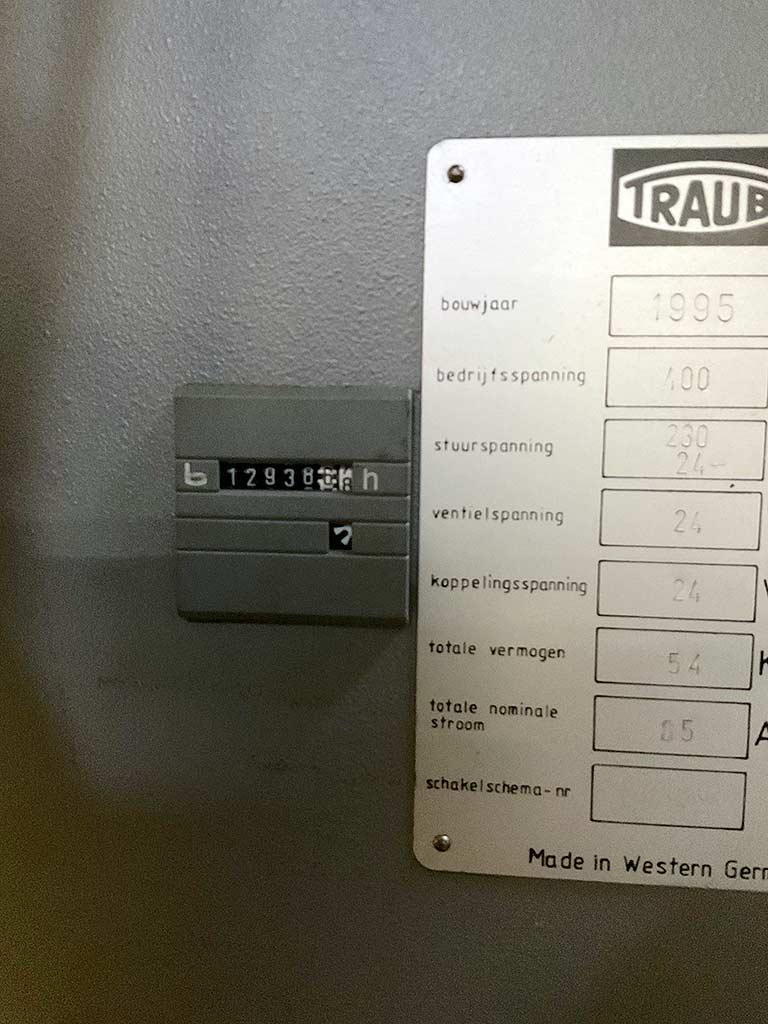

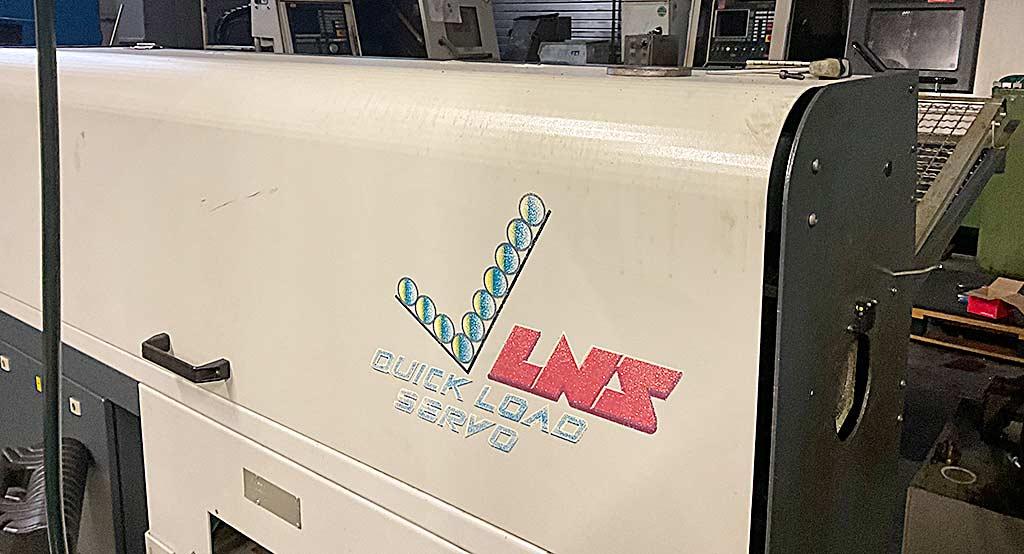

A CNC double-spindle lathe Traub overhauled in 2025 is available. Turning length: 450mm, spindle clearance: 65mm, speed: 4000rpm, main spindle/counter spindle power: 18.5kW/11kW, tool positions: 10, driven tools: 10, hydraulic capacity: 150l, hydraulic pressure: 60bar, connected load: 39kW. Rapid traverse X1/X2: 15m/min, feed force: 5000N, feed path: 140mm. Rapid traverse Z1/Z2: 30m/min, feed force: 8000N, feed path: 450mm. Rapid traverse Y1: 6m/min, feed force: 8000N, feed path: +/-35mm. Machine dimensions X/Y/Z: approx. 4150mm/2000mm/1800mm, weight: approx. 4750kg, control: Traub System TX 8F, operating hours: 12938h. Including chip conveyor and bar loader LNS Quick Load. Documentation available. On-site inspection is possible.

Additional Details
