Laminating System Suchy klieverik tekatex
Specifications
Germany
Description

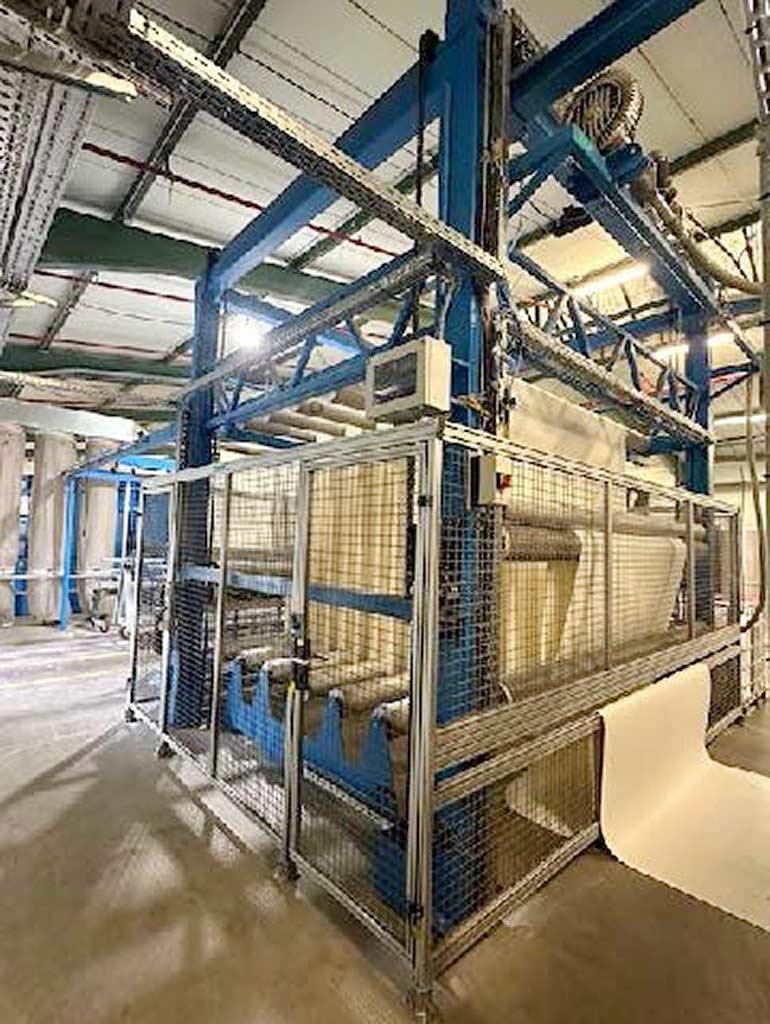

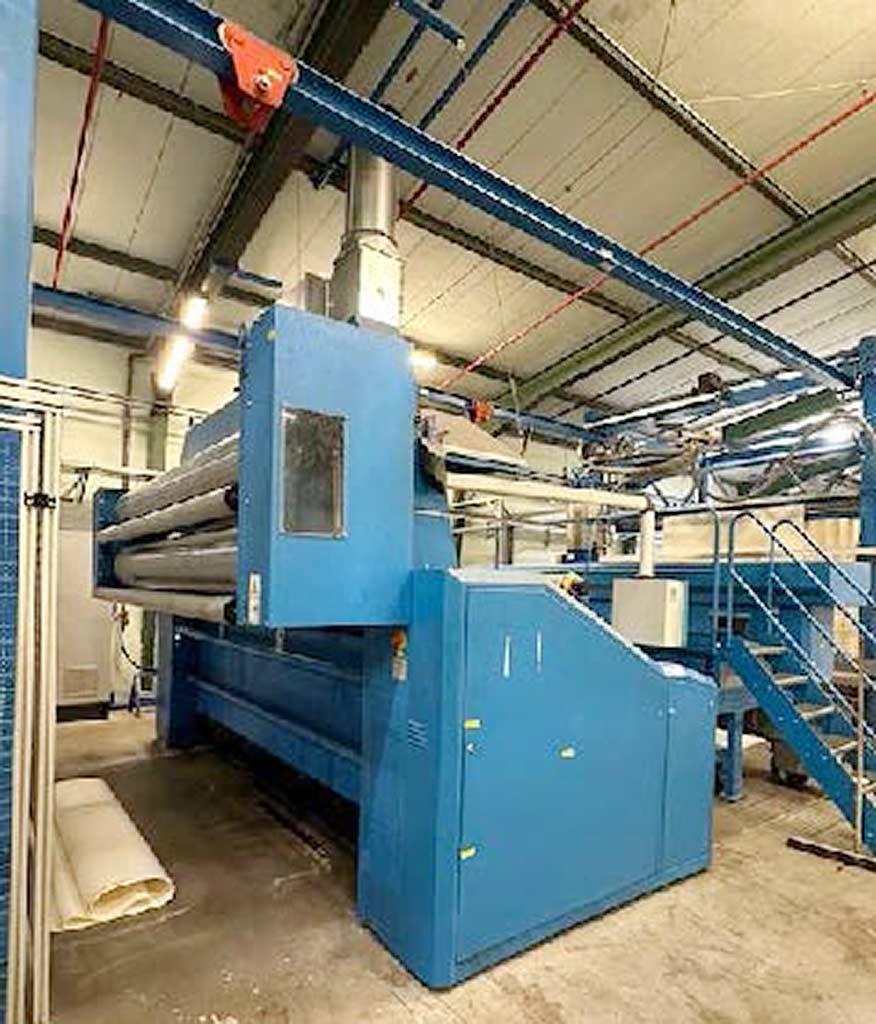

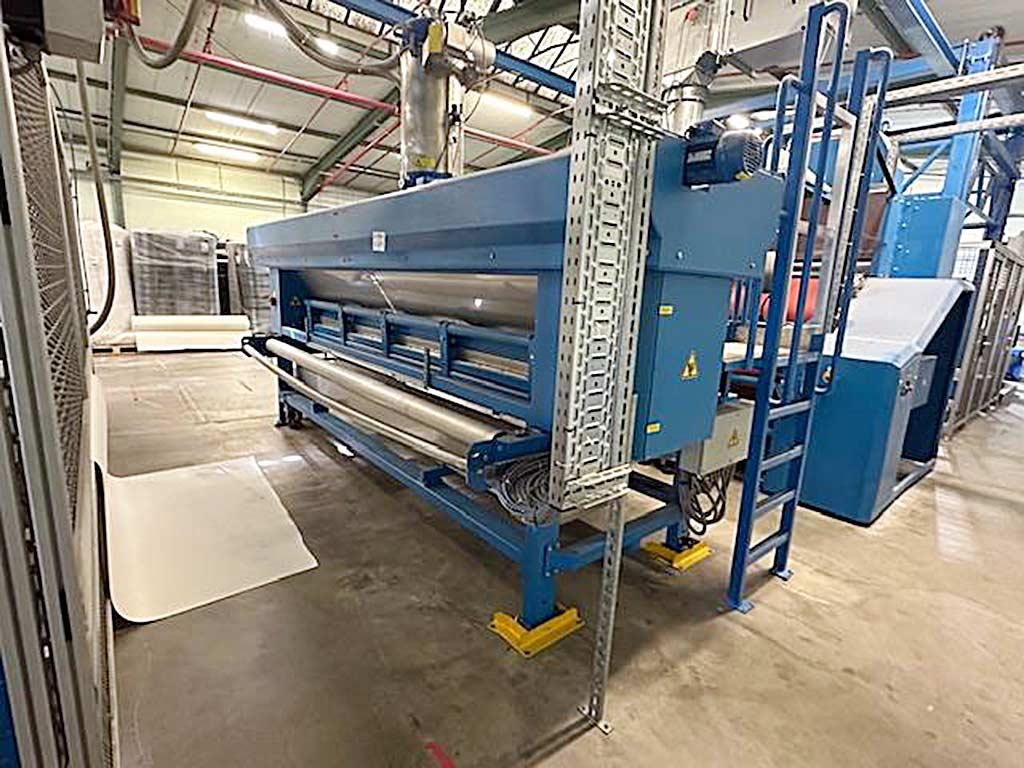

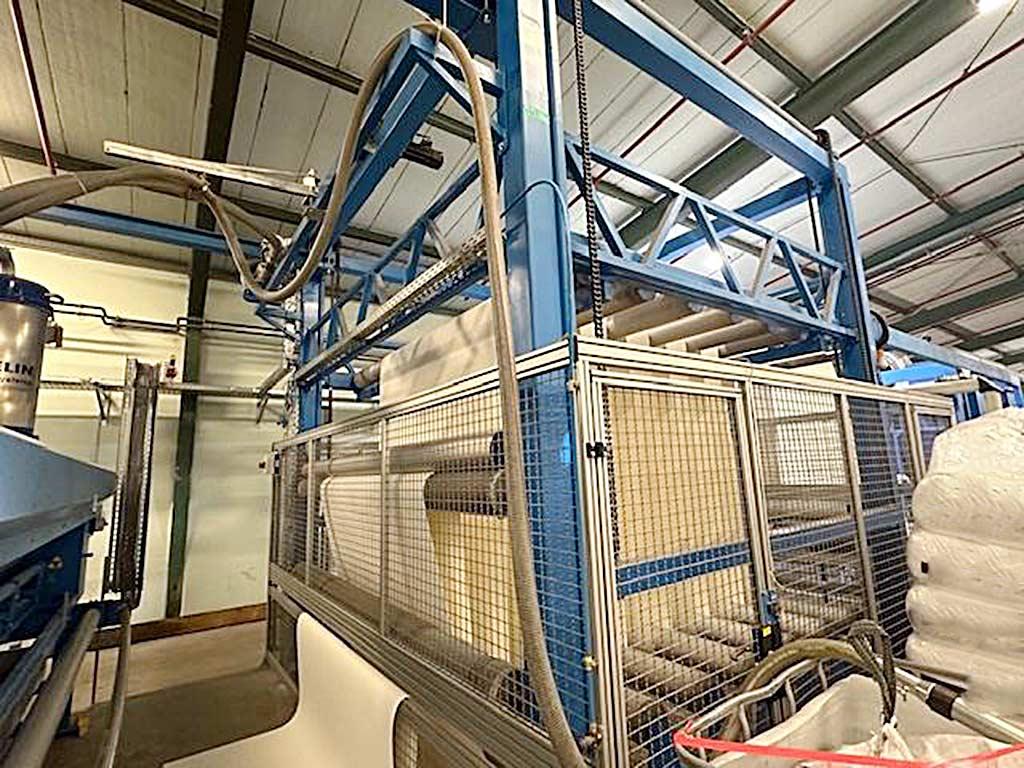

A complete laminating line is available. General data: Fabric weight range: 125g/m²-1800g/m², fabric width range: 1050mm-3200mm, upper roller width: 3400mm, creep speed: 2m/min, creep speed: 10m/min, production speed: 100m/min, total system length: 28100mm. 1) Fabric storage infeed and outfeed Suchy, year of construction: 2012, roller width: 3400mm, guide roller diameter: 200mm, max. fabric thickness: 20mm, max. fabric width: 3200mm, fabric storage: approx. 50m, operating speed: 60m/min, machine dimensions X/Y/Z: approx. 4200mm/5550mm/3600mm, weight: approx. 4250kg. 2) Powder control Klieverik, scattering roller width: 3500mm, scattering roller diameter: 188mm, max. scattering width: 3200mm, max. scattering capacity: 2000g/m/min, powder size range: 100µm-600µm, machine dimensions X/Y/Z: approx. 4750mm/600mm/700mm, weight: approx. 1100kg. 3) Laminating machine Klieverik, year of construction: 2012, printing blanket dimensions X/Y/Z: 7310mm/3500mm/7mm, heating power: 100kW, heating cylinder diameter: 760mm, thermal oil tank: 800l, max. working temperature: 240°C, heating time at 3m/min and 6m/min: approx. 2h/3h, machine dimensions X/Y/Z: approx. 2100mm/5000mm/2300mm, weight: approx. 9000kg. 4) Winder Tekatex WL-35, year of construction: 2022/2023, working width: 3500mm, machine dimensions X/Y: 4500mm/1050mm, weight: approx. 1300kg. Documentation available. On-site inspection is possible.
