CNC Punching Machine Amada/lki EMZ3610NT/MP Sheetcat 3015
Specifications
Germany
Description

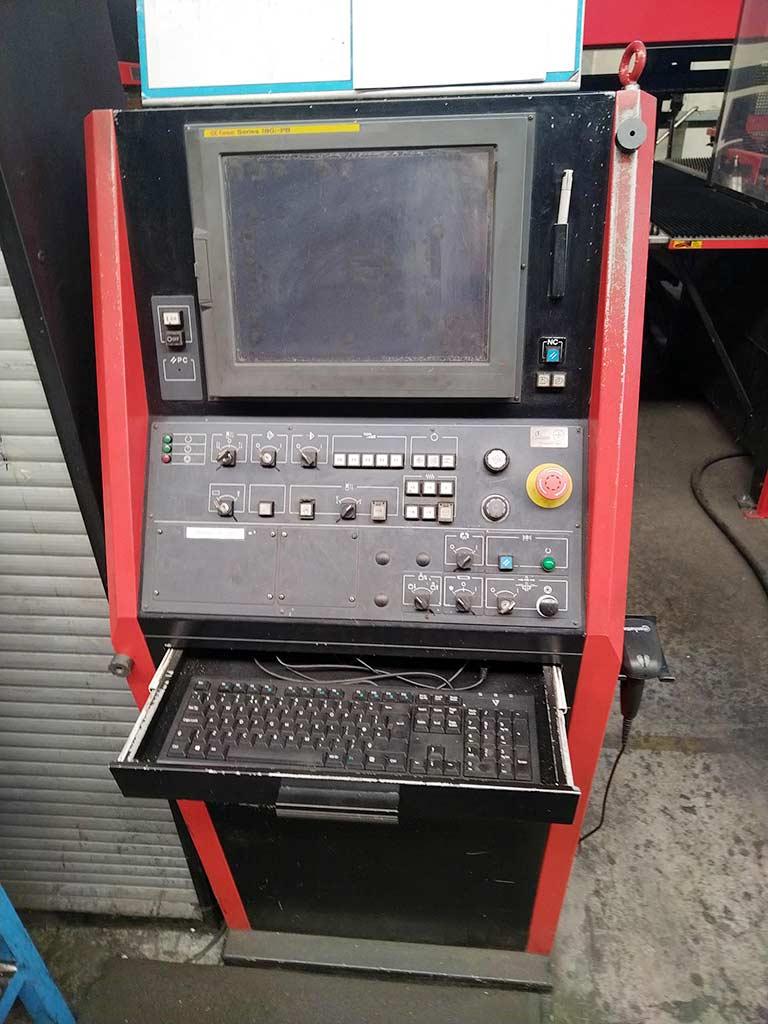

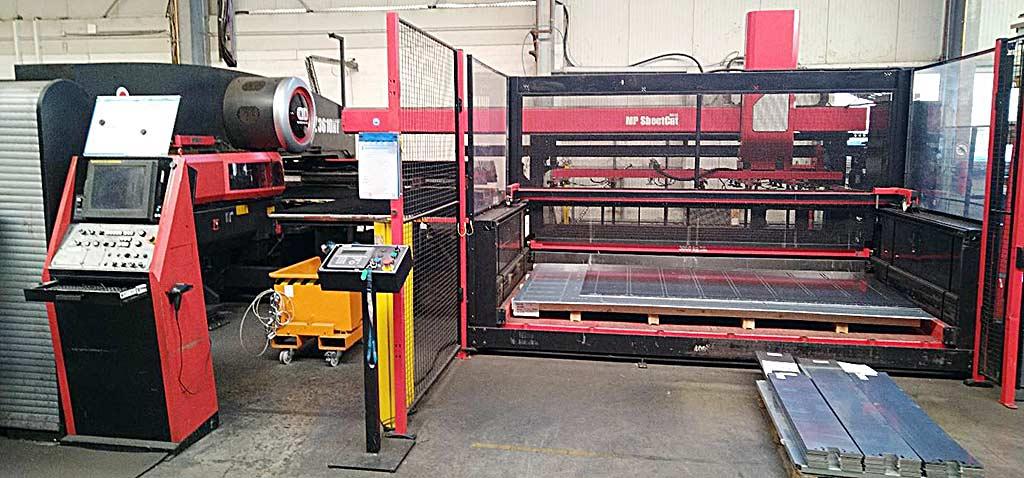

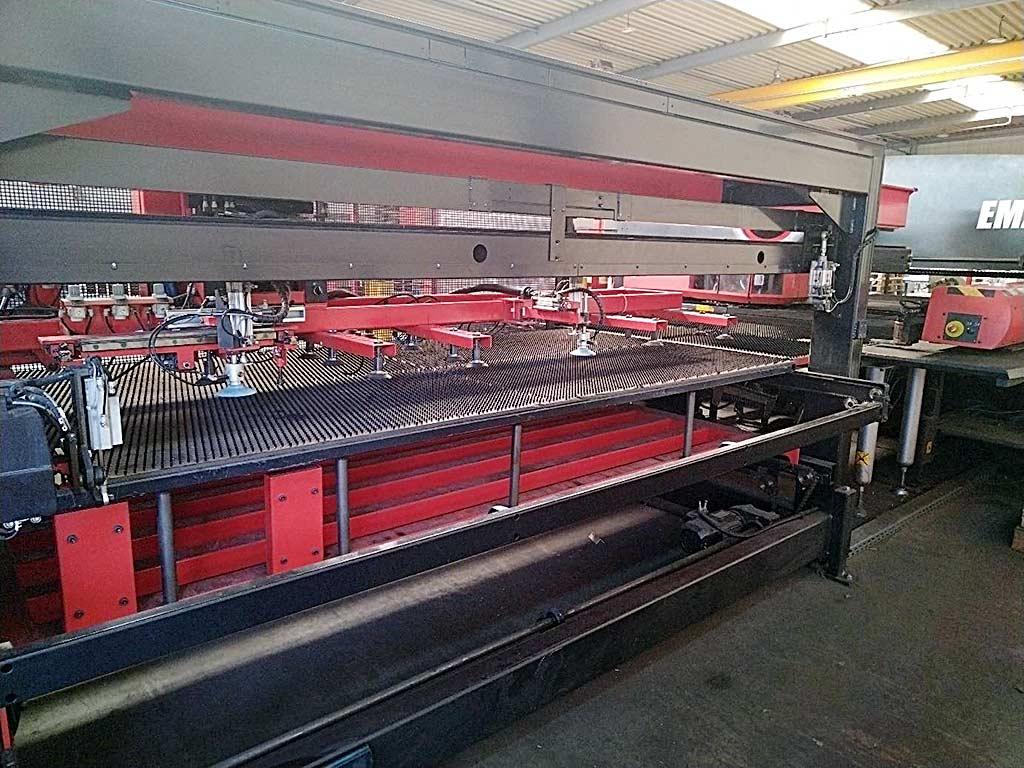

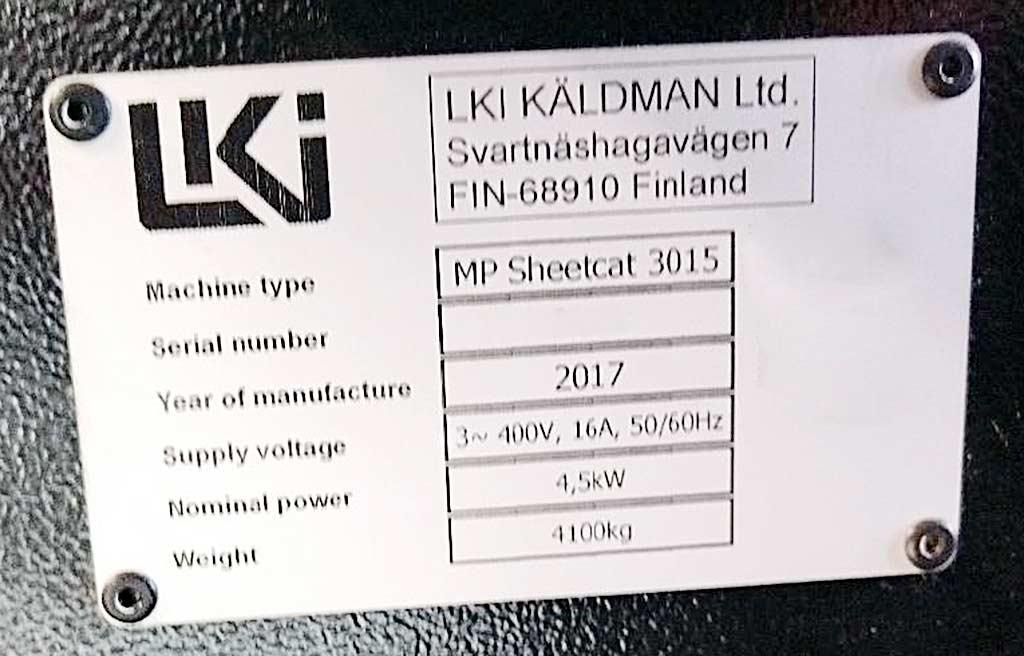

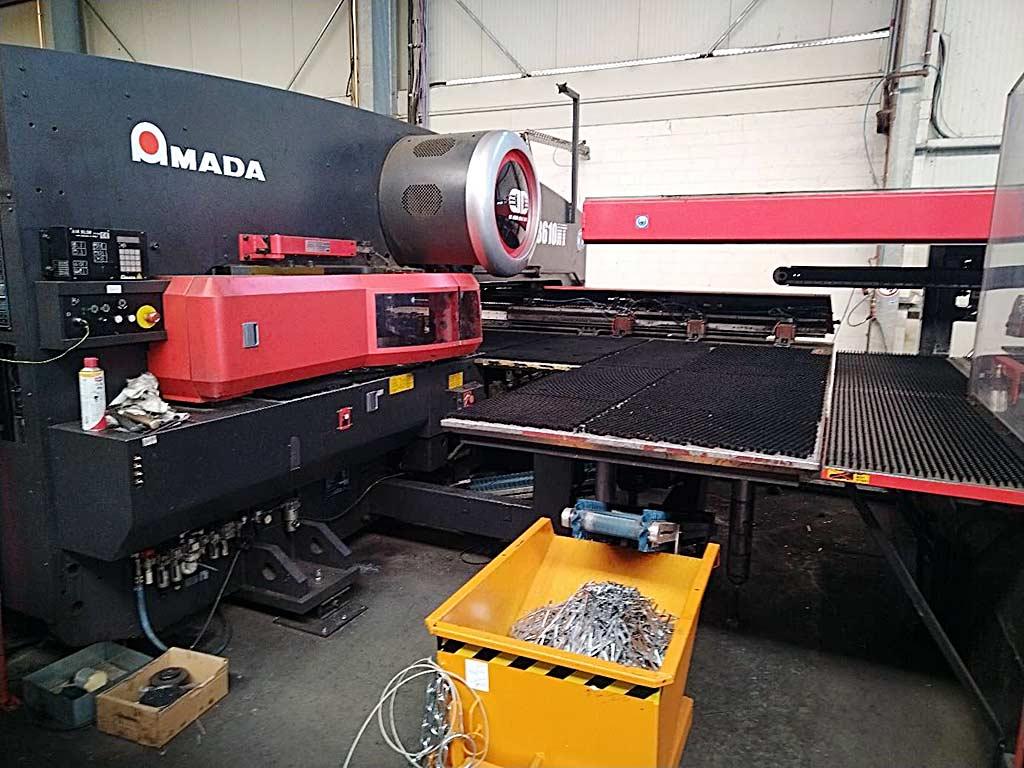

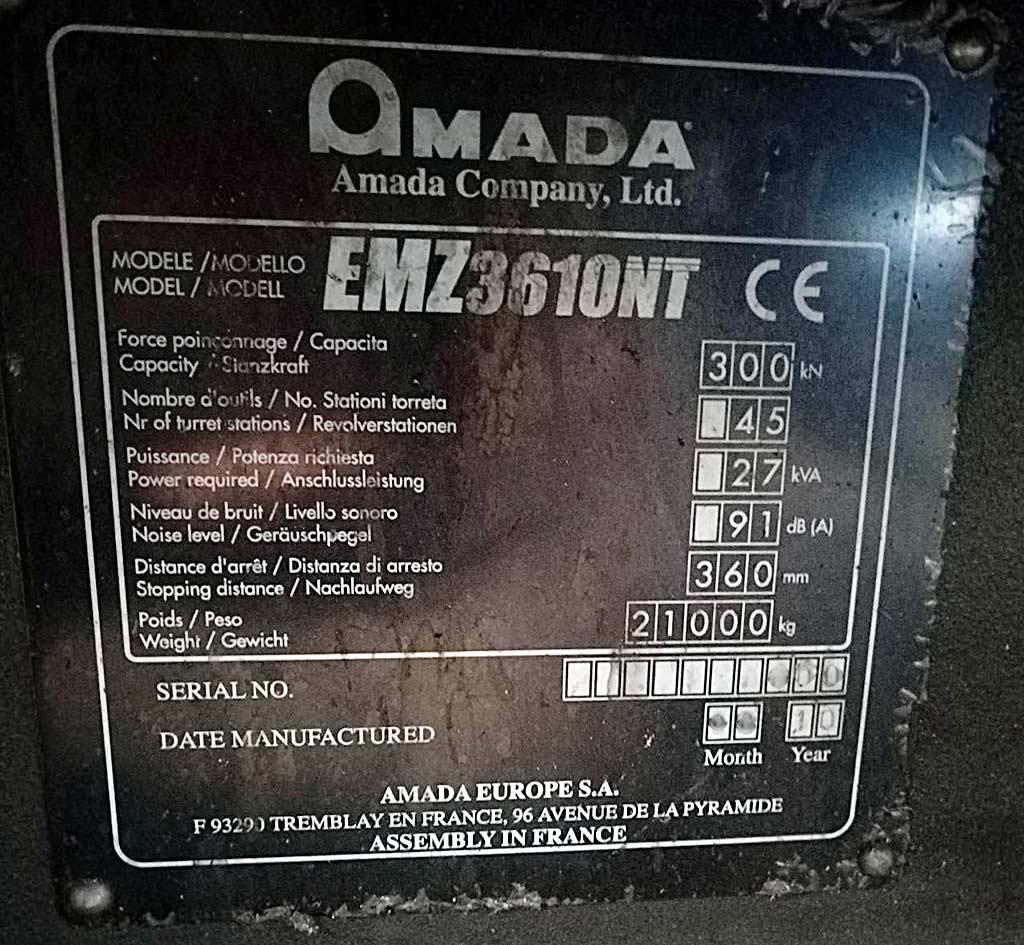

A CNC turret punching machine Amada and an automatic loading and unloading unit LKI Käldman (Amada) are available. 1) CNC turret punching machine Amada EMZ3610, year of manufacture: 2010, pressing force: 300kN, travel X/Y: 2500mm/1525mm, travel X/Y with repositioning: 5000mm/1525mm, max. material thickness: 4.5mm, max. table load: 160kg. Traversing speed X/Y: 100m/80m/min, axis speed: 128m/min, positioning accuracy: +/-0.1mm. Turret stations 45, auto-index stations: 2xB/2xC, turret speed: 30rpm, stroke rate: 1000 strokes/min, machine weight: approx. 21000kg. 2) Loading and unloading system LKI Käldman (Amada) MP Sheetcat 3015, year of manufacture: 2017, min. sheet dimensions X/Y: 1000mm/300mm, max. sheet dimensions X/Y: 3050mm/1525mm, sheet thickness: 0.8mm-6mm, max. sheet weight per pallet: 3000kg, suction cups: 34, machine dimensions X/Y/Z: approx. 8400mm/3600mm/3100mm. Documentation available. On-site inspection is possible.
