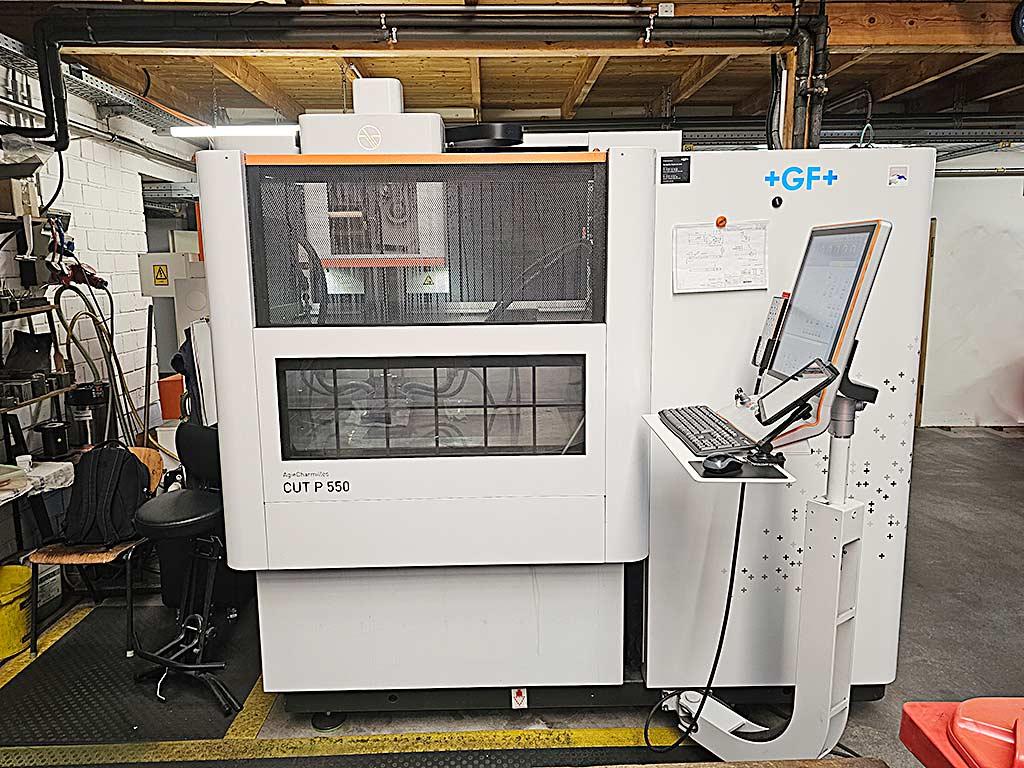

CNC EDM-Machine Gf Agie Charmilles Cut P 550
Specifications
Germany
Description

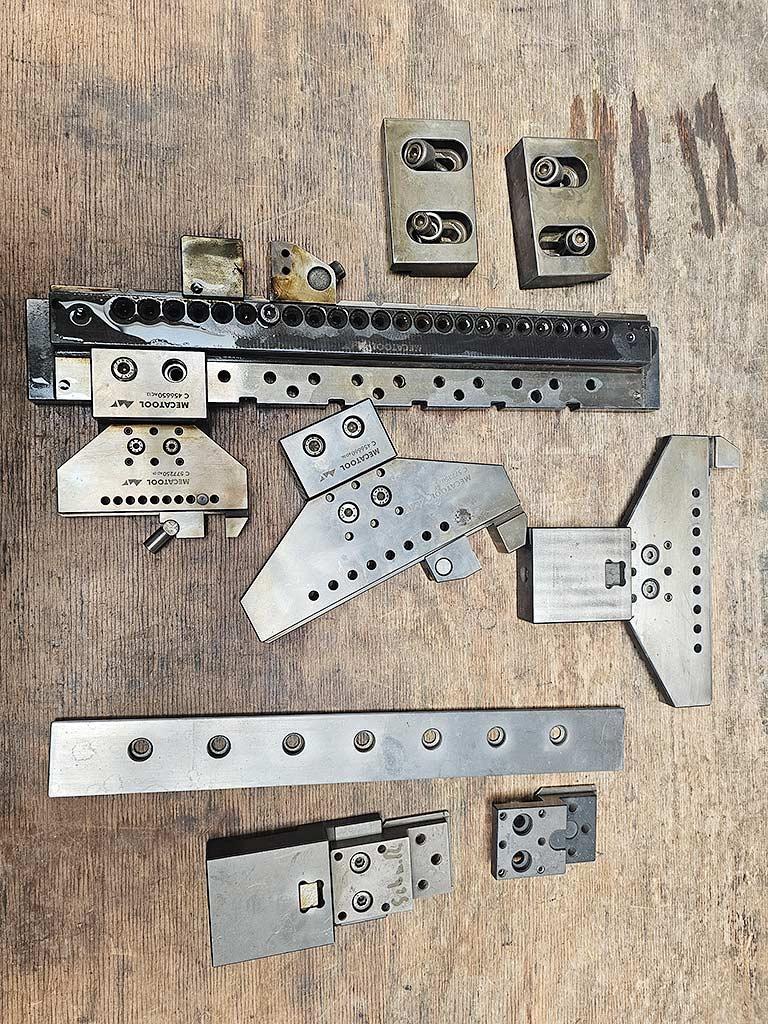

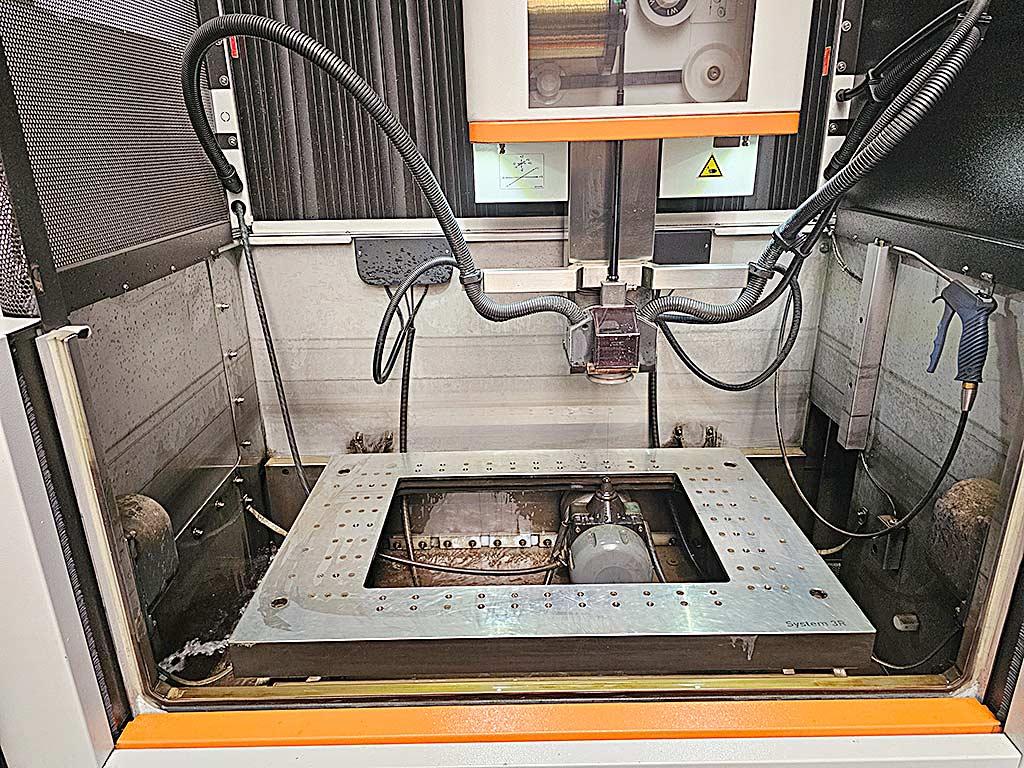

Traverse path X/Y/Z: 550mm/350mm/400mm, traverse path U/V: 550mm/350mm, table dimensions X/Y: 900mm/600mm, max. workpiece dimensions X/Y/Z front: 1000mm/700mm/400mm, max. workpiece dimensions X/Y/Z top: 1200mm/275mm/400mm, bottom table distance: 1000mm, max. workpiece weight: 1500kg, conical machining: +/-45°/400. Workpiece dimensions X/Y/Z top: 1200mm/275mm/400mm, bottom table distance: 1000mm, max. workpiece weight: 1500kg, conical machining: +/-45°/400. Wire diameter range: 0.15mm-0.33mm, surface finish: Ra 0.08µm, positioning accuracy: +/-2µm. Machine dimensions X/Y/Z: approx. 2600mm/2650mm/2350mm, weight: approx. 3300kg, dielectric capacity: 1300l, operating hours: 7420h. Including various accessories. Documentation available. On-site inspection is possible.
Additional Details
