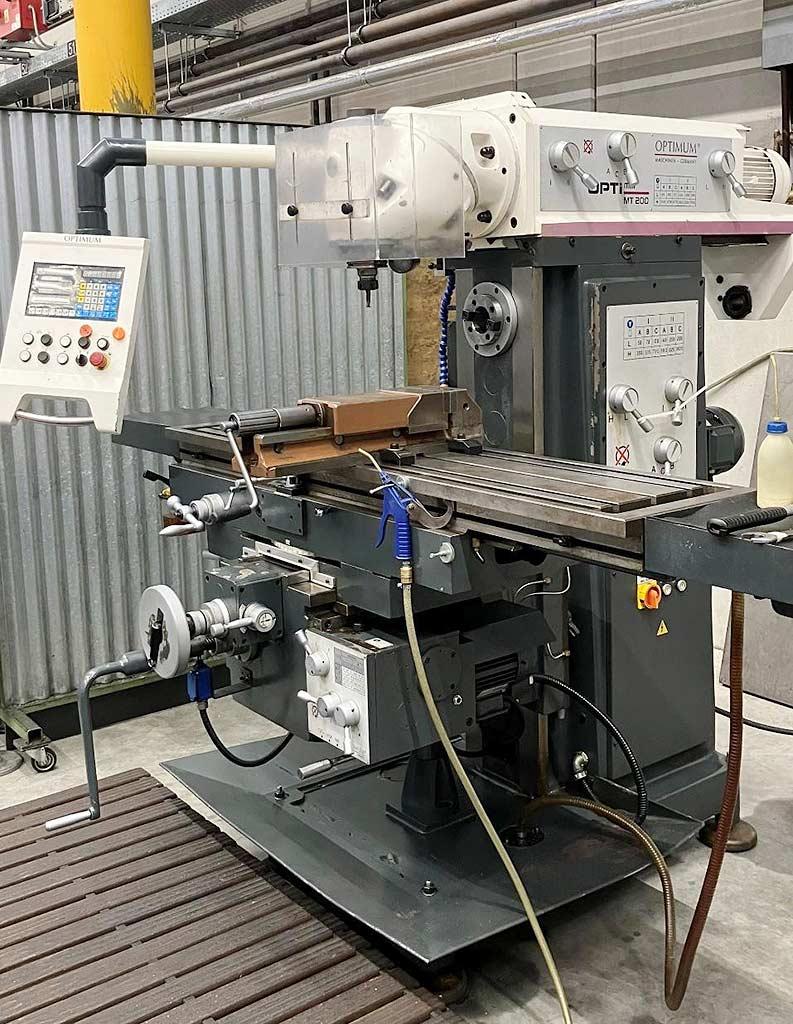

Universal Milling Machine Optimum MT200

Germany

Description

A conventional double-spindle universal milling machine Optimum is available. Drilling capacity in steel (S235JR): 30mm, continuous drilling capacity in steel (S235JR): 28mm, max. cutter head diameter: 100mm, max. end mill diameter: 20mm. Vertical spindle mount: ISO50, speed: 1750 rpm, spindle table distance: 140mm-540mm, swivel range X-Y/Z-X: 360°/90°. Horizontal spindle holder: ISO50, speed: 1800 rpm, spindle-table distance: 0mm-400mm. Table dimensions X/Y: 1600mm/360mm, max. table load: 450kg, travel X/Y/Z: 1290mm/280mm/400mm, feed X/Y/Z: 420mm/min/393mm/min/168mm/min, rapid traverse X/Y/Z: 1290mm/min/1205mm/min/513mm/min. Machine dimensions X/Y/Z: approx. 3350mm/2200mm/1950mm, weight: approx. 2300kg. Documentation available. On-site inspection is possible.

Additional Details
