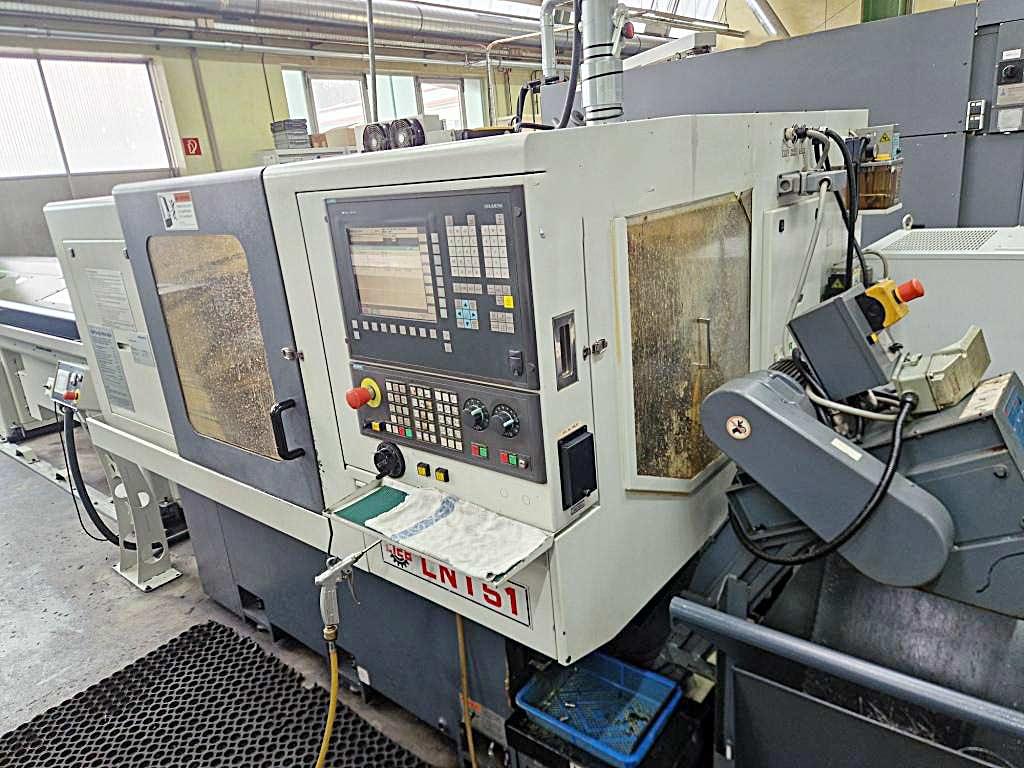

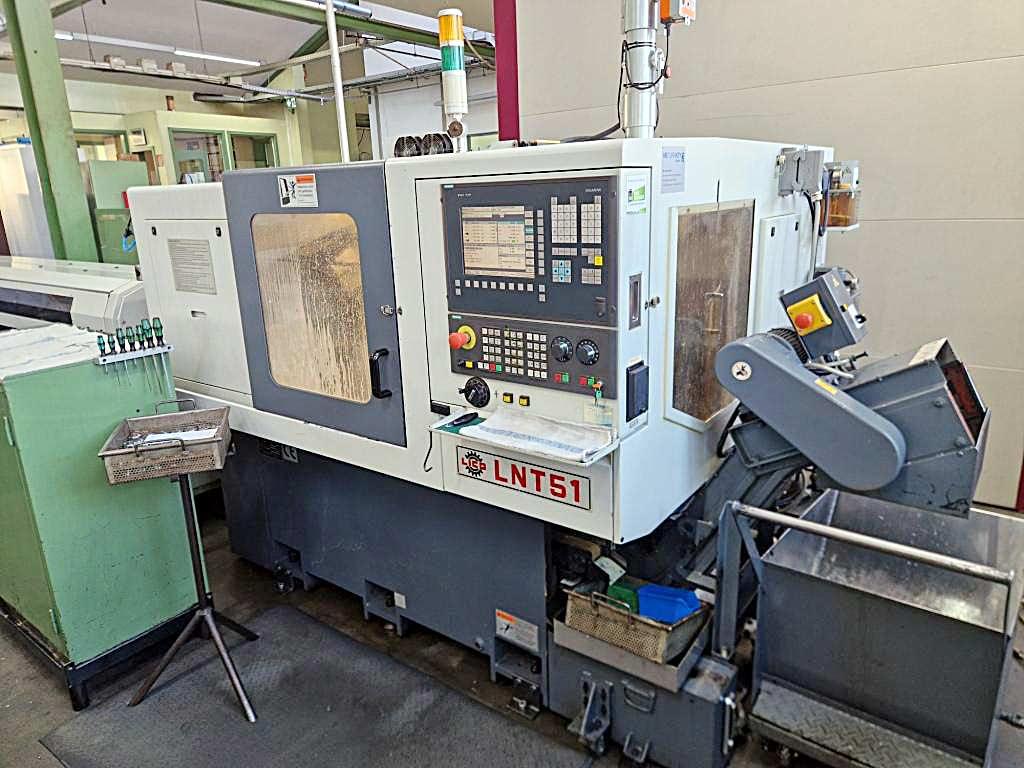

CNC Multi Slide Turning Center Lico LNT51S

Germany

Description

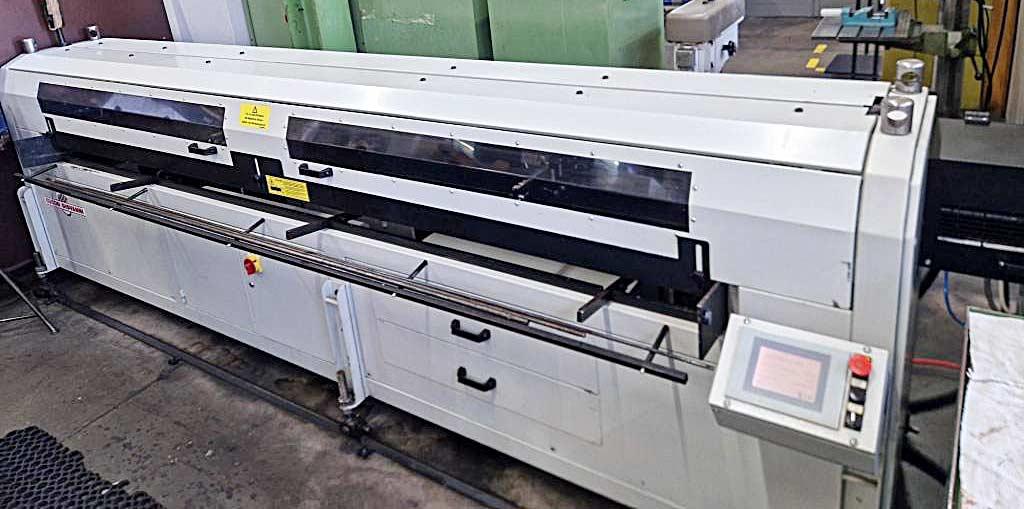

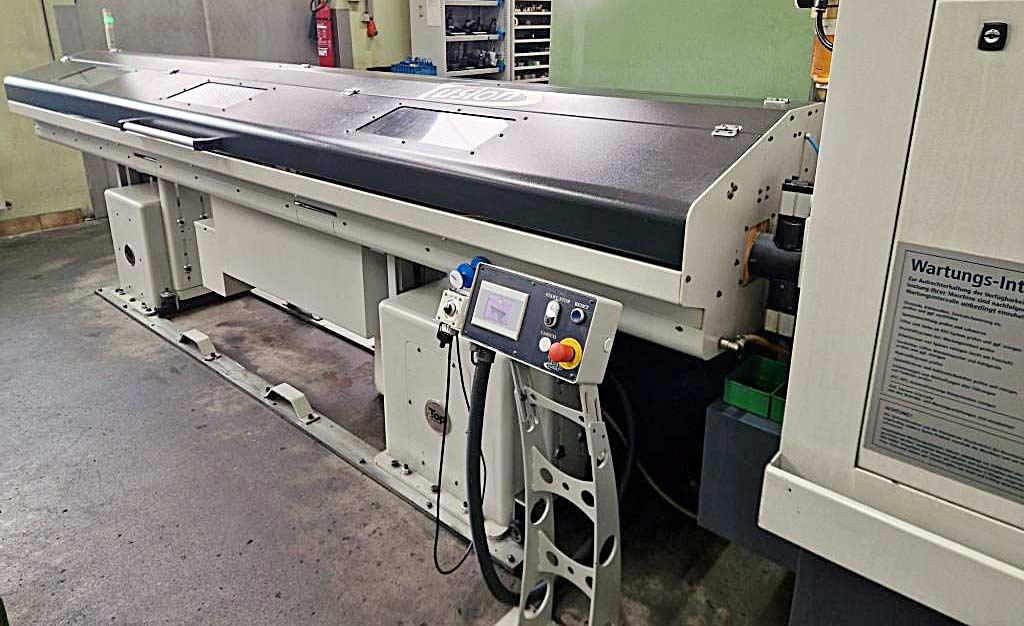

Two identical high-precision Lico CNC automatic lathes from the LNT S series are available. Bar capacity: 50.8mm, turning length: 120mm, spindle center height: 1000mm, collet type: F58, spindle power: 13.5kW, speed: 4500rpm. Travel X/Z: 70mm/115mm, rapid traverse X/Z: 15m/min/25m/min, feed: 5m/min, resolution: 0.001mm. Tool positions: 8, tool holder: VDI-30x55, tool travel X/Z: 160mm/420mm. Machine dimensions X/Y/Z: approx. 2600mm/1800mm/2000mm, weight: approx. 3000kg, control: Siemens Sinumerik 840D. Including bar loader Top Fusion 350 and Cucchi Giovanni DB EVO. Documentation available. On-site viewing is possible.
