Refrigerating plant Rehsler/hercules Eurokühler Aries AS 219

Germany

Description

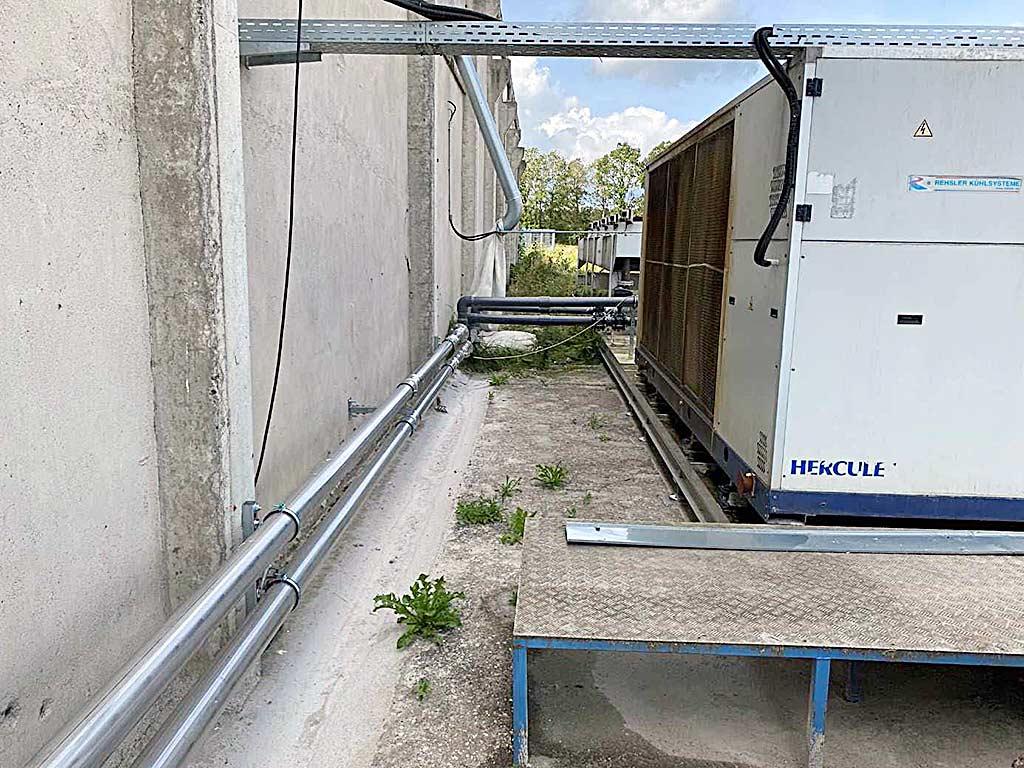

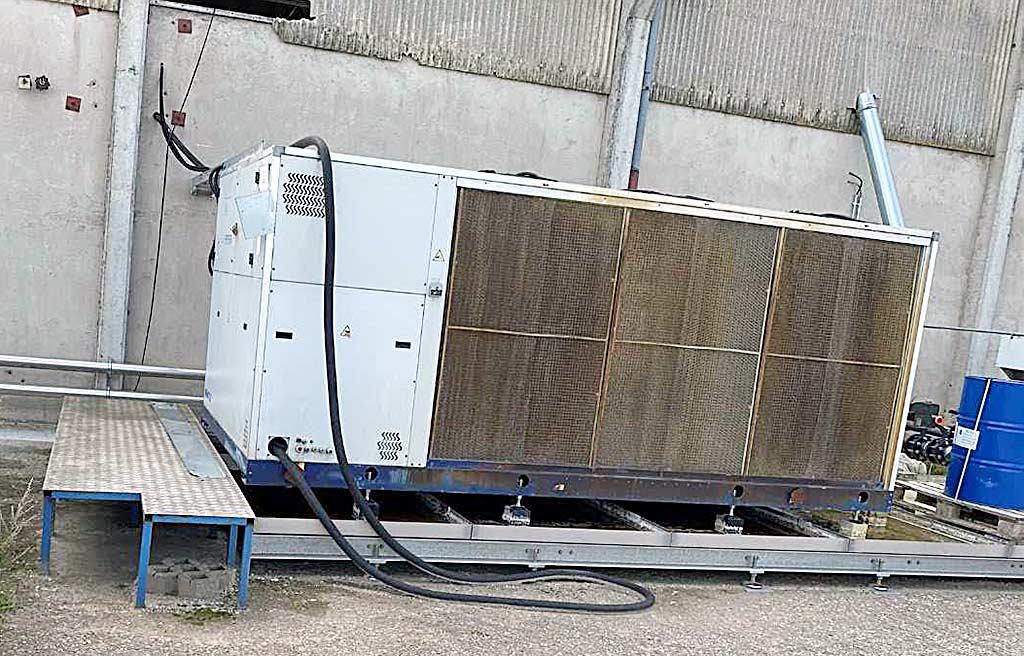

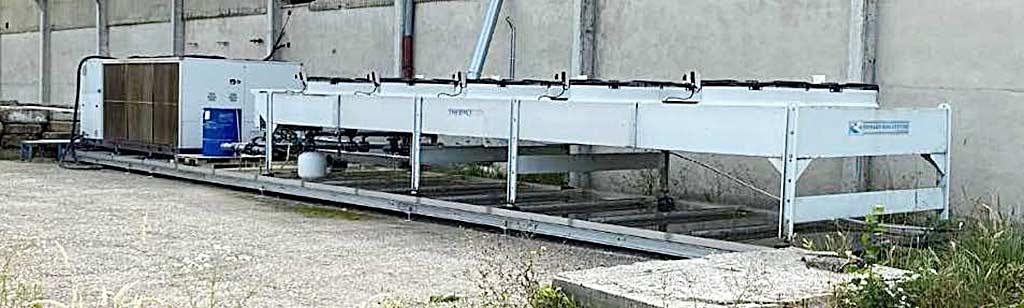

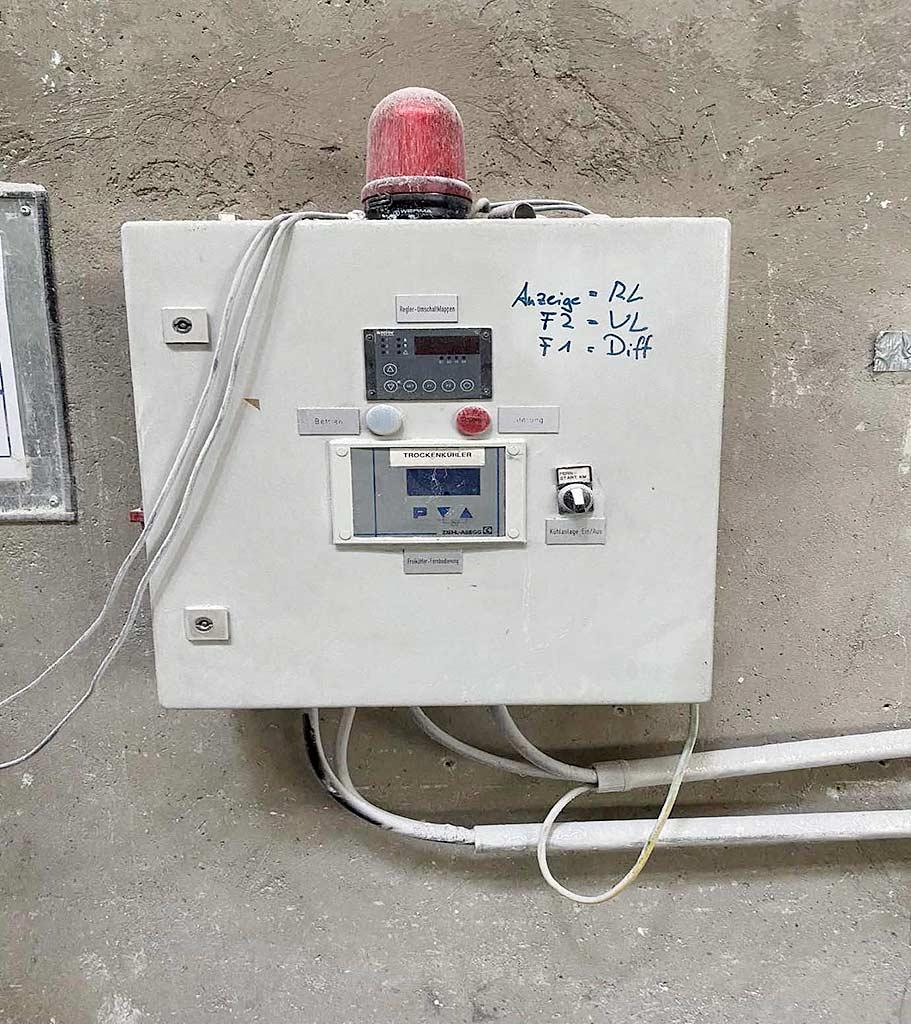

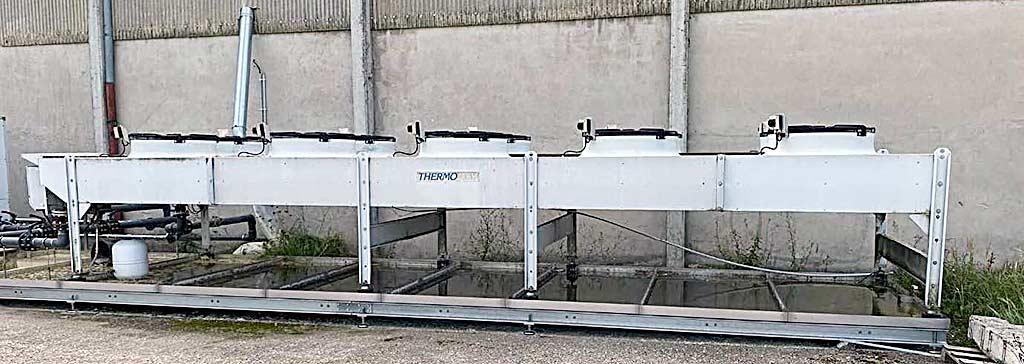

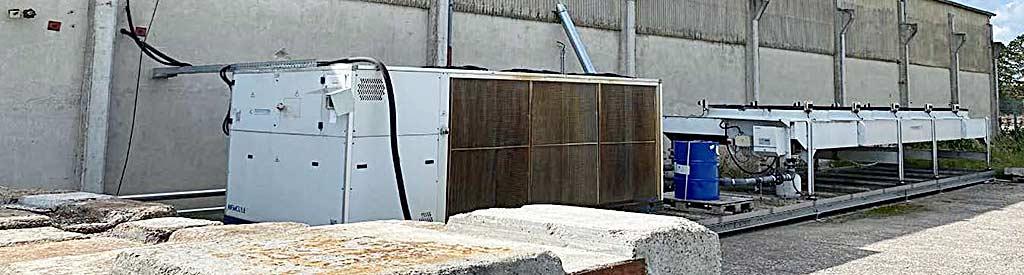

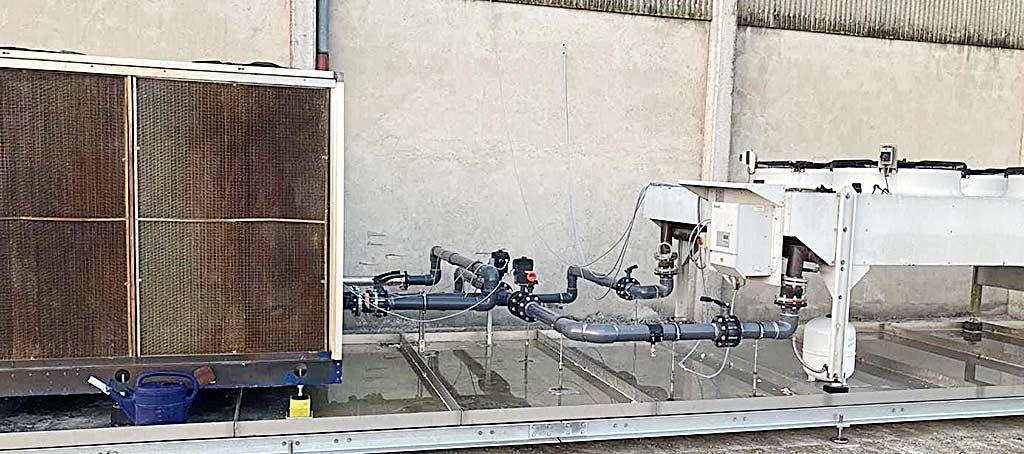

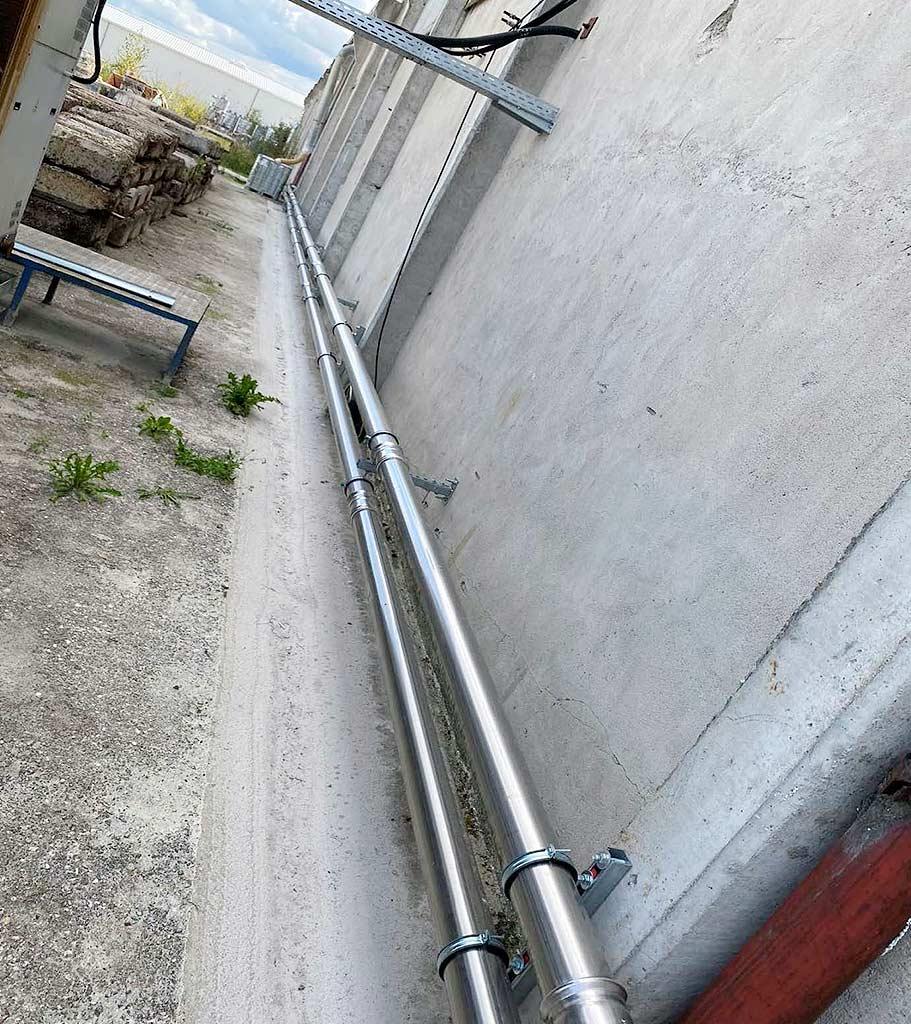

A refrigeration system including free cooler, drip tray with substructure, piping, connection lines and control system is available. 1) Eurocooler refrigeration system: Refrigerant: R407C, cooling capacity: 235kW, water circulation rate: 38m³/h, glycol content: 35%, compressor capacity: 80kW, fan capacity: 33280m³/h, condenser surface area: 10.89m². Machine dimensions X/Y/Z: approx. 2200mm/4600mm/2100mm, empty weight: approx. 3150kg. 2) Dry cooler (free cooler) GQ2590.BX, recooling capacity: 233kW, volume flow: 34.9m³/h, air volume: 129000m³/h, surface area: 1844m². Machine dimensions X/Y/Z: approx. 9300mm/2400mm/1600mm, empty weight: approx. 1750kg, working hours: over 70000h. The changeover valve of the compressor of the free cooler is defective. Documentation available. On-site inspection is possible.
