Silo and Conveyor System Abs I 42/42 - I 30/34

Germany

Description

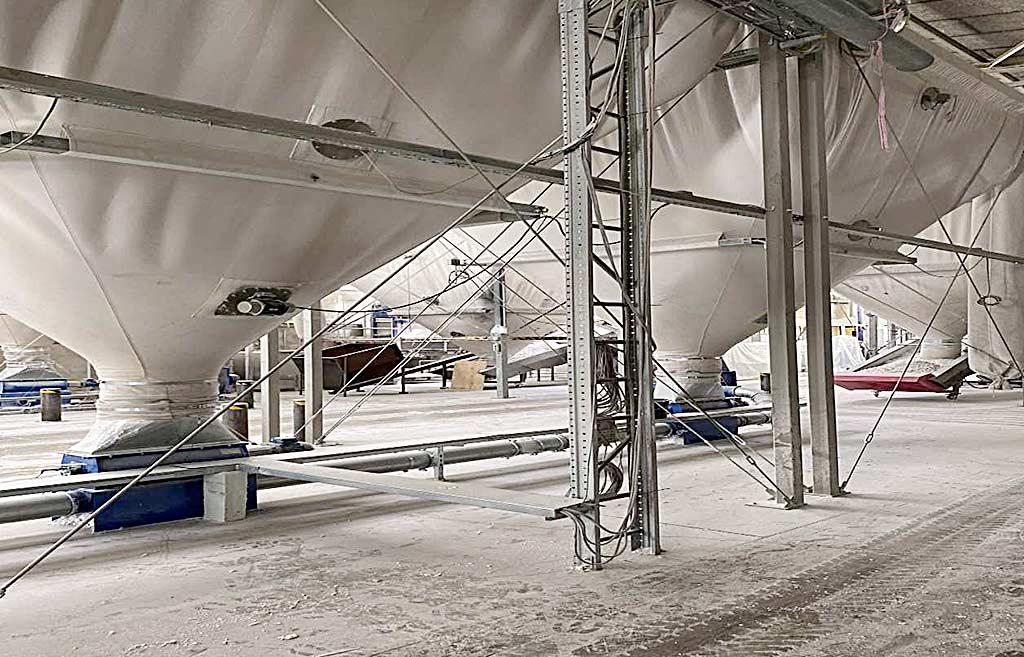

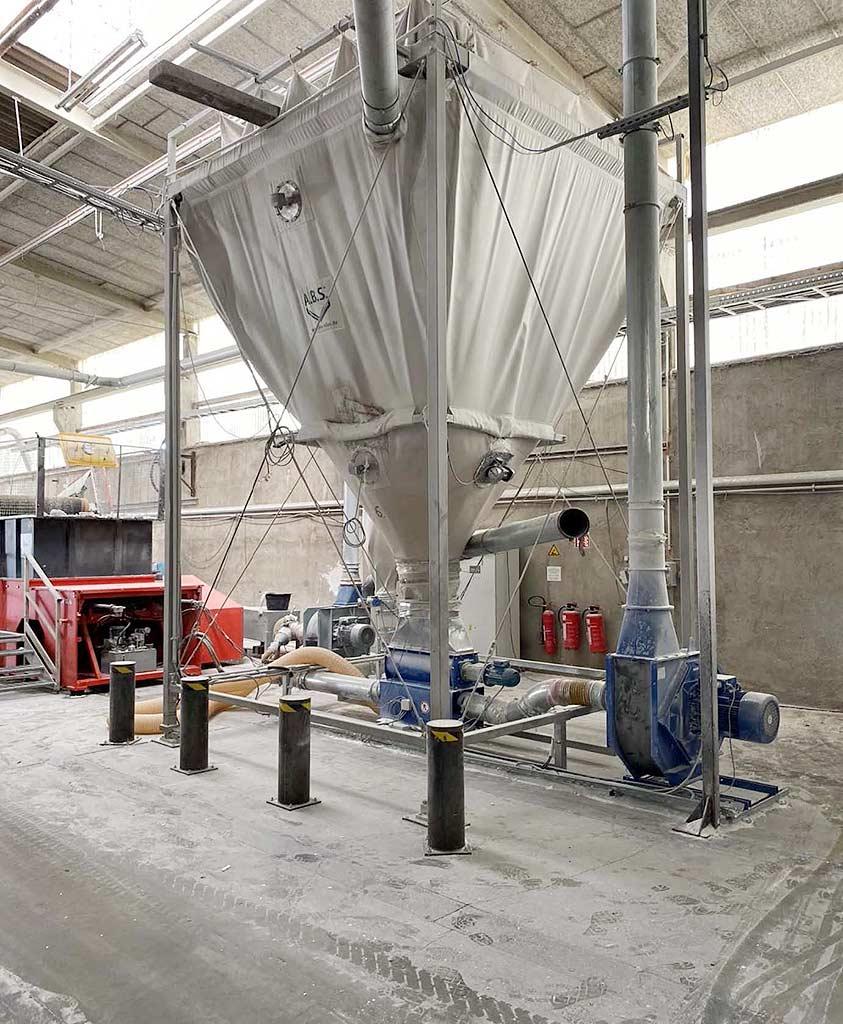

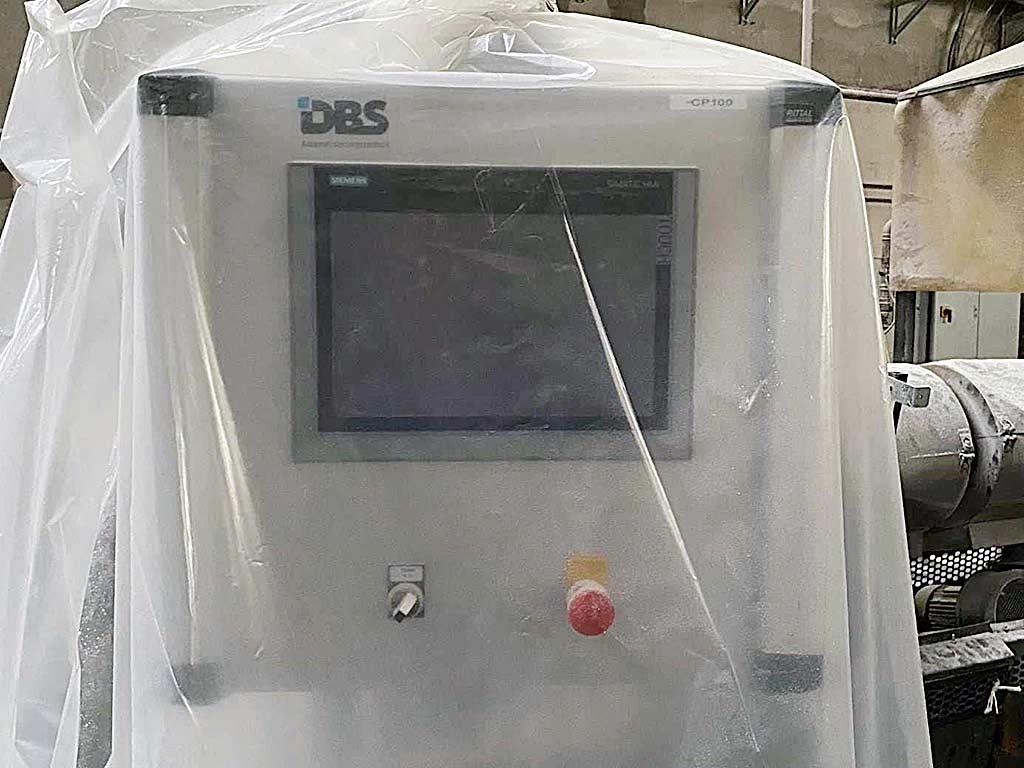

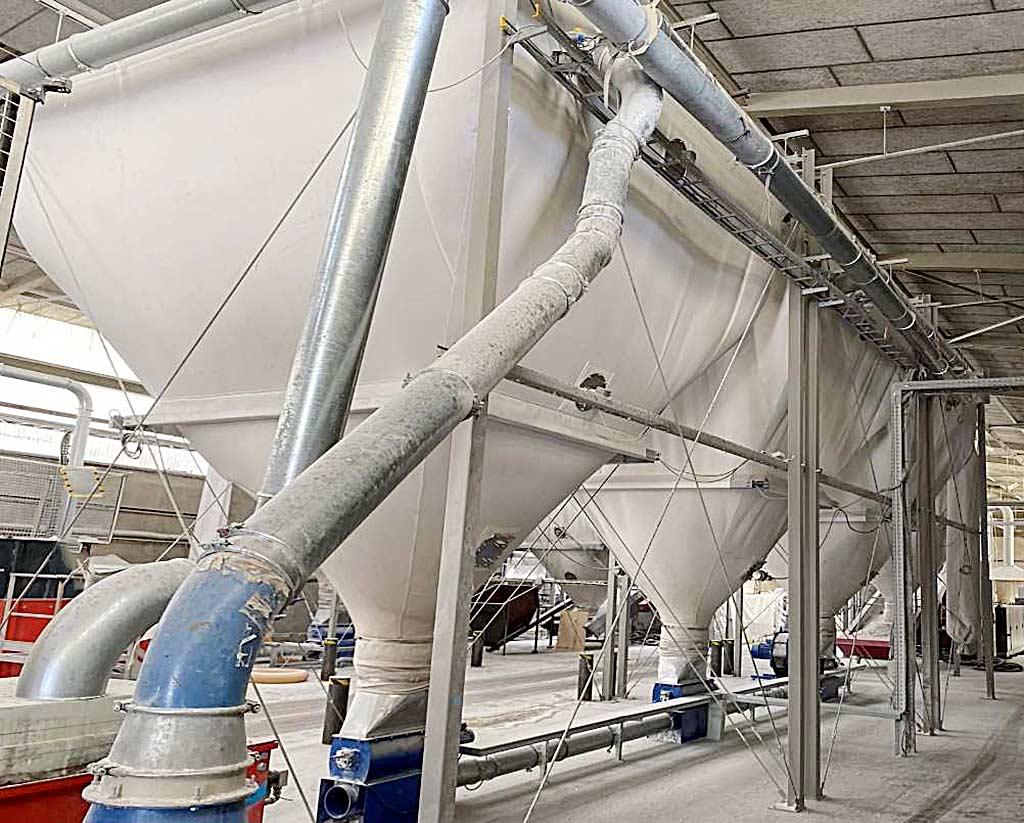

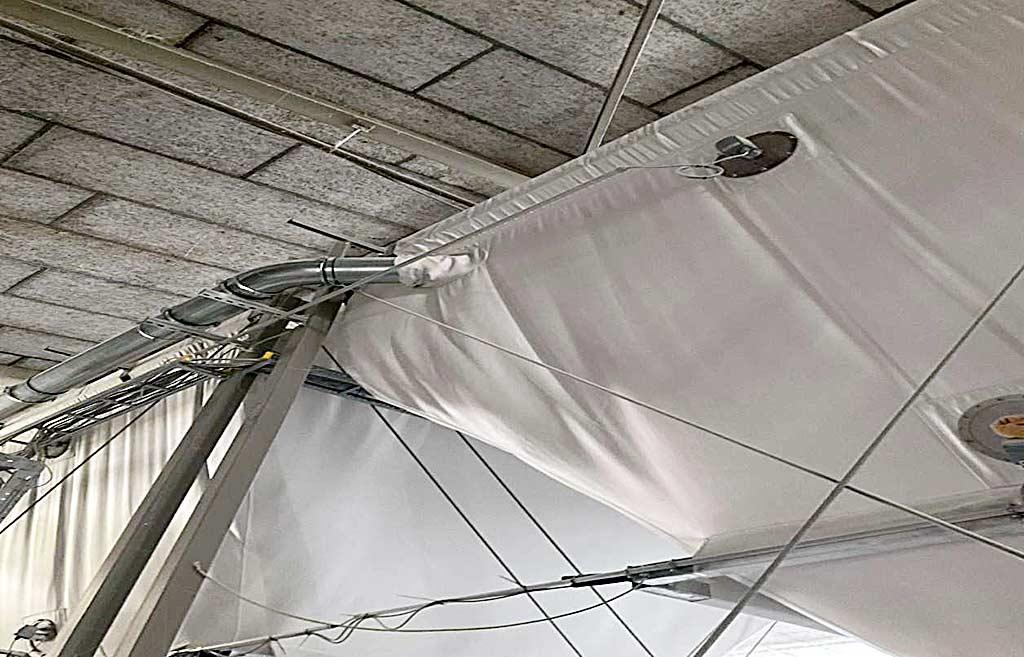

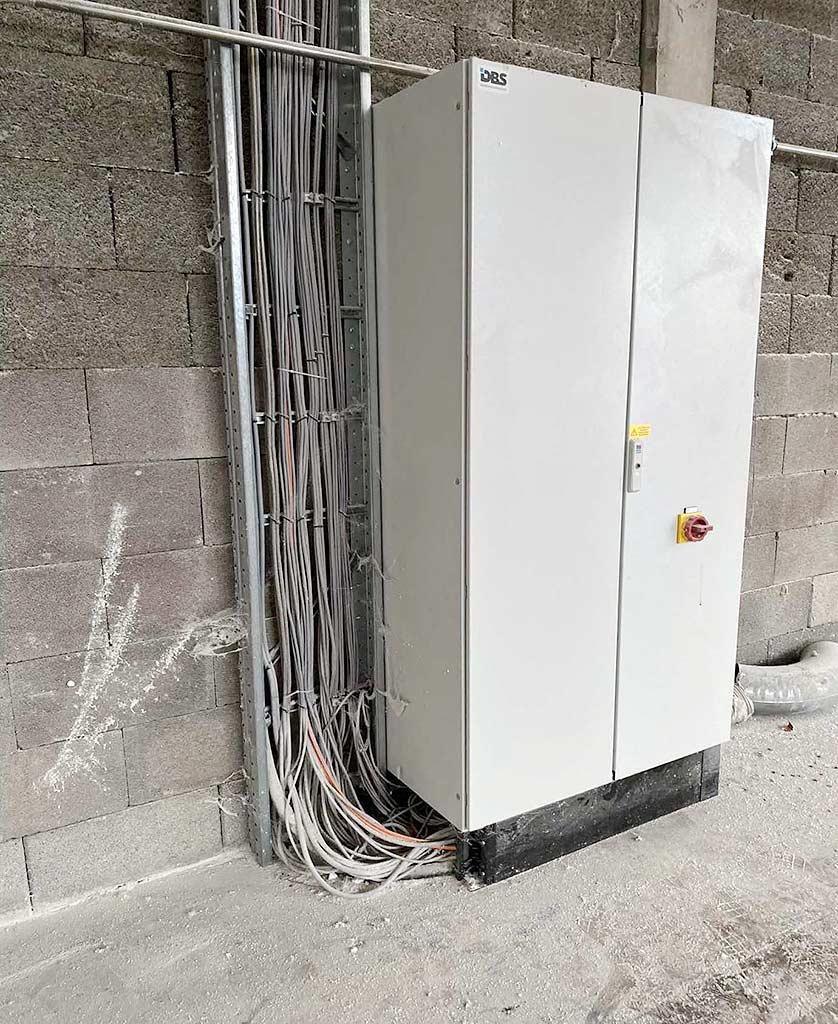

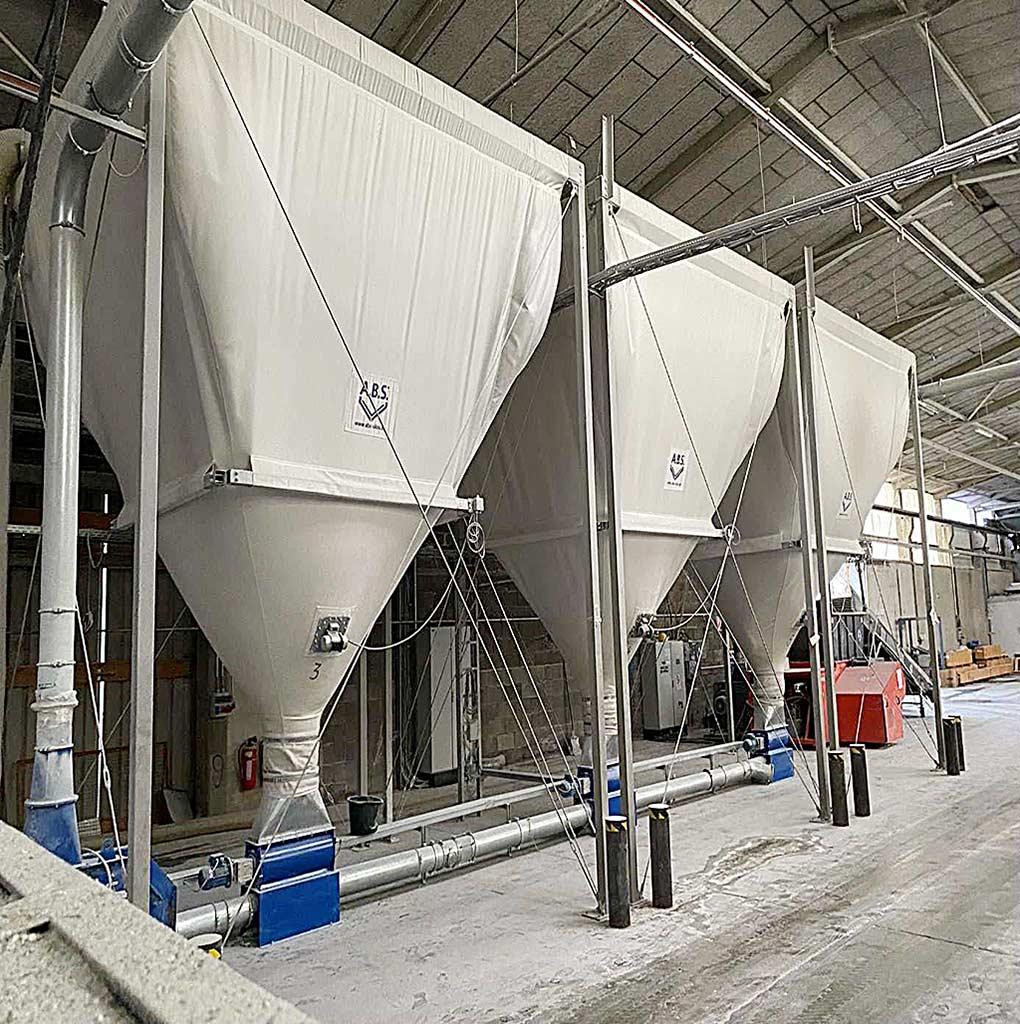

A silo system consisting of 3 storage silos, 1 weighing silo and conveying units is available. Material: PE/PP/PS/ABS/LDPE/HDPE/MDPE, storage silo volume: 32.6m³, weighing silo volume: 13.8m³. Storage silo capacity at 0.2t/m³: 6500kg, weighing silo capacity at 0.2t/m³: 2800kg. Storage silo dimensions X/Y/Z: 4200mm/4200mm/4200mm, weighing silo dimensions X/Y/Z: 3000mm/3000mm/3400mm, control: Siemens S7. Including steel frames, gate valves, full and demand indicators, filter bags, filling line, conveying and dosing system, rotary valves and gate valves. Documentation available. On-site inspection is possible.
