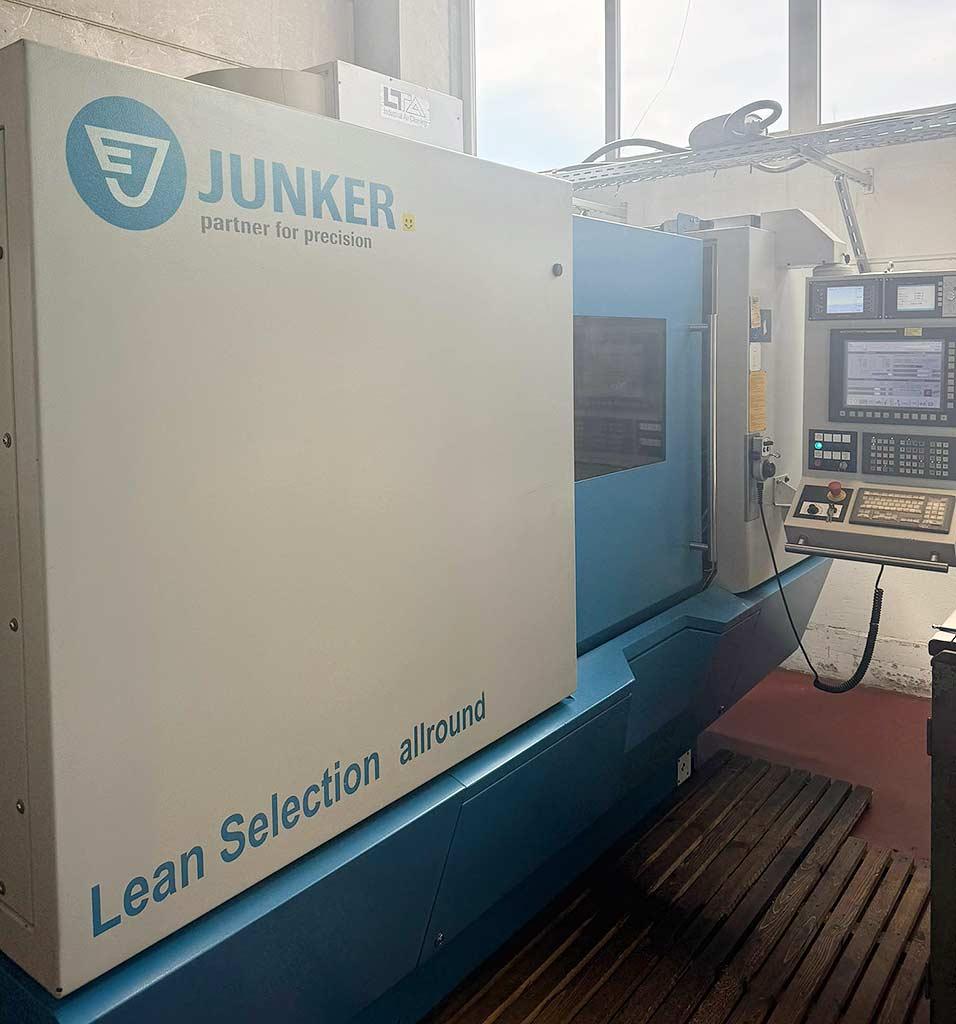

CNC Circular Grinding Machine Junker Lean Selection Allround

Germany

Description

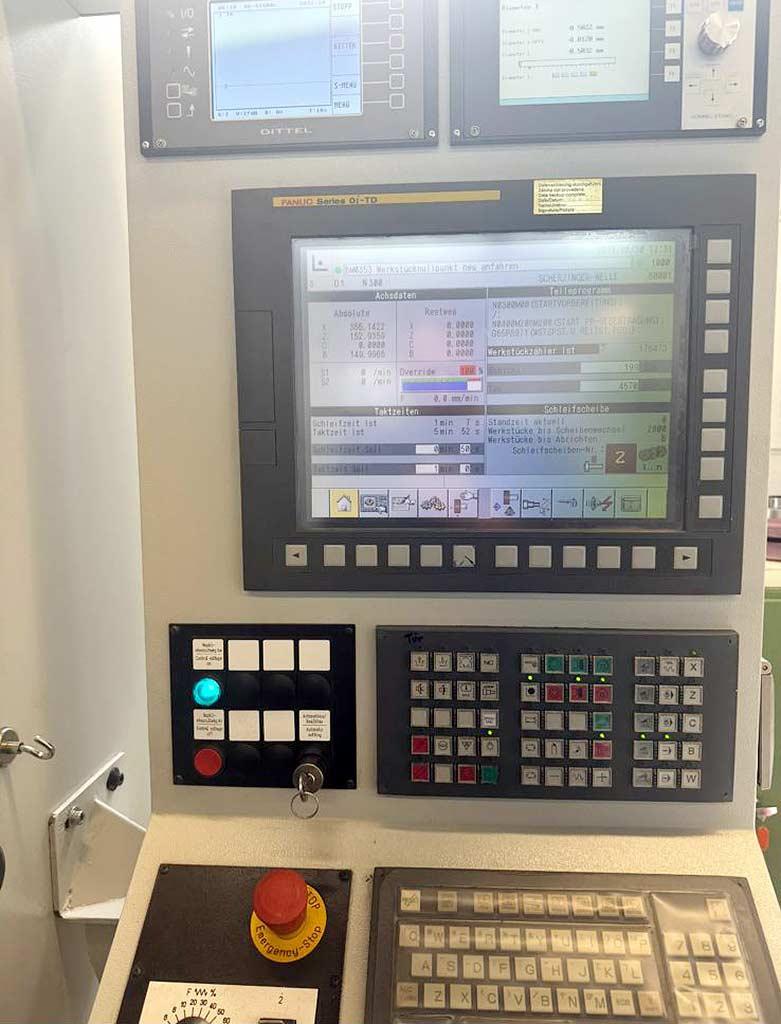

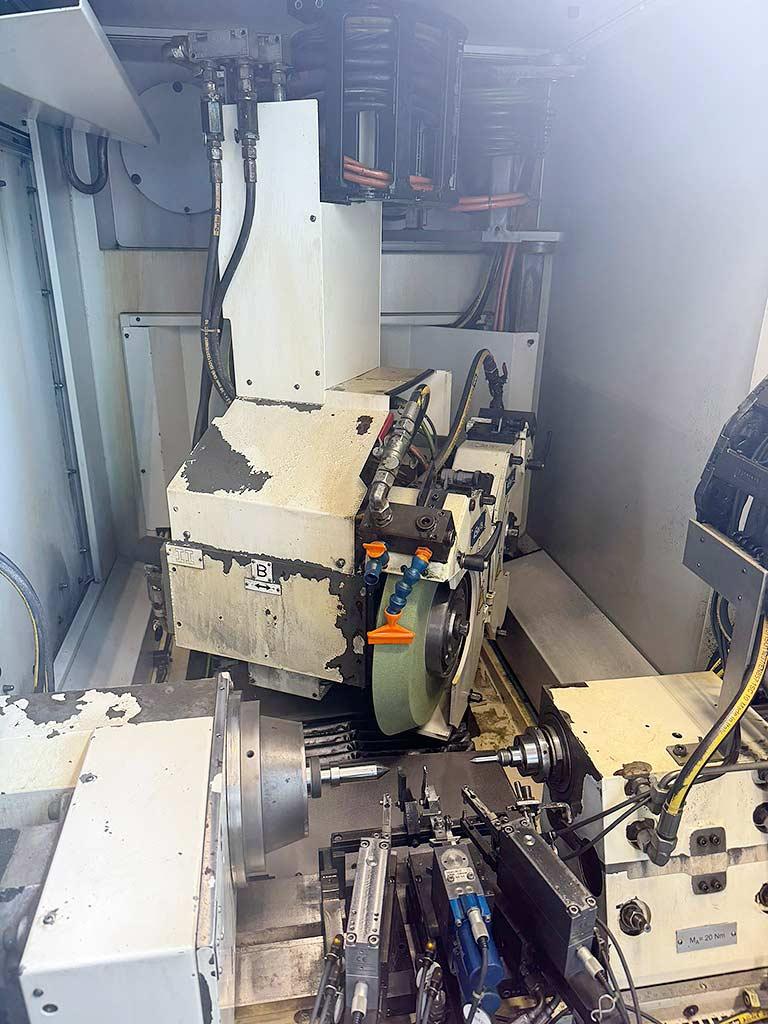

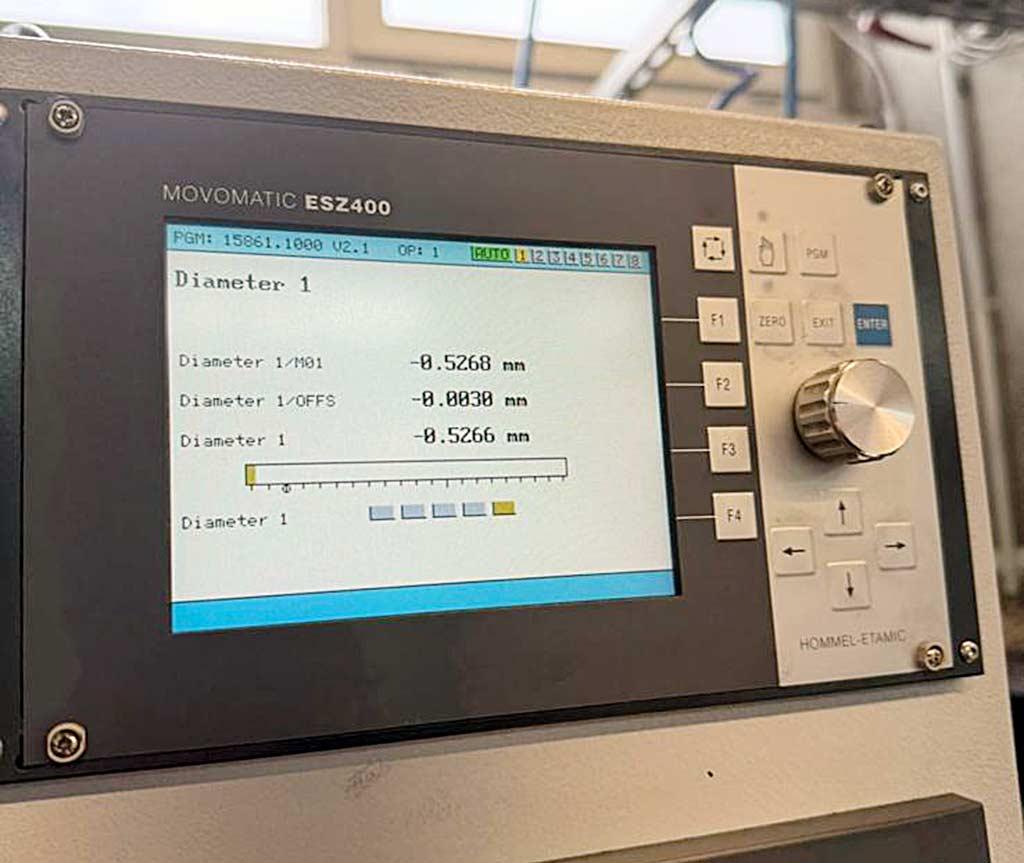

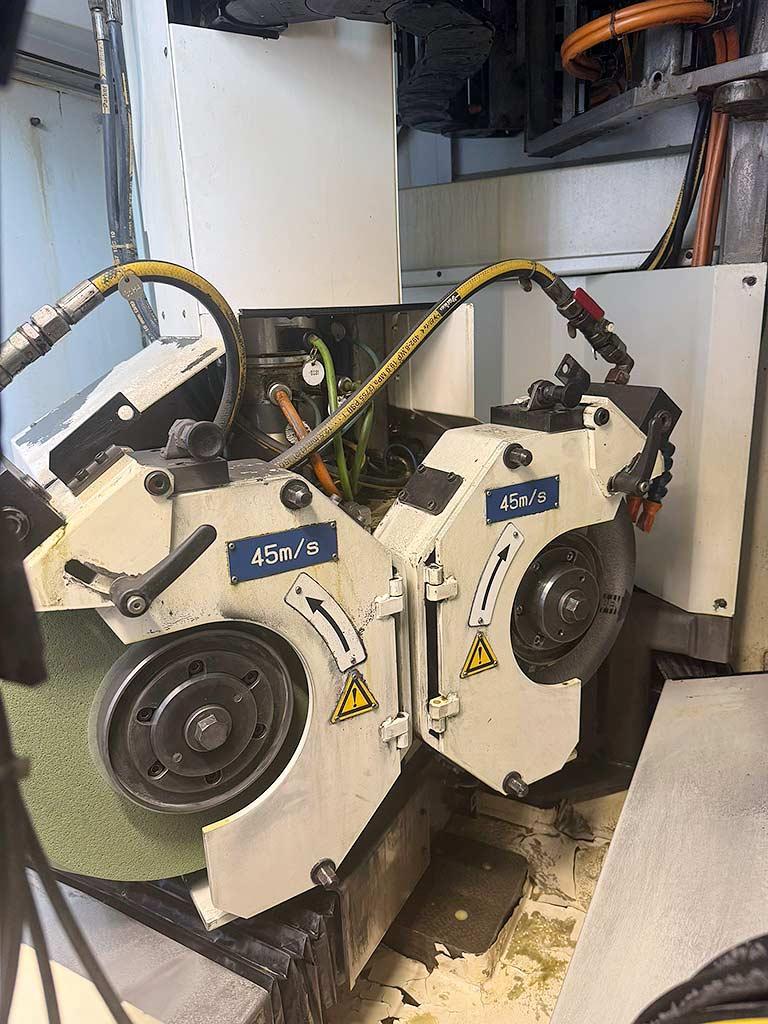

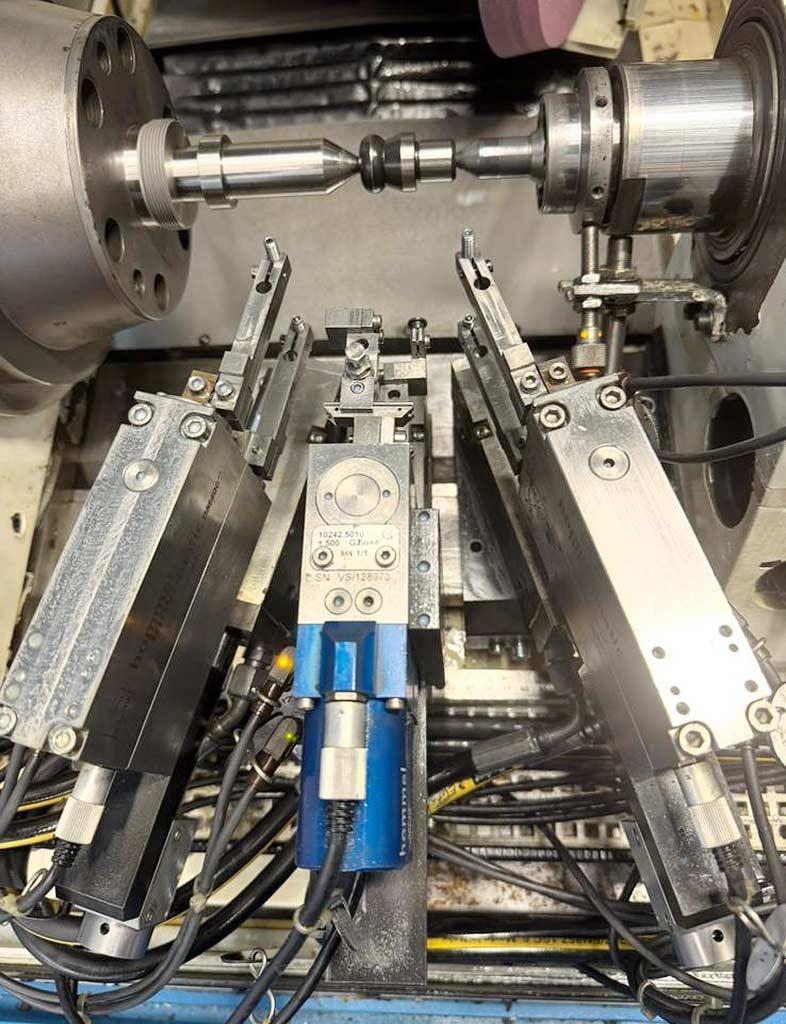

A Junker CNC universal external and internal cylindrical grinding machine is available. Grinding diameter: 290mm, grinding length: 800mm, center height: 150mm, max. workpiece weight: 80kg. Grinding length left/right: 800mm/340mm, grinding wheel diameter: 290mm, grinding wheel width: 63mm, grinding wheel bore: 127mm, peripheral speed: 45m/s. Measuring device tec: Diameter measuring range: 1mm, measuring accuracy: 0.5µm, length measuring range: +/-2mm, measuring accuracy: 0.5µm. Machine dimensions X/Y/Z: approx. 3400mm/2500mm/2700mm, weight: approx. 8000kg, control: Fanuc IO-TD, operating hours: approx. 7847h. Documentation available. On-site inspection is possible.
