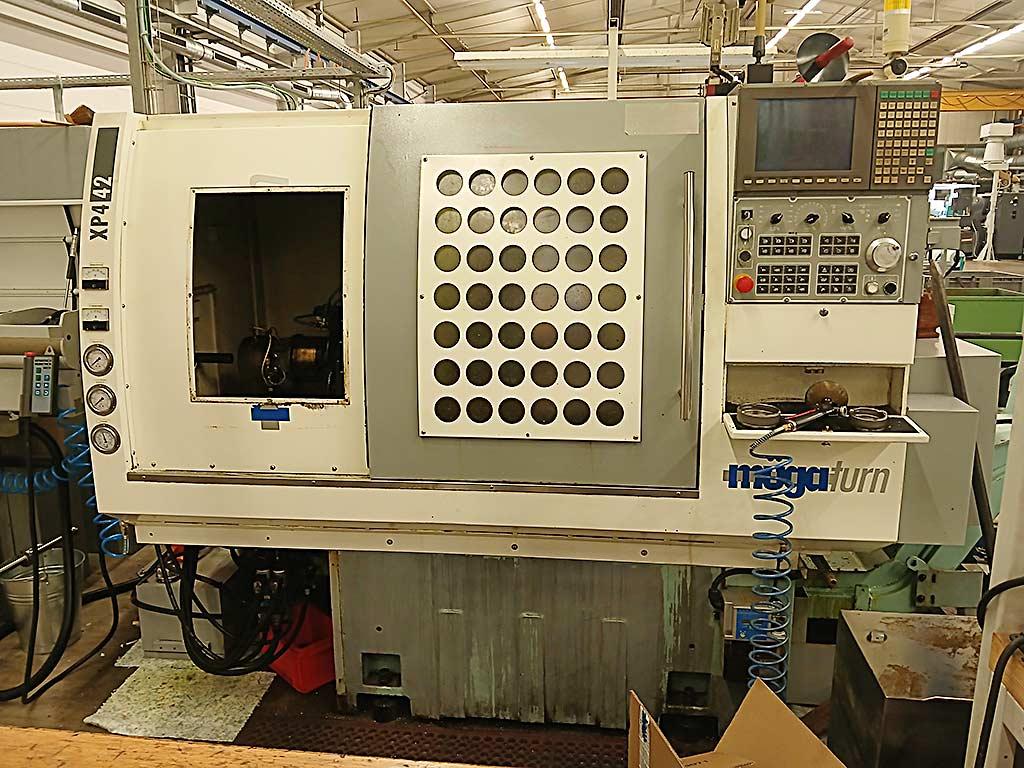

CNC Lathe Müga XP4-42 SM

Germany

Description

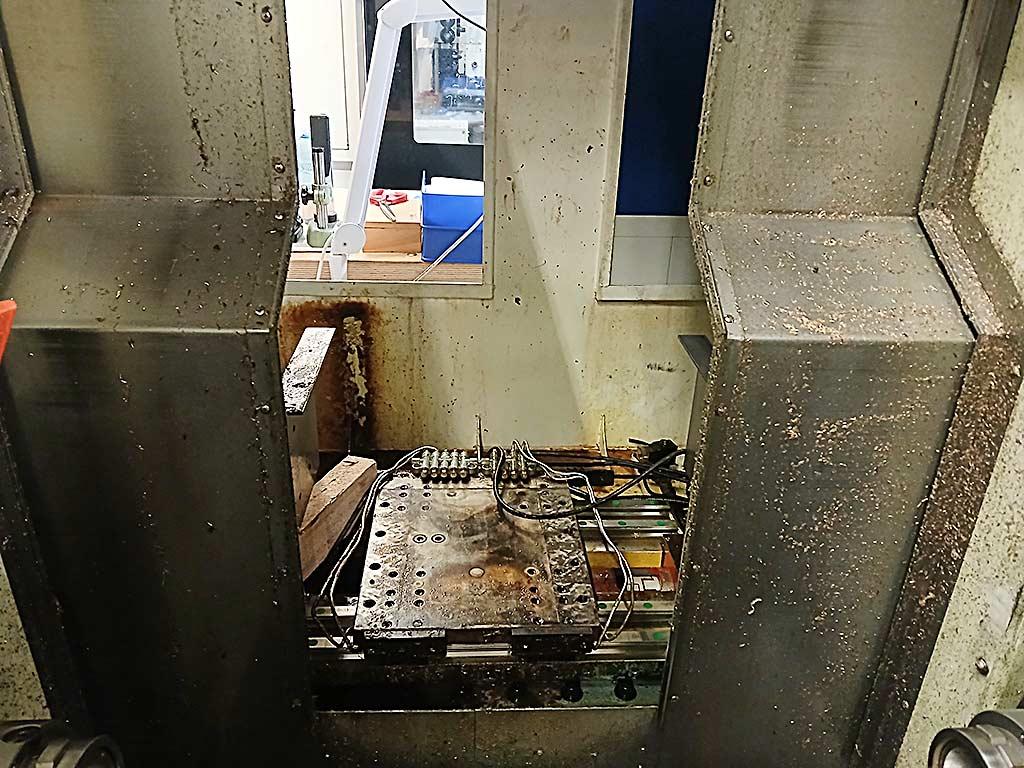

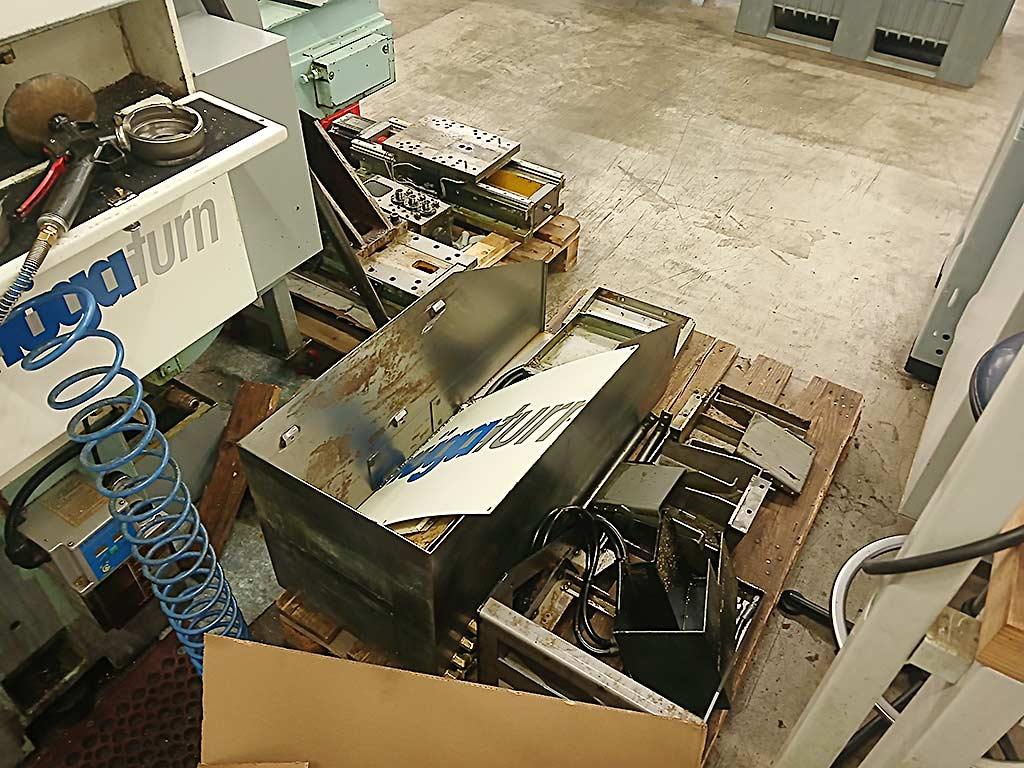

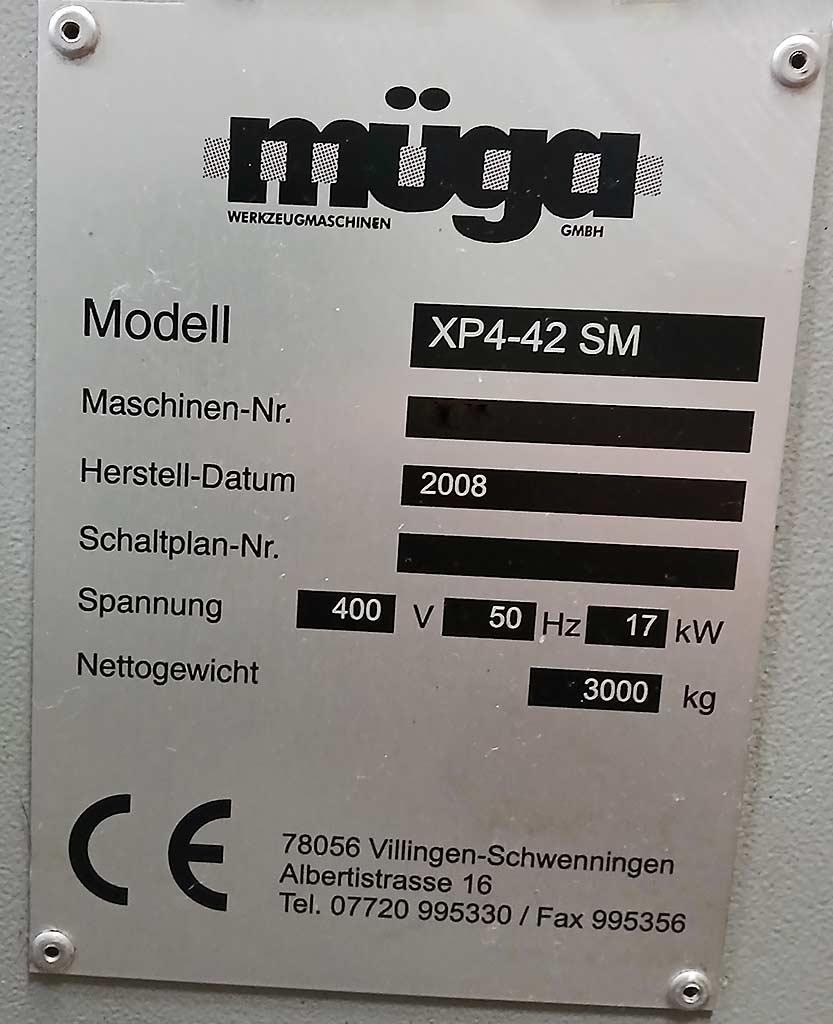

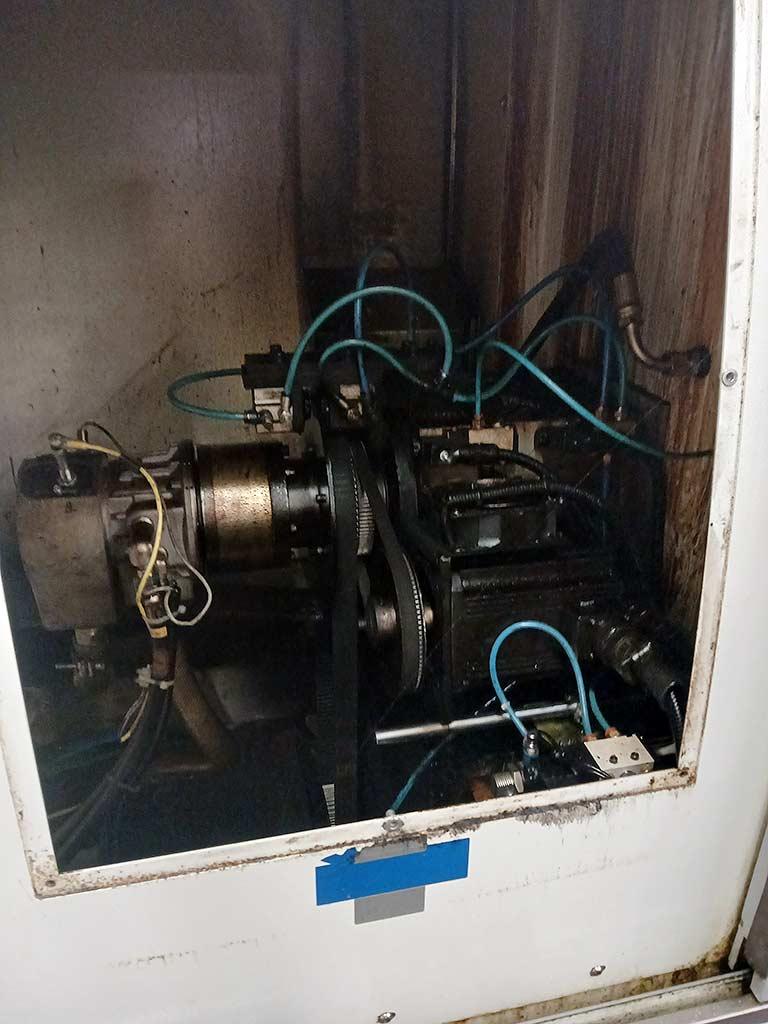

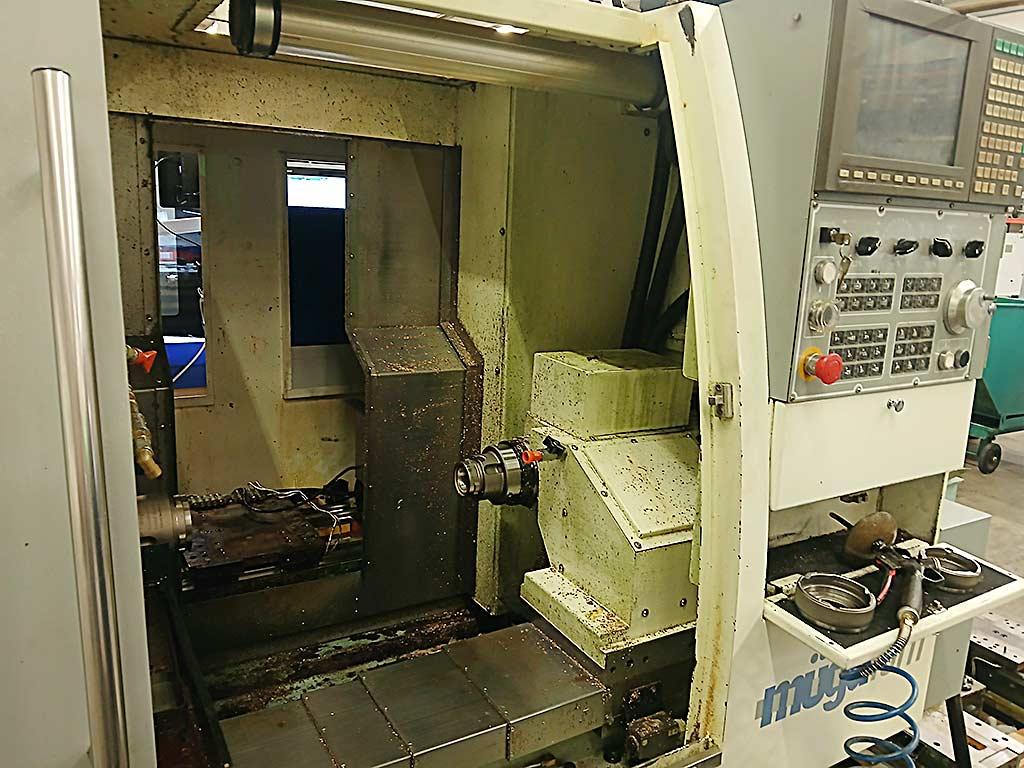

A CNC 6-axis precision lathe Müga is available. Axes: 6, turning length: 100mm, swing diameter: 560mm, rapid traverse: 17.5m/min, speed: 4000rpm, spindle power: 7.5kW, spindle clearance: 42mm, tool positions: 27, drive tools: 9. Machine dimensions X/Y/Z: approx. 2500mm/1800mm/1800mm, control: Pentium-PC, weight: approx. 3000kg, spindle hours: 29556h. Bar feeder dimensions X/Y/Z: approx. 4000mm/500mm/1300mm, weight: approx. 800kg. Including bar loading magazine BFG-42.3 M. The tool tower is in dismantled condition and the Y and X axes of the ball screw are defective. Documentation available. On-site inspection is possible.
