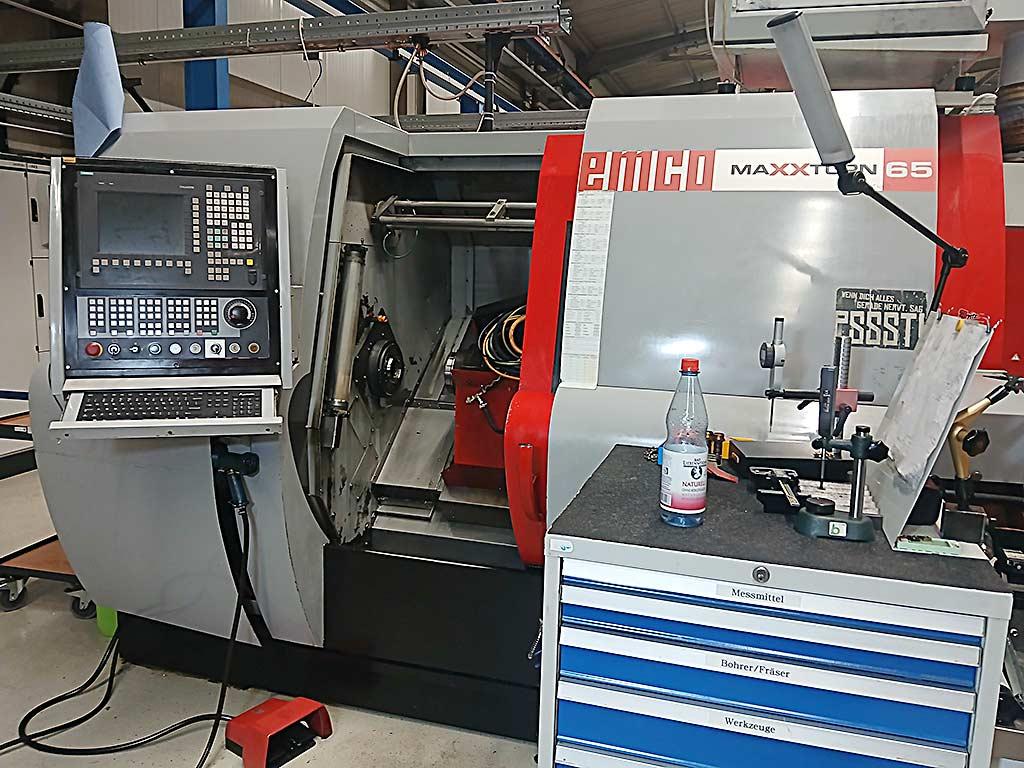

CNC Double Spindle Lathe Emxo MAXXTURN 65 SMY 1

Germany

Description

Turning diameter: 320mm, turning length: 510mm, bar capacity: 65mm, traverse path X/Z: 260mm/610mm, traverse path Y: +/-40mm, speed: 5000rpm, counter spindle speed: 7000rpm, tool positions: 12, tool holder: VDI30, tool speed: 5000rpm. Machine dimensions X/Y/Z: approx. 3400mm/2100mm/2100mm, weight: approx. 5700kg, control: Siemens Sinumerik 840D PCU20, operating hours: 89129h. Both spindles are no longer functional due to oxidized cooling channels. The cooling connections and control card have been removed for X1 and Z1. Documentation available. On-site inspection is possible.
