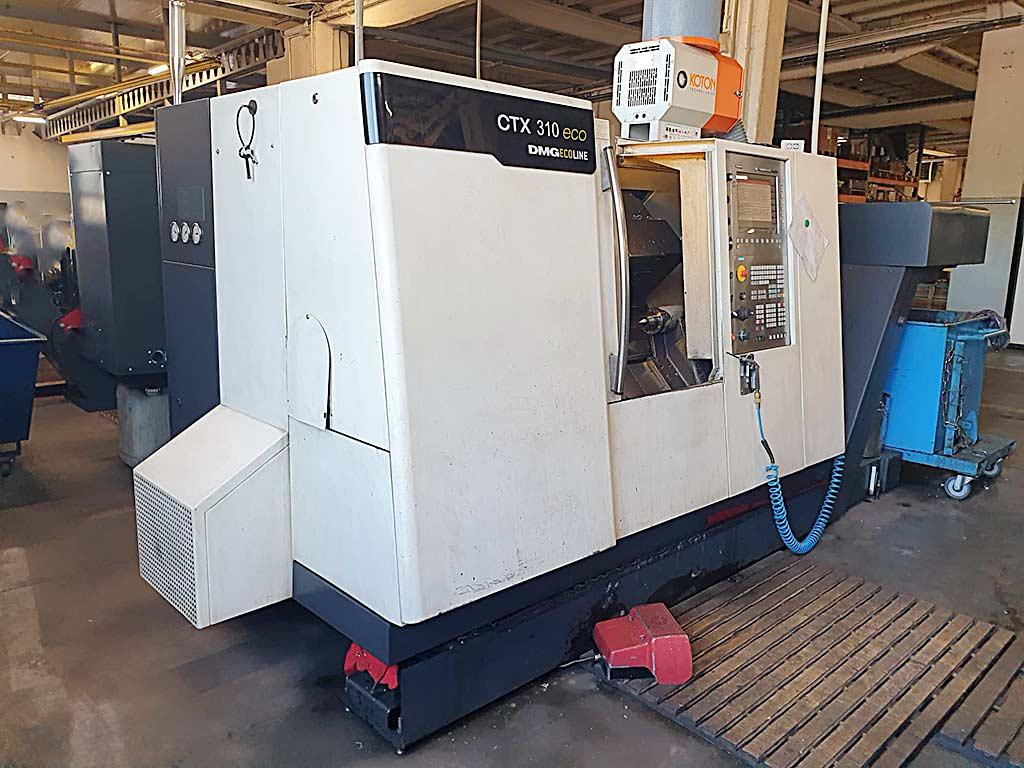

CNC Universal Lathe Gildemeister CTX 310 Eco
Specifications
Germany
Description

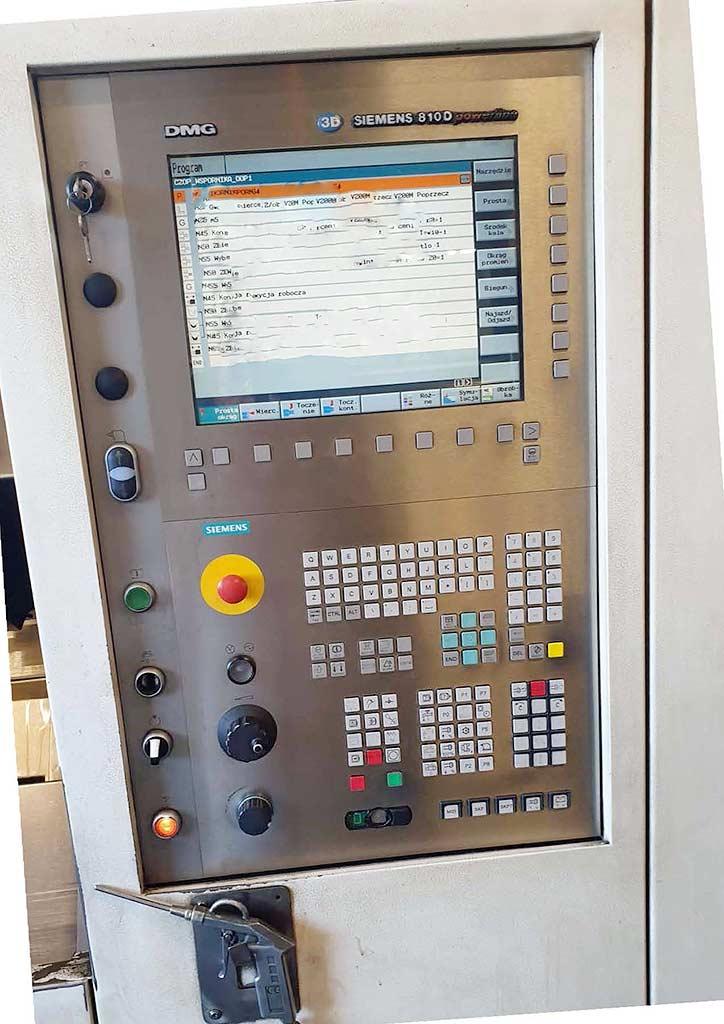

Turning diameter: 200mm, passage diameter: 330mm, passage diameter over cross slide: 260mm, travel X/Z: 160mm/460mm, feed X/Z: 24m/min, speed: 5000rpm, spindle clearance: 51mm, spindle power: 16.5kW/11kW, torque: 1665.5Nm/112Nm, tailstock: 400mm, tool positions: 12. Machine dimensions X/Y/Z: approx. 4200mm/1700mm/2300mm, weight: approx. 3500kg, control: Siemens Sinumerik 810D. Including chip conveyor. Documentation available. On-site inspection is possible.
Additional Details
