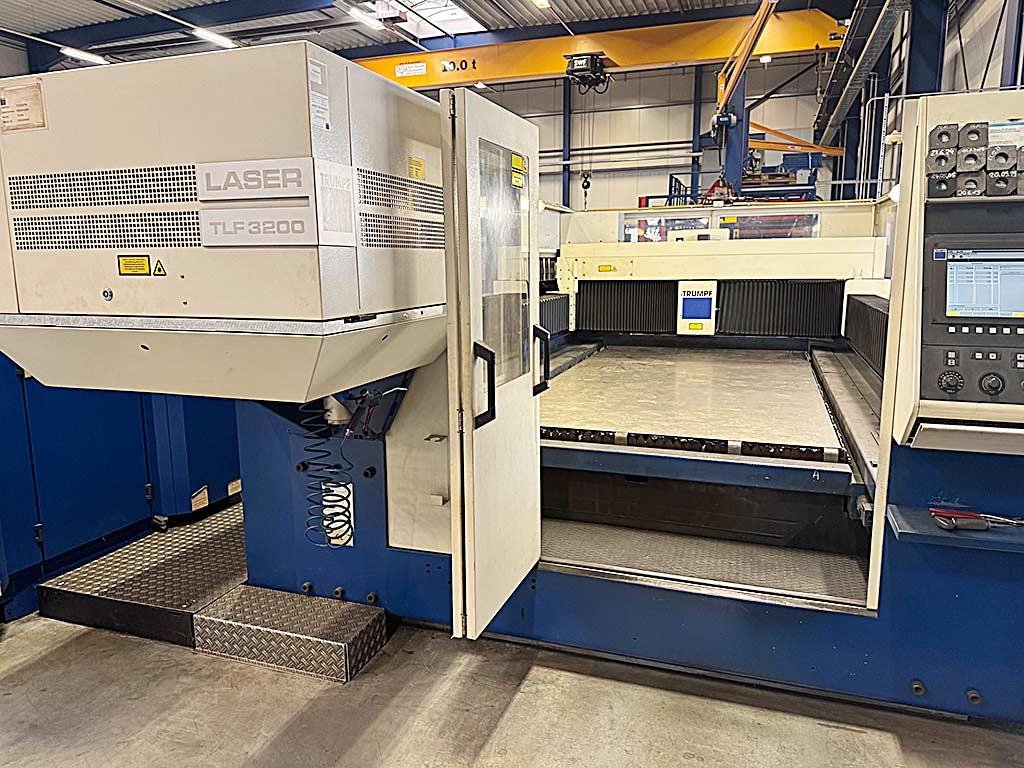

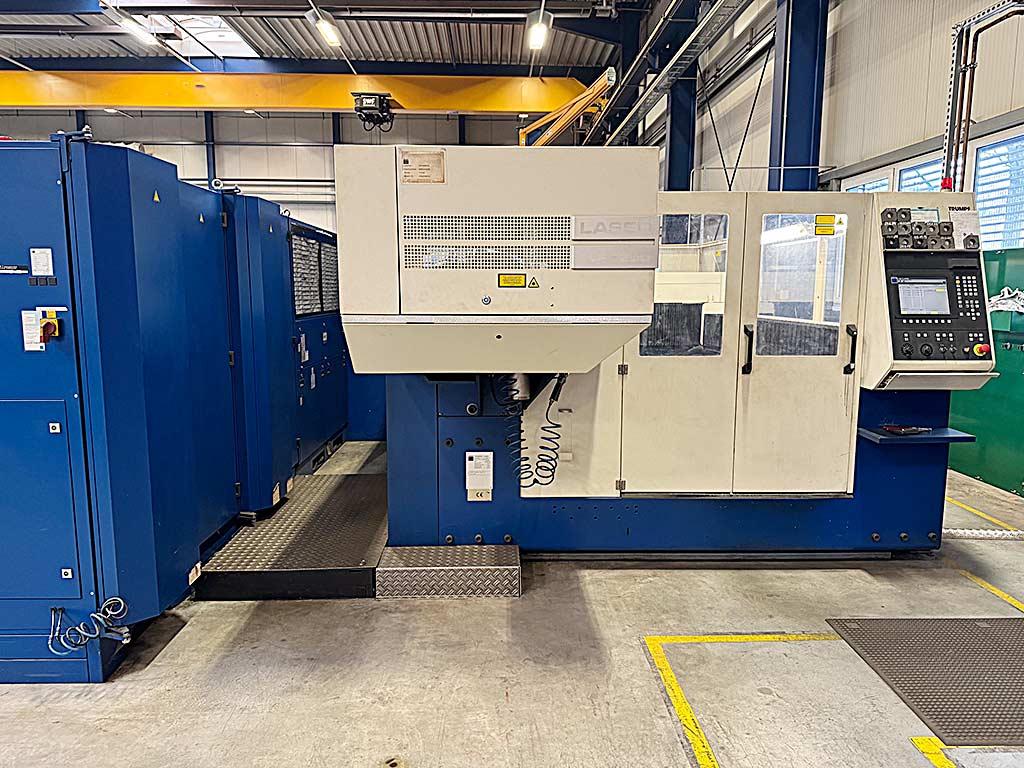

CNC Laser Cutting Machine Trumpf Trumatic L 3020

Germany

Description

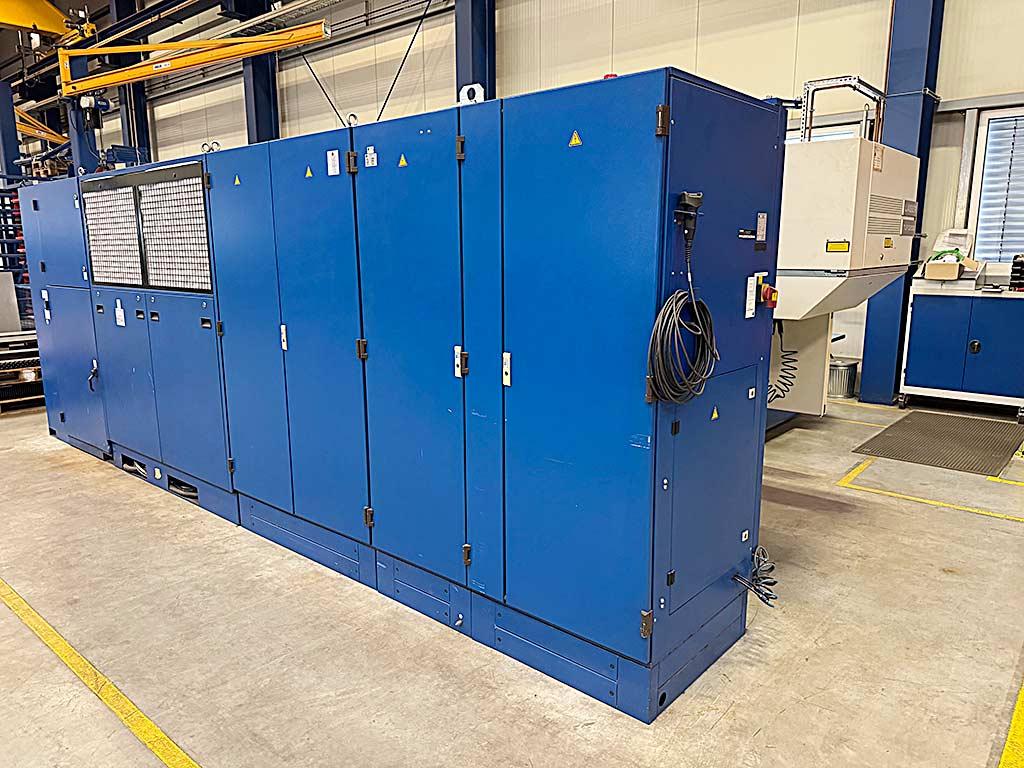

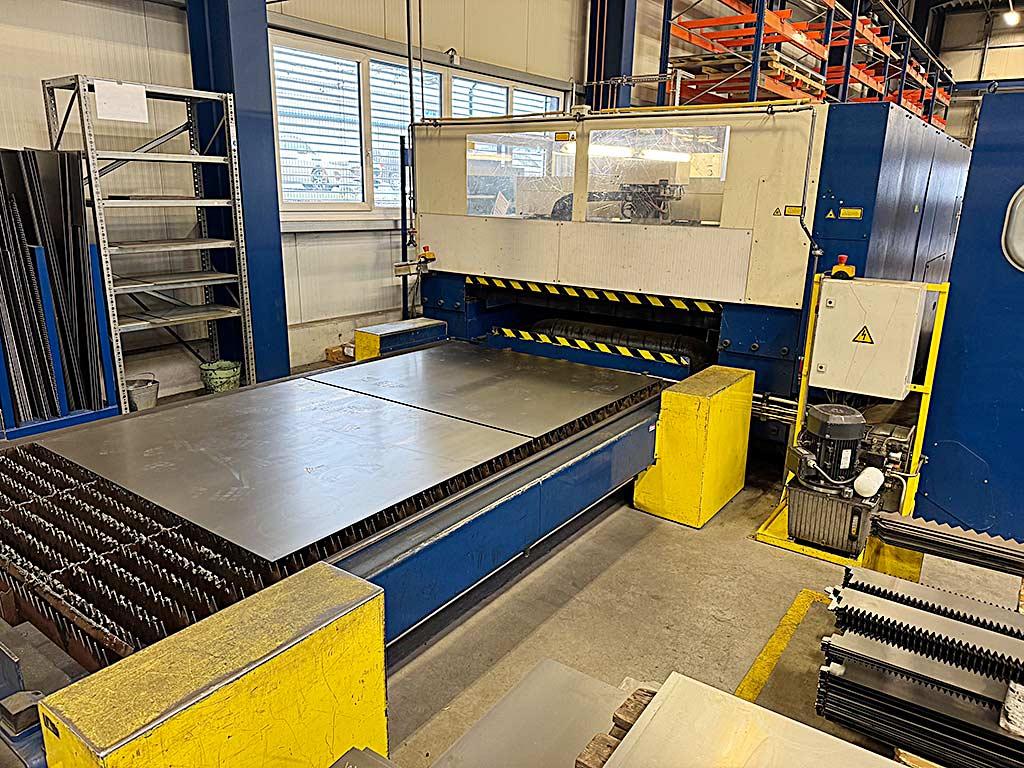

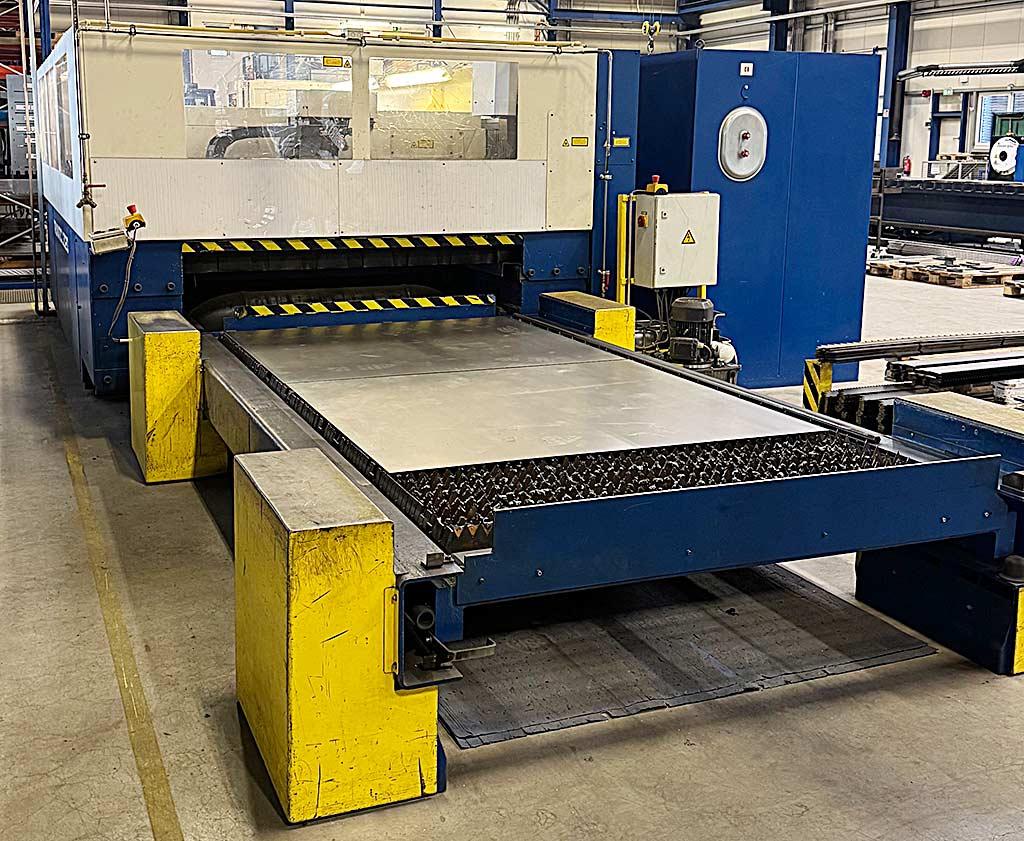

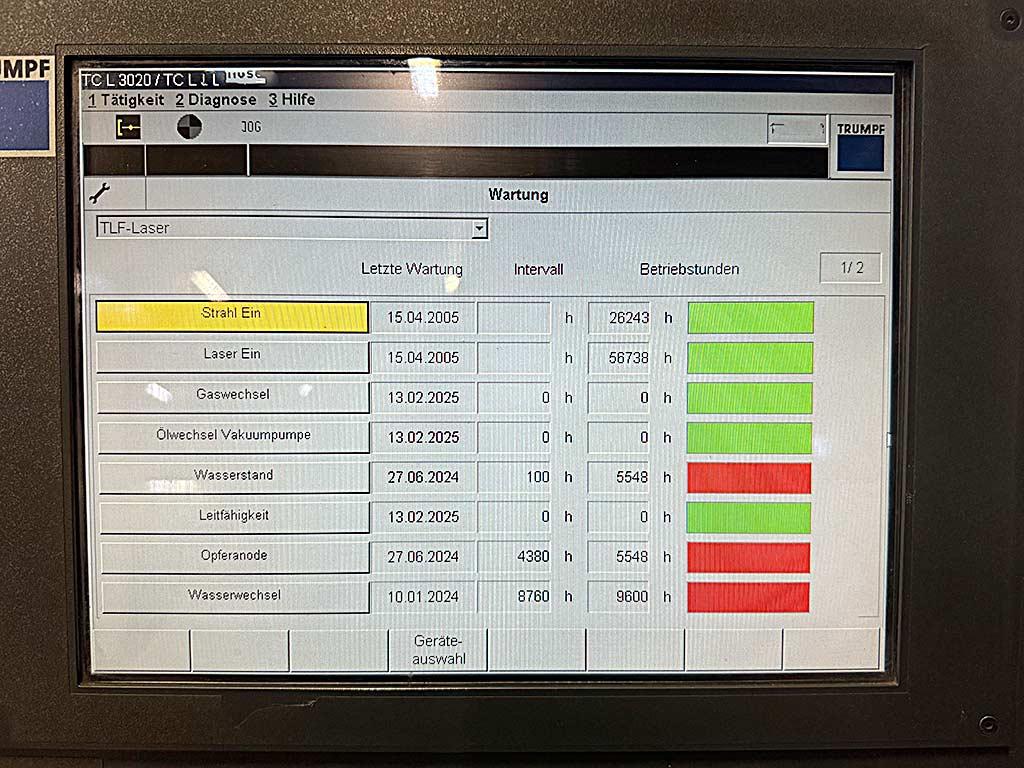

Working area X/Y/Z: 3000mm/1500mm/115mm, laser power: 3200W (3,2kW), laser type: Trumpf Trumatic TC L 3020, max. material thickness steel: 20mm, cutting heads: 2x. Machine dimensions X/Y/Z: approx. 4600mm/9300mm/2000mm, weight: approx. 10500kg, laser hours: 56738h, beam hours: 26243h. Including cooling circuit filter unit Riedel and pallet changer. The door of the machine has an error in the acknowledgement. This can be easily solved by pressing the acknowledgement button and the cancel button. Documentation available. On-site inspection is possible.
