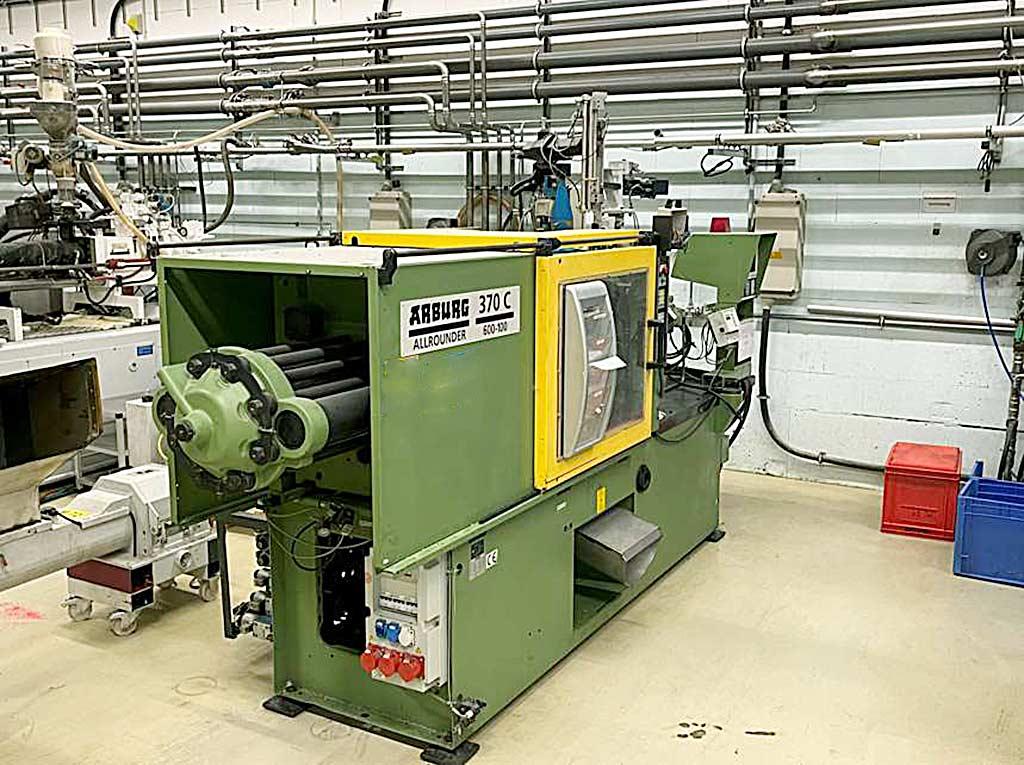

Injection Moulding Machine Netstal/arburg SynErgy 1500-460/370C

Germany

Description

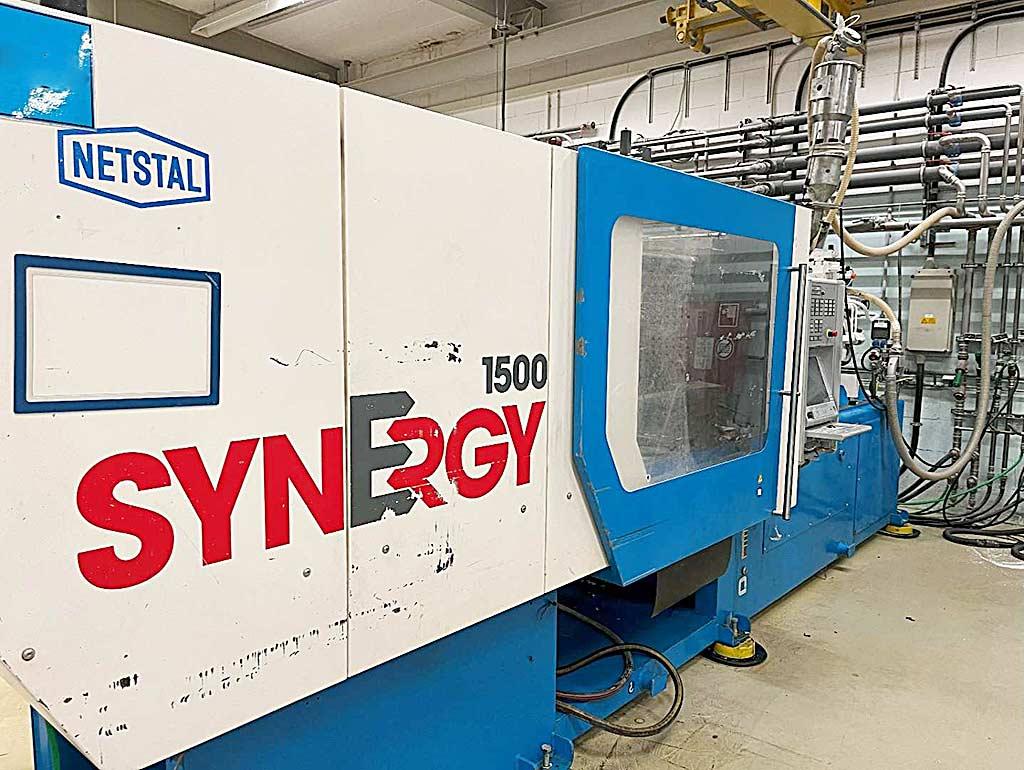

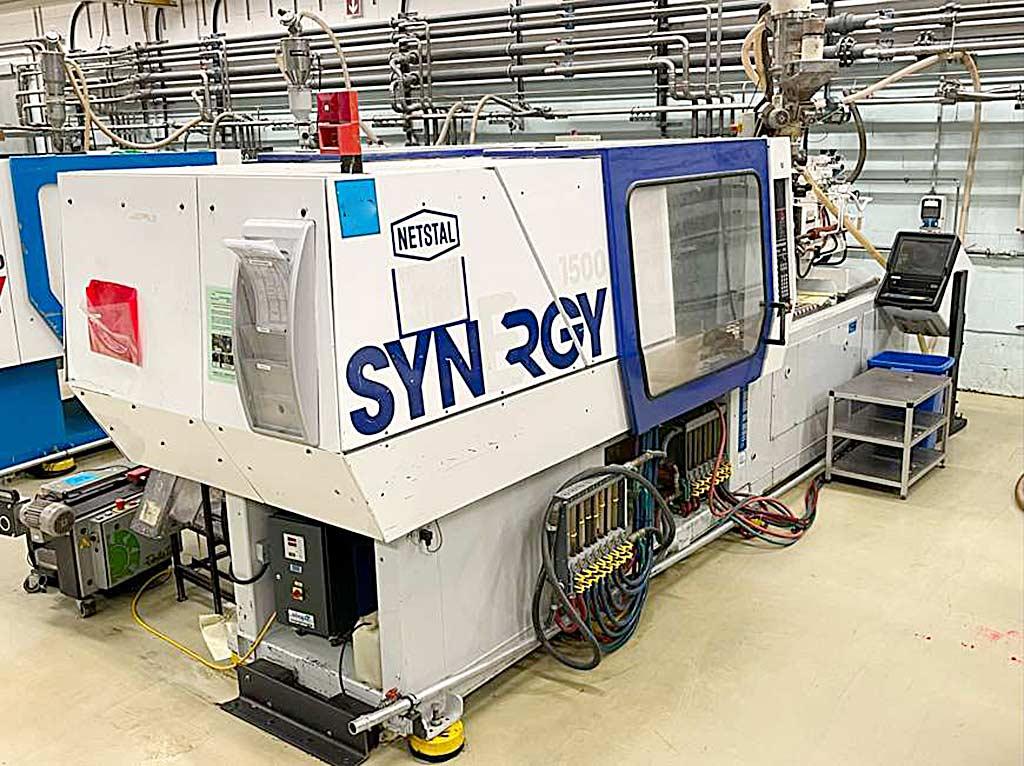

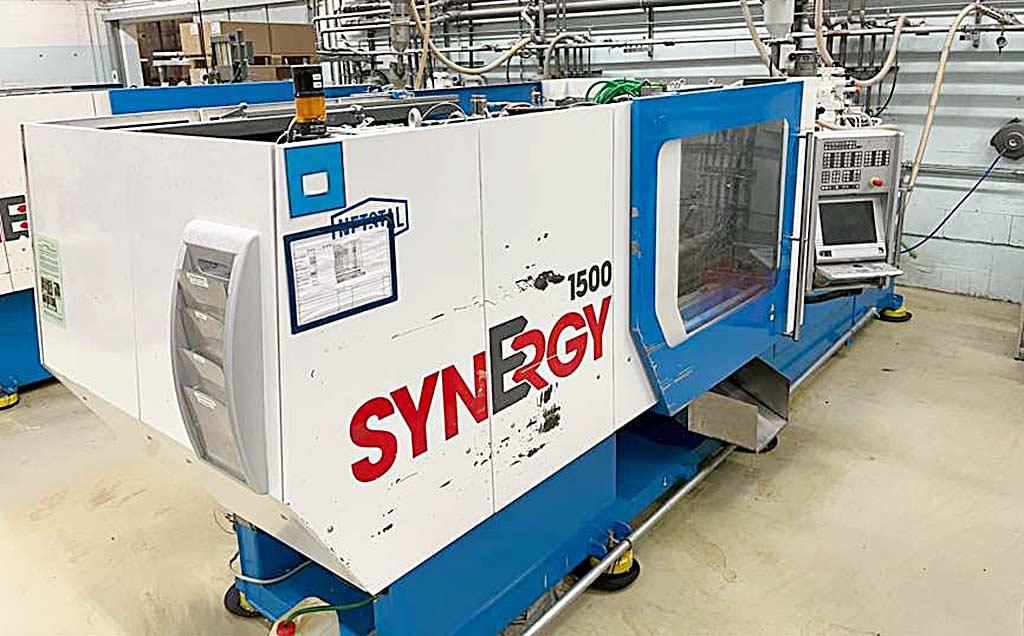

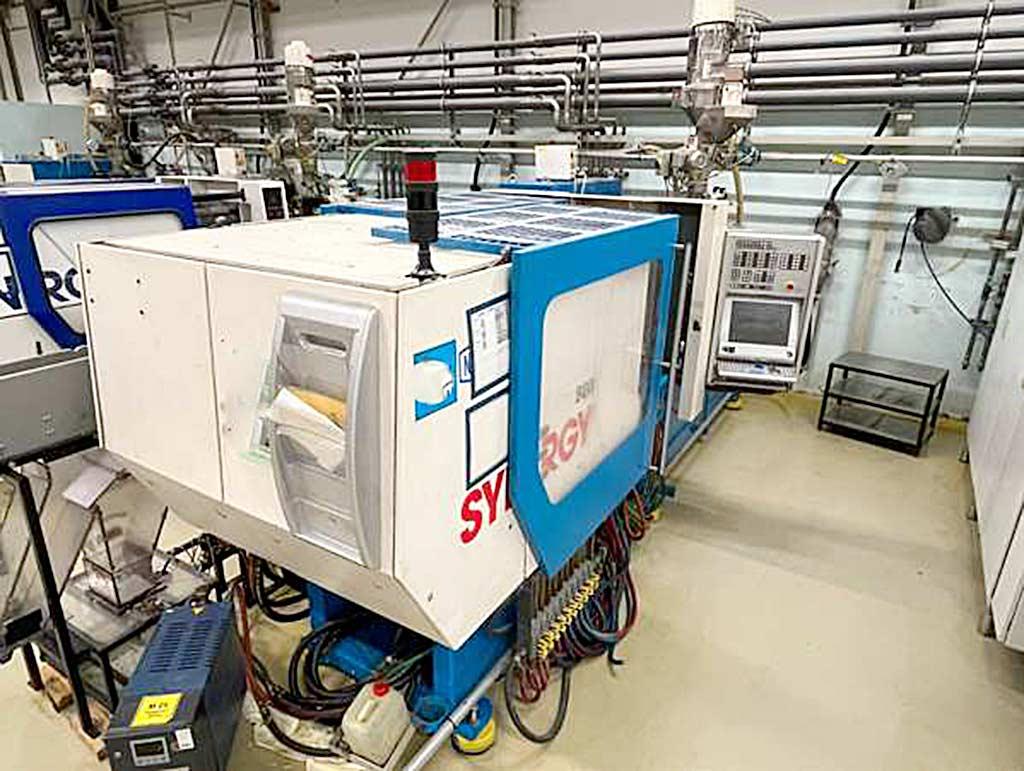

Ten injection molding machines are available. 1) Netstal SynErgy 1500/460, year of construction: 1998, clamping force: 140t, tie bar spacing: 510mm, platen dimensions X/Y: 750mm/750mm, max. opening stroke: 450mm, screw diameter: 45mm, injection volume: 255cm³, mold height min./max.: 250mm/550mm, max. injection pressure: 1753MPa, weight: approx. 9200kg, operating hours: 129131h. 2) Netstal SynErgy 1500/460, year of construction: 2007, clamping force: 140t, tie bar distance: 510mm, platen dimensions X/Y: 750mm/750mm, max. opening stroke: 450mm, screw diameter: 45mm, injection volume: 255cm³, mold height min./max.: 250mm/550mm, max. injection pressure: 1753MPa, weight: approx. 11500kg, operating hours: 85445h. 3) Netstal SynErgy 1500/460, year of construction: 2006, clamping force: 140t, tie bar distance: 510mm, platen dimensions X/Y: 750mm/750mm, max. opening stroke: 450mm, screw diameter: 45mm, injection volume: 255cm³, mold height min./max.: 250mm/550mm, max. injection pressure: 1753MPa, weight: approx. 11000kg, operating hours: 91159h. 4) Netstal SynErgy 900/230, year of construction: 2007, clamping force: 100t, tie bar distance: 410mm, max. opening stroke: 350mm, screw diameter: 40mm, min. mold installation height: 200mm, weight: 6800kg, operating hours: 73323h. 5) Netstal SynErgy 900/230, year of manufacture: 2007, clamping force: 100t, tie-bar spacing: 410mm, max. opening stroke: 350mm, screw diameter: 40mm, min. mold installation height: 200mm, weight: 6800kg, operating hours: 87883h.6) Netstal SynErgy 1500/230, year of construction: 2000, clamping force: 140t, tie bar distance: 510mm, platen dimensions X/Y: 750mm/870mm, max. opening stroke: 450mm, screw diameter: 40mm, injection volume: 161cm³, min. mold installation height: 250mm, max. injection pressure: 1447MPa, weight: 11000kg, operating hours: 93464h.7-8) Netstal ELION Force 800-270, year of construction: 2008, clamping force: 80t, tie bar distance: 410mm, platen dimensions X/Y: 600mm/632mm, max. opening stroke: 350mm, screw diameter: 40mm, injection volume: 161cm³, mold installation height min./max.: 250mm/500mm, max. injection pressure: 1690MPa, weight: 7800kg, operating hours: 82400h.9) Netstal SynErgy 800/230, year of construction: 2005, clamping force: 100t, tie bar distance: 510mm, platen dimensions X/Y: 617mm/600mm, max. opening stroke: 350mm, screw diameter: 40mm, injection volume: 161cm³, min. mold installation height: 200mm, weight: 6800kg, operating hours: 97530h.10) Arburg Allrounder 370C, year of construction: 1997, clamping force: 370t, platen dimensions X/Y: 570mm/570mm, max. opening stroke: 500mm, screw diameter: 30mm, injection volume: 70cm³, min. mold installation height: 250mm, max. injection pressure: 1500MPa, weight: approx. 3600kg.Documentation available. On-site inspection is possible.
