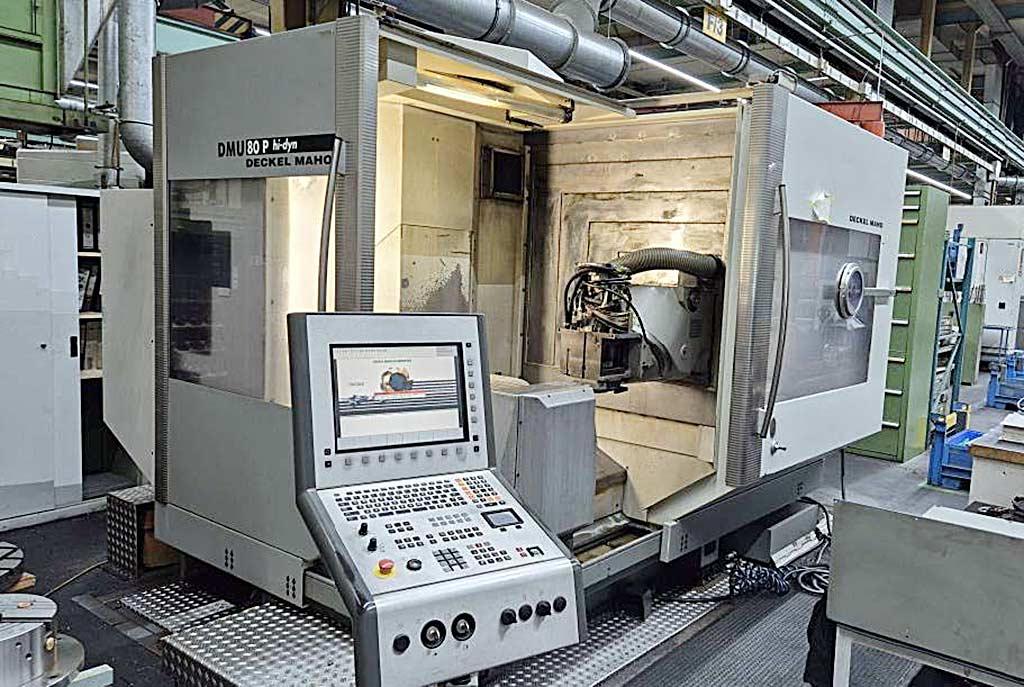

CNC Travelling Column Milling Machine Deckel Maho DMU 80 P hi-dyn

Germany

Description

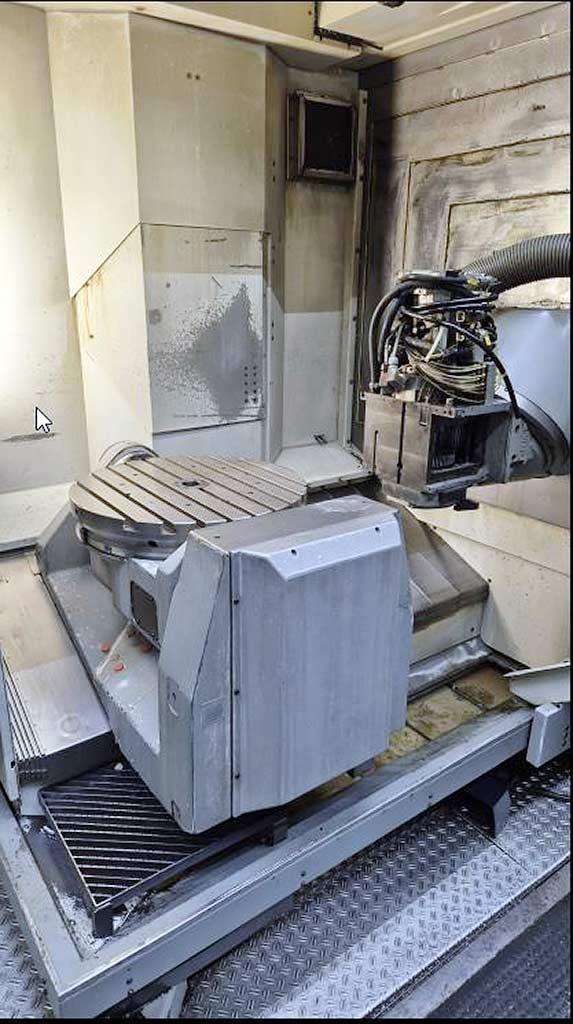

A CNC milling machine, which has been converted to a horizontal design, is available. Travel X/Y/Z: 800mm/700mm/600mm, repeat accuracy: +/-0.001mm. Table diameter: 630mm, max. table load: 600kg, tool positions: 60, tool holder: 60, tool diameter: 100mm/160mm, tool length: 350mm, max. tool weight: 10kg, feed rate: 50m/min, rapid traverse: 50m/min. Machine dimensions X/Y/Z: approx. 6600mm/5400mm/2750mm, weight: approx. 10200kg, control: iTNC 530. Documentation available. On-site inspection is possible.
