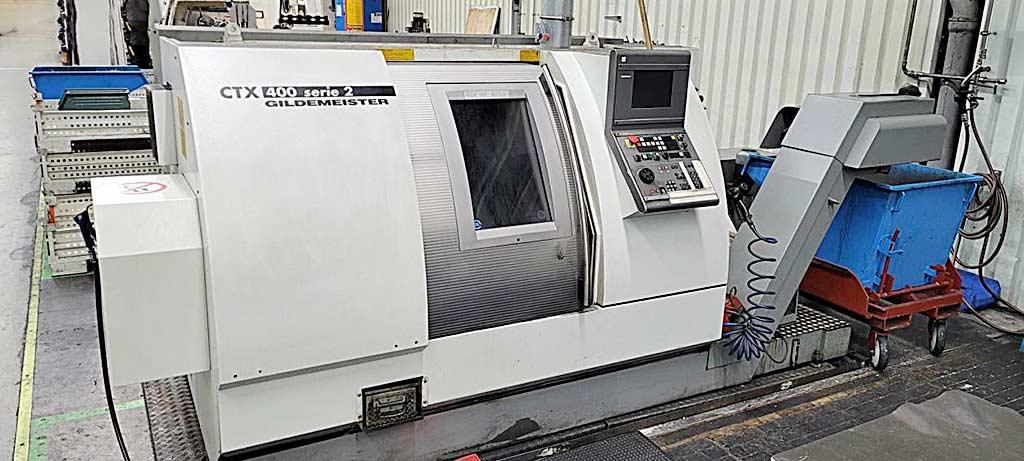

CNC Universal Lathe Gildemeister CTX 400 Serie 2
Specifications
Germany
Description

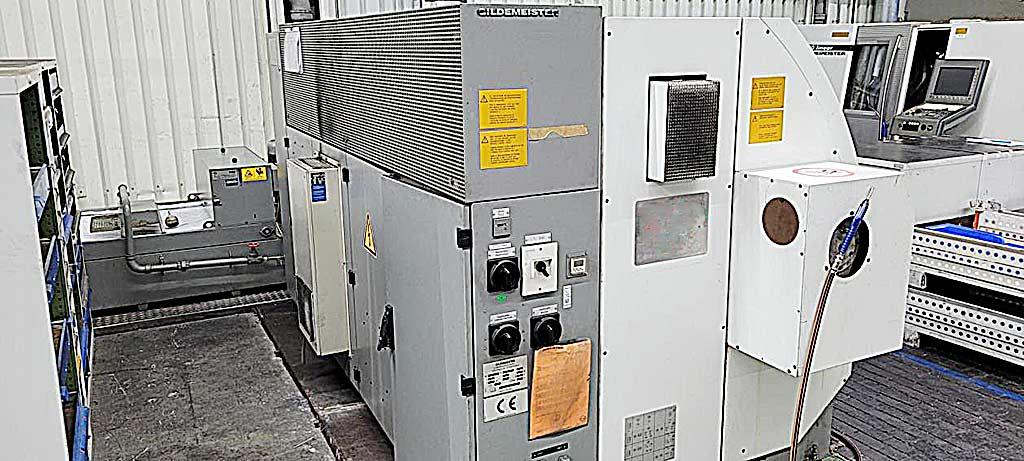

Rotation diameter over bed/face slide: 570mm/420mm, chuck diameter: 200mm, travel X/Z: 220mm/635mm. Spindle bore: 79mm, spindle diameter: 120mm, speed: 5000rpm, power: 21kW. Tool positions: 12, cylinder diameter: 30mm, drive tools: 6, drive tool speed: 4000rpm, tailstock stroke: 550mm. Machine dimensions X/Y/Z: approx. 3250mm/1750mm/1750mm, operating hours: 54055h. Including oil-hydraulic hollow clamping device, chip conveyor, manual tool measuring device, cooling unit and coolant device with belt filter. The machine control is defective. Documentation available. On-site inspection is possible.
Additional Details
