Screen Printing Line Thieme 5080 XL

Germany

Description

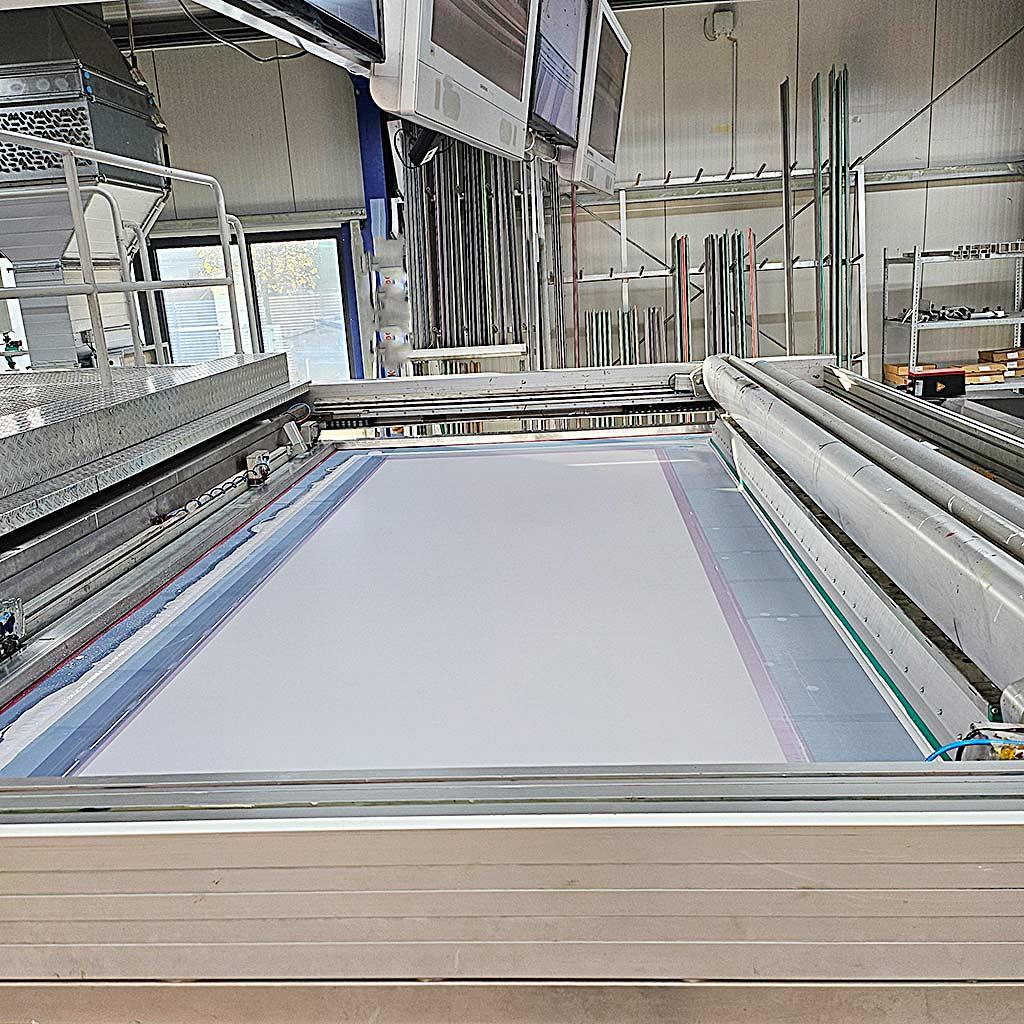

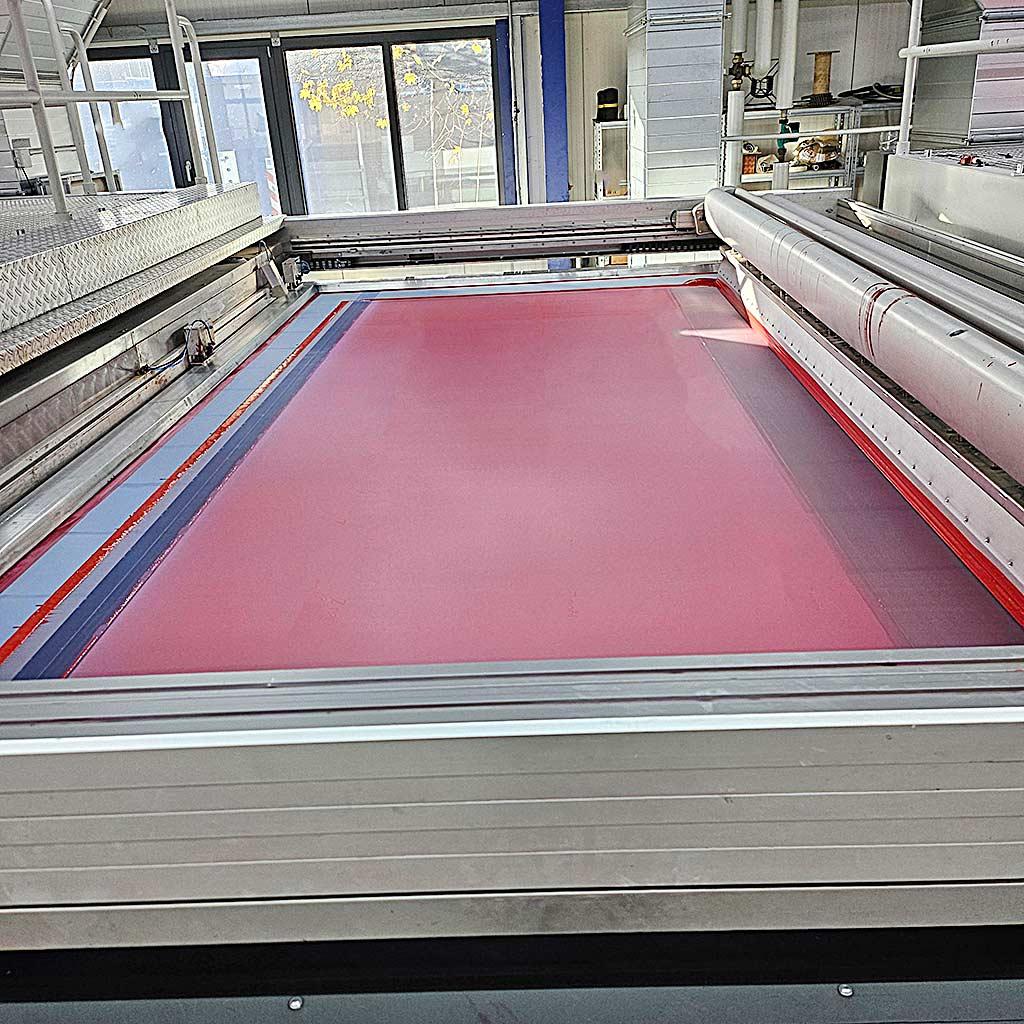

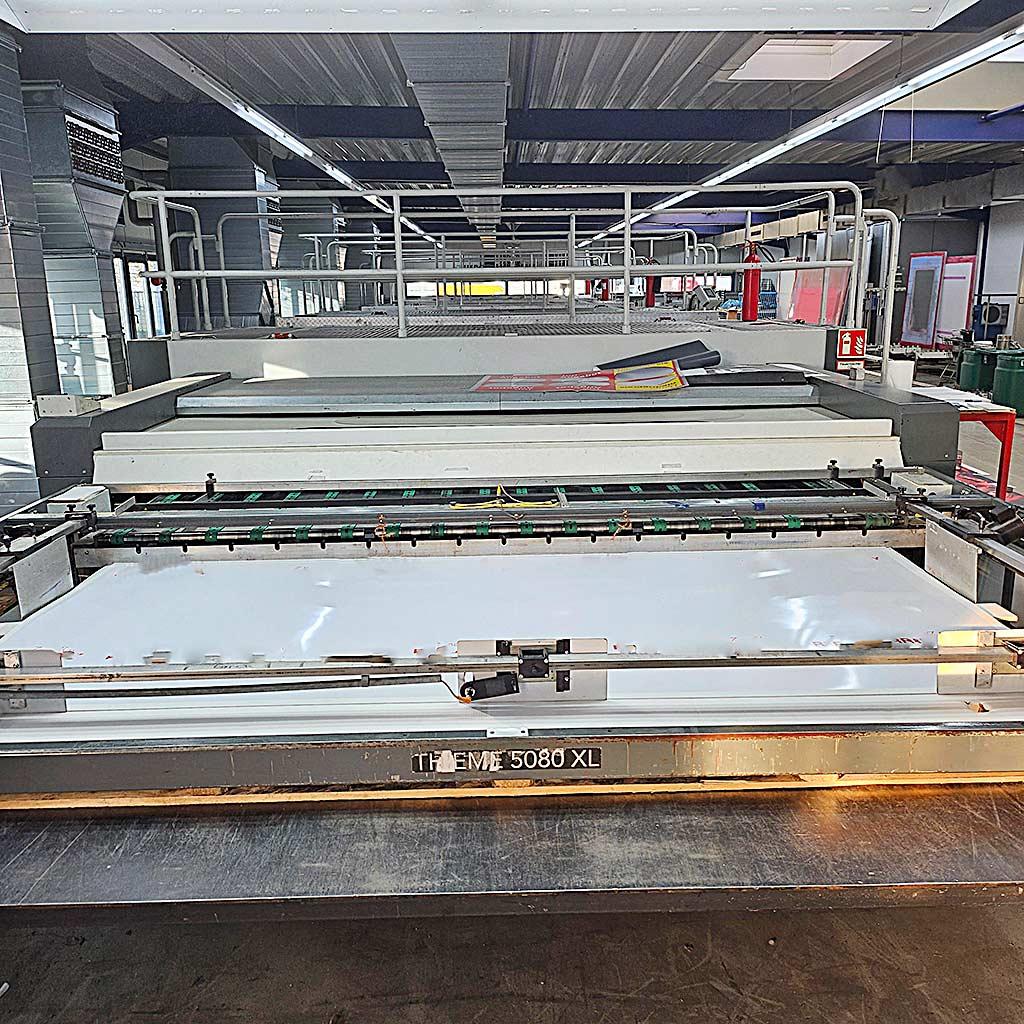

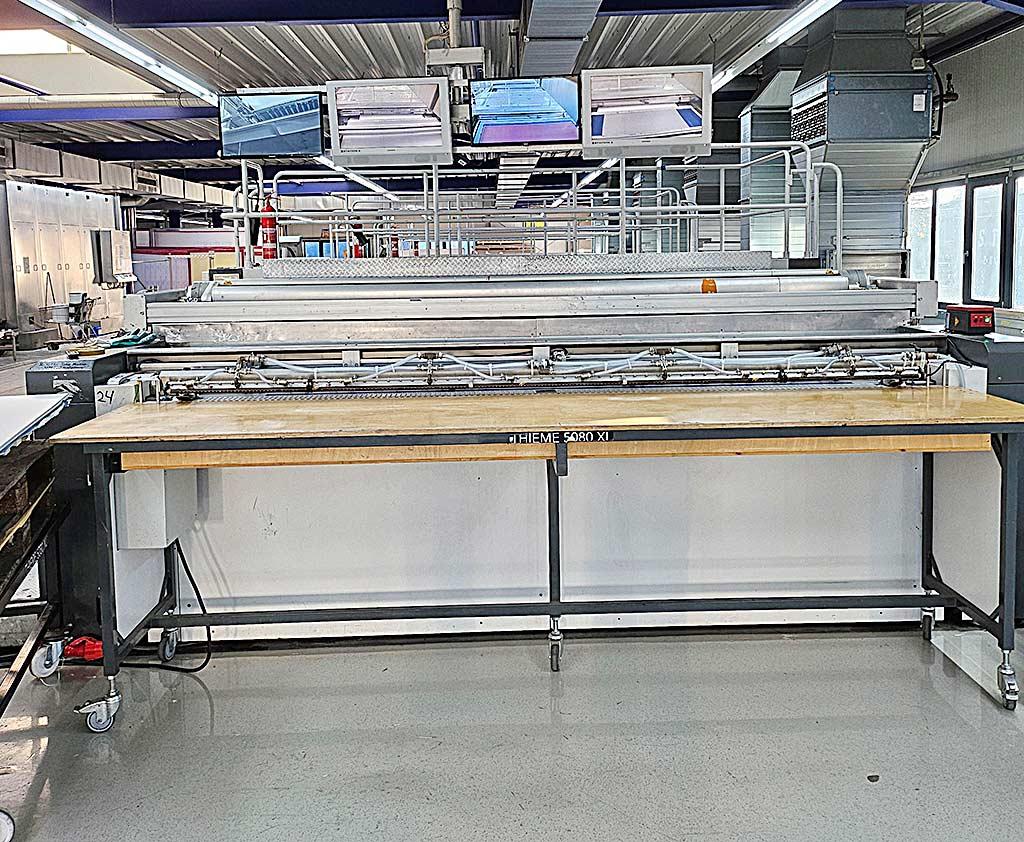

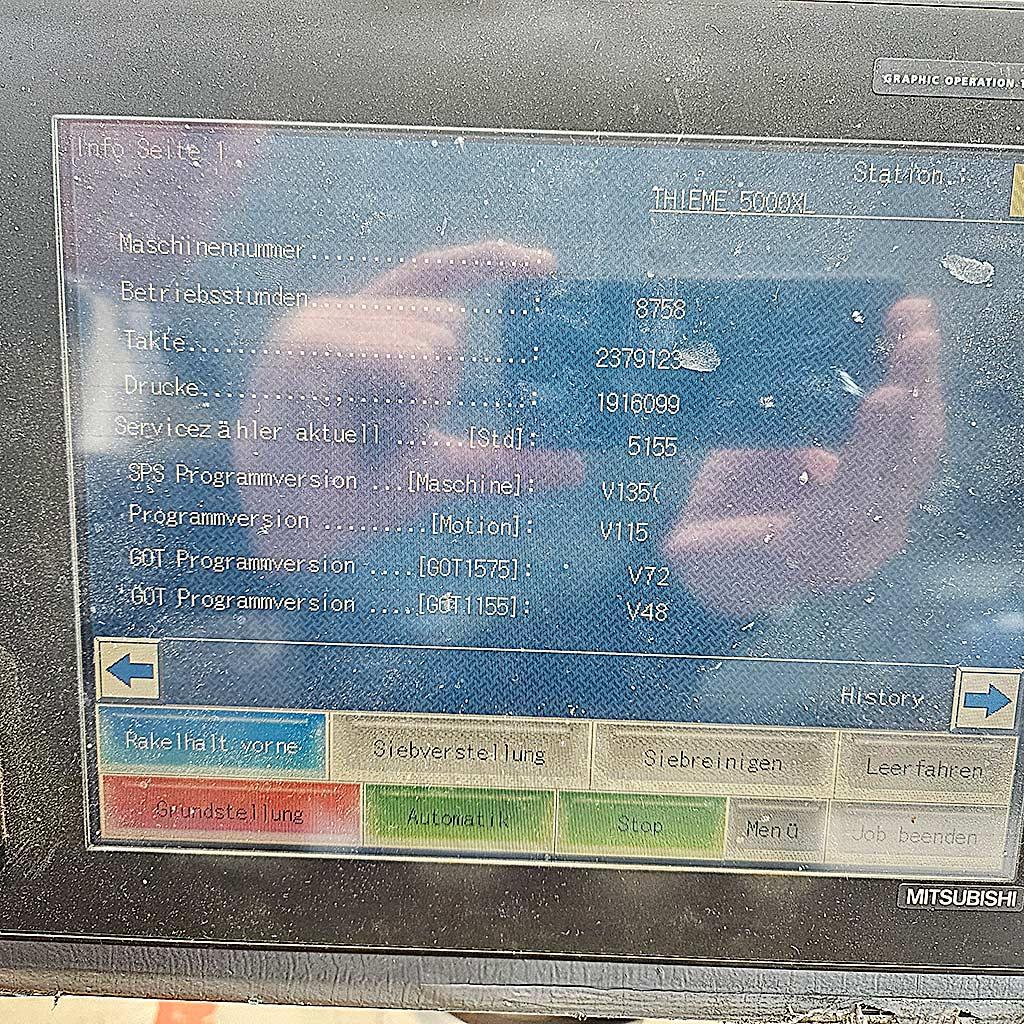

A complete Thieme multi-color screen printing line including peripheral equipment is available. Print dimensions X/Y: 1600mm/3050mm, max. sheet dimensions X/Y: 1660mm/3110mm, min. screen frame format in sheet travel direction: 1100mm, max. screen frame dimensions X/Y: 2400mm/3850mm. Print table dimensions X/Y: 1800mm/3274mm, vacuum field dimensions X/Y: 1640mm/3080mm, print speed: 600 cycles/h, print material thickness: 0.1mm-10mm, print material weight: 120g-3000g/m², screen fine adjustment: +/-10mm. Operating hours: 8758h, number of cycles: 2,379,123, number of prints: 1,916,066, service counter: 5155. Including drying/curing and automatic sheet stacker. One dryer in the system is defective. The energy chain must be replaced, a spare part is available. Documentation available. On-site inspection is possible.
