Center Lathe Wmw DLZ 450x1600

Germany

Description

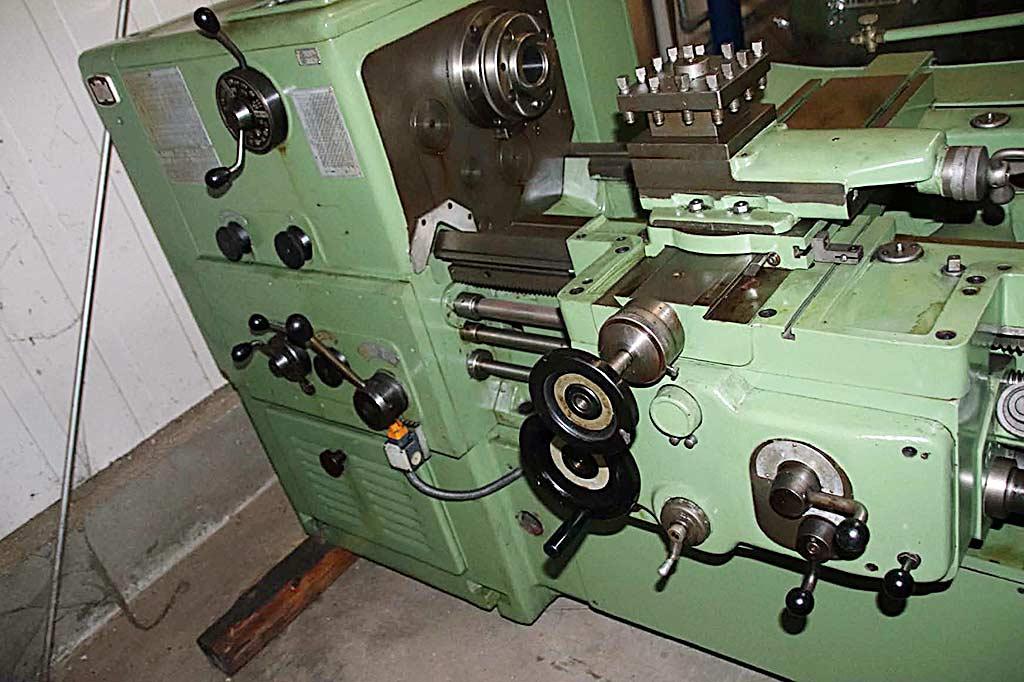

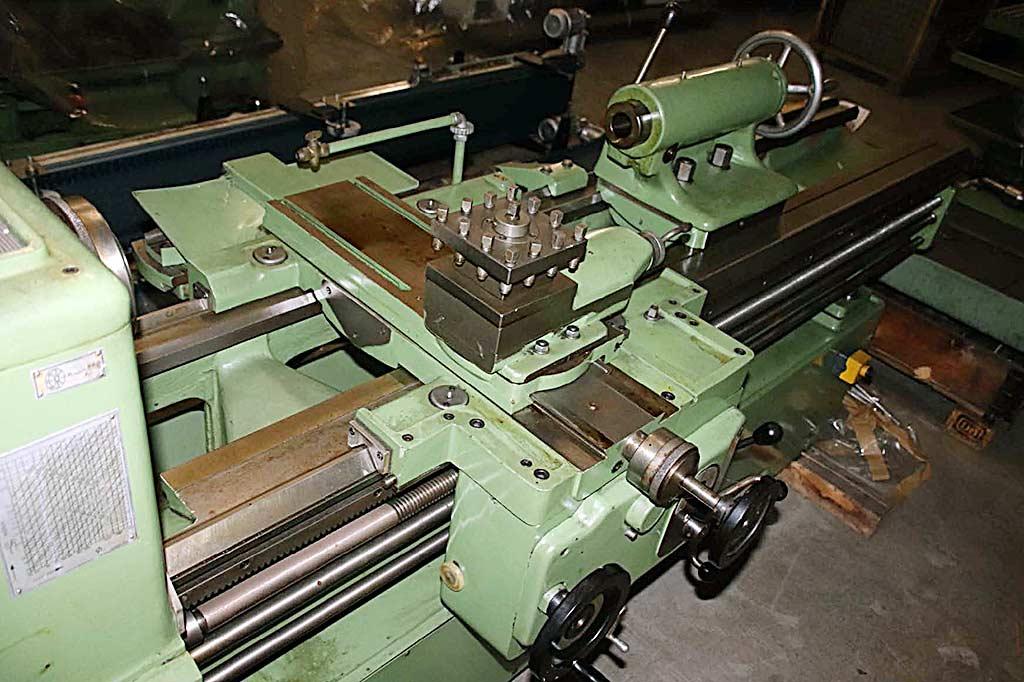

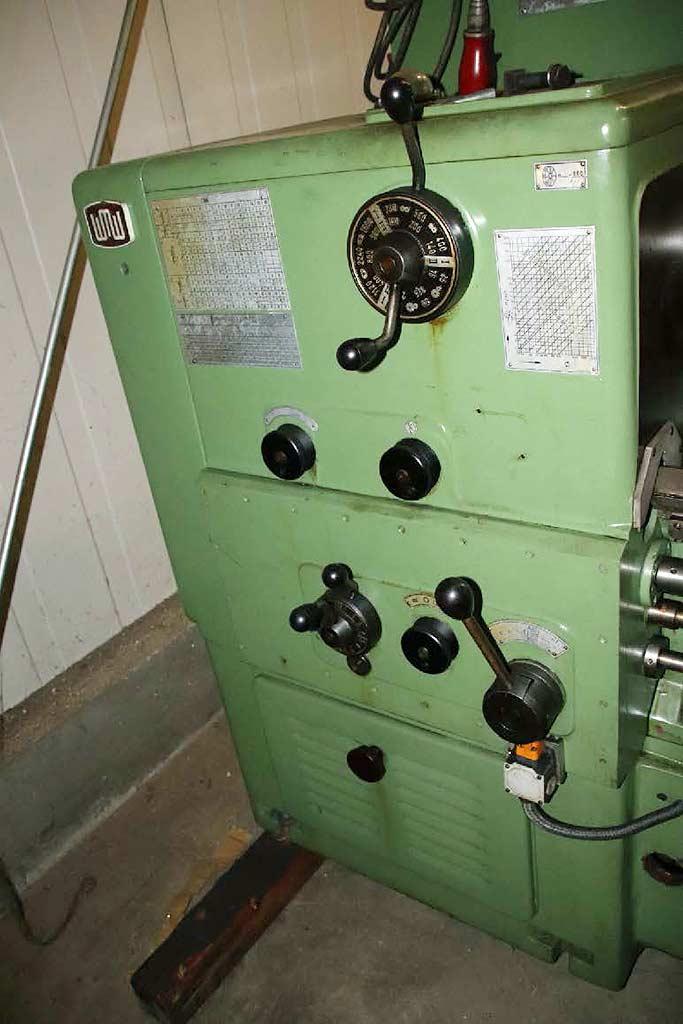

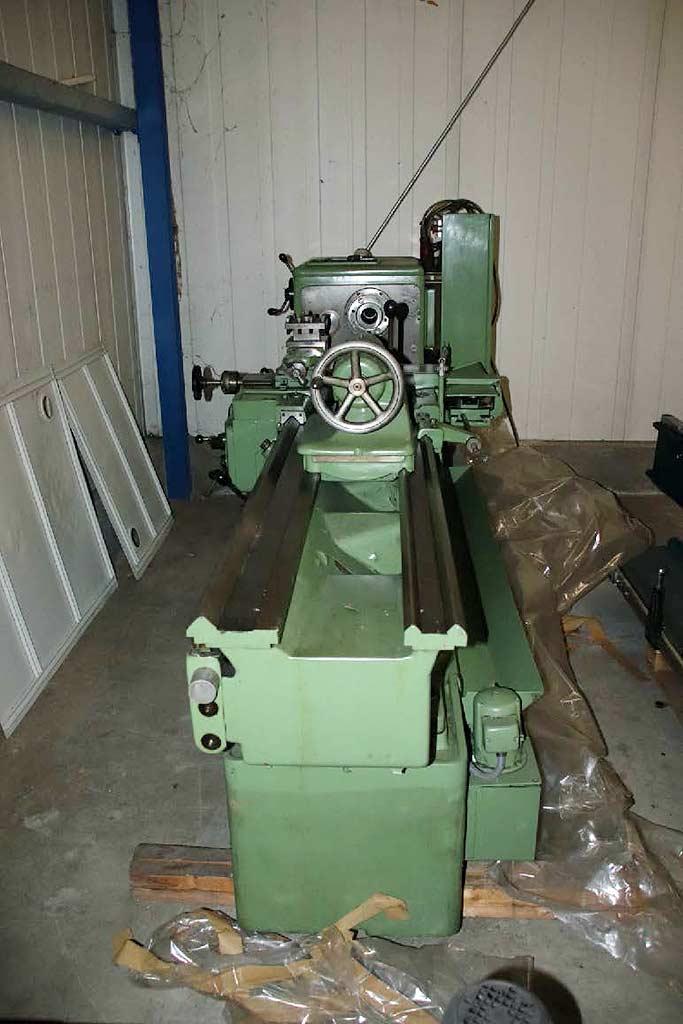

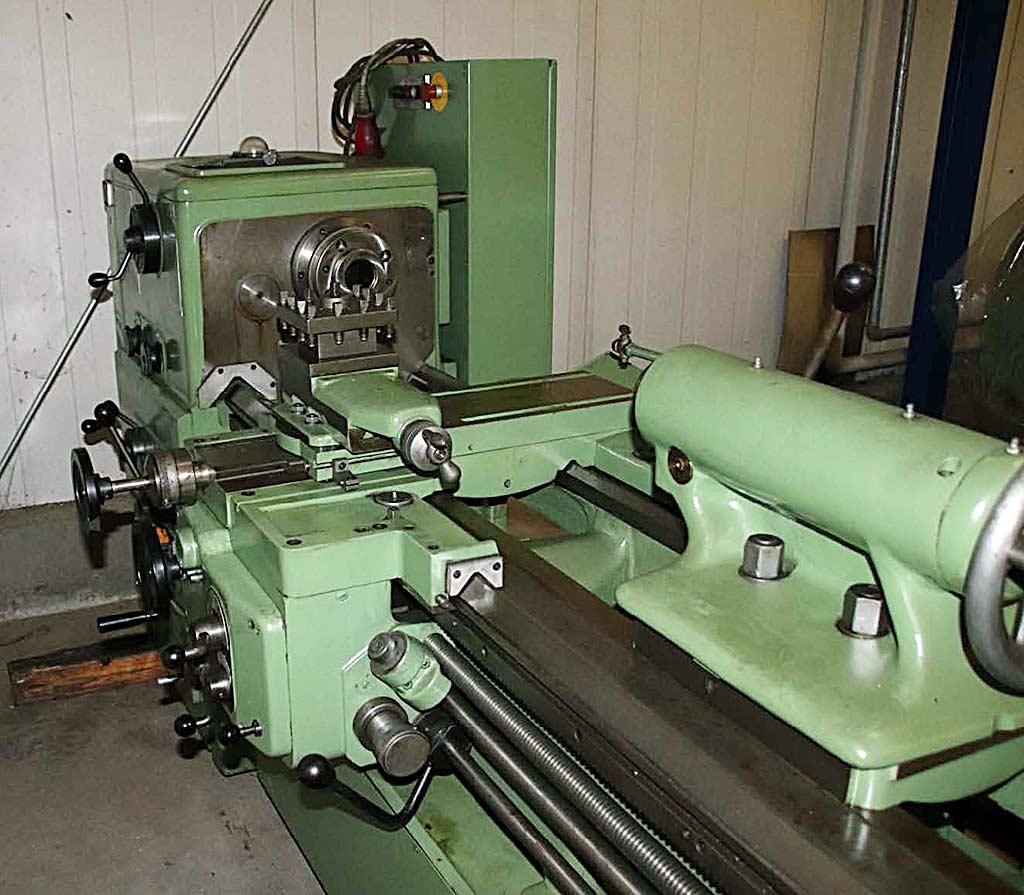

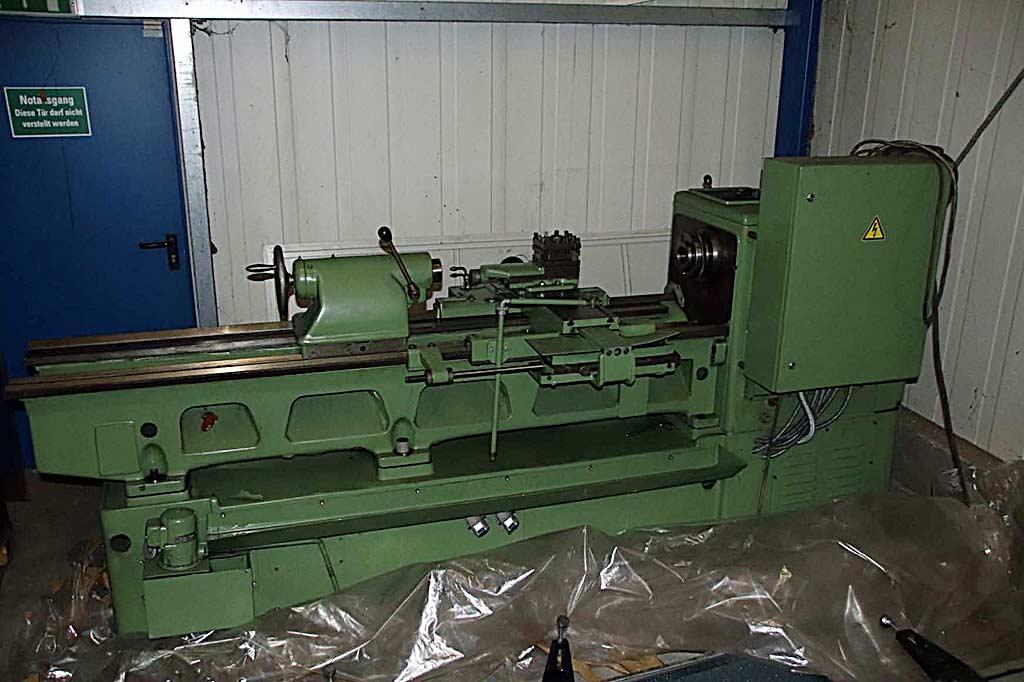

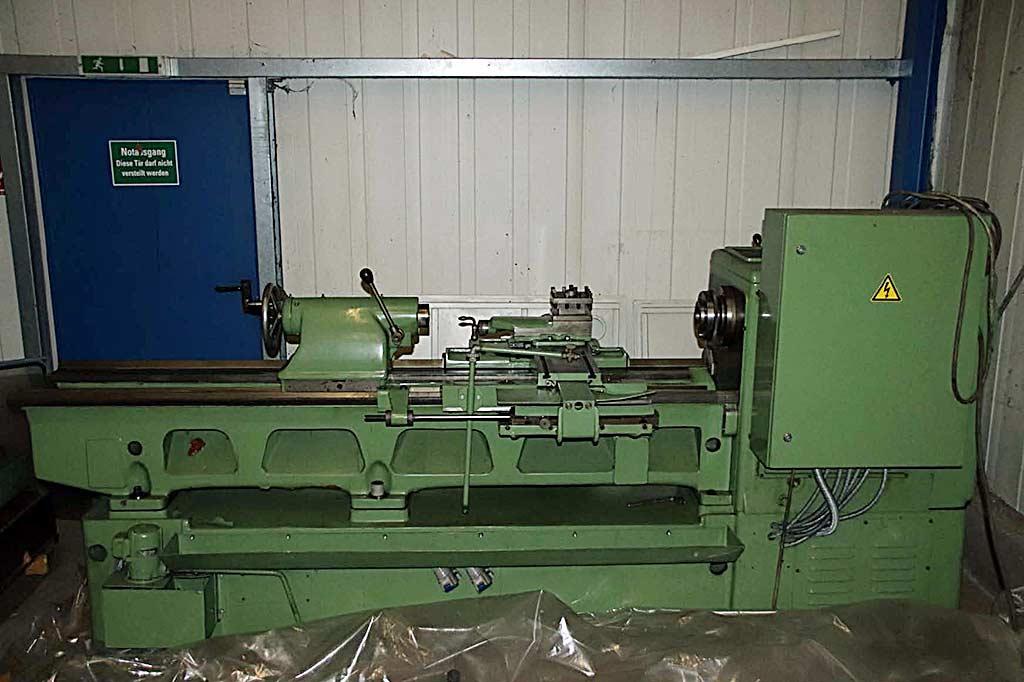

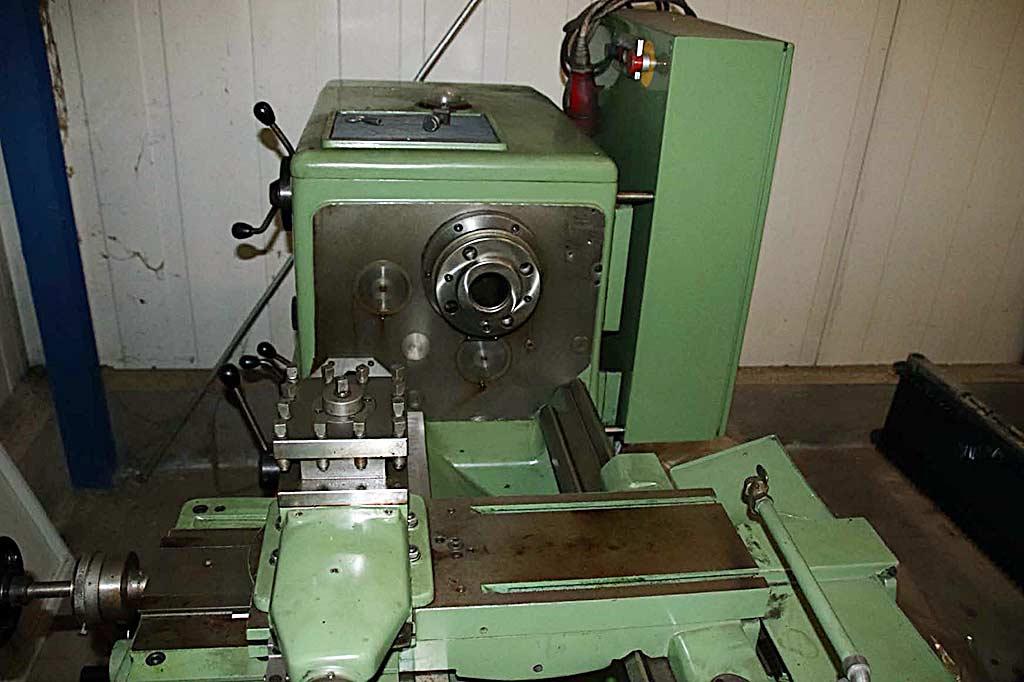

A WMW lead and feed spindle lathe that was overhauled in 1993 and has not been used since then is available. Center width: 1600mm, turning length: 1600mm, turning diameter: 250mm, turning diameter over bed/cross slide: 450mm/250mm, steel holder surface X/Y: 140mm/140mm, steel cross-section: 25mm/25mm. Speed: 2240rpm, spindle bore: 45mm, faceplate diameter: 450mm, quill stroke: 160mm, max. workpiece weight: 800kg/1250kg, max. journal diameter: 60mm. Including taper turning device, coolant device and quadruple steel holder. Documentation available. On-site inspection is possible. The machine was not used after its overhaul in 1993.

Additional Details
