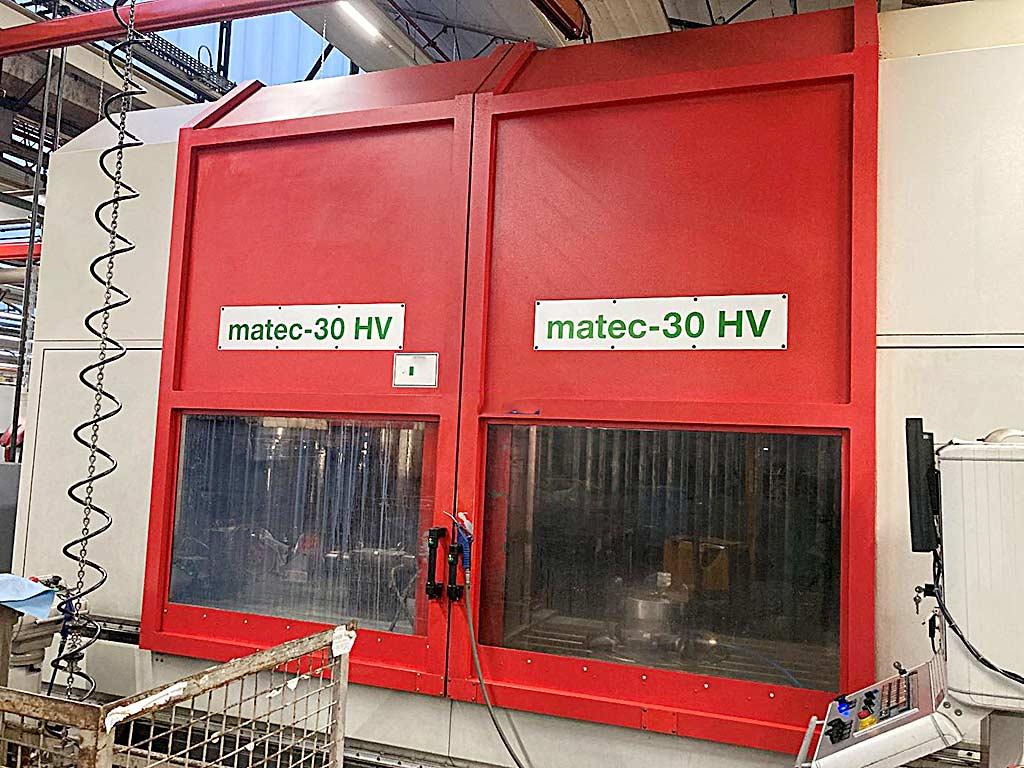

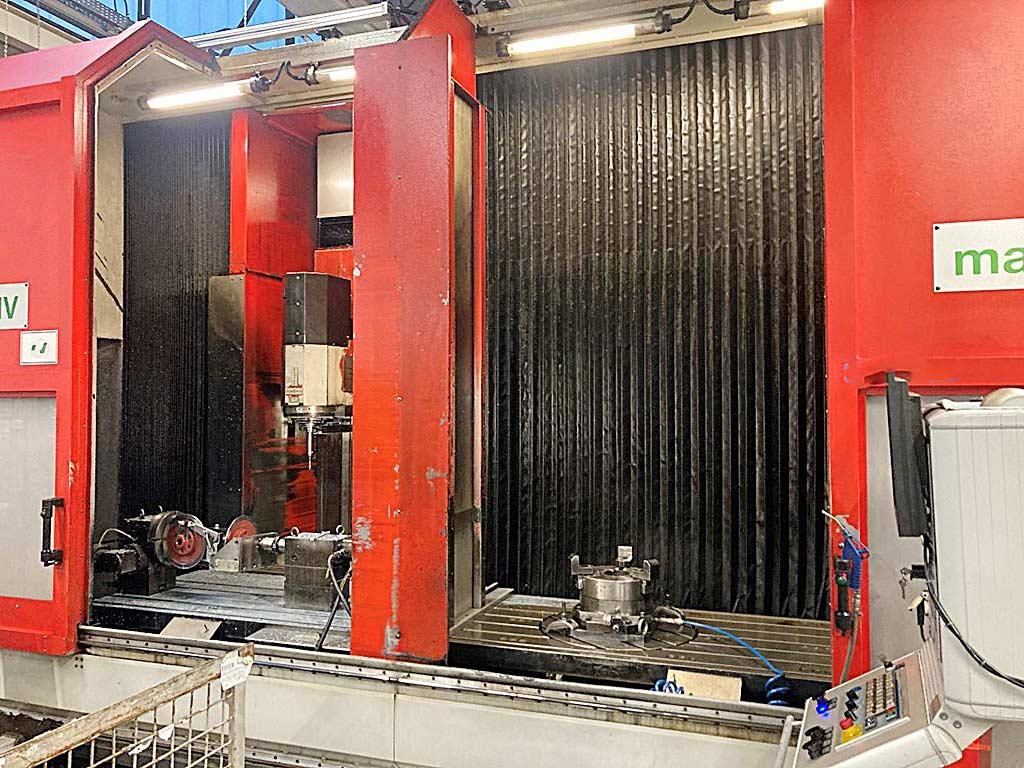

CNC Travelling Column Milling Machine Matec 30 HV

Germany

Description

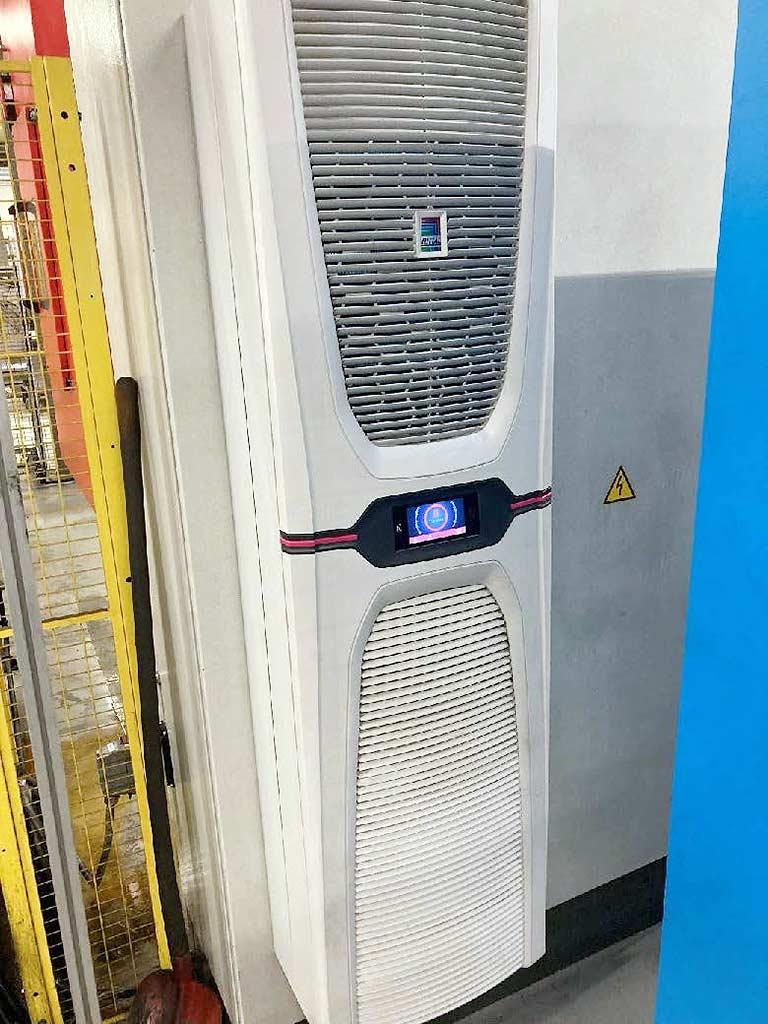

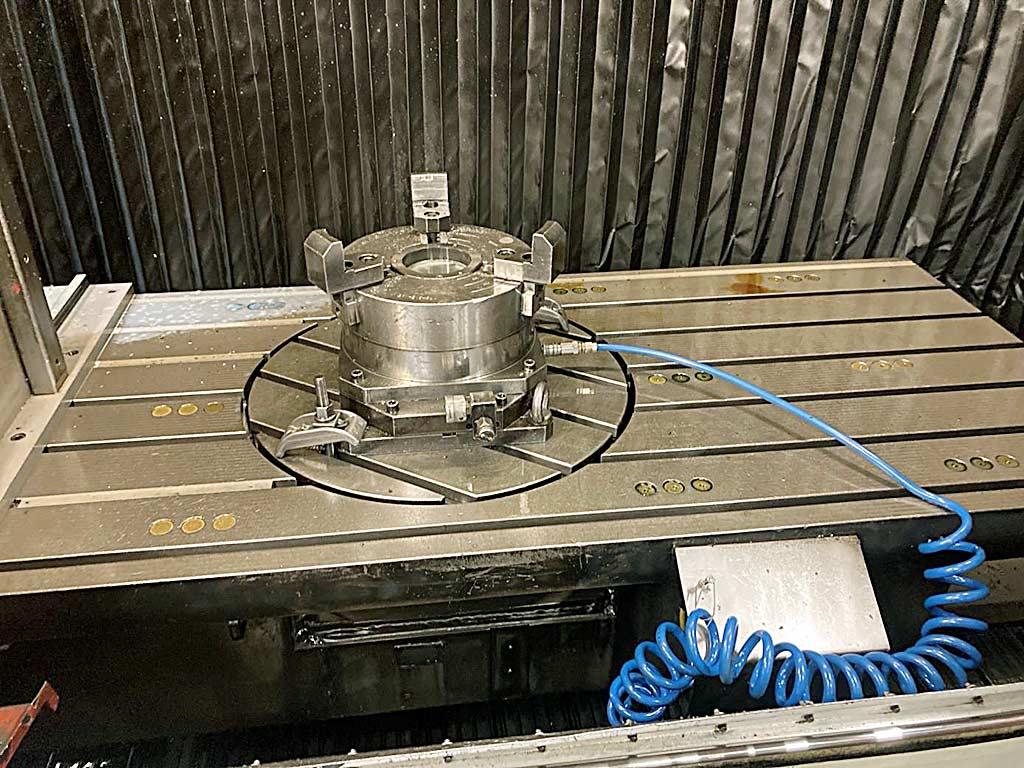

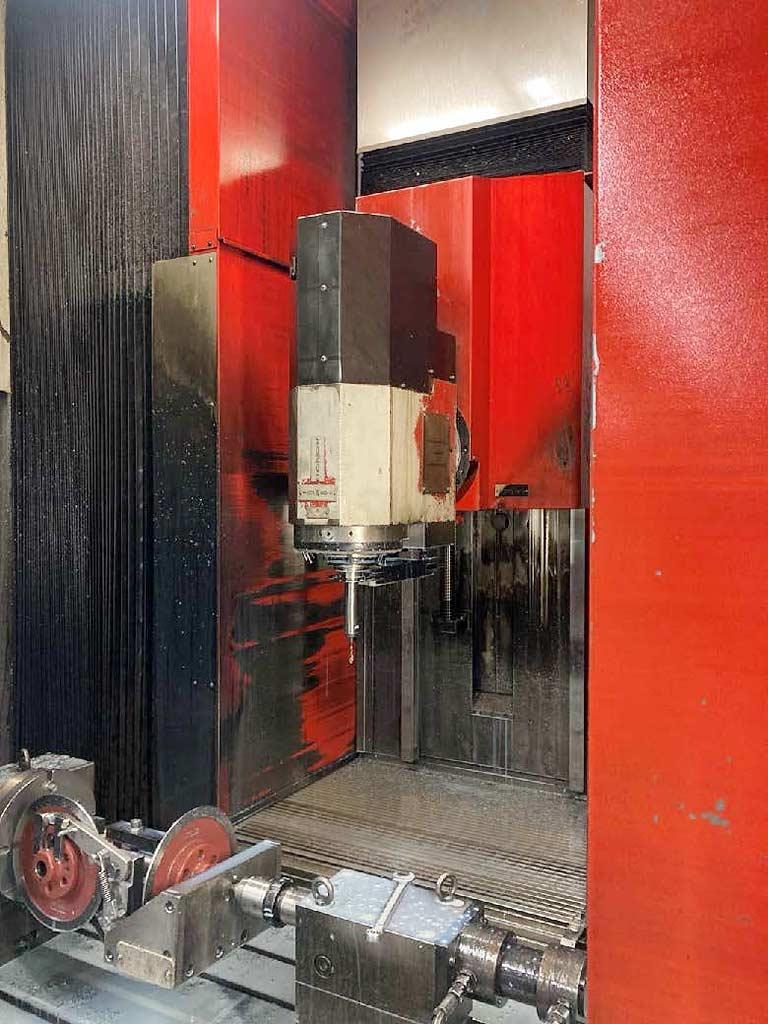

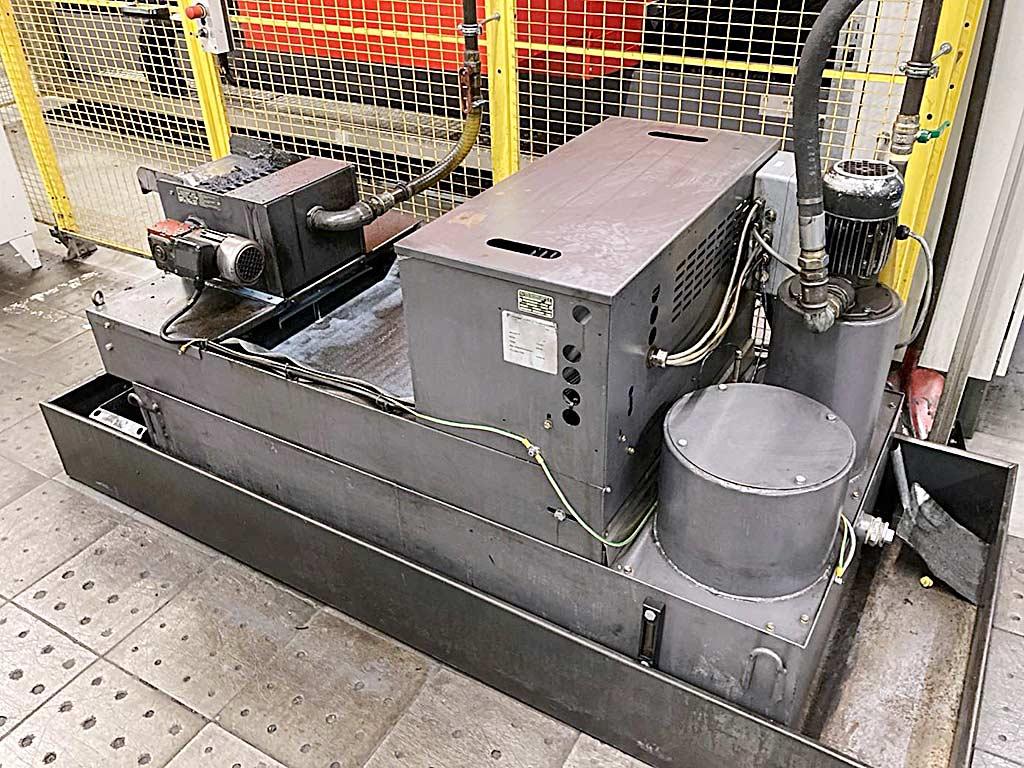

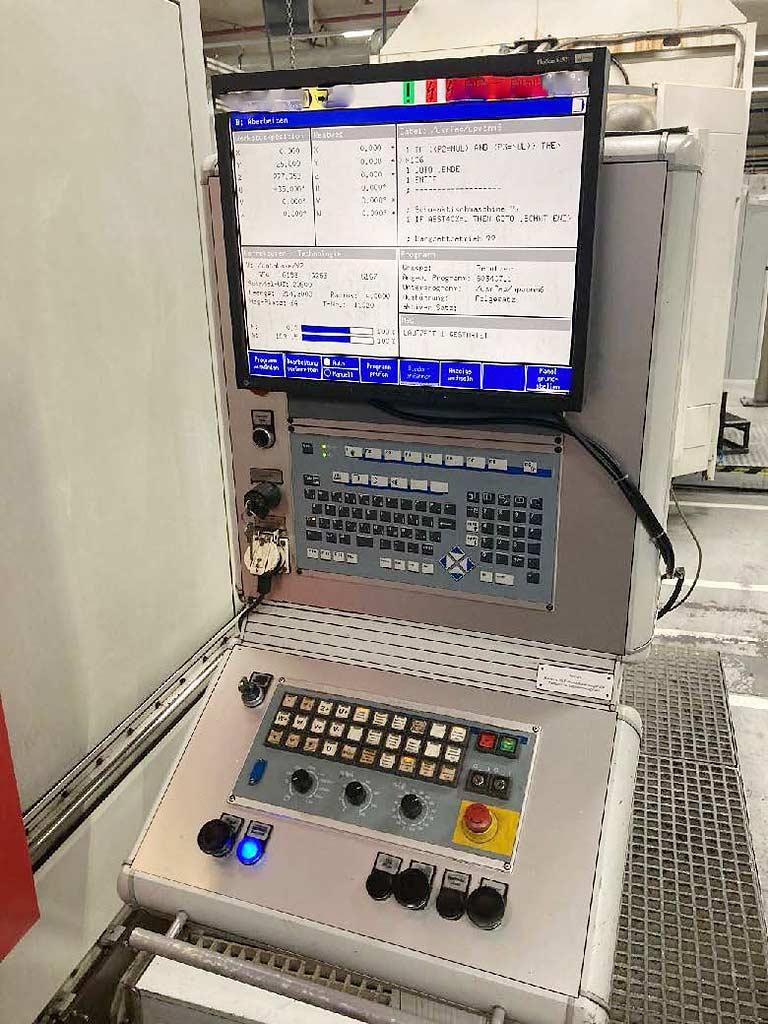

Travel X/Y/Z: 3000mm/800mm/1100mm, rapid traverse X/Y/Z: 30m/min, feed X/Y/Z: 30m/min, spindle type: DMS 112, speed: 12000rpm, power: 30kW, torque: 190Nm, tool holder: HSK 63 A, tool positions: 48. Drilling capacity steel: approx. 60mm, milling capacity: approx. 500cm³, tapping capacity: M30, head tilt: +/-90°, table dimensions X/Y: 3500mm/835mm, face plate diameter: 630mm. Machine dimensions X/Y/Z: approx. 7000mm/6000mm/4000mm, weight: approx. 15000kg, control: Bosch type 3 Osa. Including 70bar internal coolant supply, chip conveyor, loading doors for crane loading, 3D radio measuring probe, direct measuring systems for X/Y/Z, cooling unit and other accessories. Documentation available. On-site inspection is possible.
