CNC Plate Drilling Machine Union BFP 130/7

Germany

Description

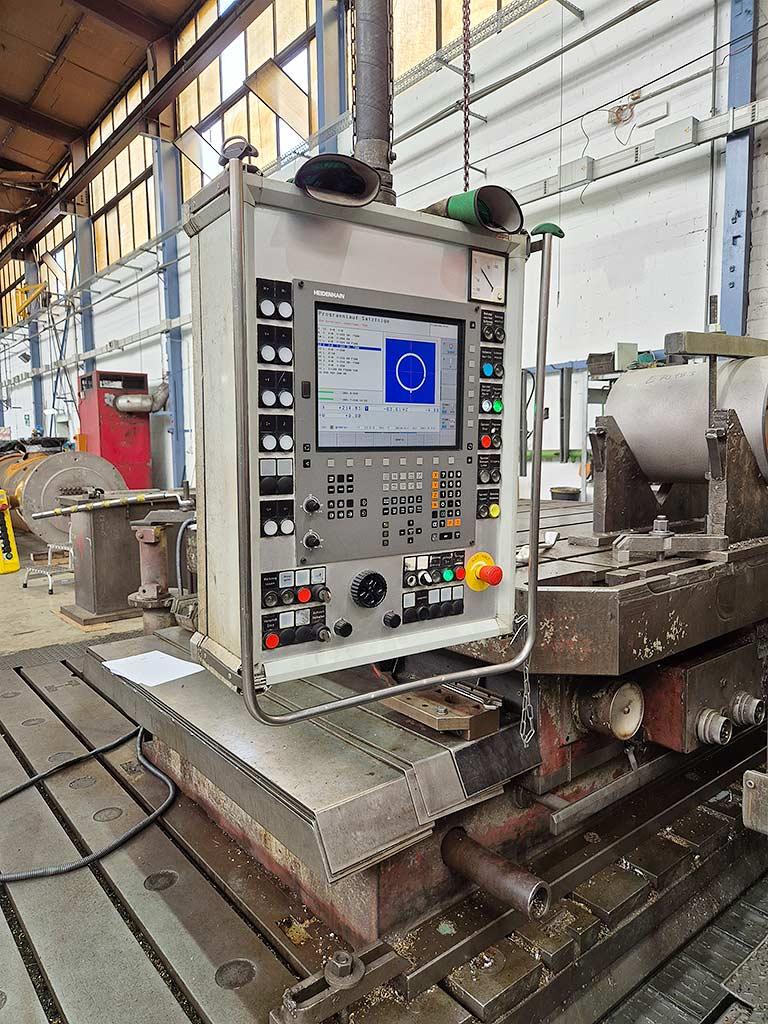

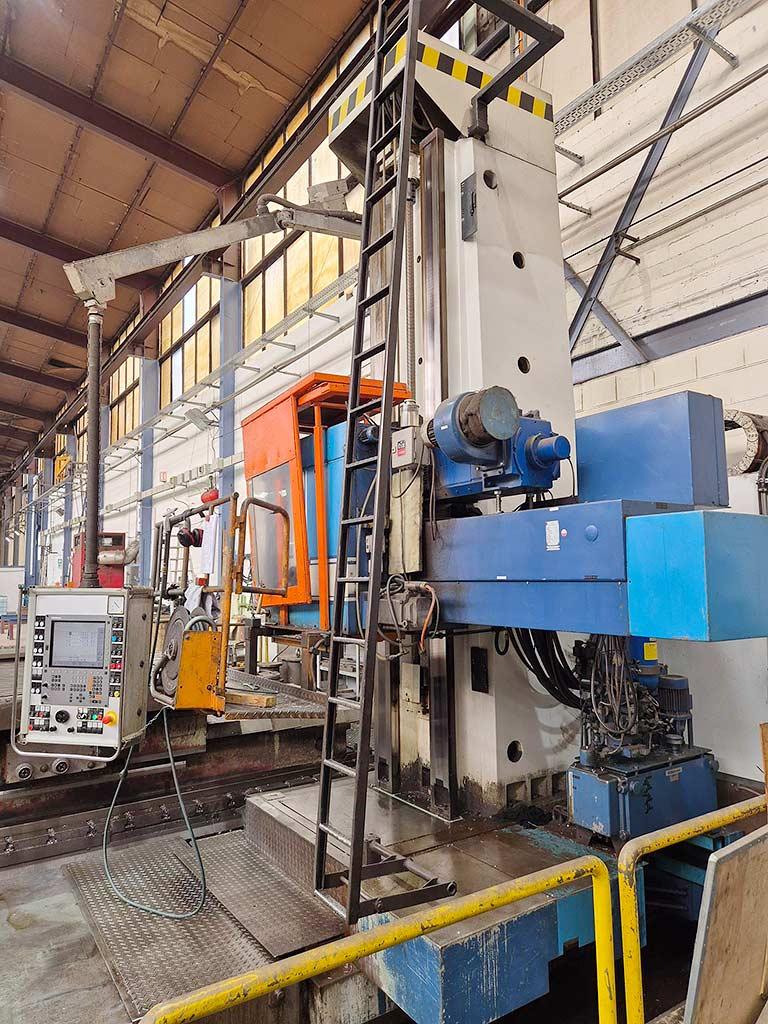

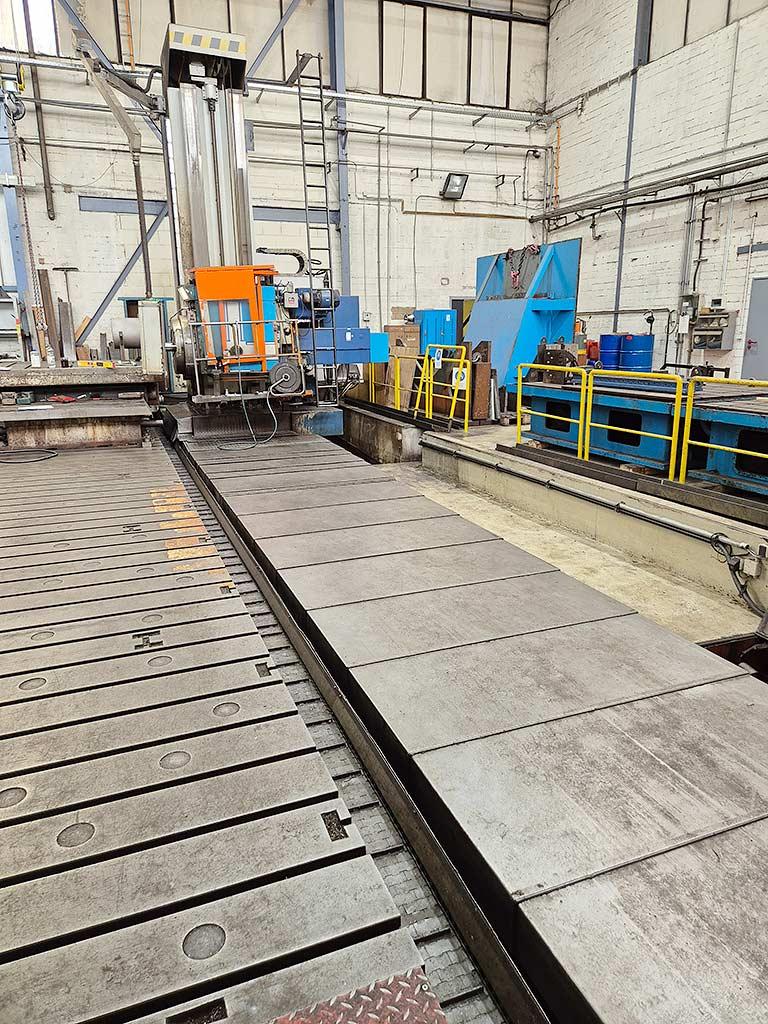

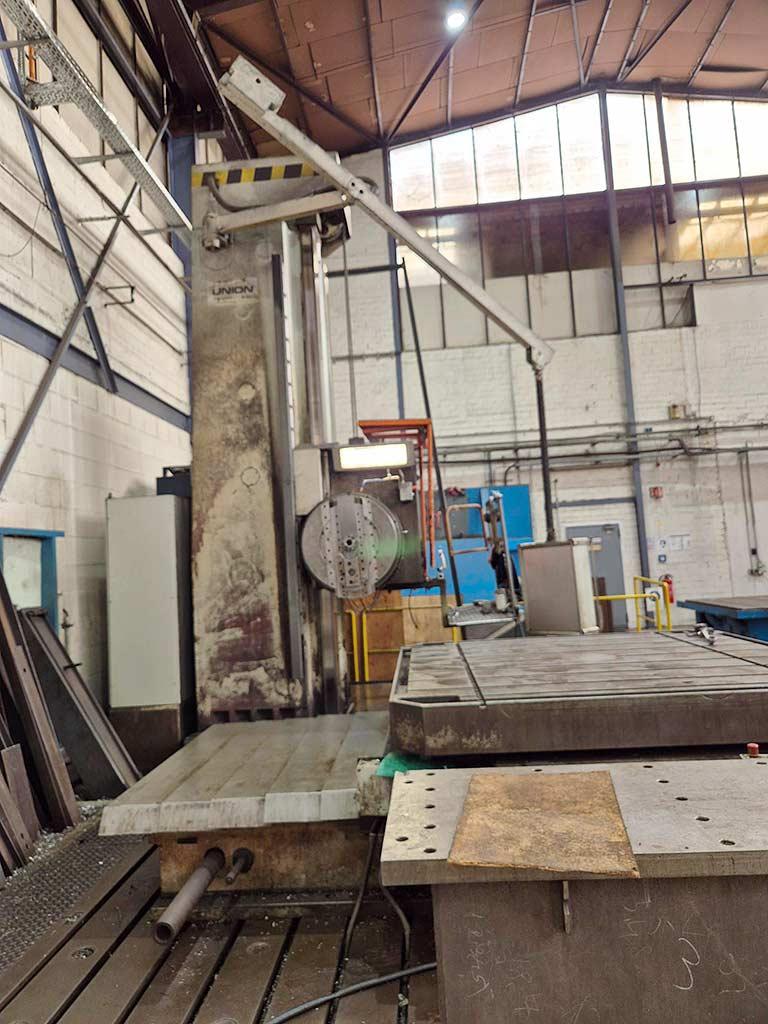

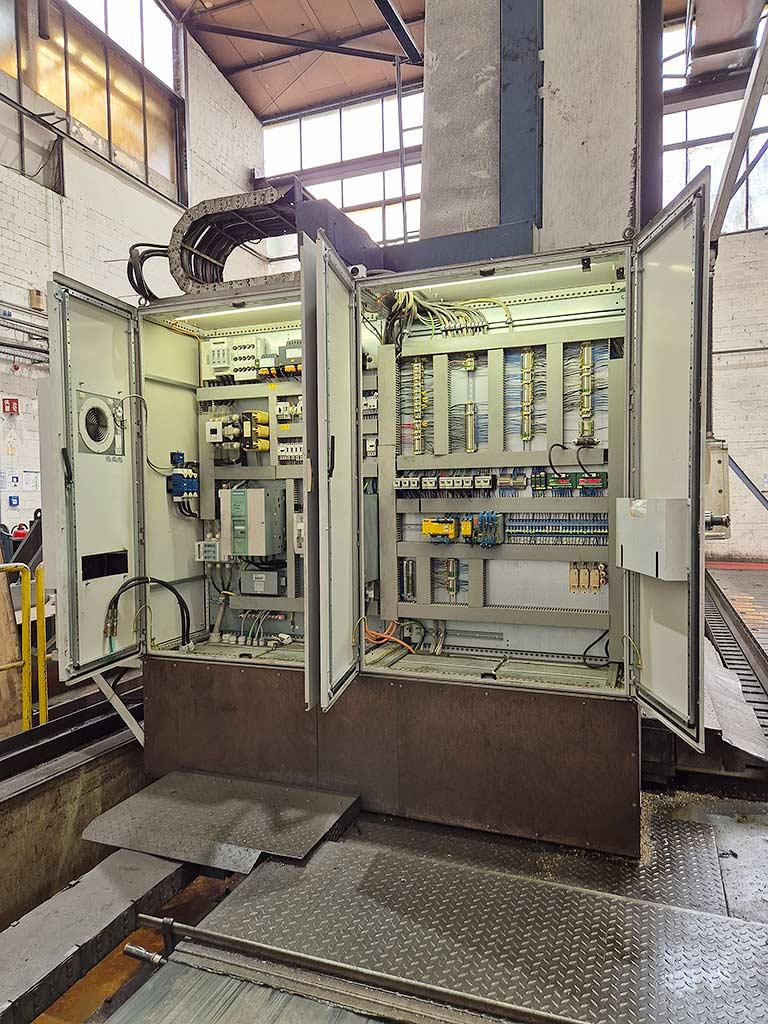

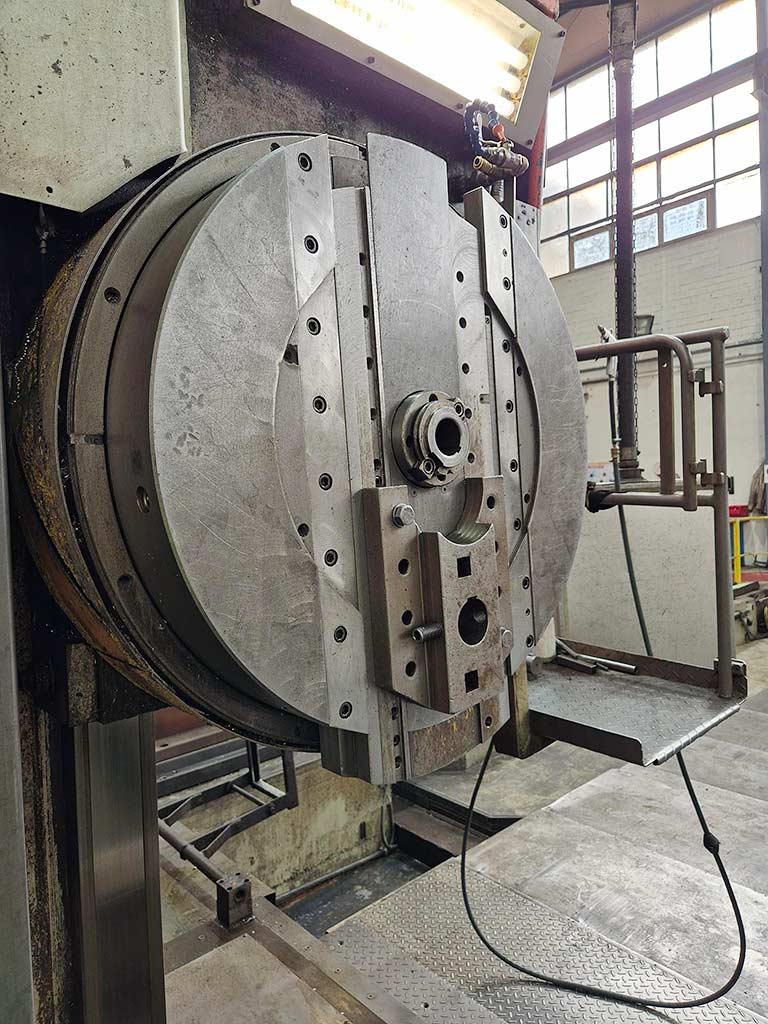

A Union horizontal drilling and milling machine overhauled in 2009 is available. Spindle diameter: 130mm, tool holder: ISO30, travel X/Y: 11500mm/3000mm, column movement Z: 420mm, drilling spindle movement W: 900mm, facing slide movement U: 320mm, spindle speed: 1000rpm, face support speed: 250rpm. Feed in all axes: 2500mm/min, rapid traverse X/Y: 5000mm/min, rapid traverse Z: 3600mm/min, rapid traverse W/U: 3150mm/min, connected load: 100kW, spindle power: 50kW. Machine dimensions X/Y/Z: approx. 17000mm/3000mm/6500mm, total system weight: approx. 60t, control system: PFP 130 NC. The drives, switchgear and control system were overhauled in 2009. Documentation available. On-site inspection is possible. Expected to be available from the end of June 2025.
