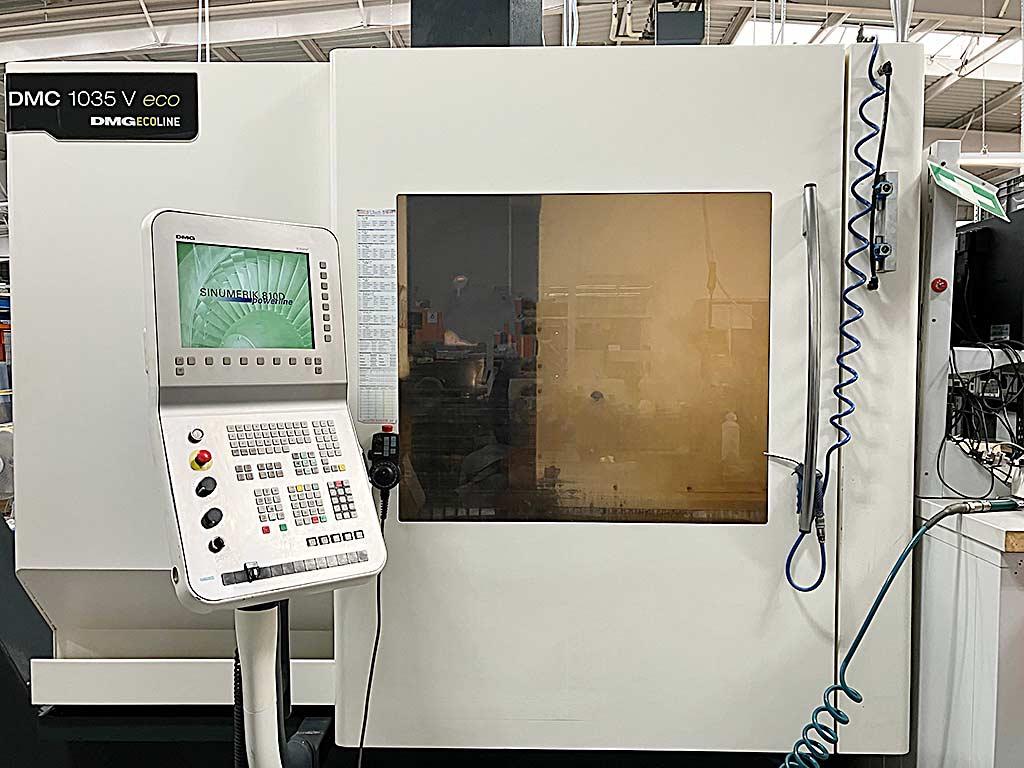

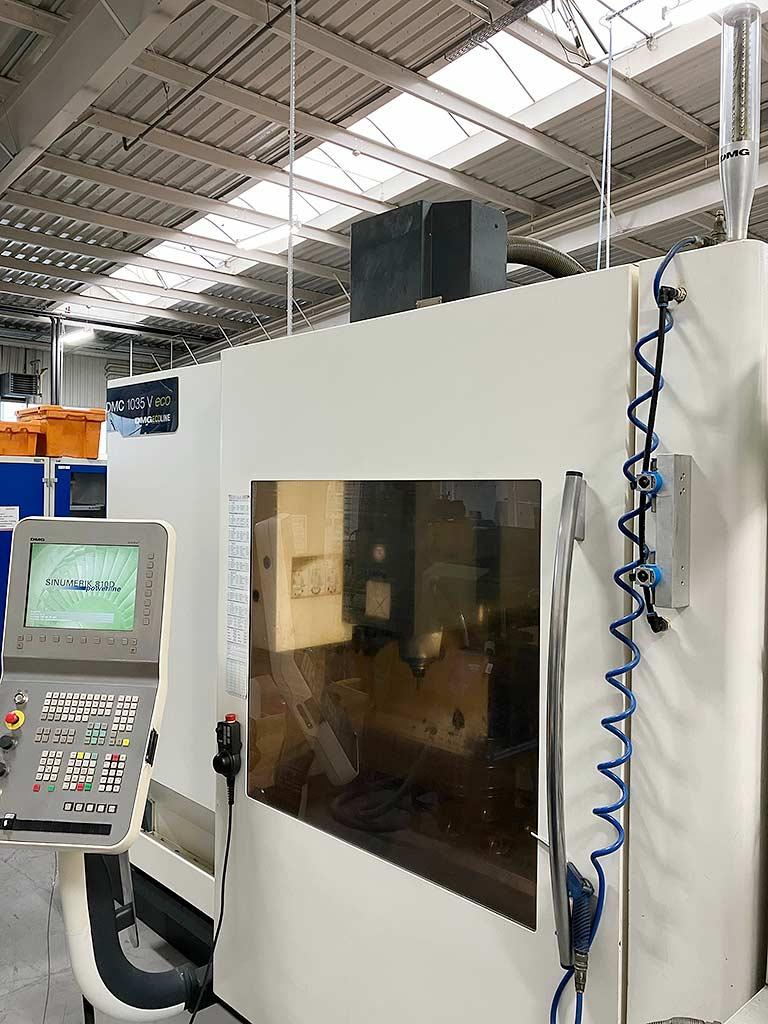

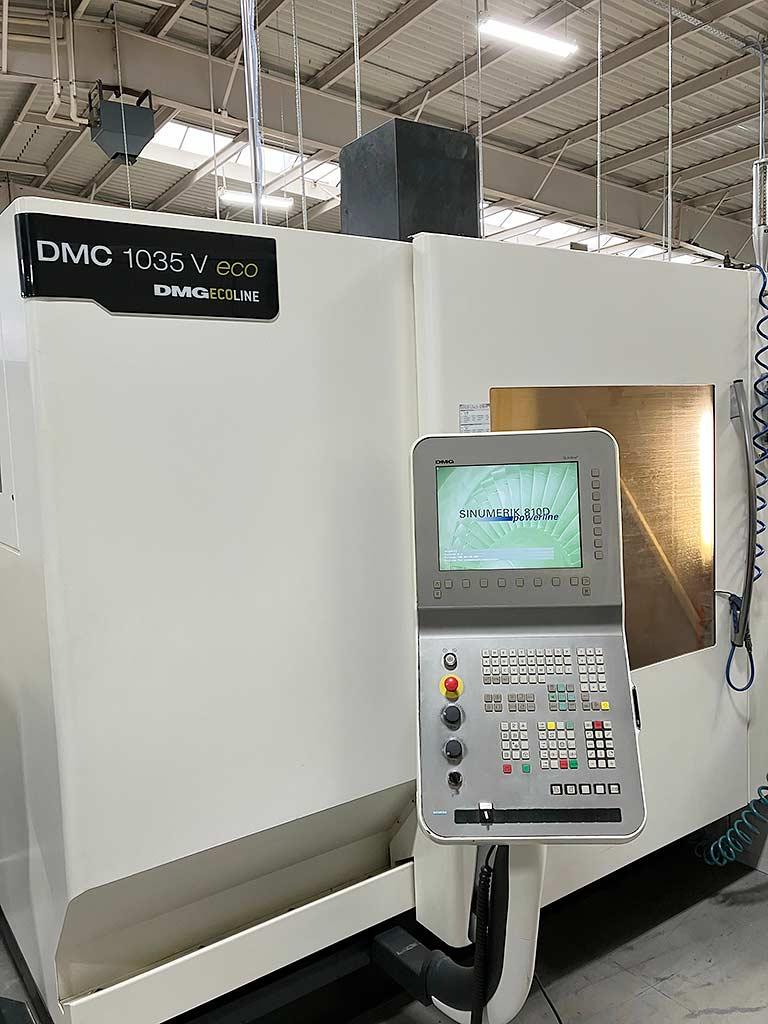

CNC Machining Center Dmg Mori DMC 1035 V

Germany

Description

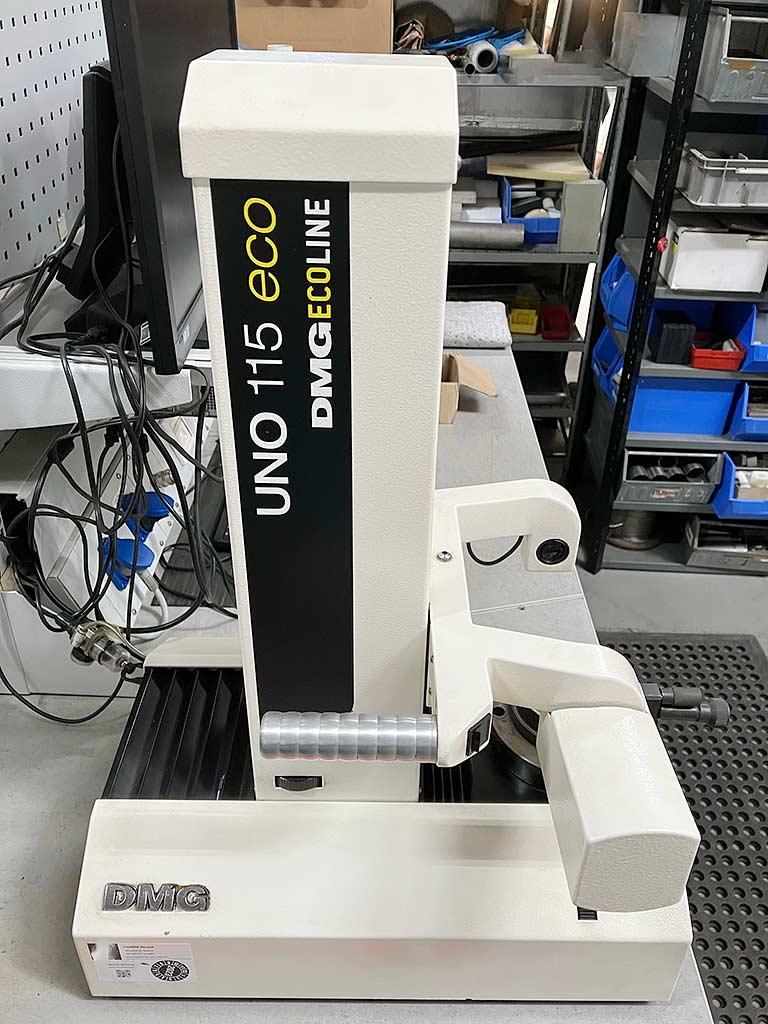

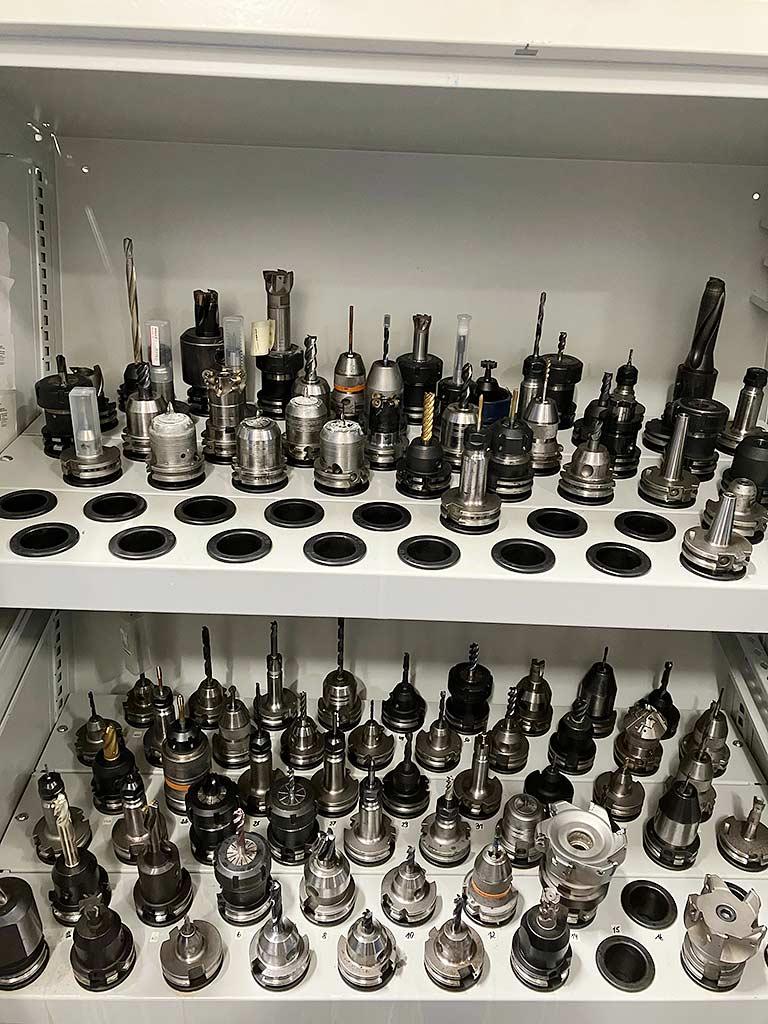

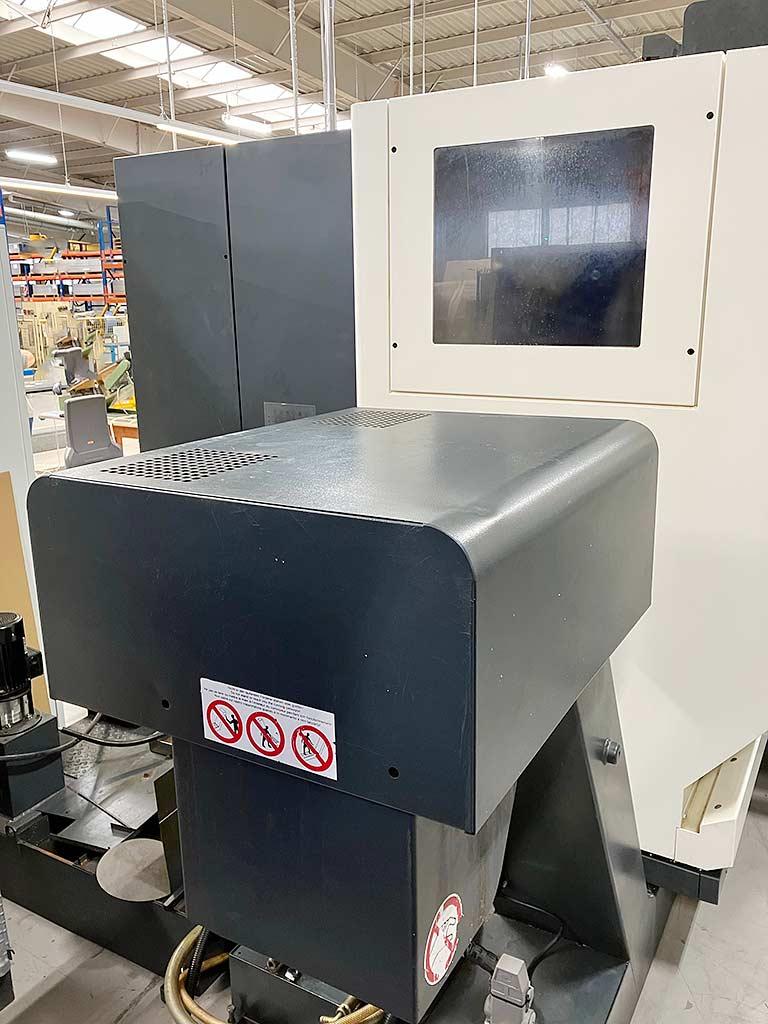

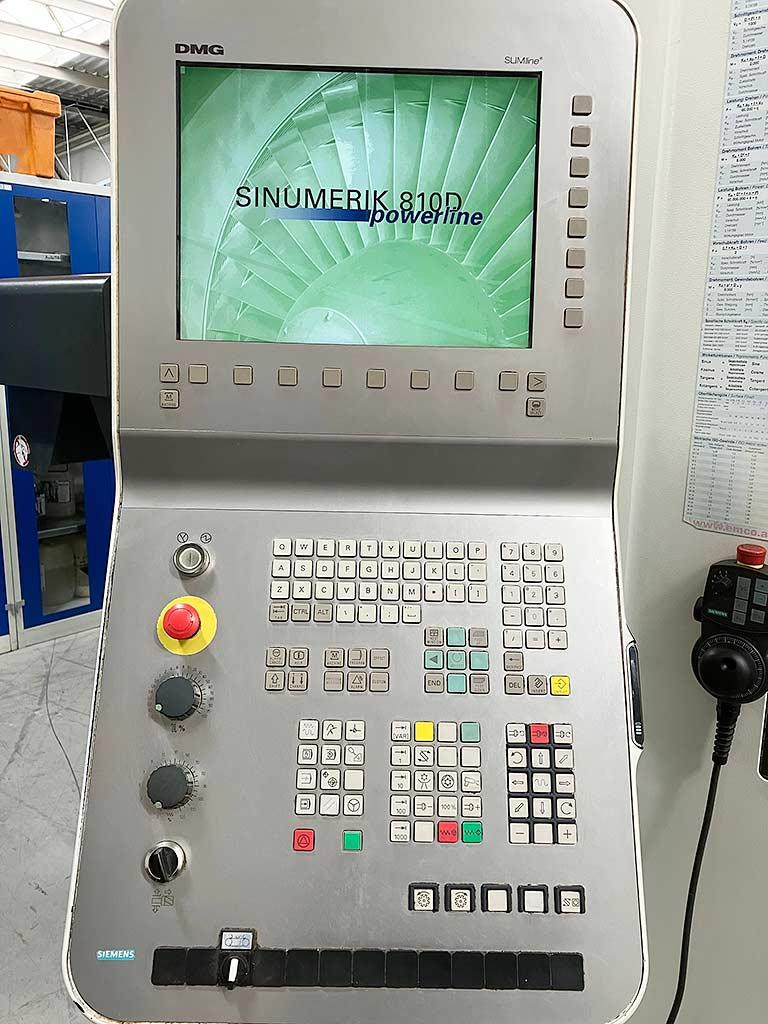

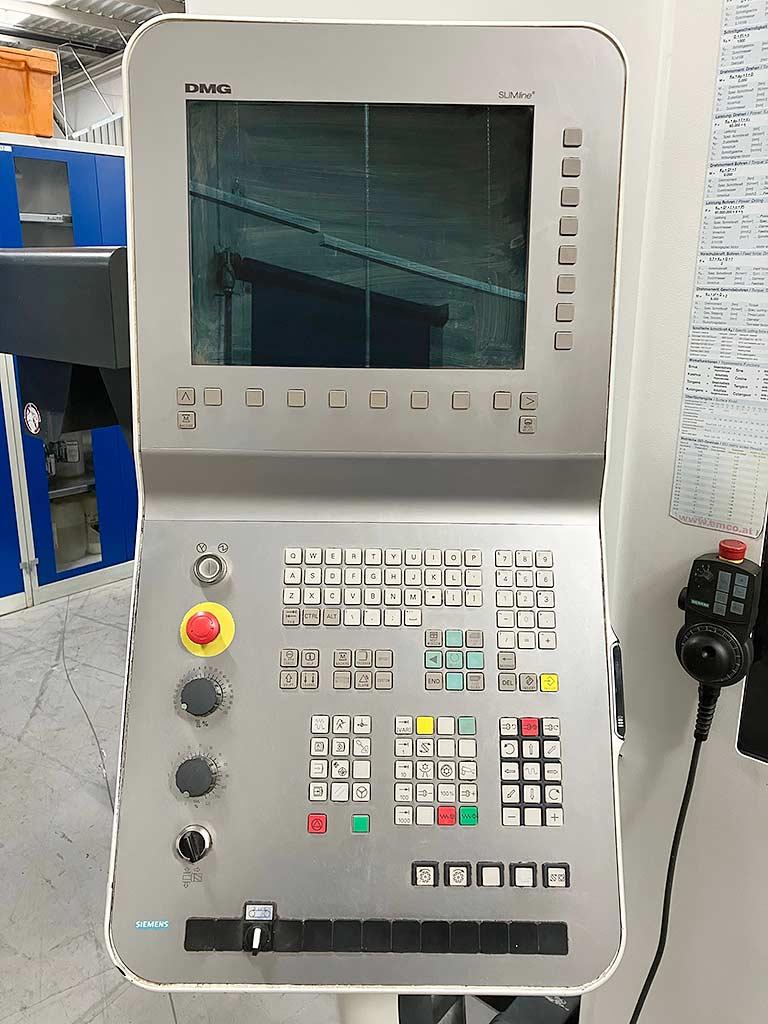

Travel X/Y/Z: 1035mm/560mm/510mm, rapid traverse X/Y/Z: 25m/min, feed: 20m/min, table dimensions X/Y: 1200mm/560mm, max. table load: 1000kg, spindle speed: 9000rpm, power: 13kW, torque: 83Nm, tool holder: SK40, tool positions: 20, max. tool diameter: 80mm/130mm, max. tool length: 300mm, max. tool weight: 6kg. Machine dimensions X/Y/Z: approx. 4000mm/4000mm/2500mm, weight: approx. 4100kg, control: Siemens Sinumerik 810D, operating hours: 23918h, machining hours: 11991h. Including chip conveyor, DMG EcoLine UNO 115 tool presetter, machine vices, clamping tools and various tool holders. The buffer battery is empty and may need to be replaced. Documentation available. On-site inspection is possible.
