CNC Vertical Turning Machine Emag VL 5 m LT

Germany

Description

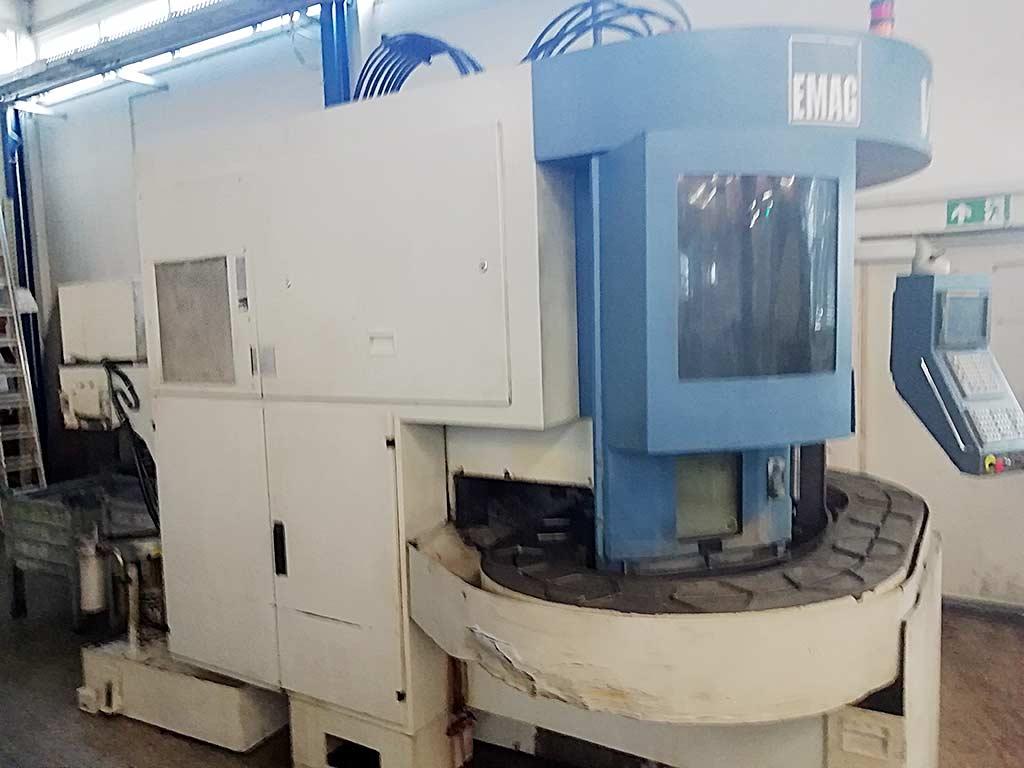

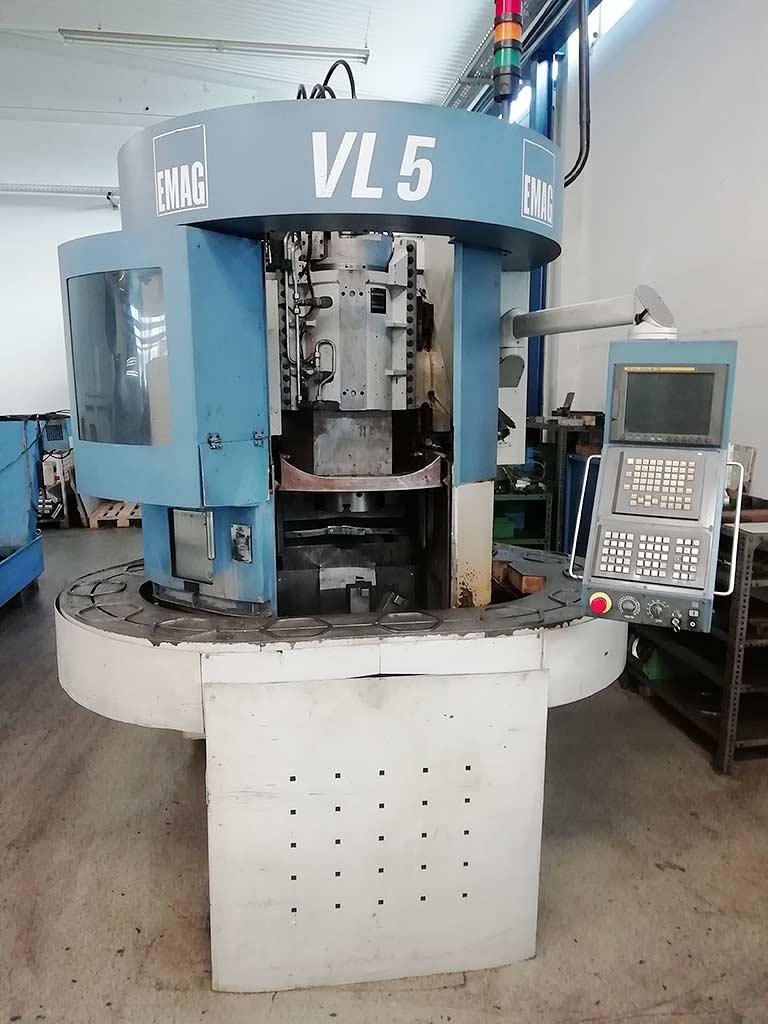

An EMAG CNC vertical lathe is available. Chuck diameter: 250mm, orbital diameter: 260mm, travel X/Z: 570mm/200mm, rapid traverse X/Z: 60m/30m/min, feed force X/Z: 5kN, ball screw diameter X/Z: 40mm, spindle bearing diameter front: 110mm, speed: 4500rpm, power: 18/28kW, shank diameter: 40mm, power of driven tools: 12kW, speed: 6000rpm. Machine dimensions X/Y/Z: approx. 2700mm/2100mm/2400mm, weight: approx. 7000kg, switch-on time: 50416h, automatic time: 9016h. Documentation available. On-site inspection is possible.

Additional Details
