Bending System Löcher/irle/siemens/oew B 200 HH/WS 634/B 180 HH/WS 454

Germany

Description

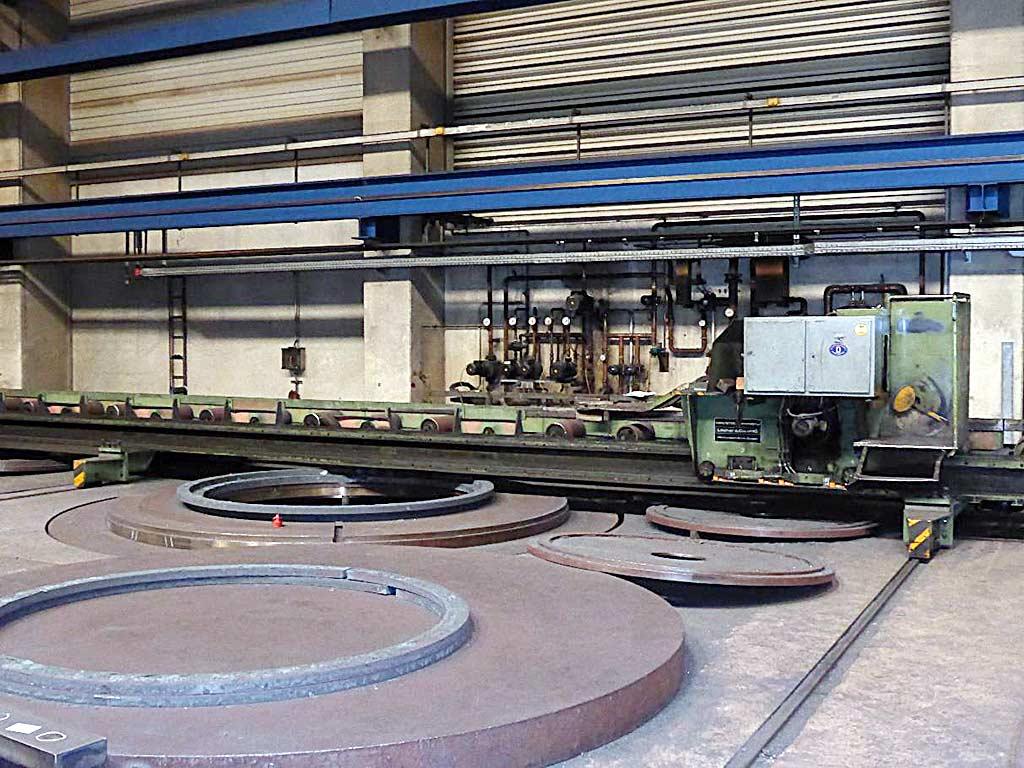

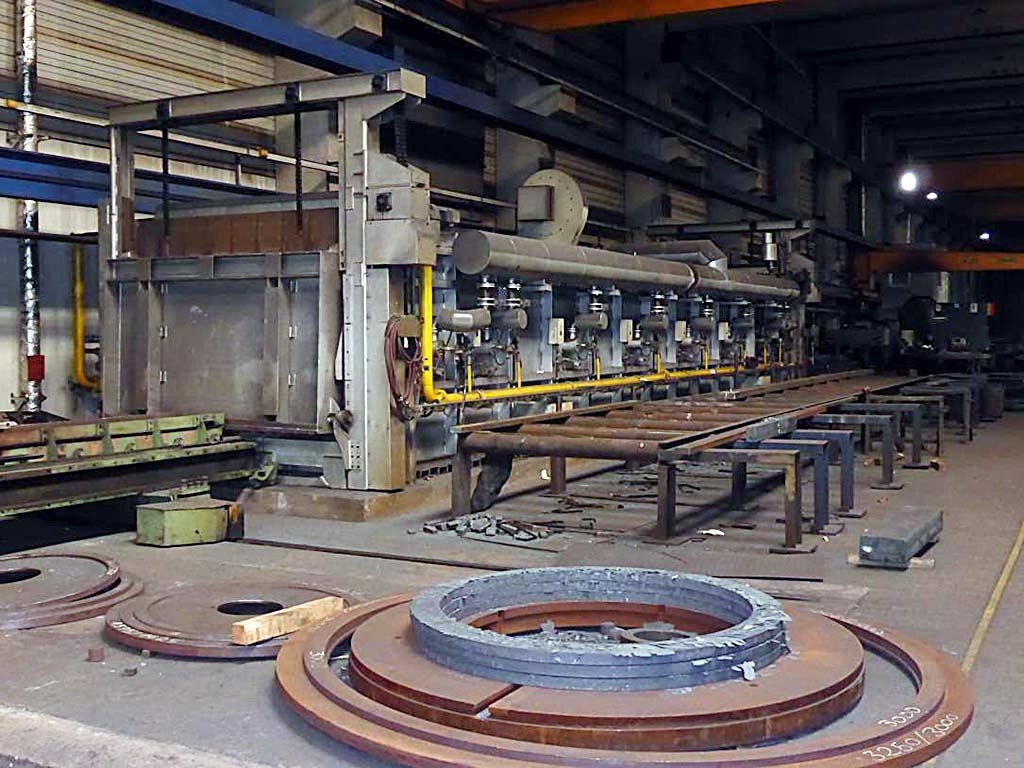

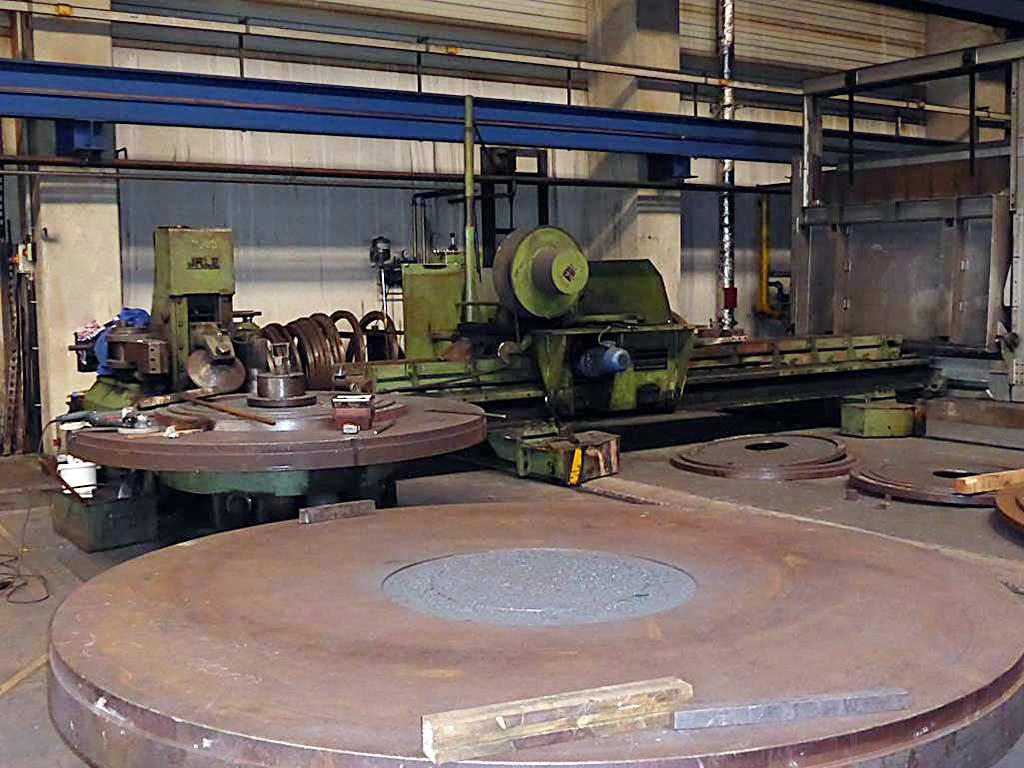

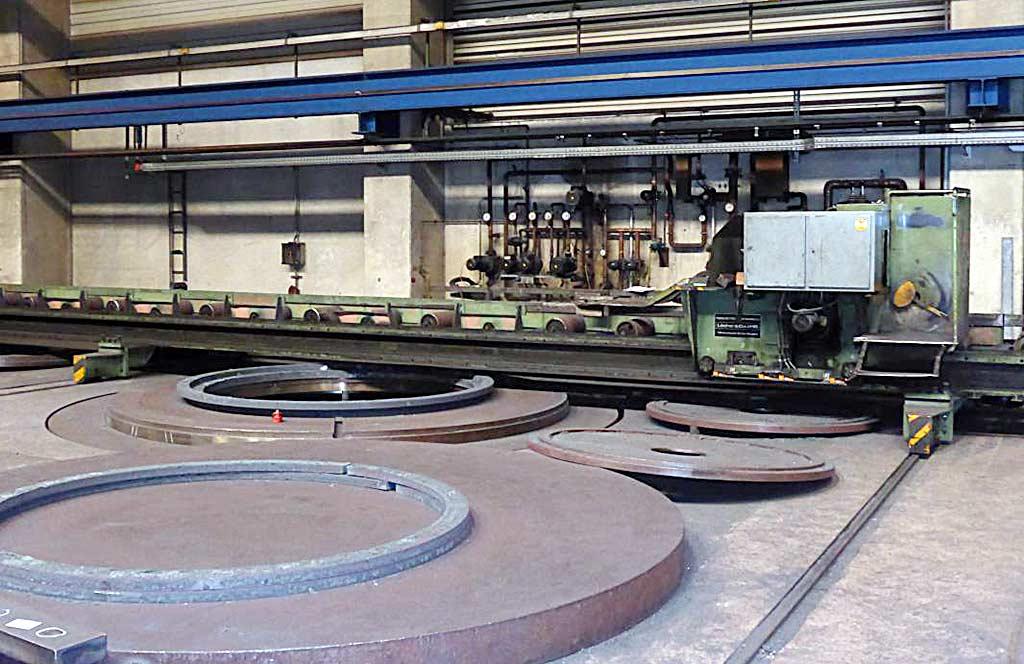

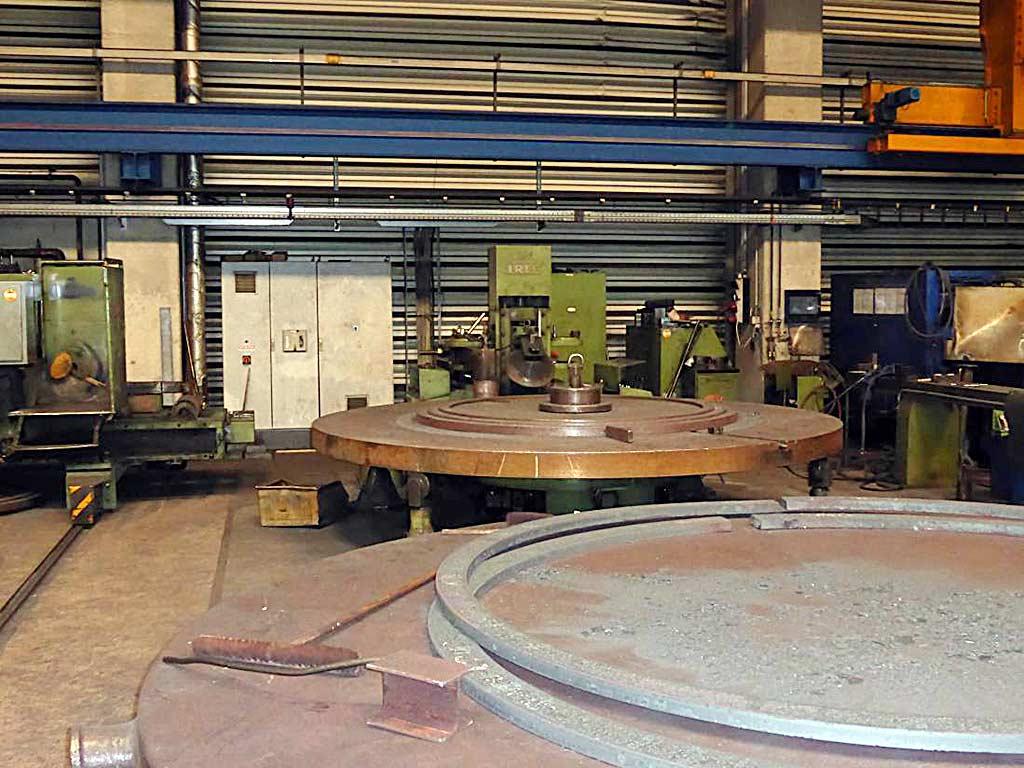

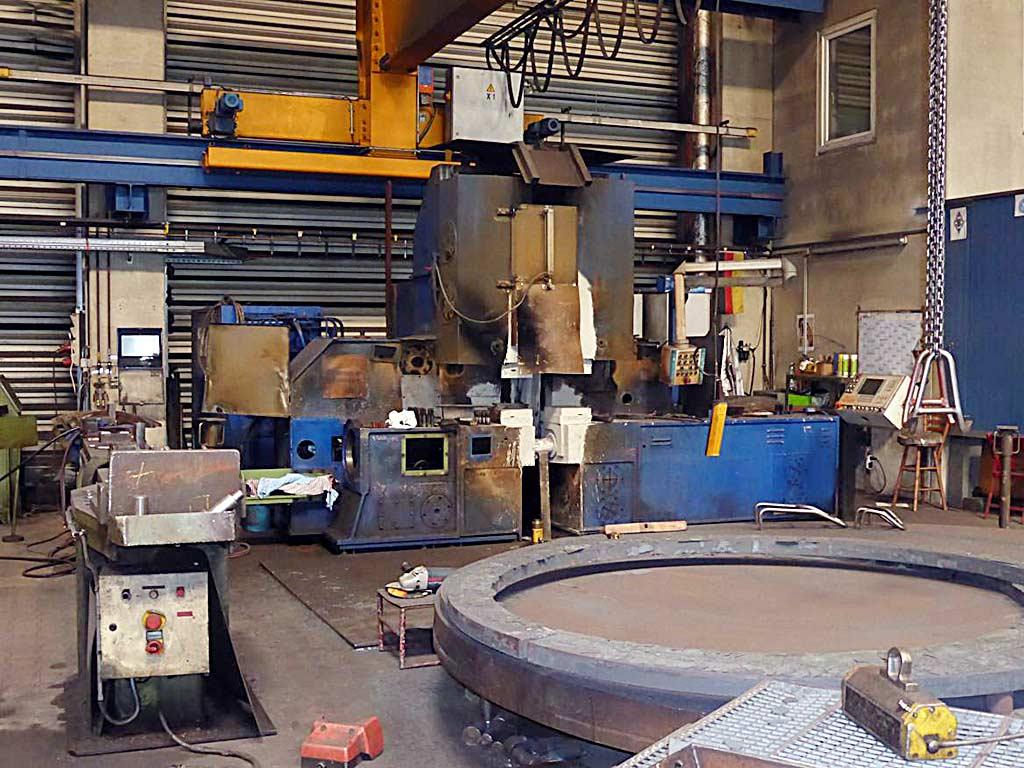

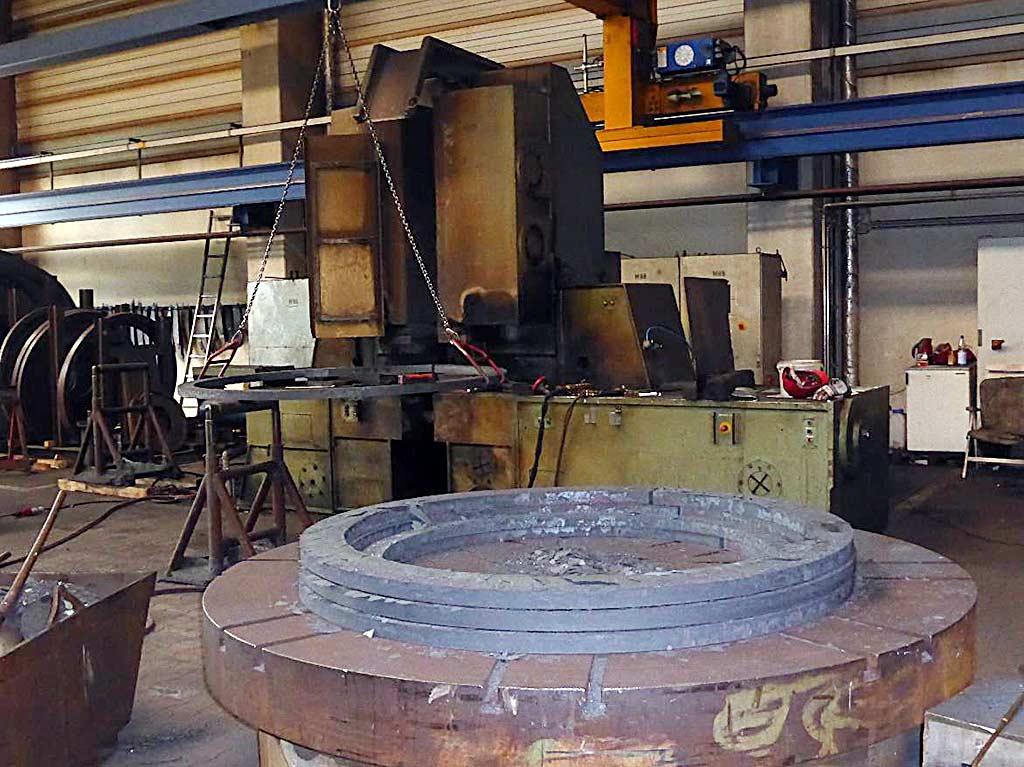

Two complete bending lines for the production of flange rings are available. The lines use the same preheating furnace holes, furnace dimensions X/Y/Z: 1500mm/400mm/14000mm. Line 1: Workpiece dimensions X/Y: 310mm/250mm, max. cross-section (S355 NL): 25000mm², max. flat steel length: 14000mm, max. outer ring diameter: 4900mm, max. inner ring diameter: 800mm, max. ring weight: 3.1t. Conveyor system holes, length: 14000mm. Ring bending machine Irle B 200 HH, max. outer ring diameter: 4900mm, cross section (S355 NL): 25000mm². Flash butt welding system Siemens WS 634, connected load: 1150kVA. Line 2: Workpiece dimensions X/Y: 325mm/250mm, max. cross-section (S355 NL): 12500mm², max. flat steel length: 8000mm, max. outer ring diameter: 2400mm, max. inner ring diameter: 400mm, max. ring weight: 1.5t. Conveyor system holes, length: 8000mm. Ring bending machine Irle B 180 HH, max. outer ring diameter: 2450mm, cross section (S355 NL): 25000mm². Flash butt welding system Siemens WS 634, connected load: 600kVA. Documentation available. On-site inspection is possible. Sale of individual systems with or without preheating furnace possible.
