CNC Double Spindle Lathe Mazak MP-6200 Y

Germany

Description

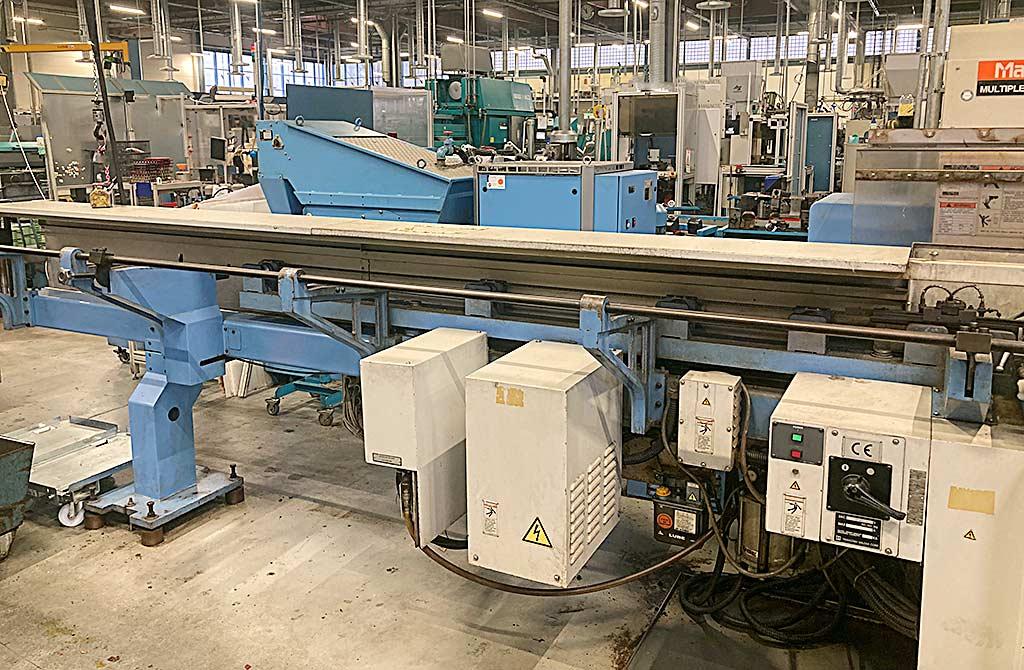

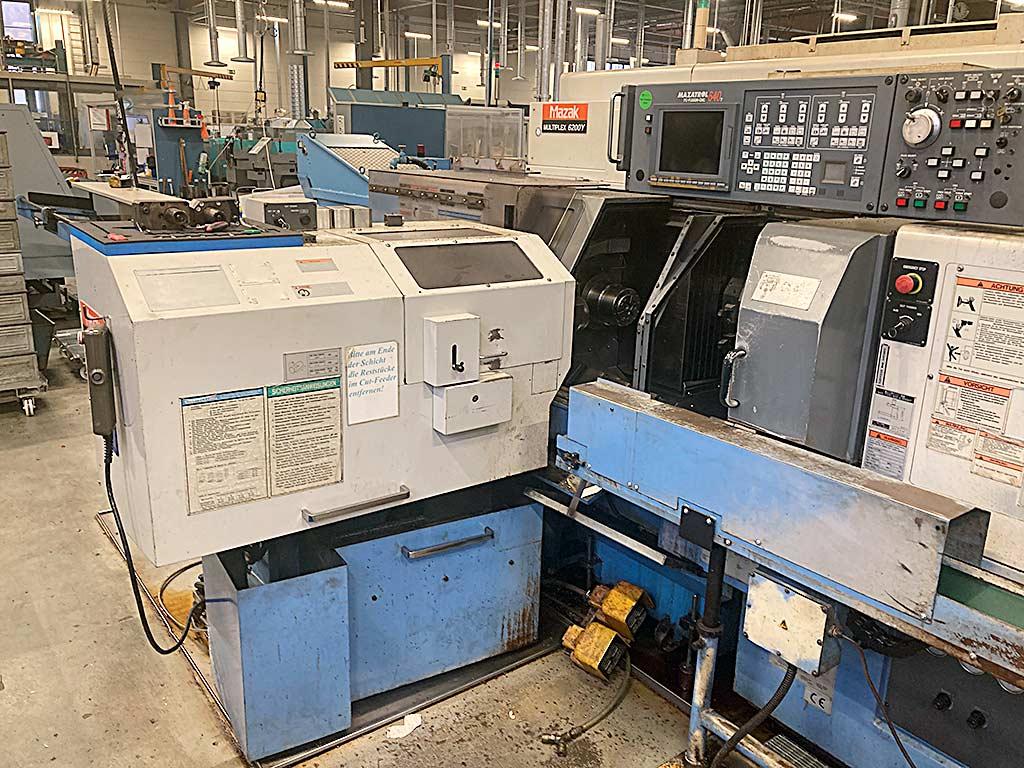

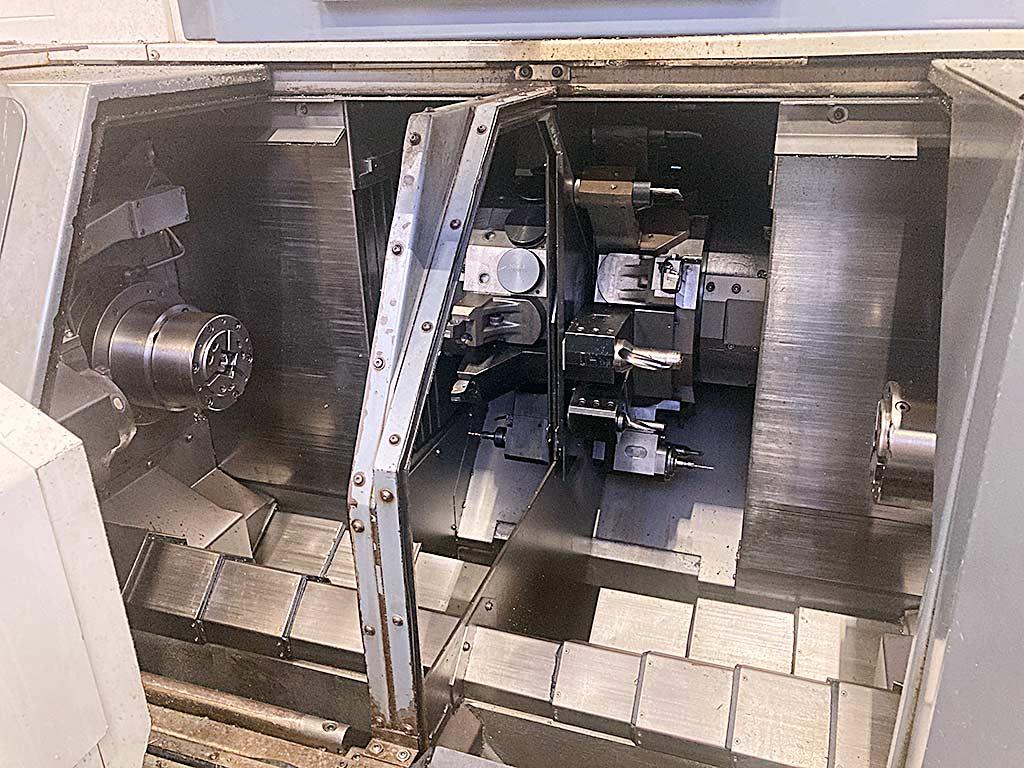

A Mazak CNC double-spindle lathe is available. Chuck diameter: 8 inch, max. swing diameter: 320mm, max. machining length chuck workpiece/shaft workpiece: 180mm/530mm, max. bar diameter: 51mm, speed: 5000rpm, rated power: 22kW. Traverse path X: 240mm, traverse path Y: +/-50mm, traverse path Z left/right: 440mm/495mm, rapid traverse X1/X2: 30.5m/min, rapid traverse Z1/Z2: 33m/min. Tool positions: 12, speed of driven tools: 4500 rpm. Machine dimensions X/Y/Z: approx. 3600mm/2000mm/2100mm, weight: approx. 8000kg, control: Mazatrol 640T. Including Cut-Feeder 80, Knoll high-pressure system and some tool holders. Documentation available. On-site inspection is possible.
