Roll Cutting and Winding Machine Sml W2000

Germany

Description

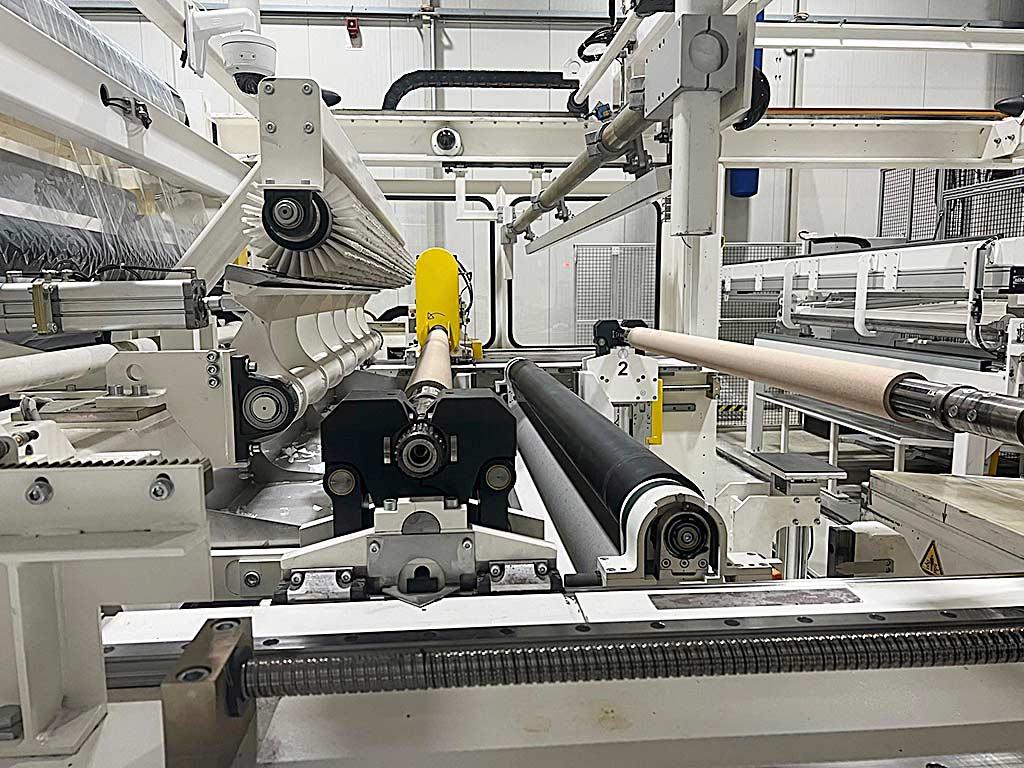

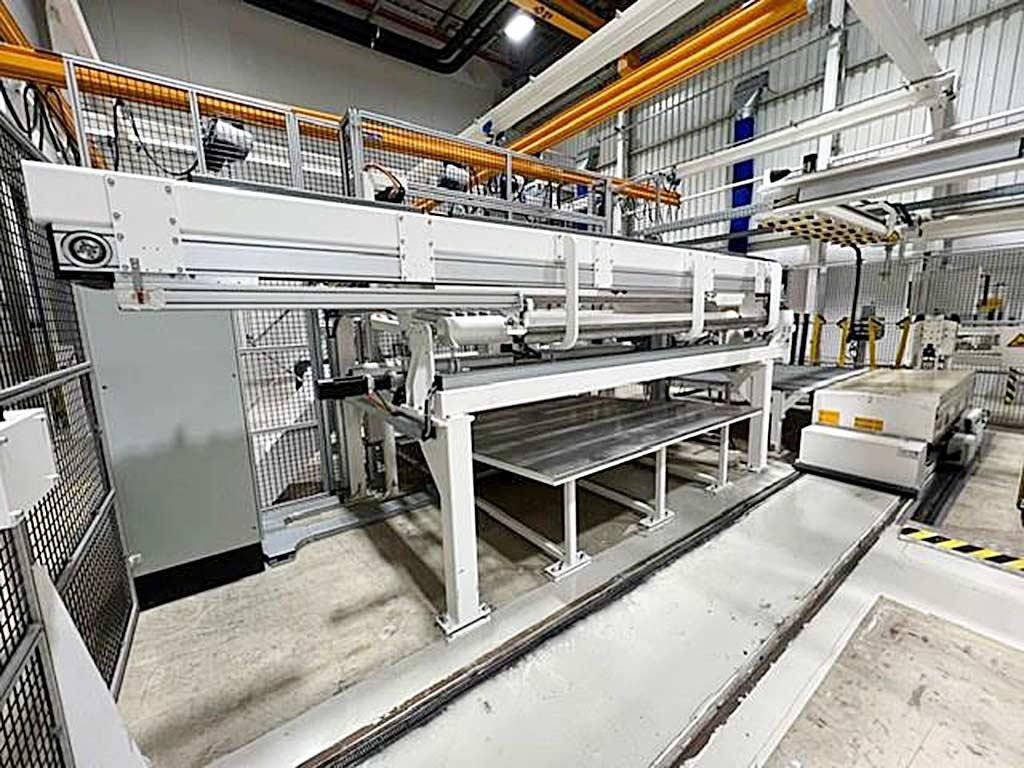

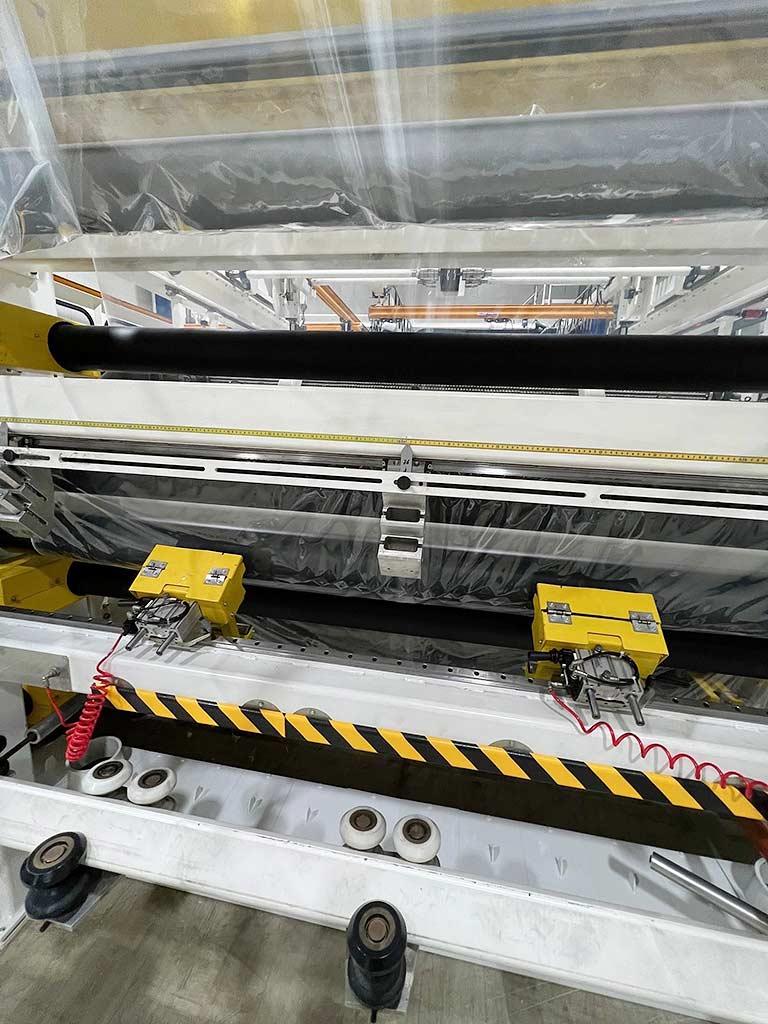

A complete SML winder including core magazine is available. Infeed part roll width: 2600mm, max. film end width: 2350mm, winding shafts: 6/3 inch, max. mechanical speed: 250m/min, max. roll diameter: 980mm, film thickness range: 15µm-2500µm, core diameter: 3 inch, core type: cardboard/plastic, roll change time: 4min, deposit capacity 2nd table: 15 rolls, power requirement: 52kW, edge trimming: In-Line, Knife type: free cut with razor blade, Winder mode: gap/contact, Roll delivery: 3-axis robot. Including non-stick rollers, linear guide, scale, robot and core magazine. Documentation available. On-site inspection is possible.
