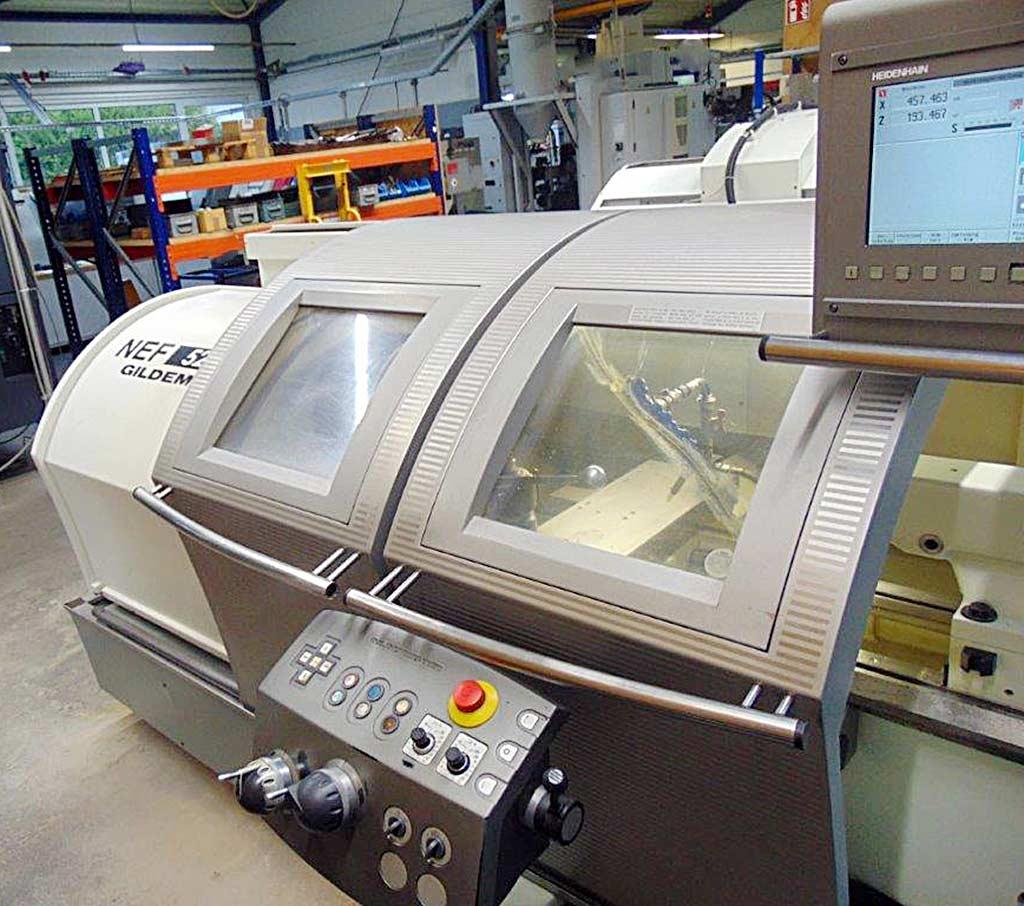

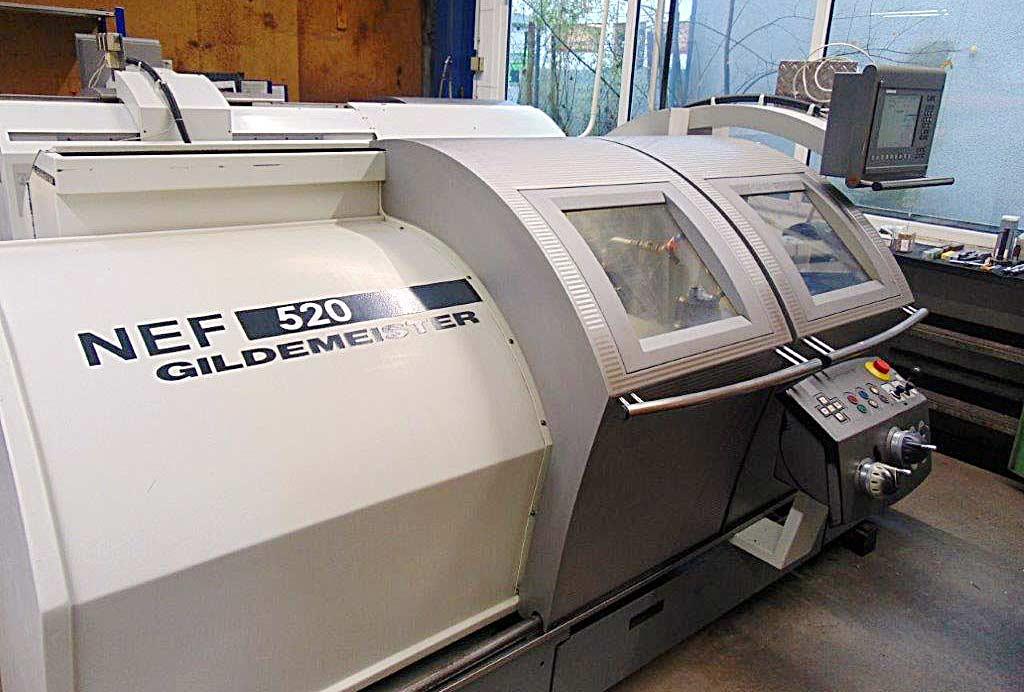

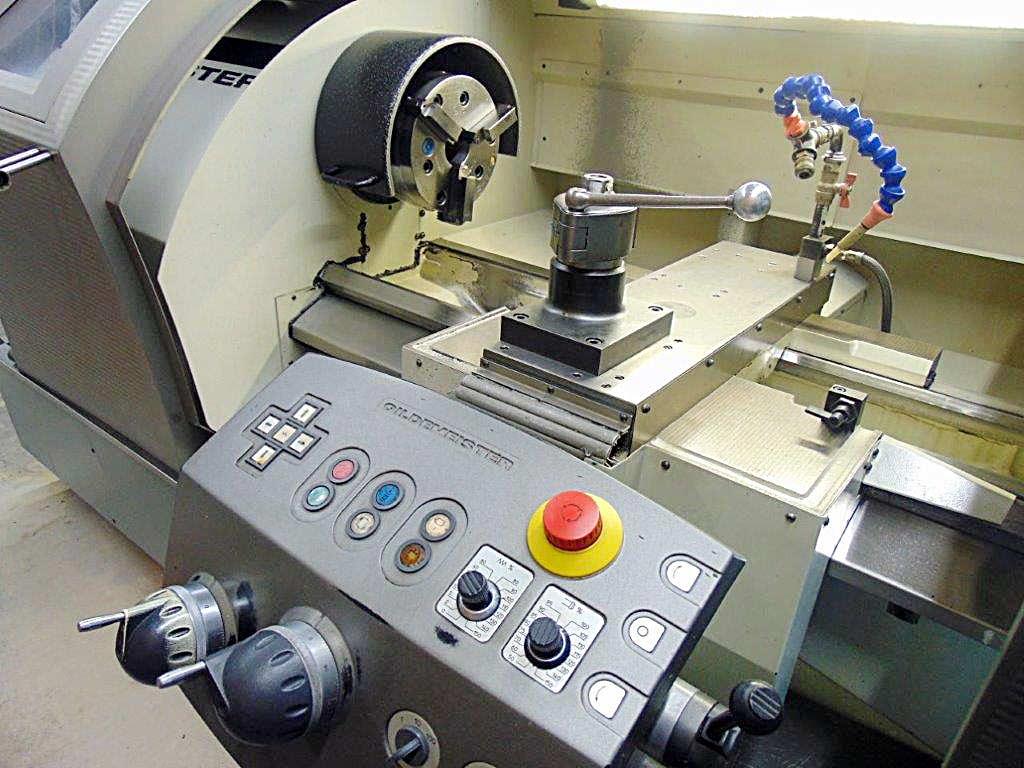

CNC Cycle Lathe Gildemeister NEF 520/1000
Specifications
Germany
Description
Turning diameter over bed/face slide: 500mm/290mm, face travel: 260mm, turning length: 1000mm, spindle bore: 70mm, spindle diameter: 120mm, speed: 3050rpm, drive power: 12kW, torque: 920Nm, rapid traverse X/Z: 8m/min/10m/min, feed X/Z: 5m/min, quill stroke: 180mm, quill diameter: 80mm. Machine dimensions X/Y/Z: approx. 3400mm/2000mm/1850mm, weight: approx. 3100kg. Documentation available. On-site inspection is possible.
