Punching Line Helmerding KDH 100
Specifications
Germany
Description

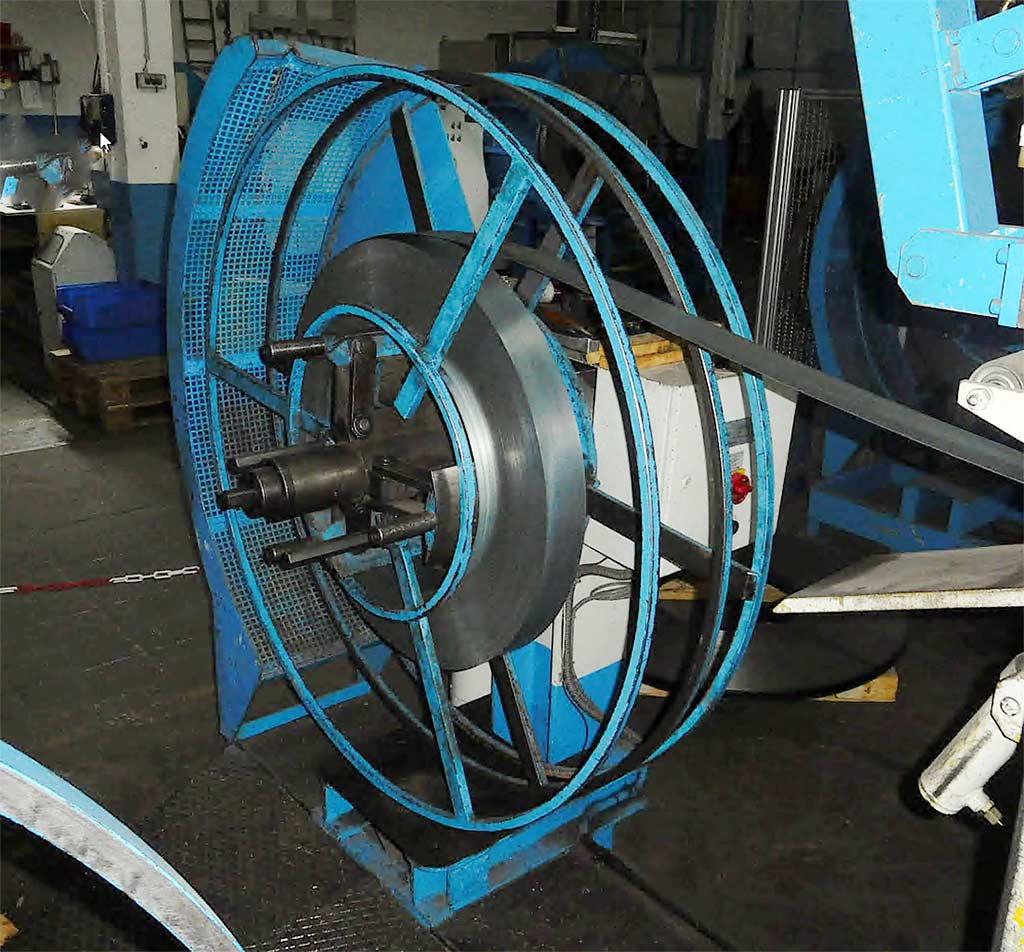

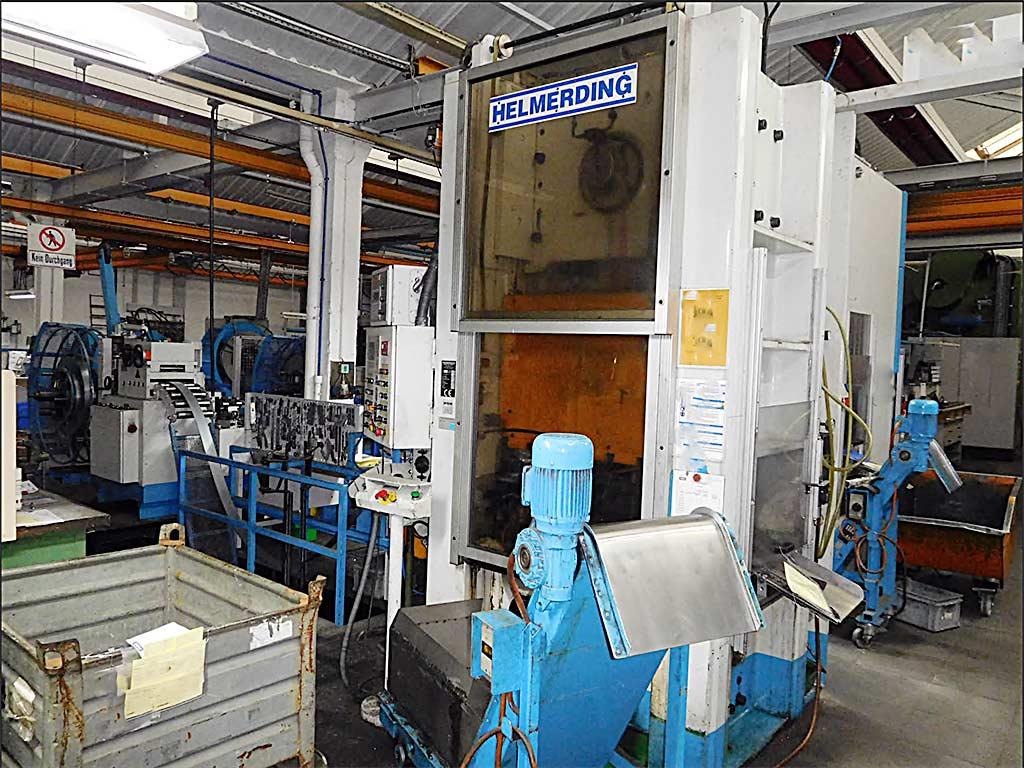

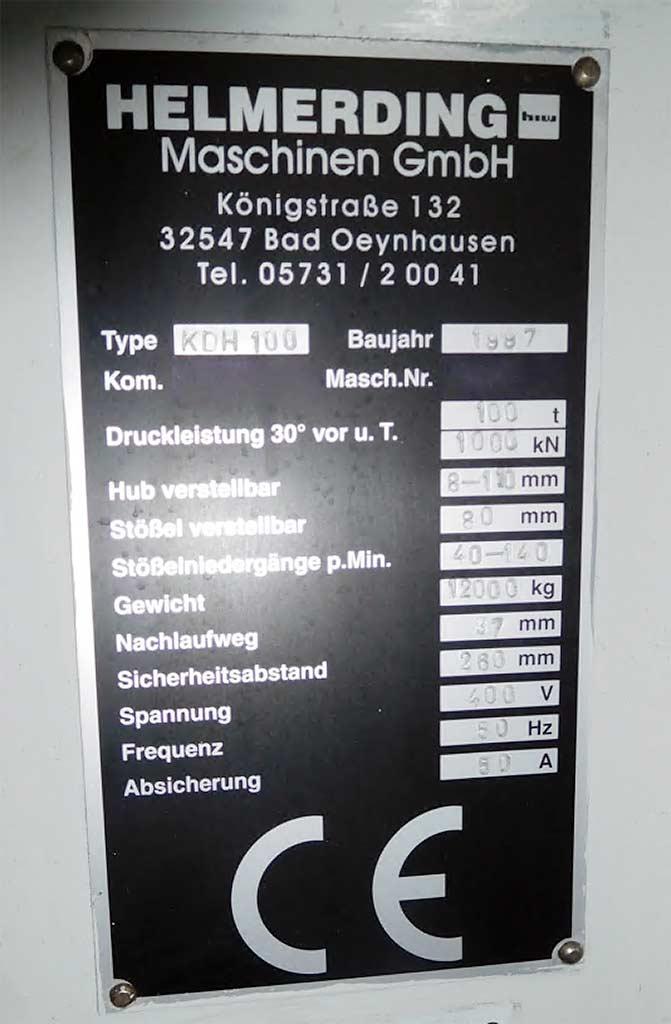

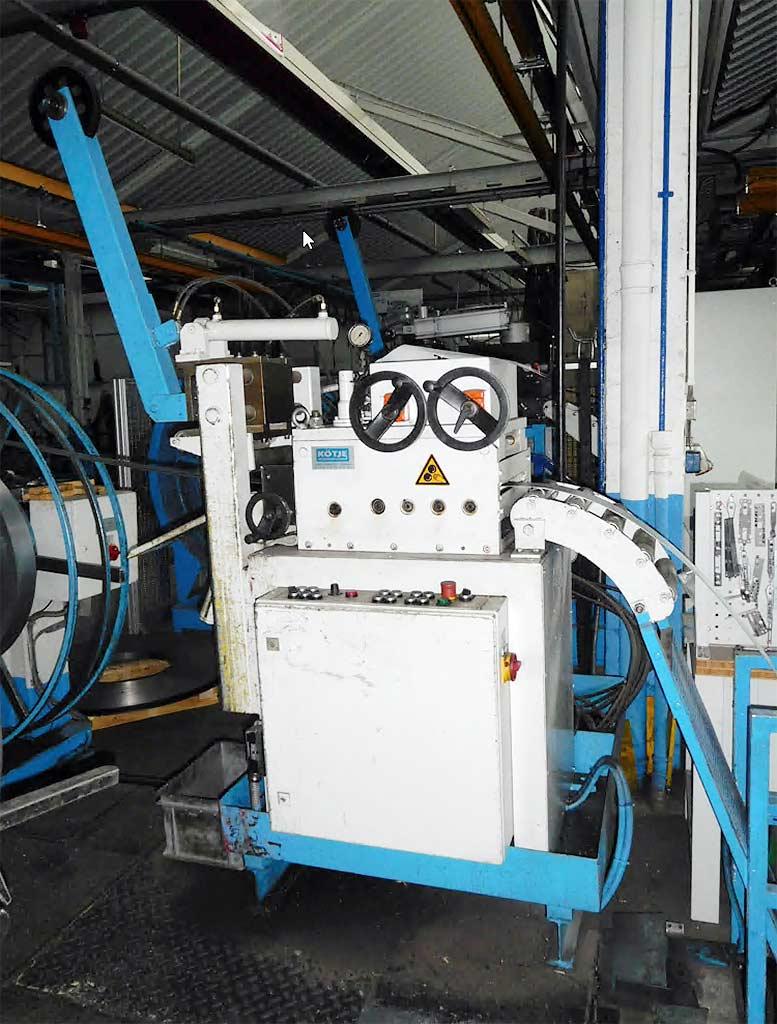

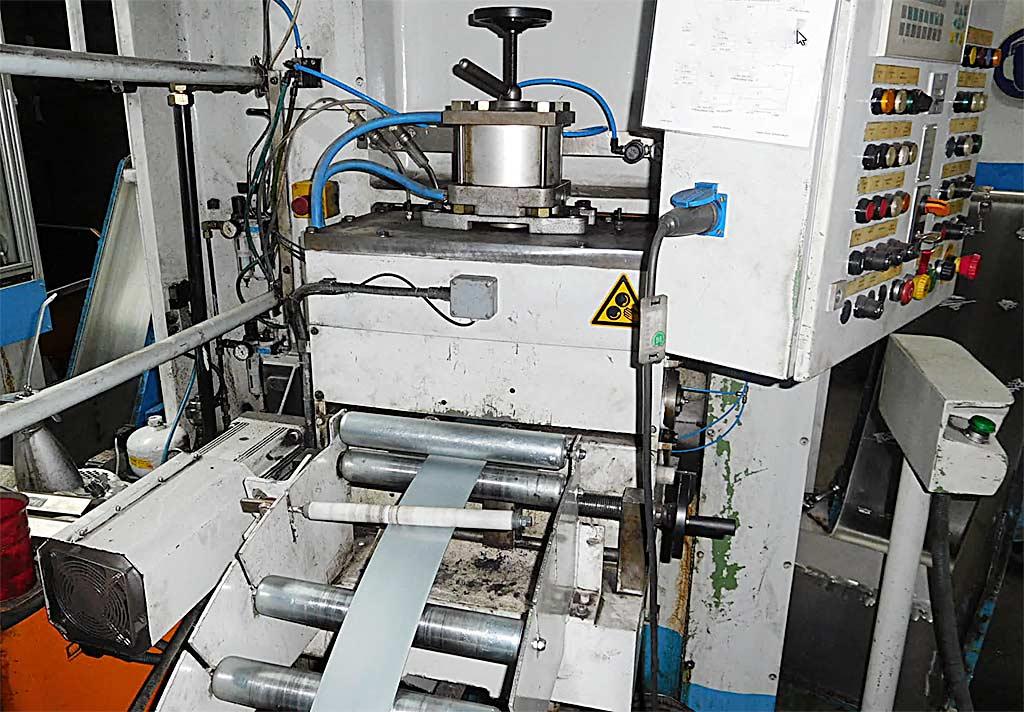

A complete punching line with Helmerding eccentric press is available. 1) Eccentric press Helmerding KDH 100, year of manufacture: 1997, power: 11kW, pressing force 30° before and after: 100t, stroke adjustment: 8mm-110mm, ram adjustment: 80mm, stroke rate: 40-140 strokes/min, length: 2100mm, width: 1500mm, weight: approx. 12000kg. 2) Kohler 1000.1 reel, year of manufacture: 1983, power: 1kW, load capacity: 1000kg, length: 1500mm, width: 1100mm. 3) Straightener Kötje RM-7-300-60, year of manufacture: 1998, power: 3kW, max. strip width: 300mm, straightening roller diameter: 60mm, number of straightening rollers: 7, length: 1400mm, width: 1200mm. 4) Roller feed Kötje EWV 80-50-S, year of manufacture: 1998, power: 4kW, length: 750mm, width: 700mm. Documentation available. On-site inspection is possible.
