CNC Composite Machining Center Flow

Germany

Description

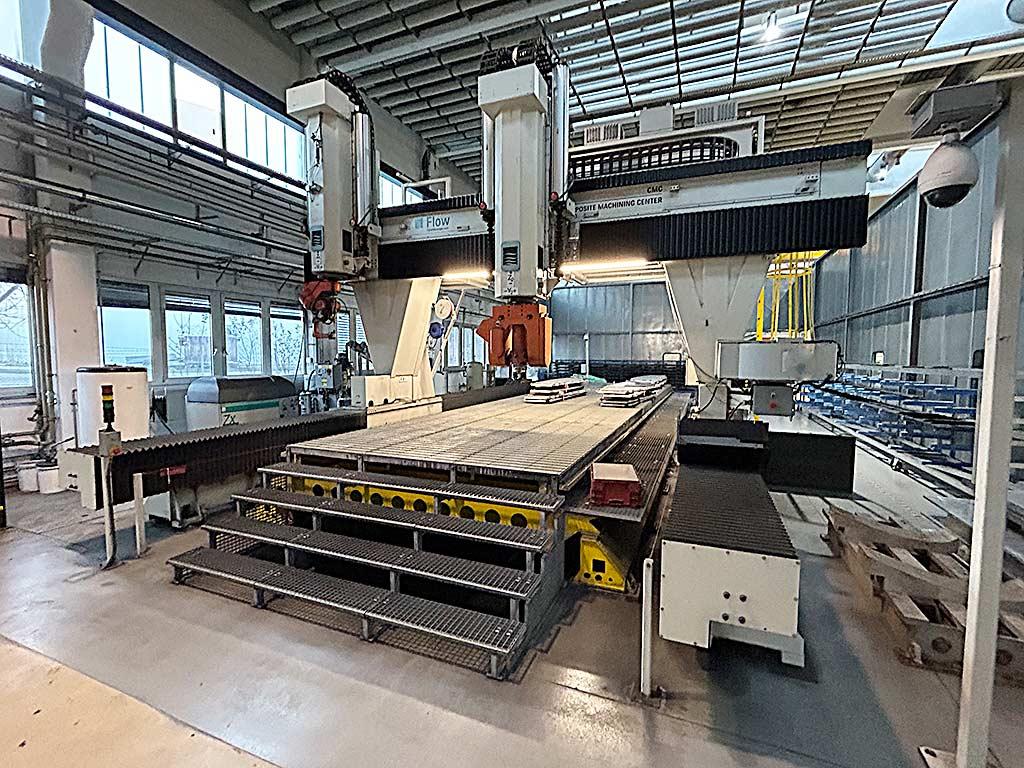

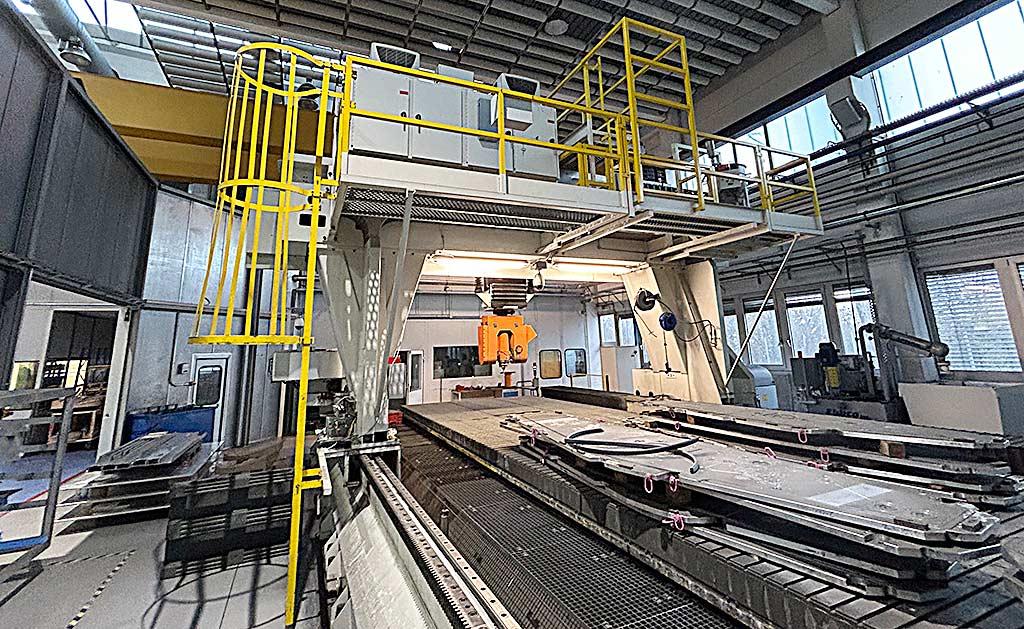

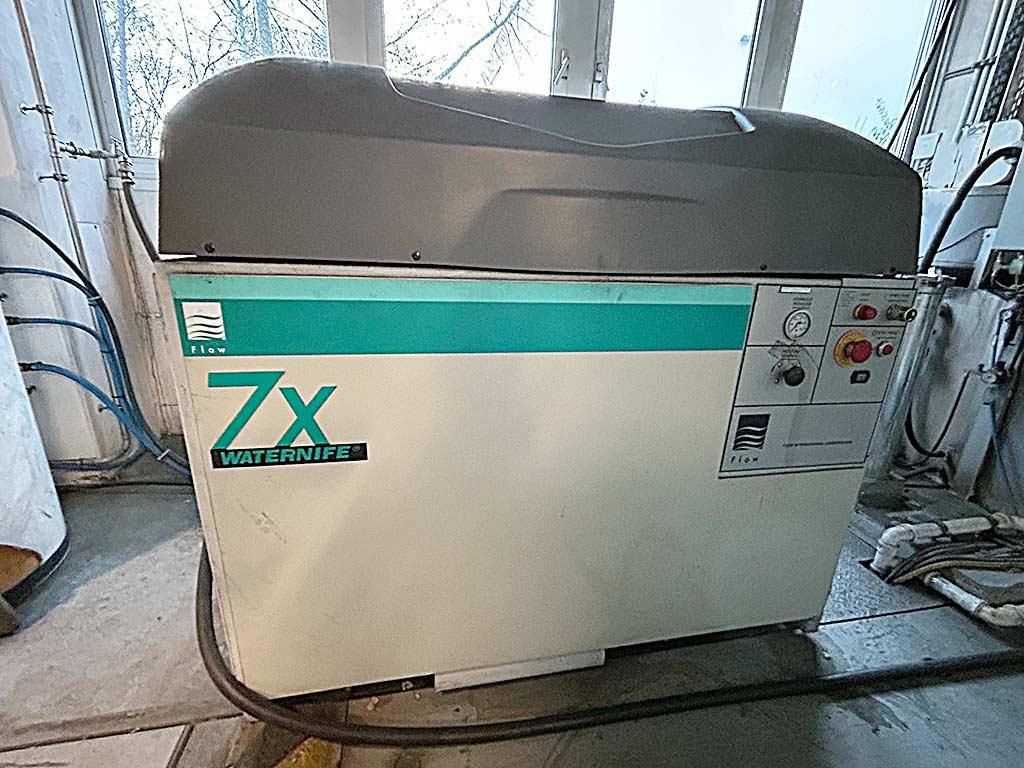

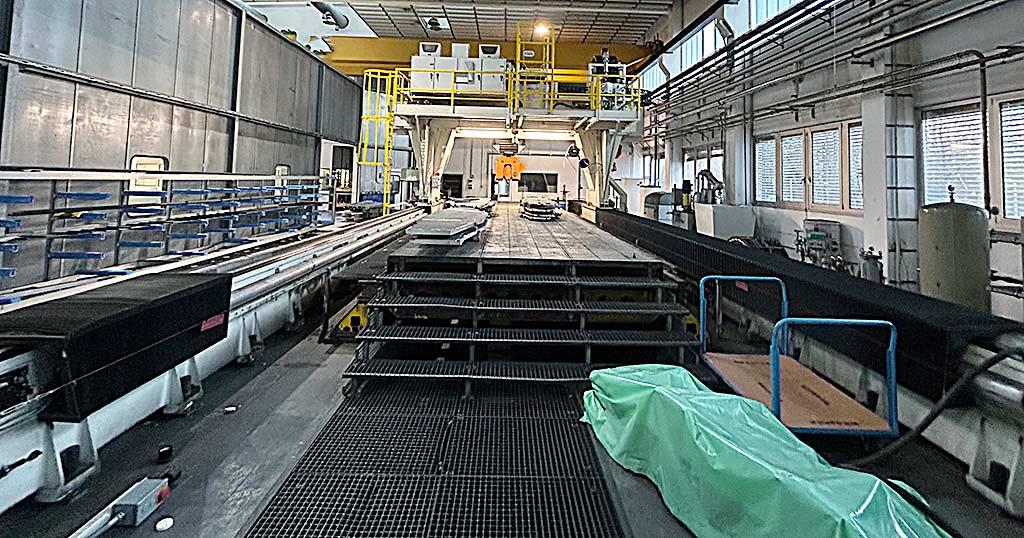

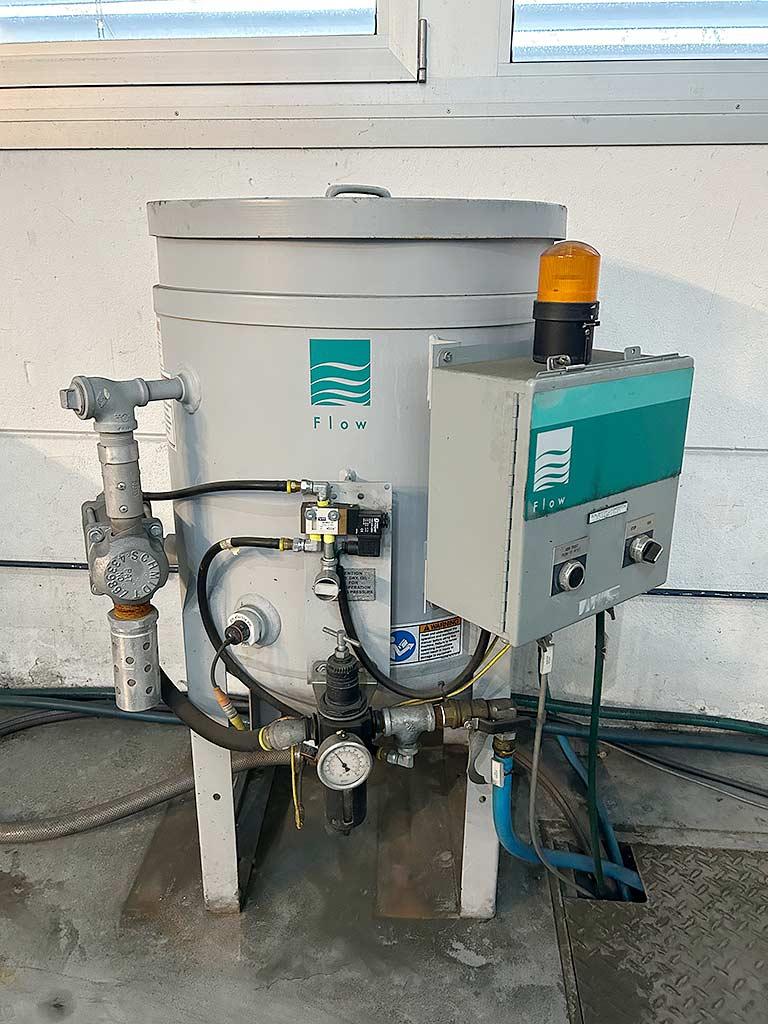

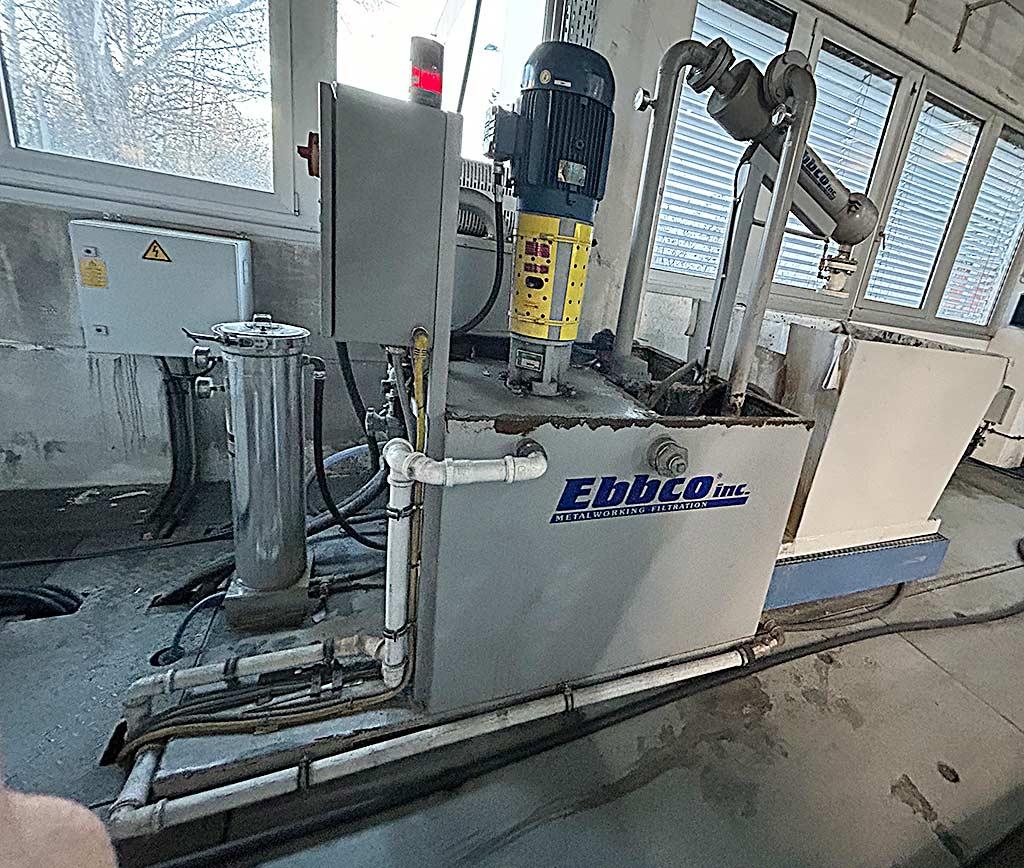

A complete CNC composite machining center (CMC) for the plastics industry is available. Axes: 13, number of spindles: 1, channel 1: X(U)/Y1/Z1/C1/B1/A1, channel 2: X(U)/Y2/Z2/C2/B2/W21, channel 3: X(U)/W21. Spindle type: S2, temperature sensors: built-in, travel X/Y1/Z1: 15000mm/4550mm/1500mm, C1: +/-270°, B1: +/-180°, rotary axis turning capacity: 45°/s, rapid traverse X/Y/Z: 10m/min, feed X/U: 25m/min, feed Y/Z: 15m/min, feed (manual): 5m/min, control: Siemens 840D. Including 7x flow water jet pumps, Ebbco metalworking filter system and flow abrasive management system. Documentation available. On-site inspection is possible. The entire system is intended as a spare parts carrier.
