CNC Punching Machine Finn Power F6
Specifications
Germany
Description

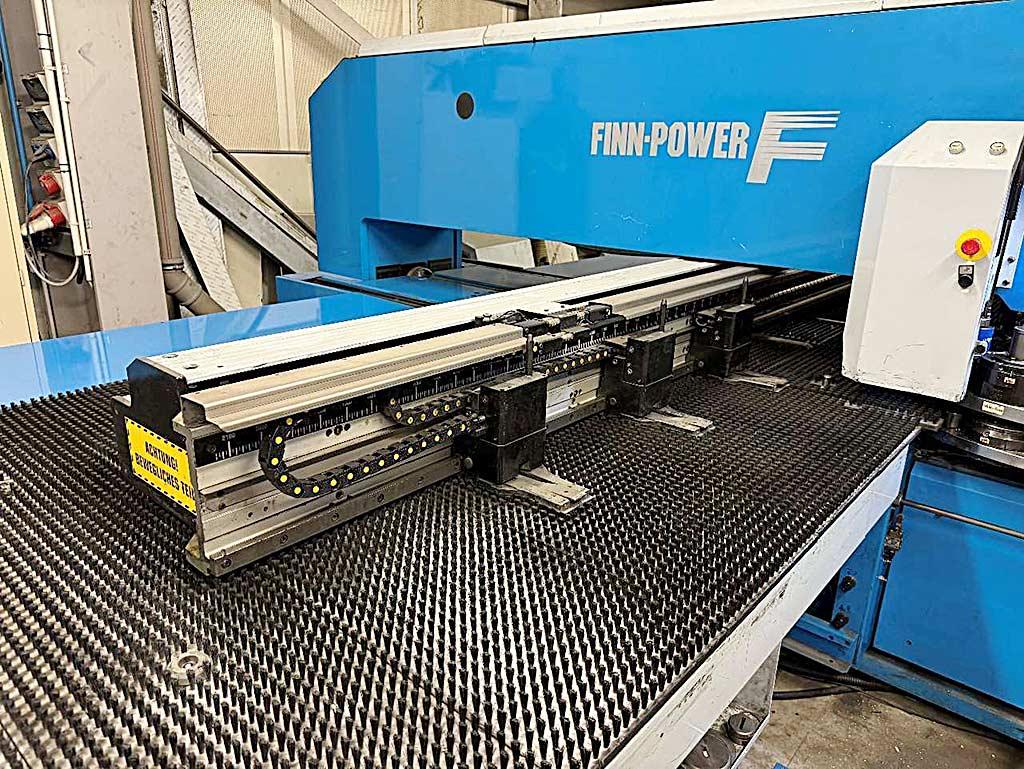

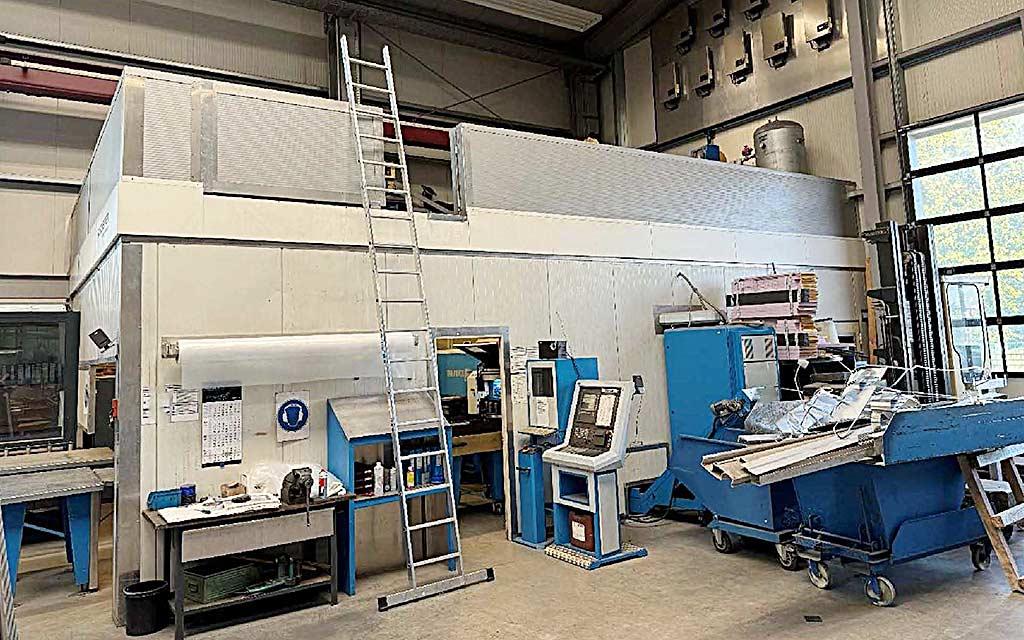

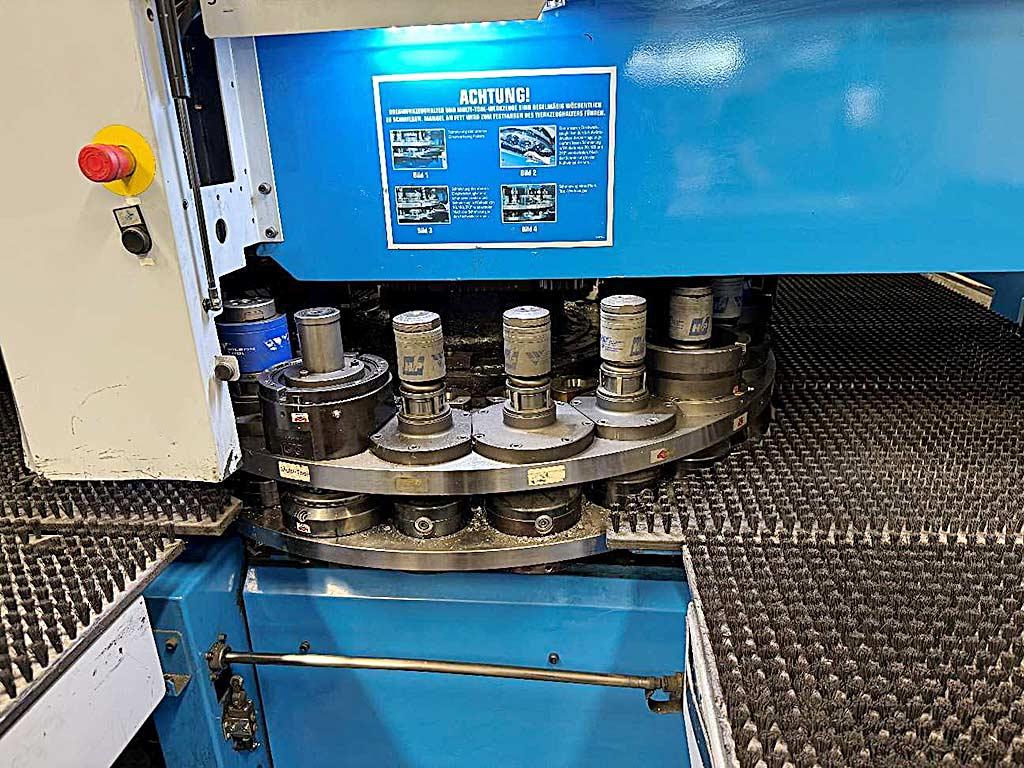

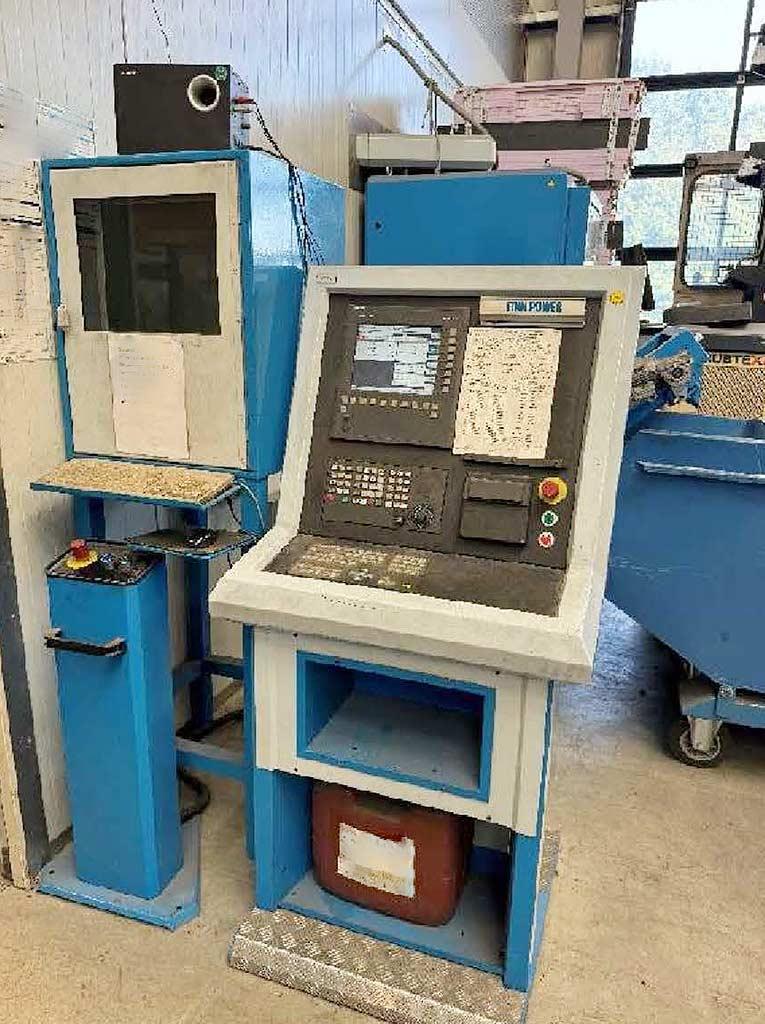

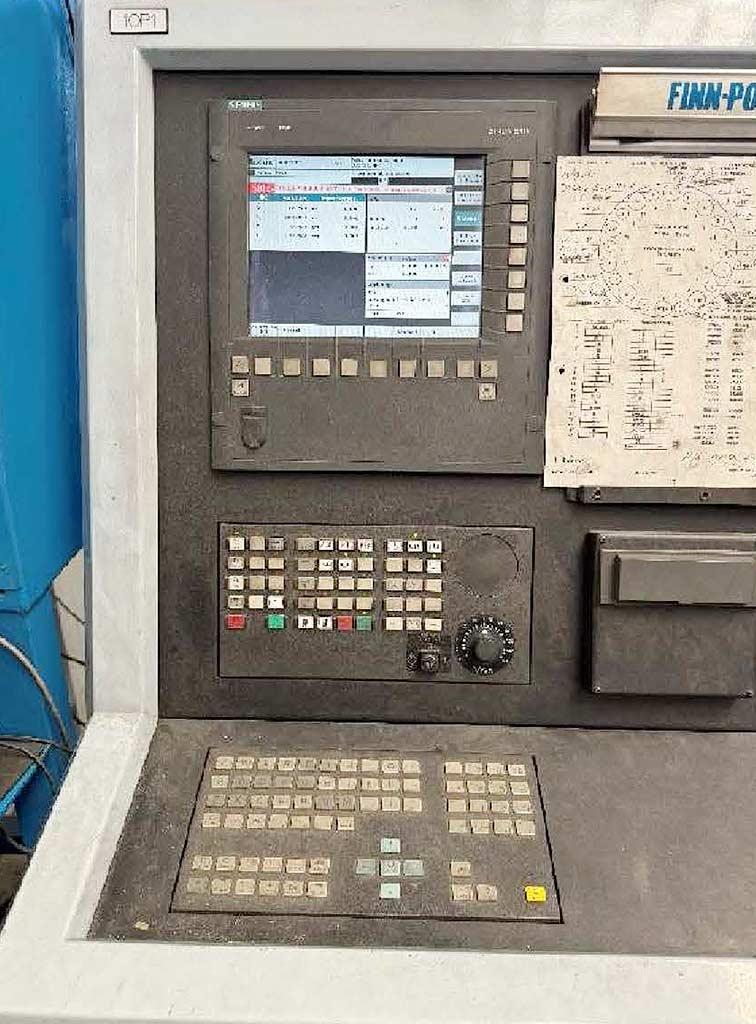

A Finn-Power CNC punching press is available. Press force: 300kN, max. workpiece width: 4061mm, max. workpiece length: 1528mm, max. workpiece thickness: 8mm, max. workpiece weight: 200kg, quick chuck X/Y: 80m/min/60m/min. Turret head positions: 20, turret head speed: 30rpm, tool type: thick turret, max. tool diameter: 89mm. Travel speed: 100m/min, drilling accuracy: 0.1mm, positioning accuracy: 0.08mm, oil tank capacity: 330l, max. operating pressure: 300bar. Machine dimensions X/Y/Z: approx. 5900mm/6300mm/2500mm, weight: approx. 13500kg, control: Siemens Sinumerik 840D. The table of the machine has been extended. Without machine housing. Documentation available. On-site inspection is possible.
Additional Details
