Optical Exposure System Automatech/altix ZG 357/386
Specifications
Germany
Description

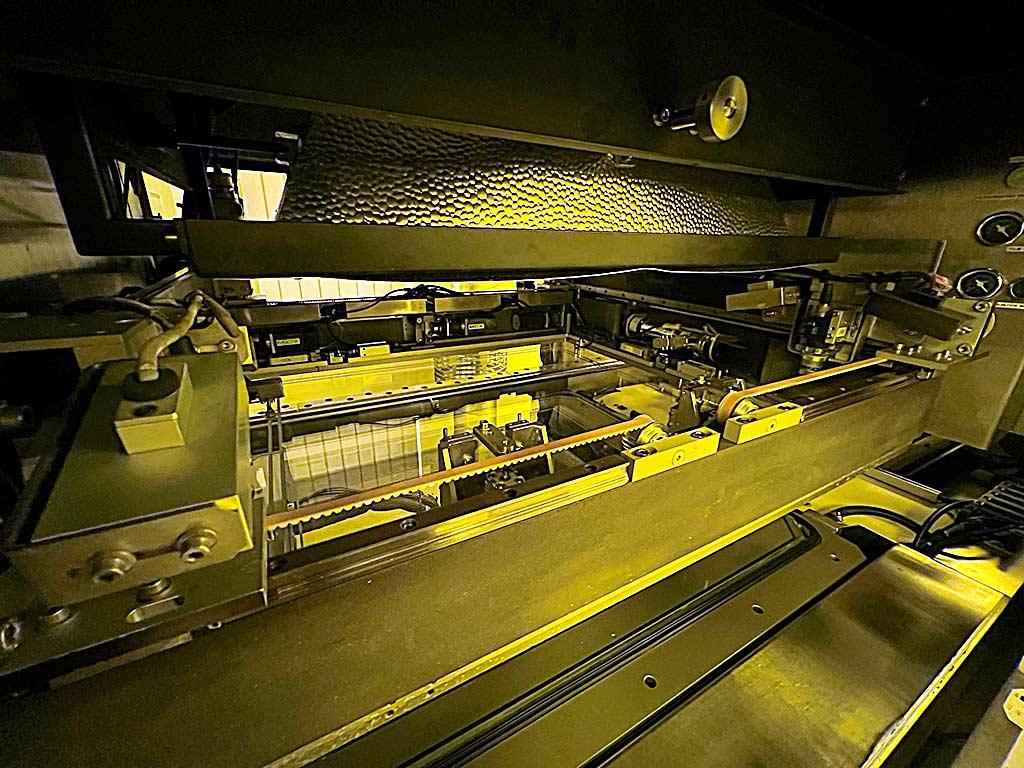

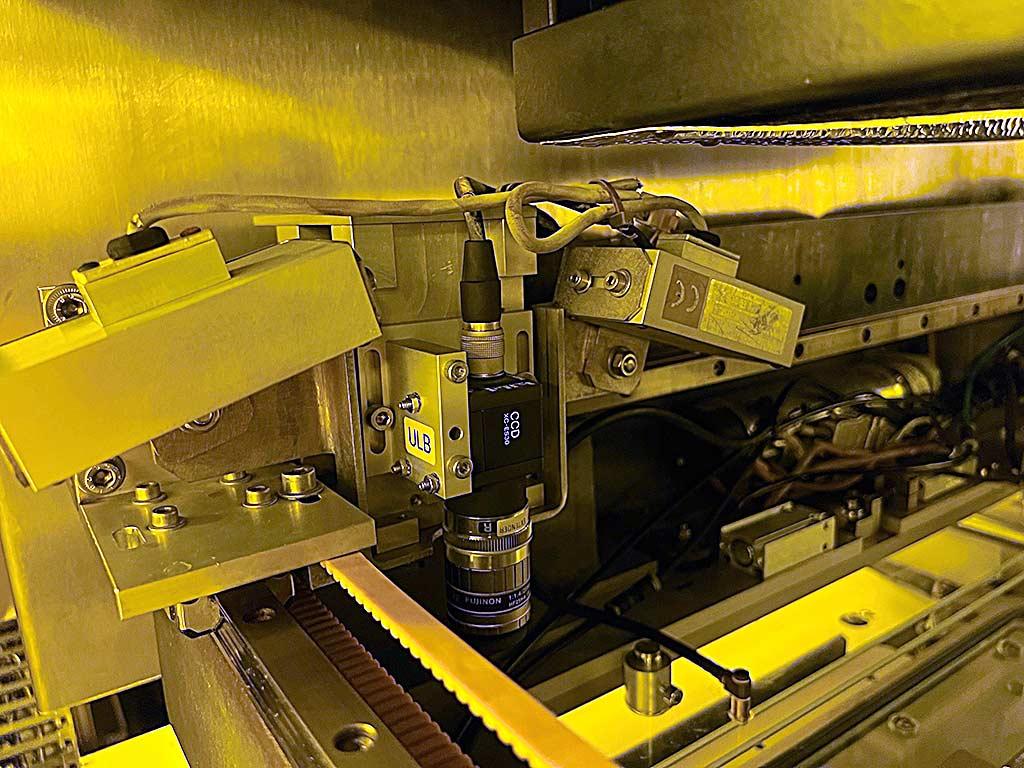

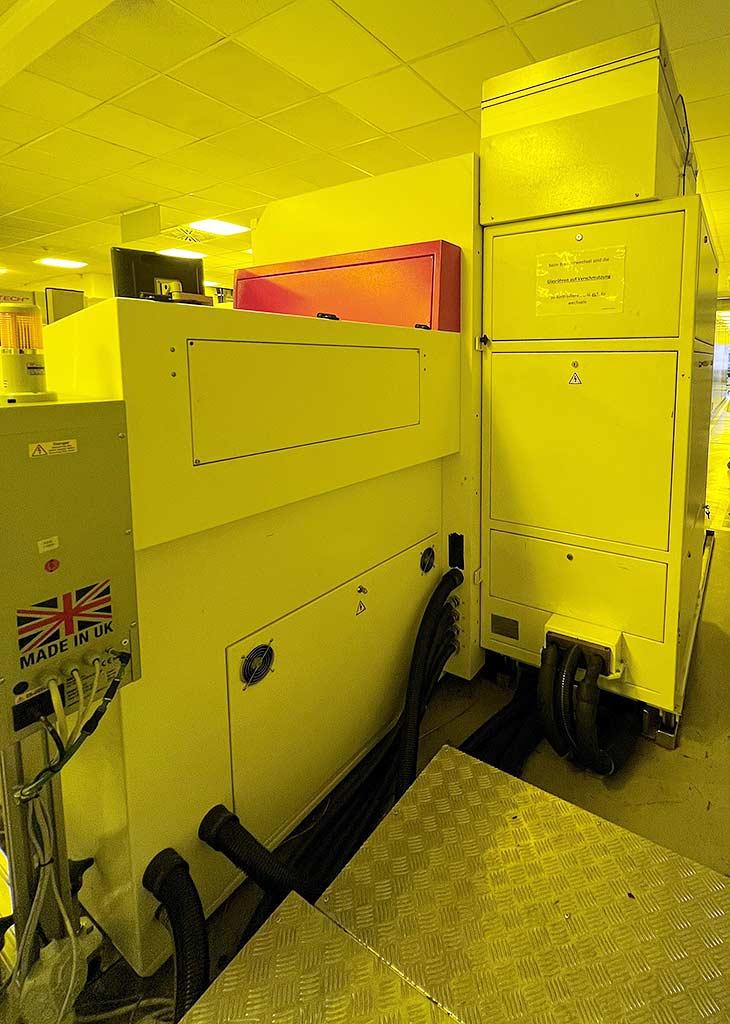

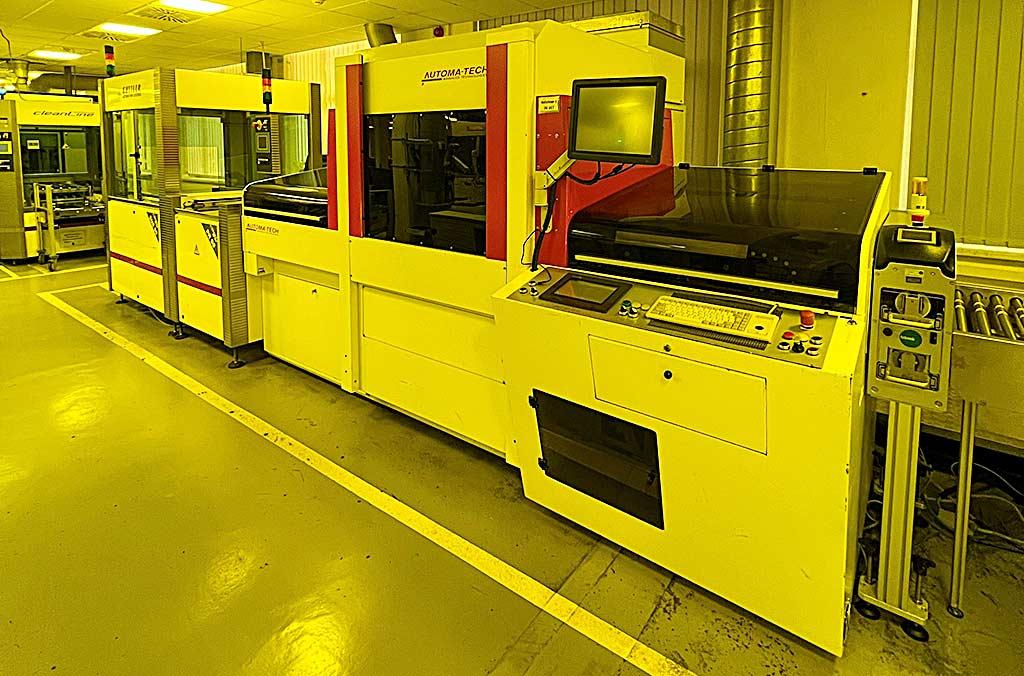

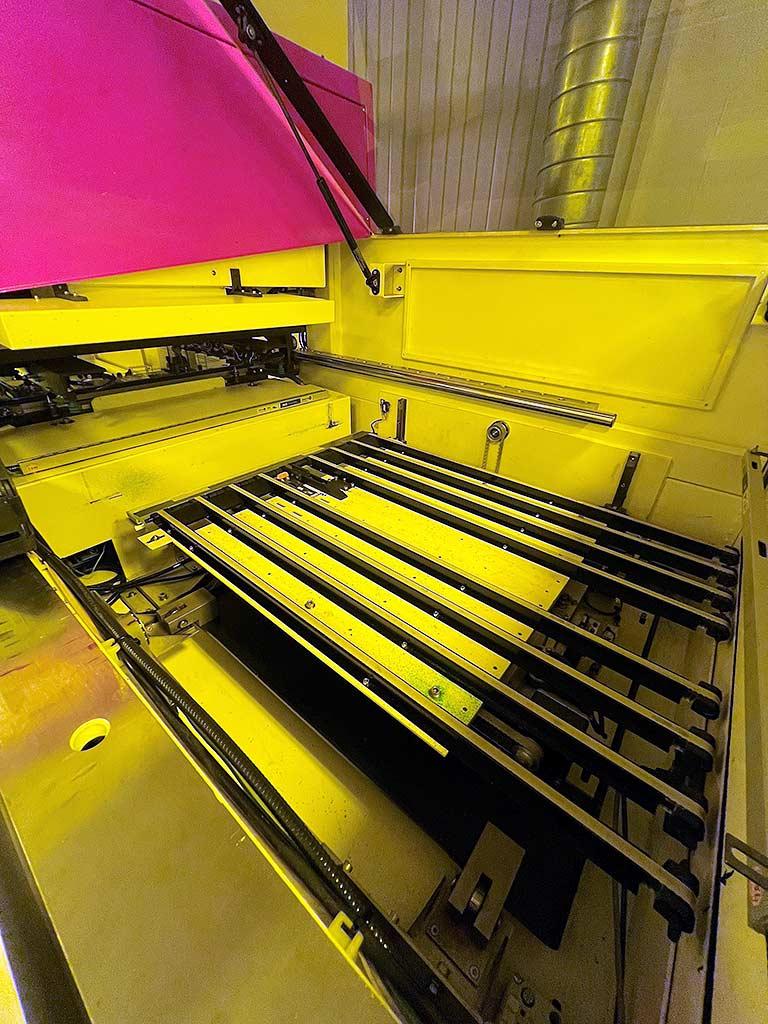

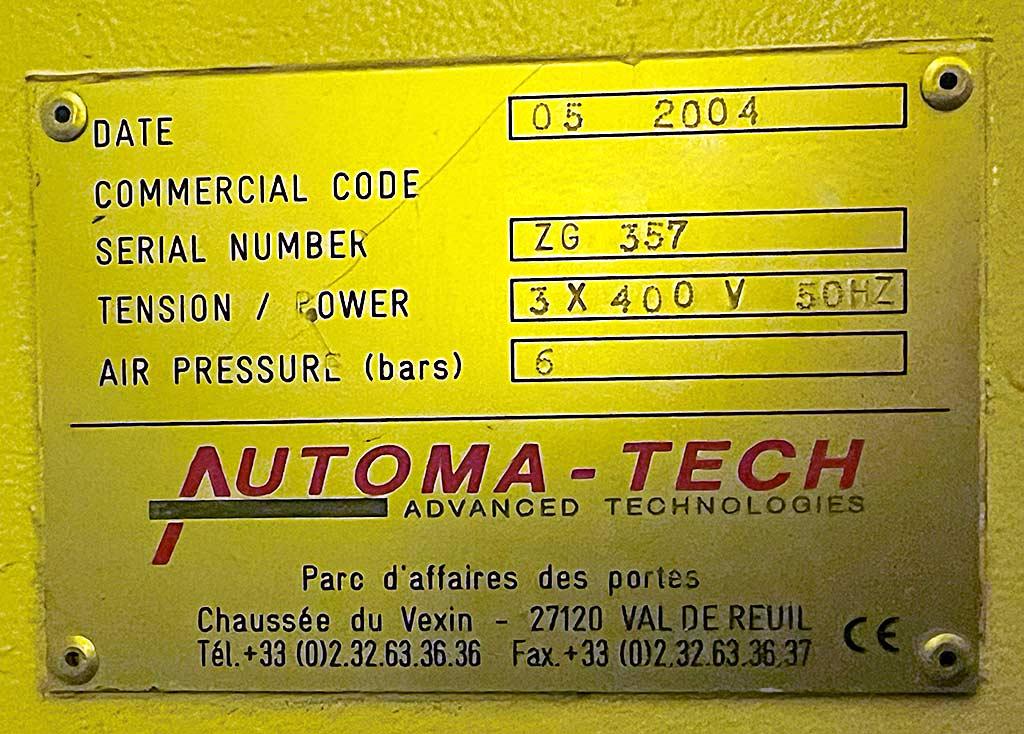

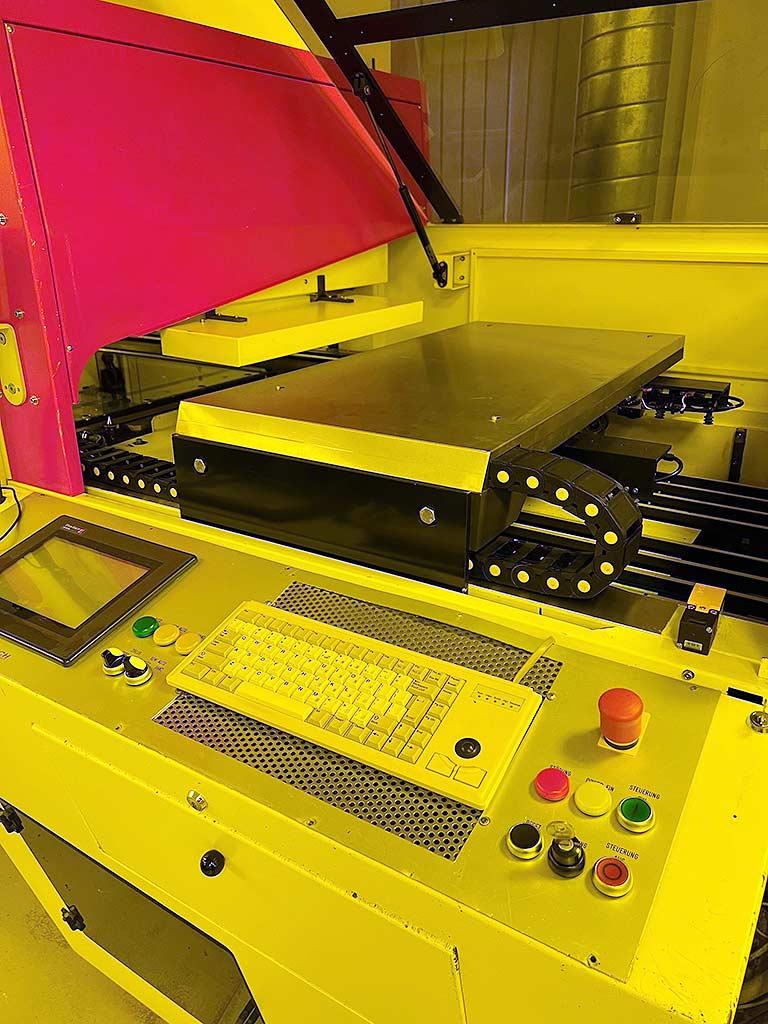

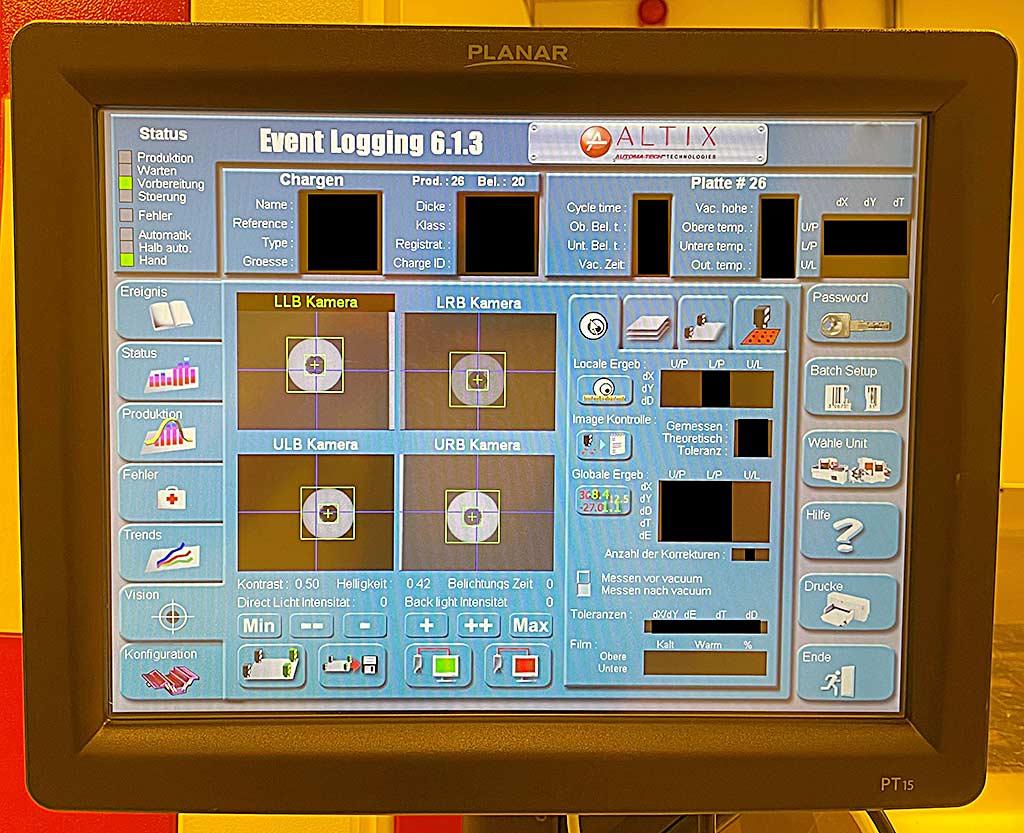

Two Automa-Tech (Altix) exposure machines are available for the PCB industry. 1) ZG 357, running direction: right-left, min. board dimensions X/Y: 530mm/385mm, max. board dimensions X/Y: 630mm/530mm, film dimensions X/Y: 685.8mm/584.2mm, UV burner power: 2x10kW, exposure: double-sided, cameras: 2/side, machine dimensions X/Y/Z: approx. 3650mm/2600mm/2450mm. 2) Contact platesetter ZG 386, min. plate dimensions X/Y/Z: 525mm/351mm/0.5mm, max. plate dimensions X/Y/Z: 635mm/533mm/4.5mm. The machine has a comprehensive and large spare parts package. Numerous spare parts are also available for the ZG series (not this machine). Documentation available. On-site inspection is possible. Individual sale of the machines or spare parts is possible.
Additional Details
