Crushing Plant Hosokawa Alpine A 1500 P/45-100 CL

Germany

Description

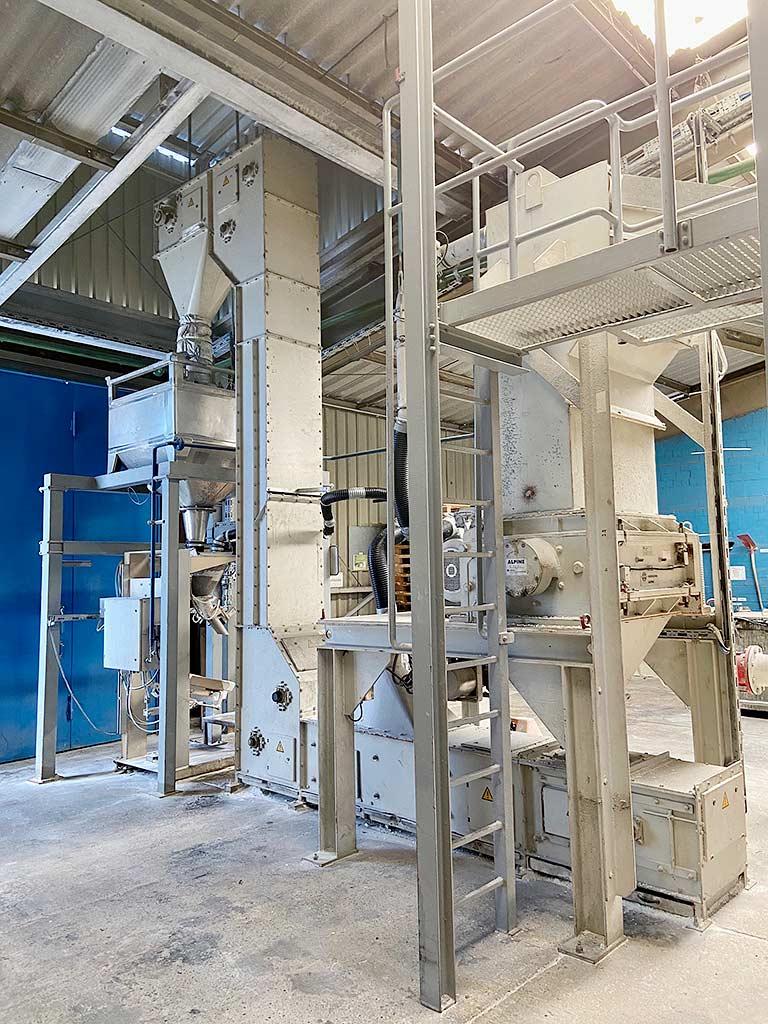

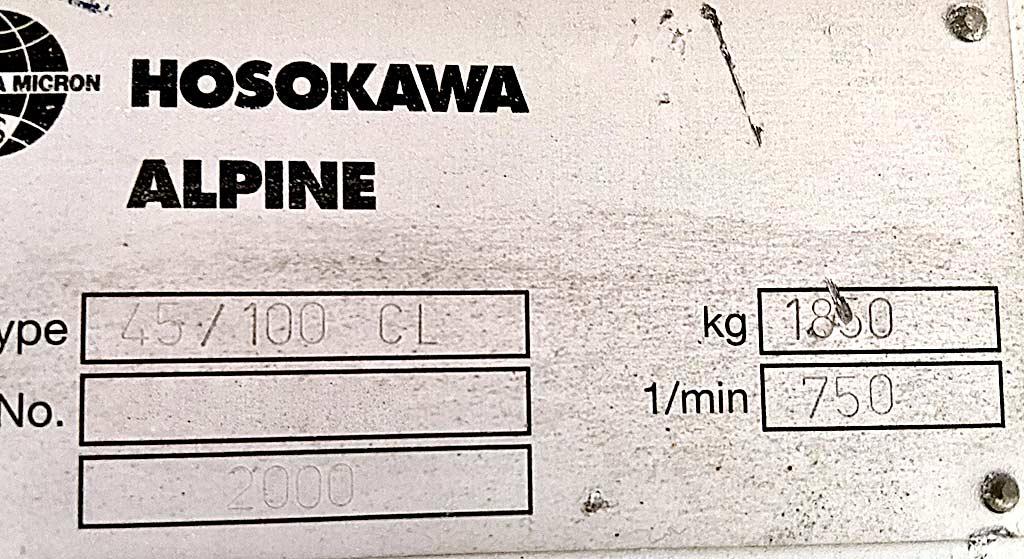

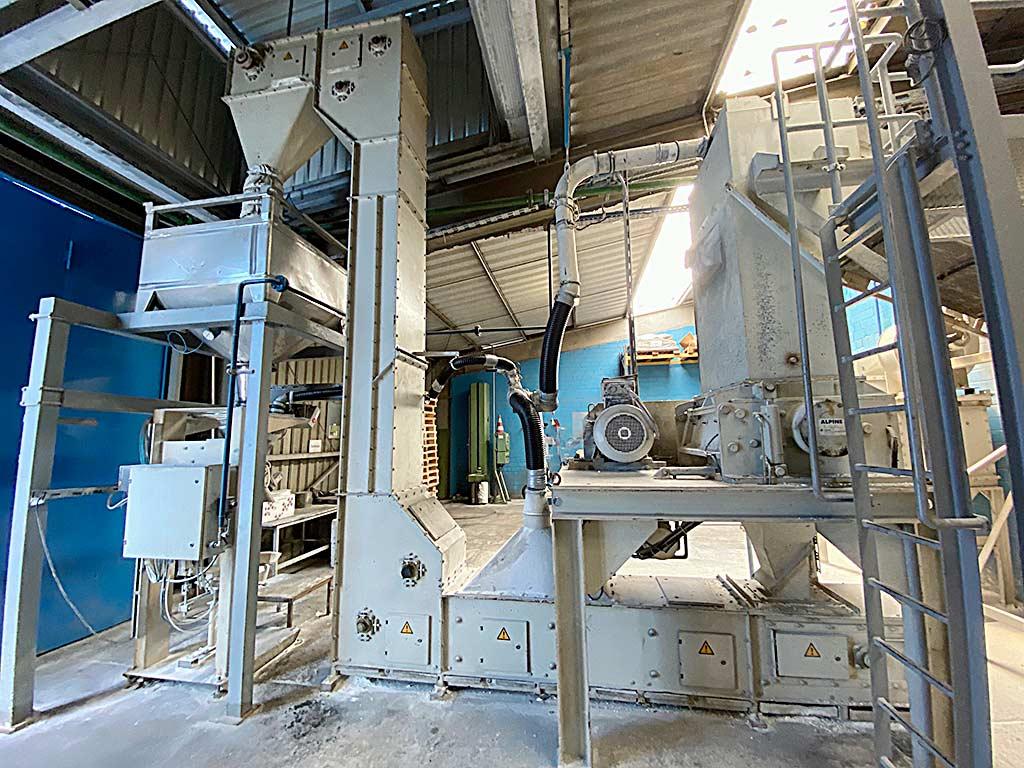

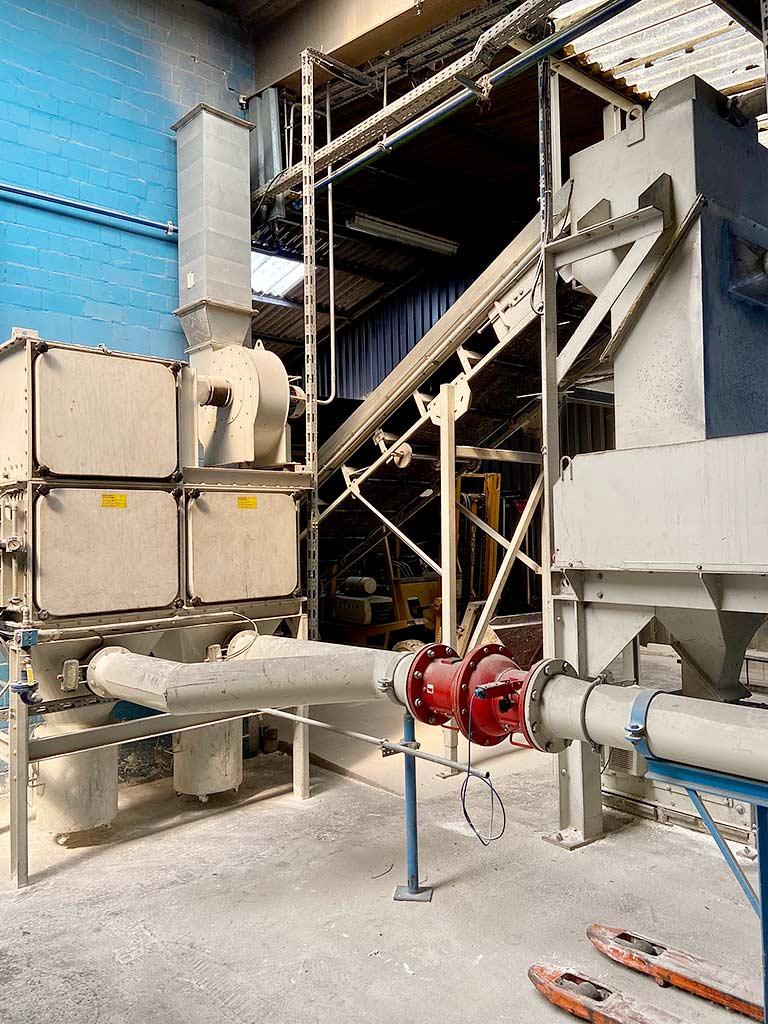

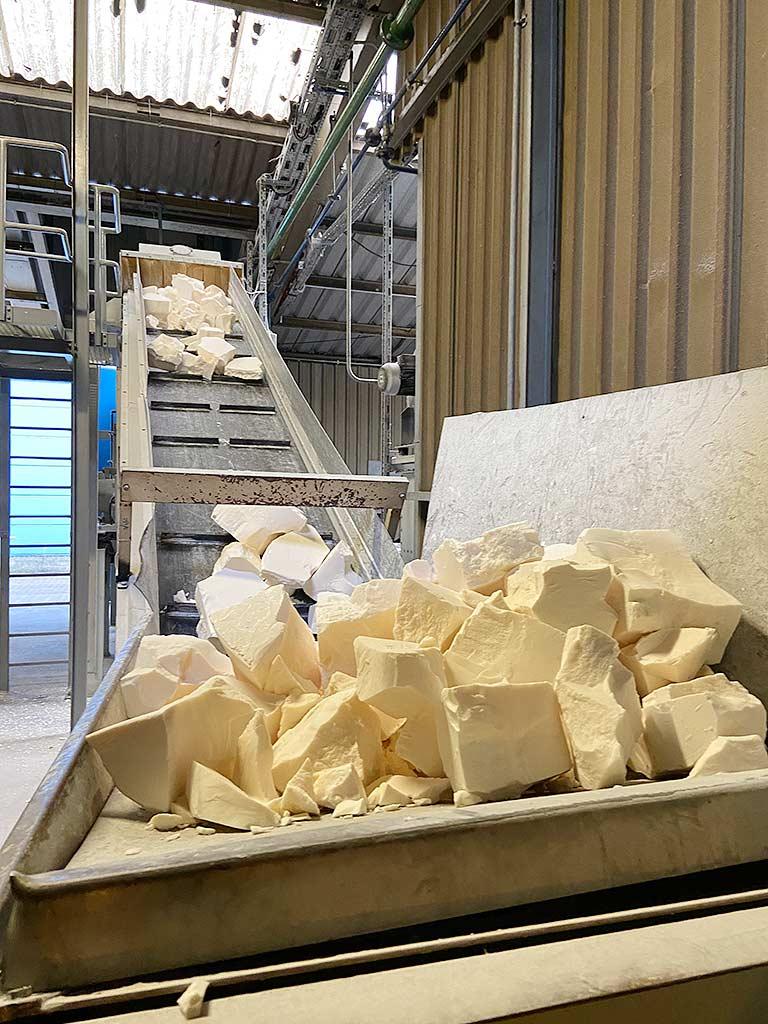

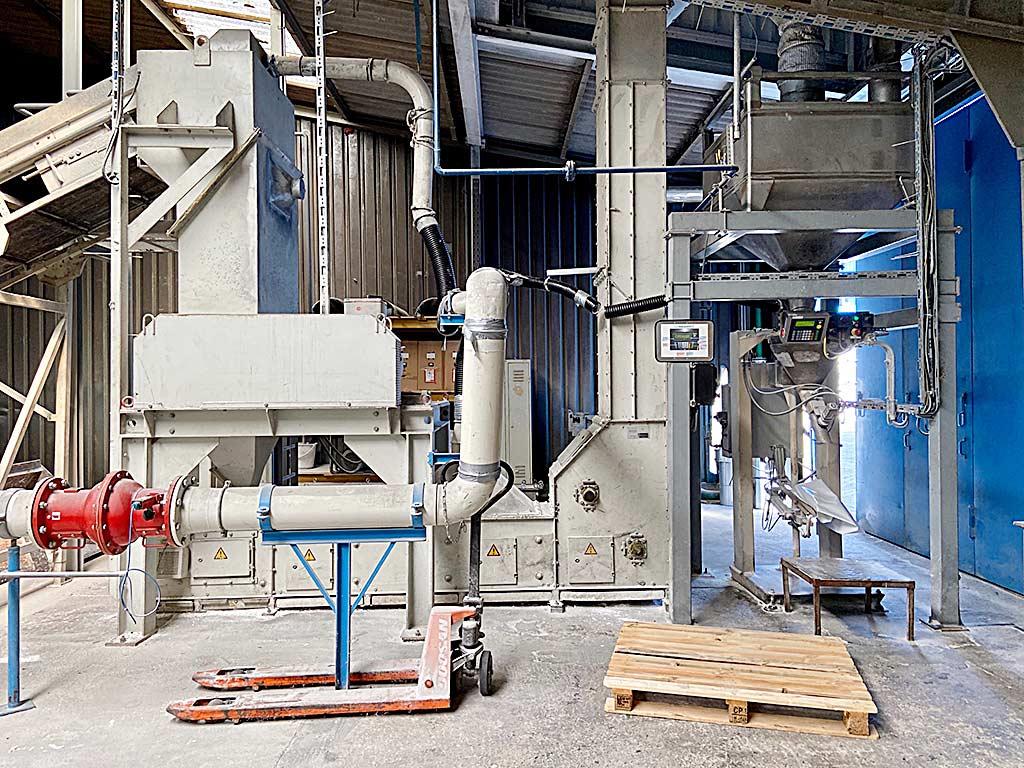

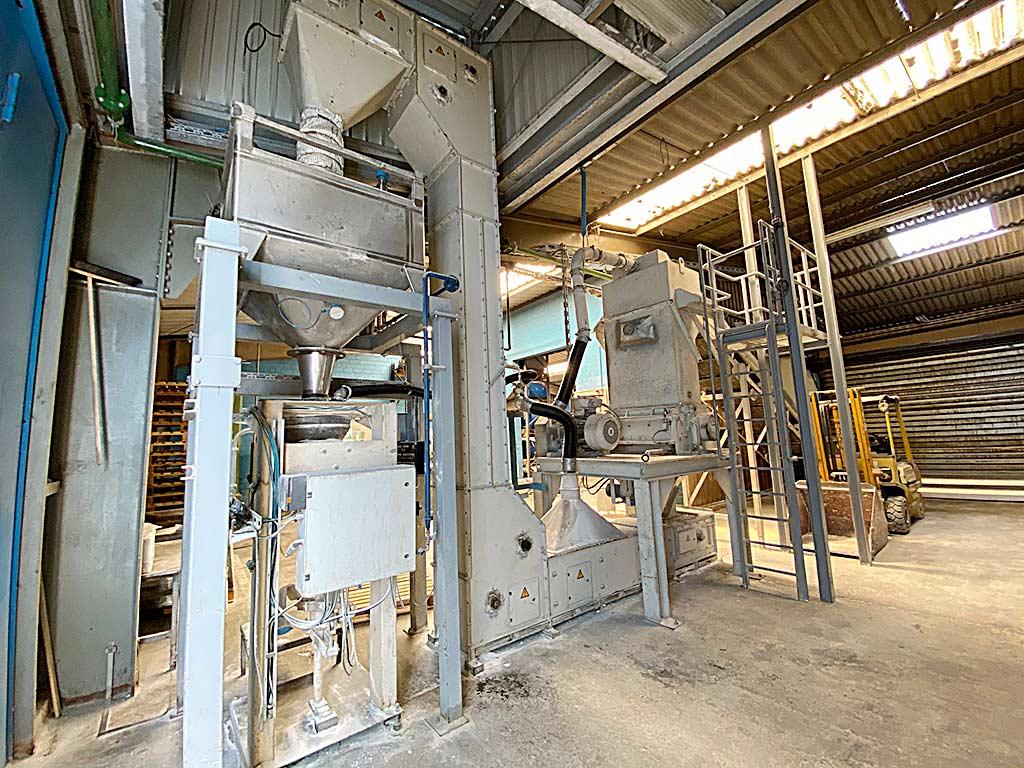

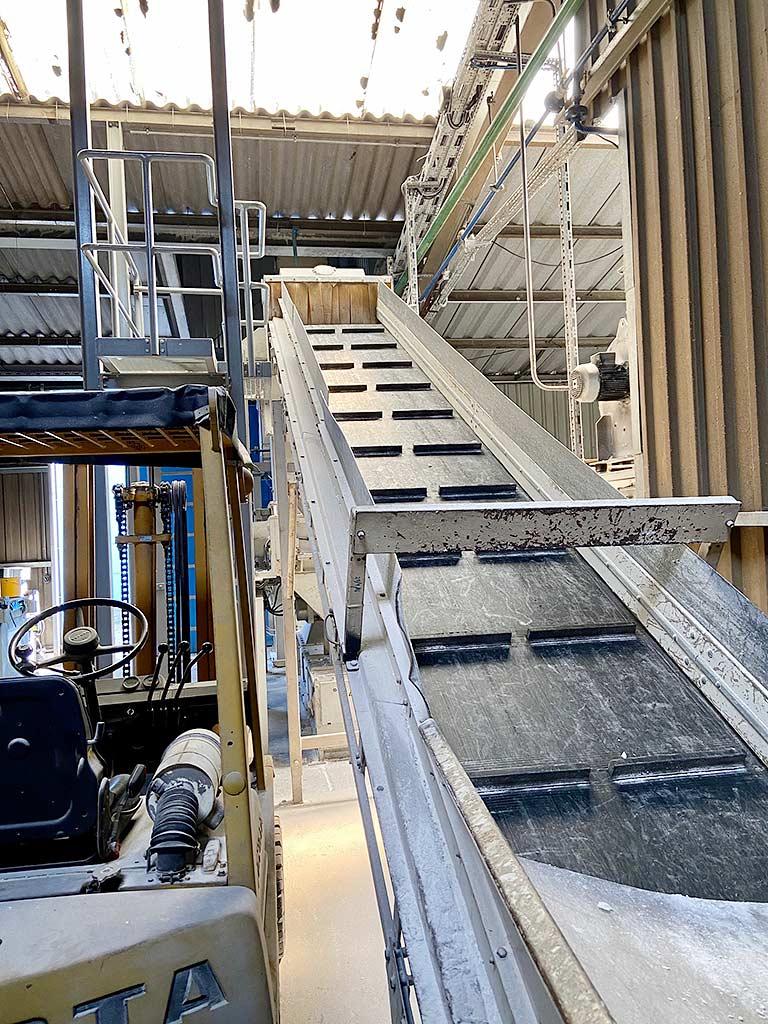

A complete Hosokawa mill for processing polyester resin lumps is available. Complete plant: Feed material: polyester resin, max. feed grain size (dry): 800mm/600mm/20mm-30mm, fineness: below 1.5mm, round hole diameter: 15mm, plant capacity: approx. 3000kg/h, analysis method: Alpine air jet screen 200 LS-N. 1) Alpine single-shaft shredder type A 1500P, feed hopper opening: 2030mm/1440mm, feed hopper volume: 2.5m³, working width: 1500mm, knife circle: 300mm, rotor speed: 100rpm, motor power: 37kW, machine dimensions X/Y/Z: approx. 2100mm/2200mm/2300mm, weight: approx. 3500kg. 2) Automatic dedusting filter AE 48 L, filter surface: 42m², filter bags: Needle felt 550g/m². 3) Alpine Compact-Line granulator 45/100 CL, cutting tool rows: 4, min. hole width: 3mm, required power: 55kW. Including extraction system, conveyor system and accessories/peripheral equipment. Documentation available. On-site inspection is possible.
