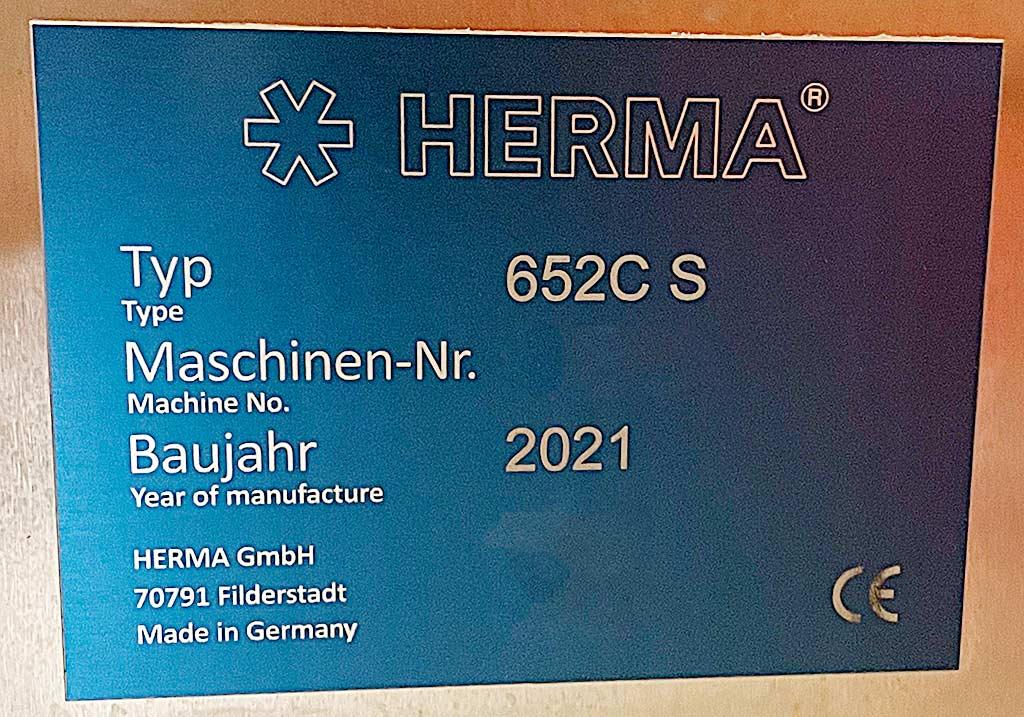

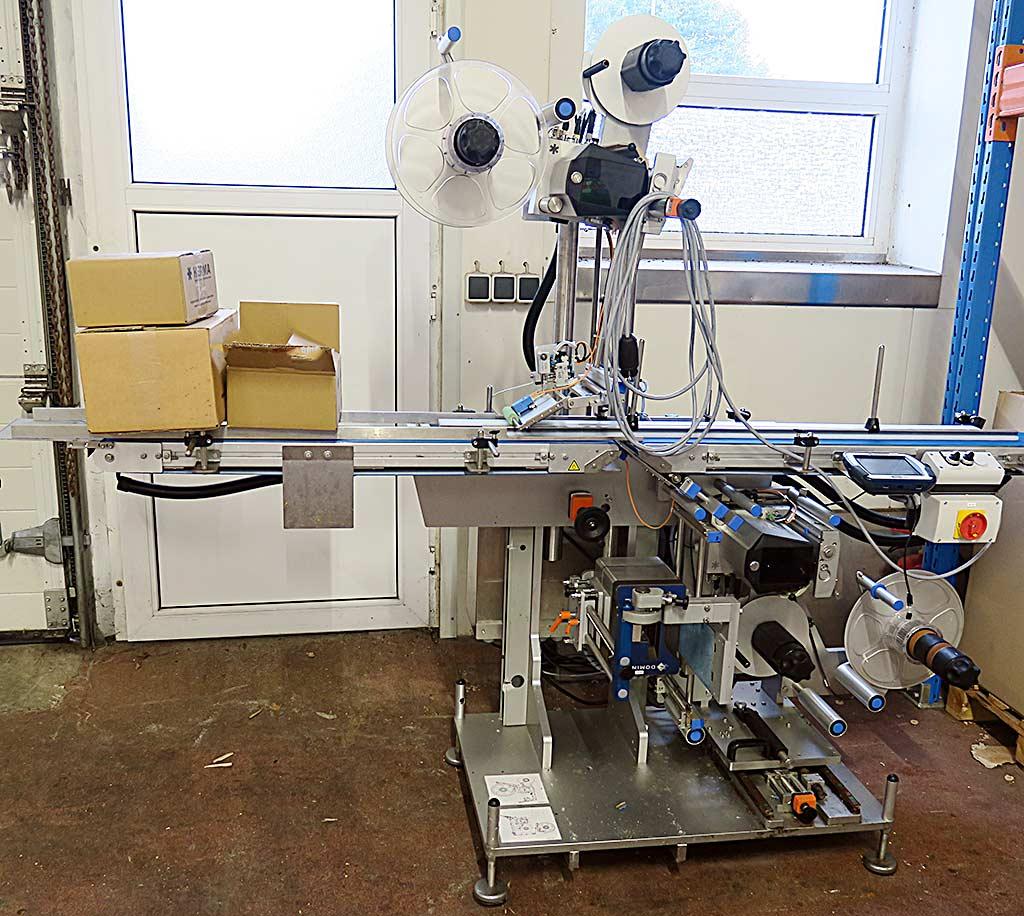

Top and Bottom Labeler Herma 652C S

Germany

Description

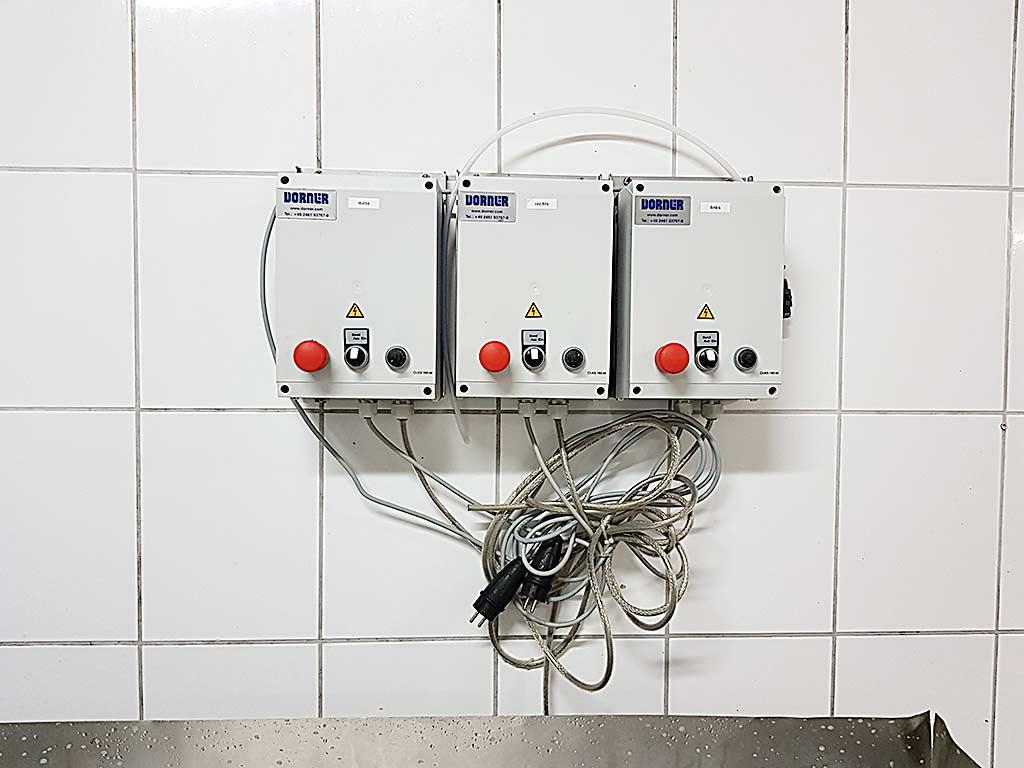

Product features: rectangular and dimensionally stable, labeling capacity: 30 products/min, compressed air connection: 6bar, printing process: Thermal transfer printing, product weight range: 15g-1000g, machine weight: approx. 600kg. Label length range top: 15mm-160mm, label width range top: 30mm-300mm. Label length range bottom: 15mm-120mm, label width range bottom: 30mm-300mm. Product dimensions X/Y/Z on top: 30mm-300mm/50mm-250mm/50mm-150mm. Product dimensions X/Y/Z bottom: 140mm-300mm/50mm-250mm/50mm-200mm. Product dimensions X/Y/Z top and bottom: 140mm-300mm/50mm-250mm/50mm-150mm. Including a two meter long and 150mm wide conveyor belt and 180° Dorner conveyor belt. Documentation available. On-site inspection is possible.

Additional Details
