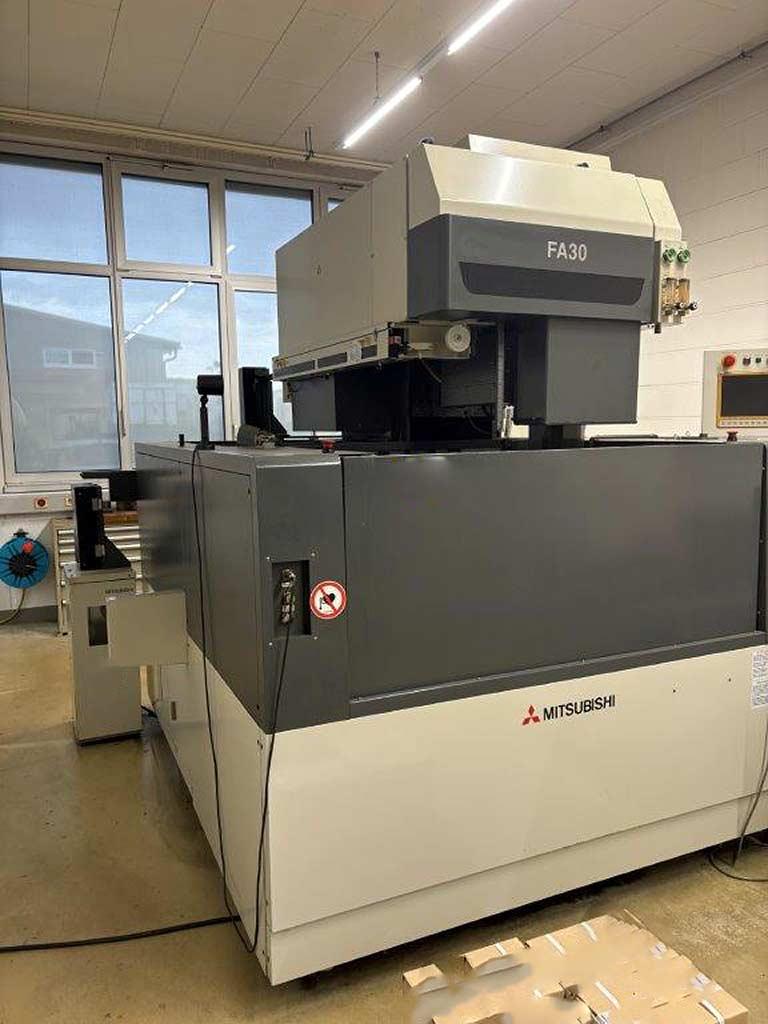

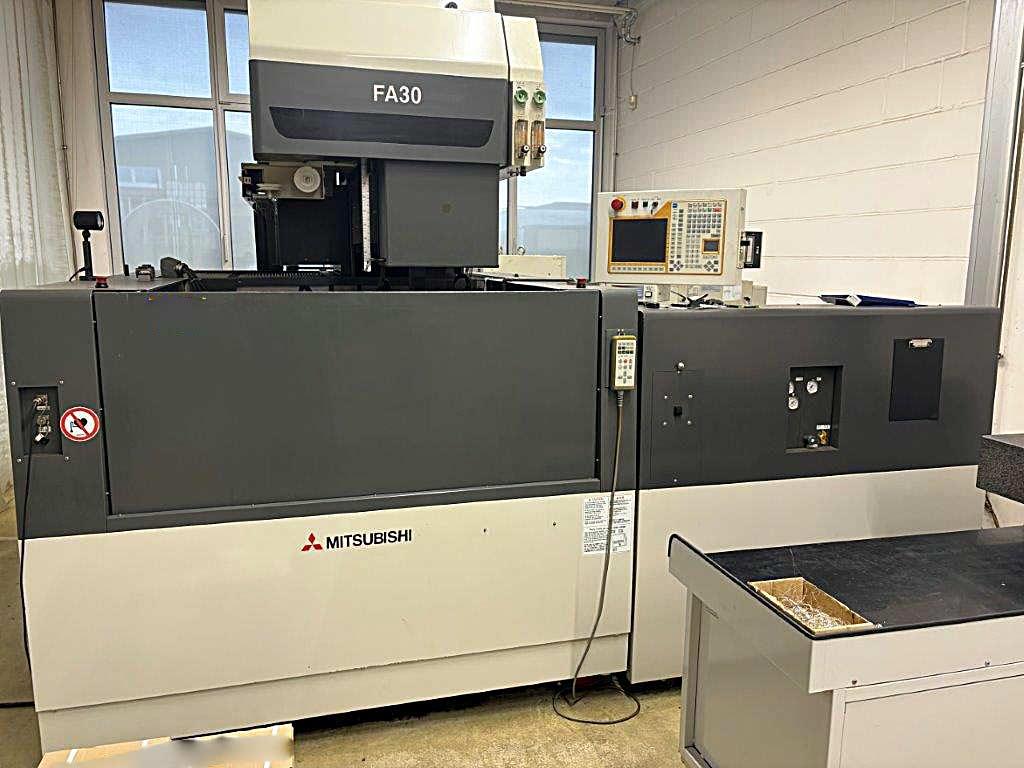

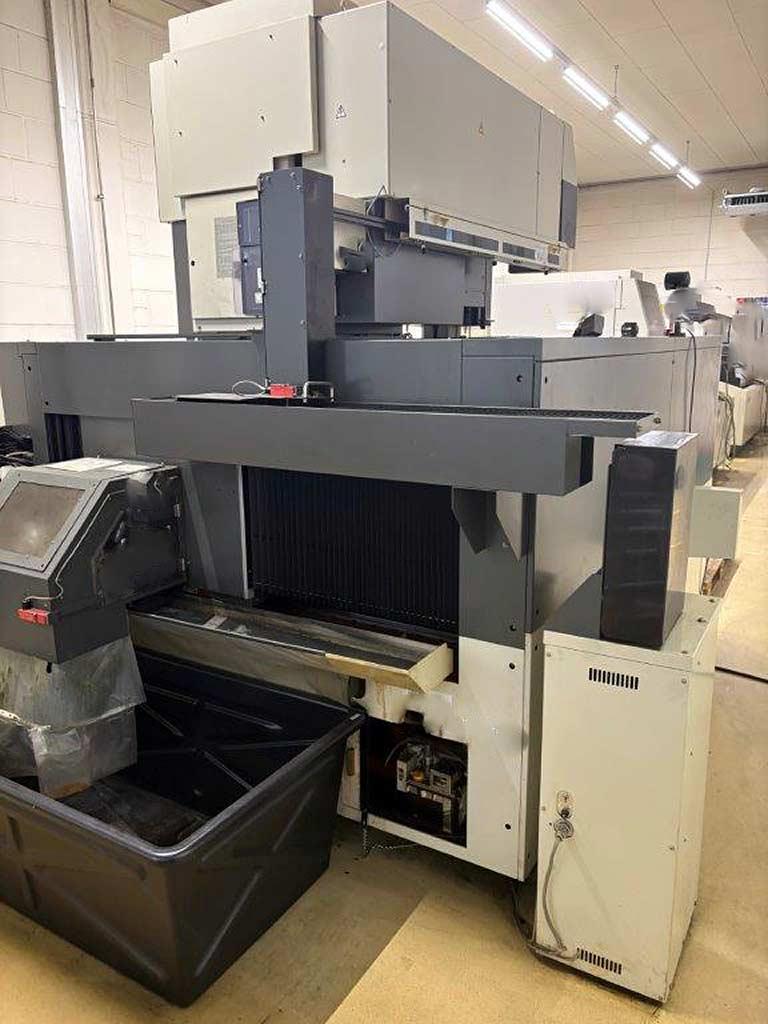

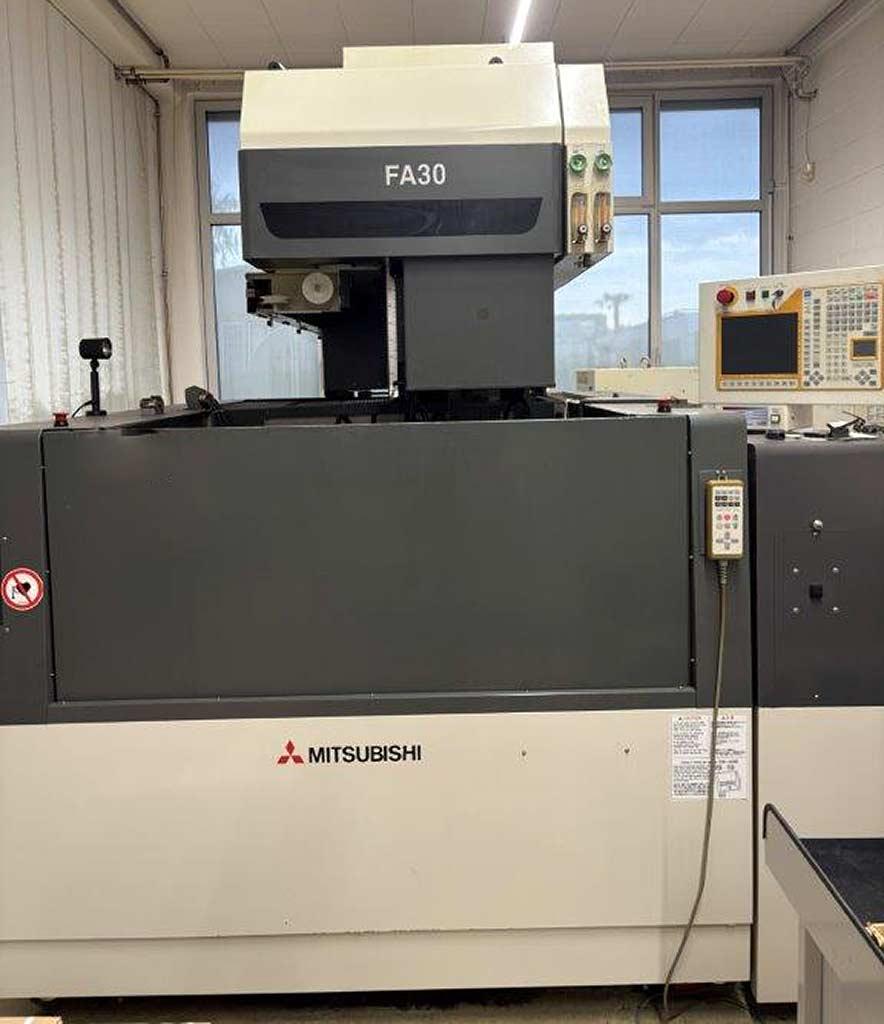

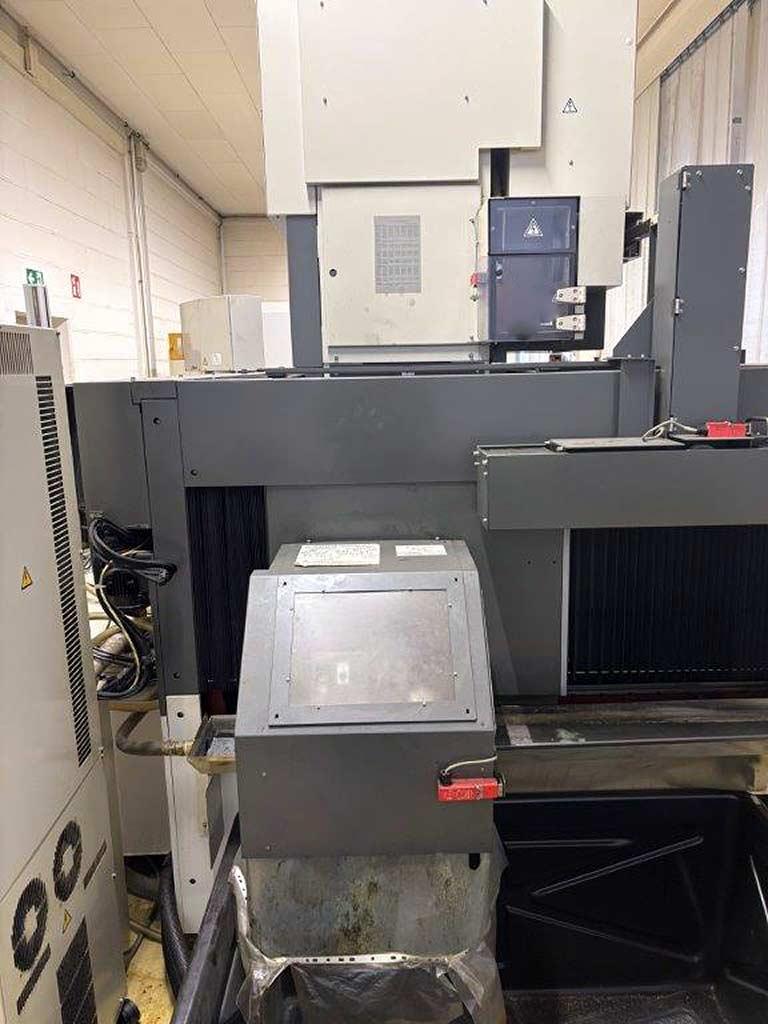

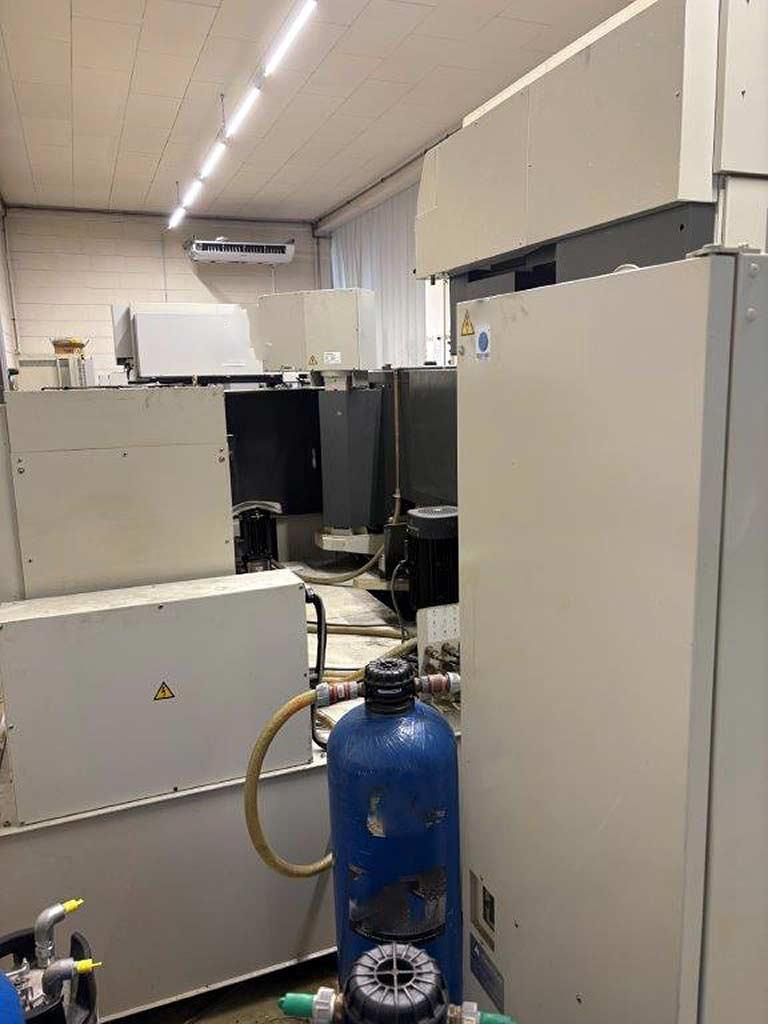

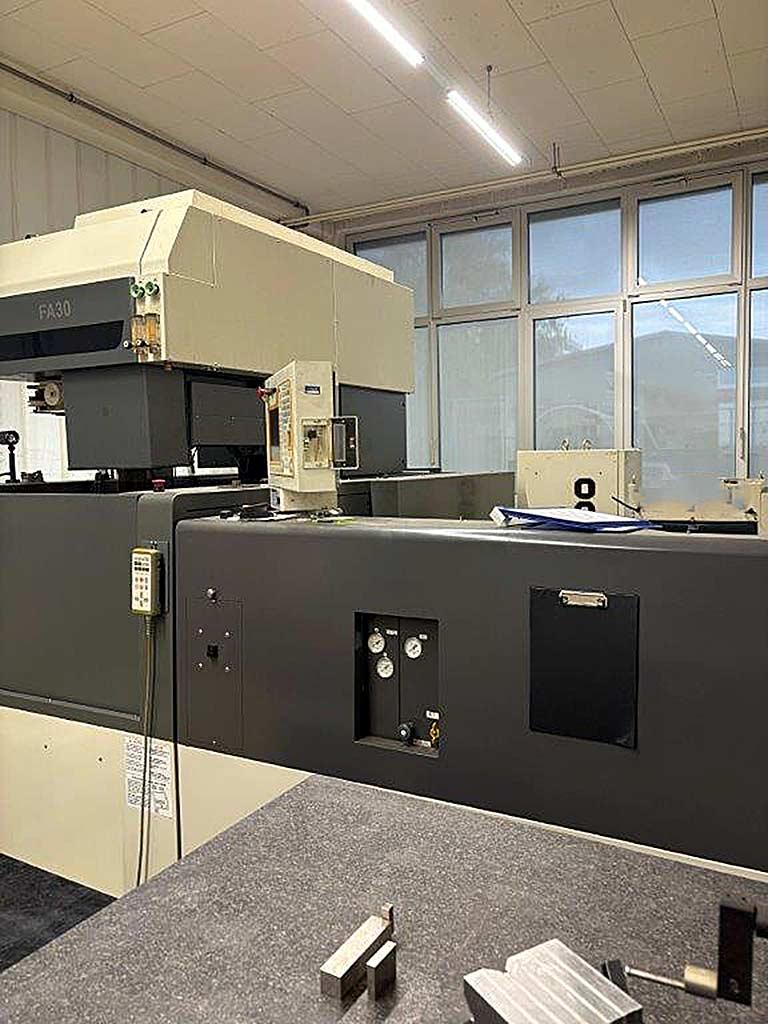

CNC EDM-Machine Mitsubishi FA30
Specifications
Germany
Description

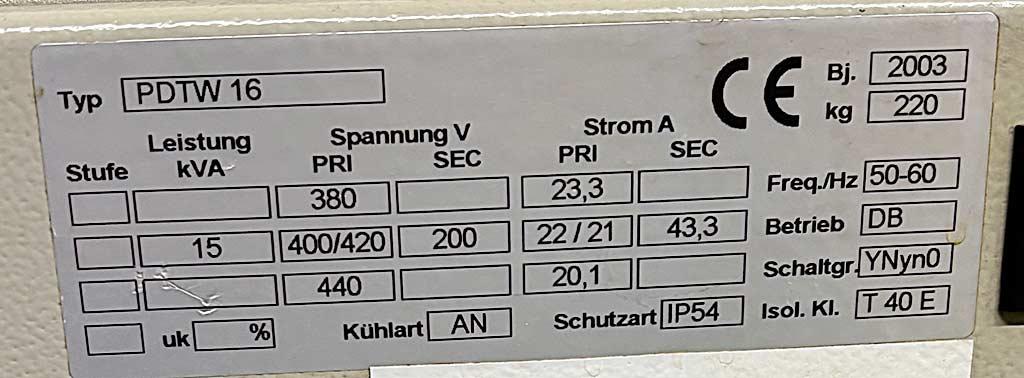

Workpiece dimensions X/Y/Z: 1050mm/800mm/295mm, max. workpiece weight: 800kg, table dimensions X/Y: 780mm/630mm, traverse path X/Y/Z: 500mm/350mm/300mm, max. table feed: 1300mm/min, wire diameter range: 0.1mm-0.3mm, max. wire feed: 15m/min, traverse path U/V: +/-32mm, max. taper angle: 15°. Machine dimensions X/Y/Z: approx. 1900mm/2650mm/2100mm, weight: approx. 3500kg. Including generator unit and automatic wire threader AT. Documentation available. On-site inspection is possible.
Additional Details
