Pneumatic Press Mäder XL-DA 5600-80-300
Specifications
Germany
Description

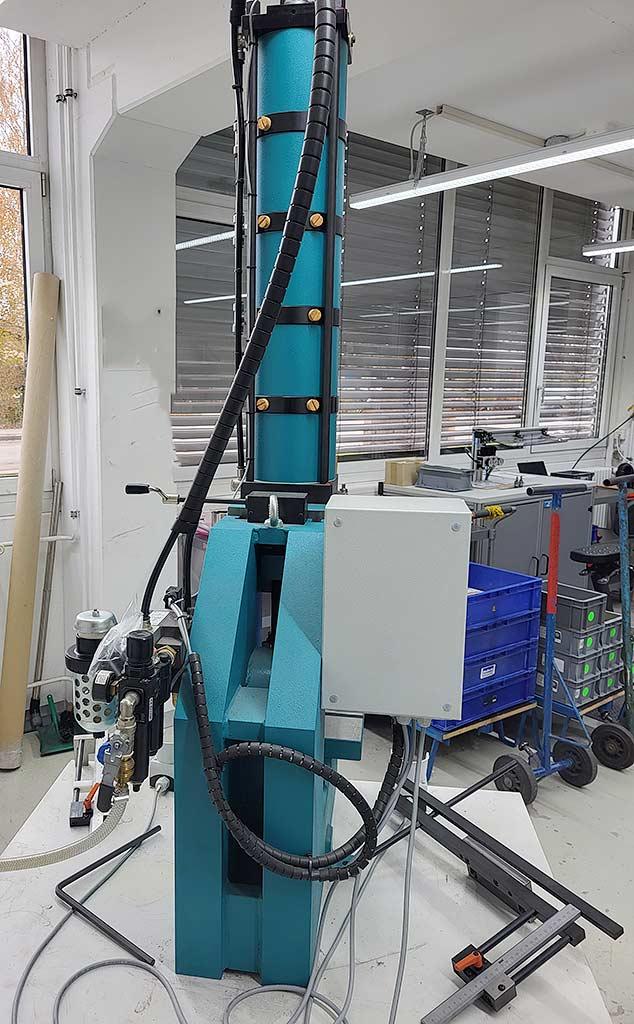

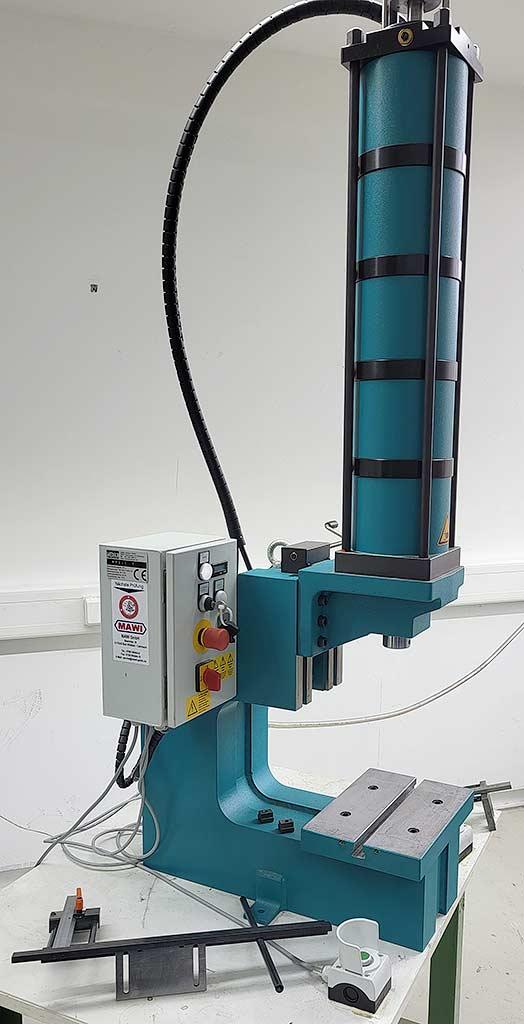

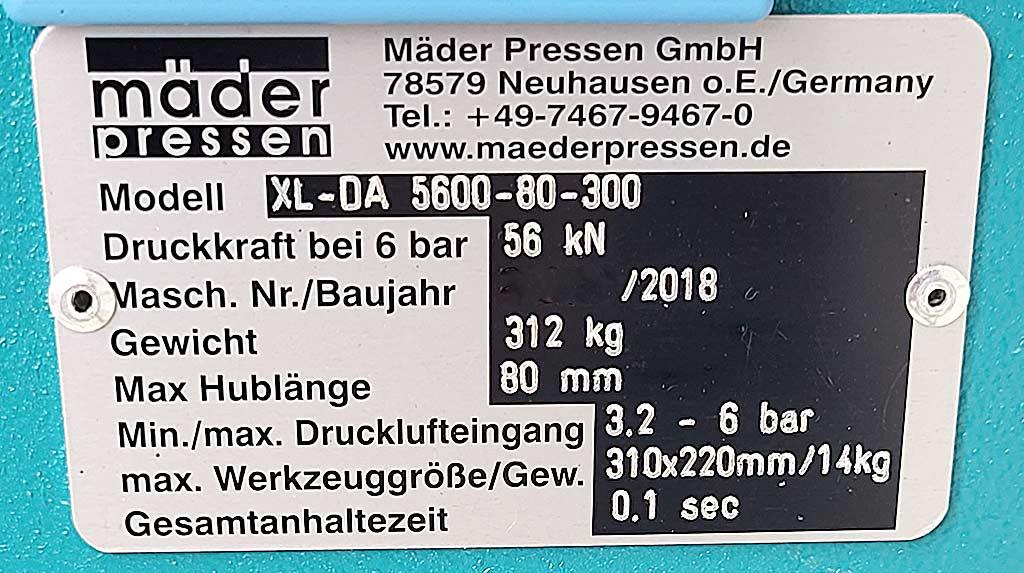

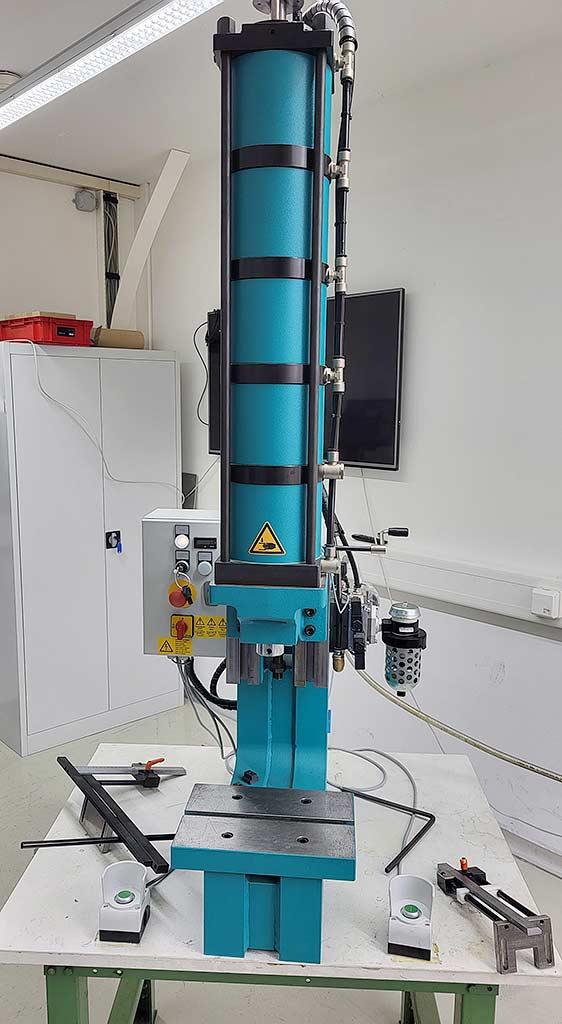

A Mäder direct-acting compressed air press is available. Pressing force at 6bar: 56kN, max. stroke length: 80mm, compressed air input min./max.: 3.2bar-6bar, max. tool dimensions X/Y: 310mm/220mm, max. tool weight: 14kg, total stopping time: 0.1s. Projection of press head/press frame: 150mm/300mm, working height: 195mm-290mm, table dimensions X/Y: 190mm/190mm, operating hours: 59h. Pressure cell included. Documentation available. On-site inspection is possible.
Additional Details
