Suction Unit Al-ko Profi-JET BG 4

Germany

Description

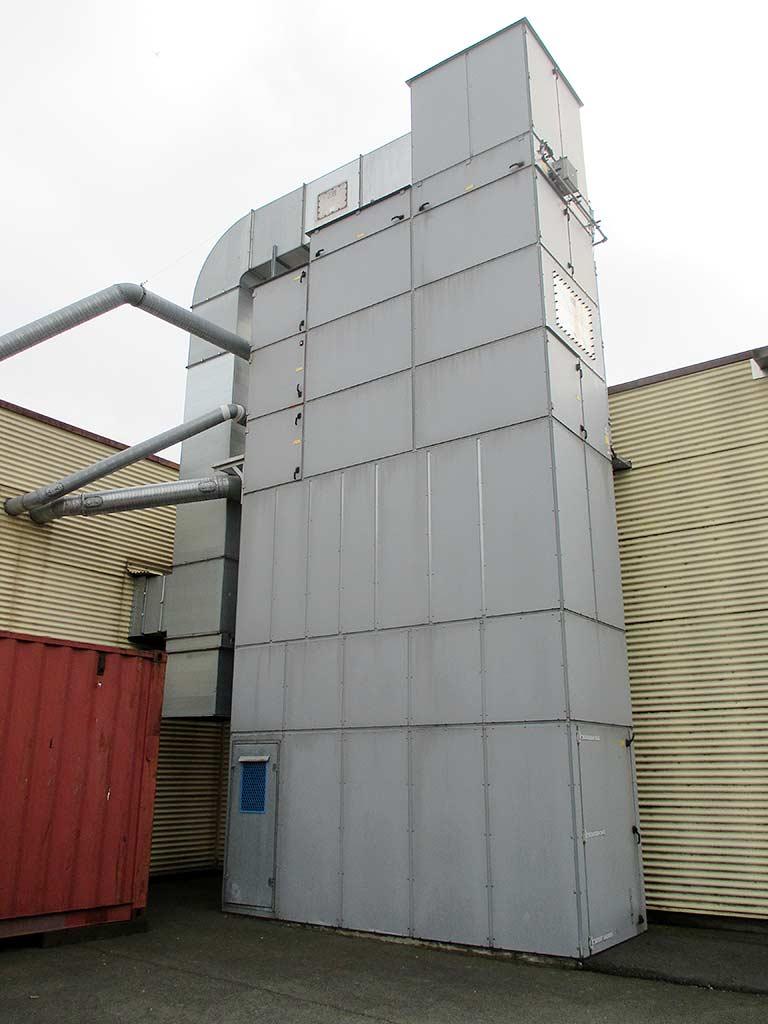

Construction: Clean air chamber/fan/filter chamber/pre-separation chamber/disposal unit, Explosion pressure resistance: 200mbar, Motor power: 30kW, Nominal volume flow: 14000m³/h, Total pressure: 4700Pa. Number of filters: 128, filter length: 2500mm per filter, total filter area: 120m², filter category: BIA category C, machine dimensions X/Y/Z: approx. 4300mm/1600mm/9900mm. Including rotary valve ZRS 960, year of construction: 2009, number of blades: 7, inlet: 250mm/960mm, outlet: 208mm/960mm, motor power: 0.18kW, rotary valve speed: 4rpm, rated current: 0.8A. The frequency converter of the fan is defective. Documentation available. On-site inspection is possible.
