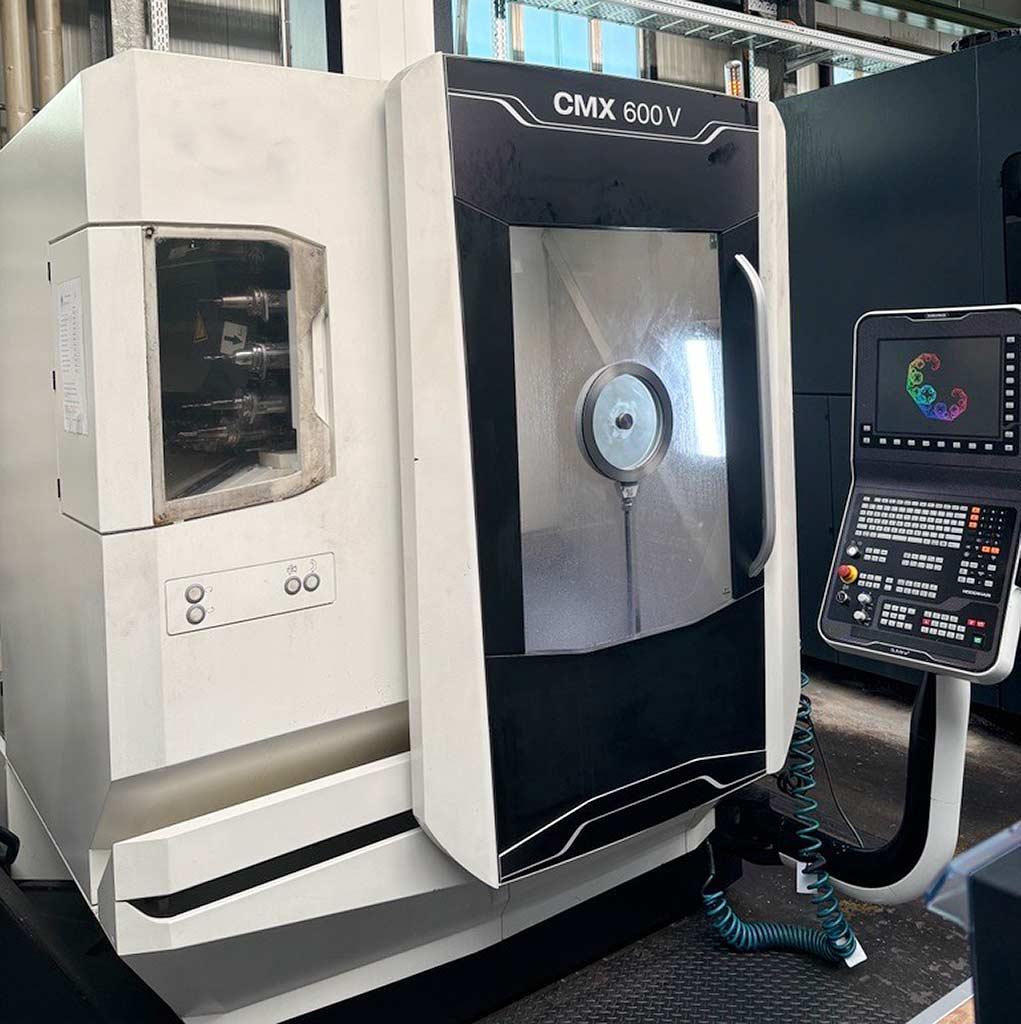

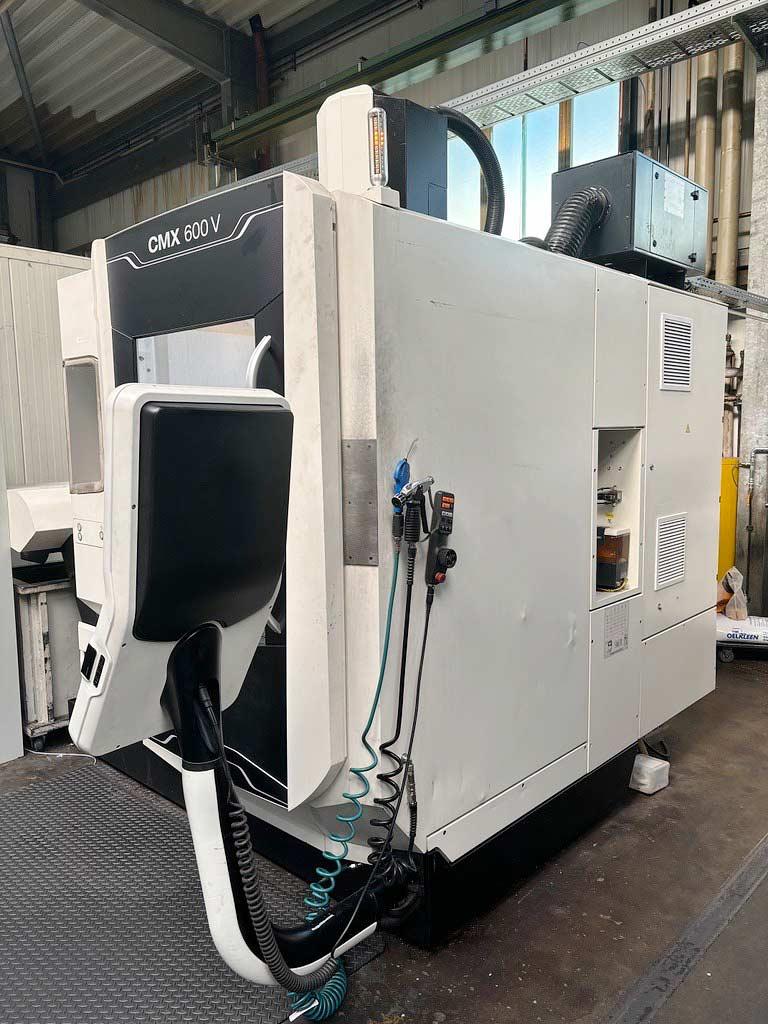

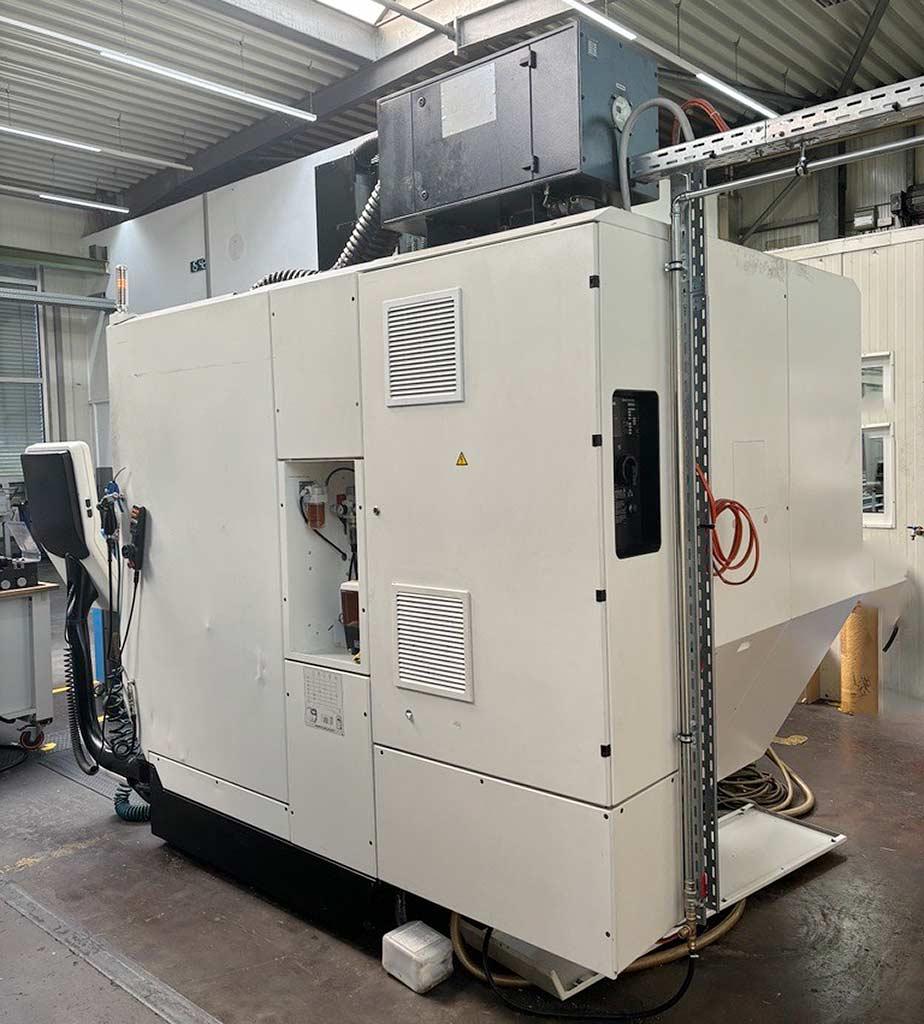

CNC Vertical Machining Center Dmg Mori CMX 600 V

Germany

Description

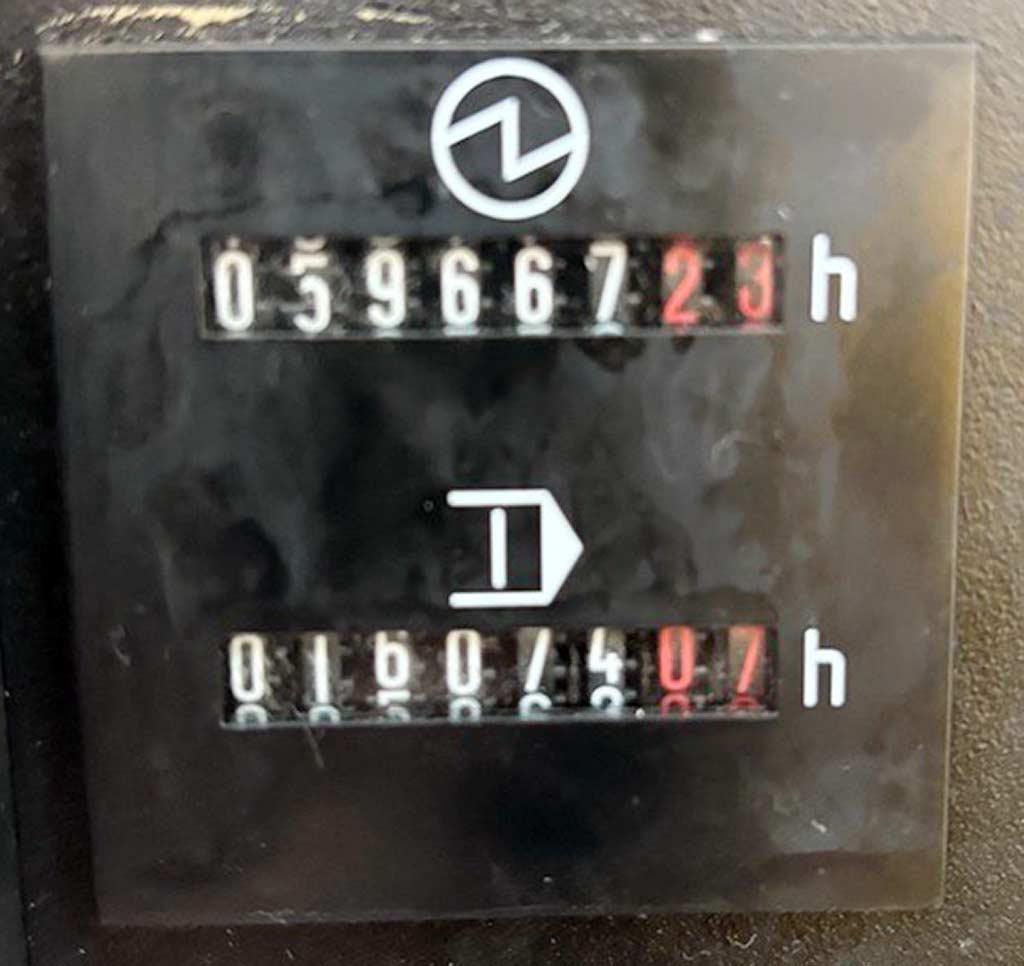

Travel X/Y/Z: 600mm/560mm/510mm, accuracy X/Y/Z: 6µm, rapid traverse X/Y/Z: 30m/min, max. feed force: 5kN, max. feed: 30m/min, table dimensions X/Y: 900mm/560mm, max. table load: 600kg. Spindle speed: 12000rpm, drive power: 13kW, torque: 82Nm. Tool positions: 30, max. tool diameter free/occupied: 130mm/80mm, max. tool length: 300mm, max. tool weight: 8kg. Machine dimensions X/Y/Z: approx. 3050mm/3500mm/2950mm, weight: approx. 5000kg, operating hours: 59667h, spindle hours: 16074h. Including internal coolant supply. Documentation available. On-site inspection is possible.
