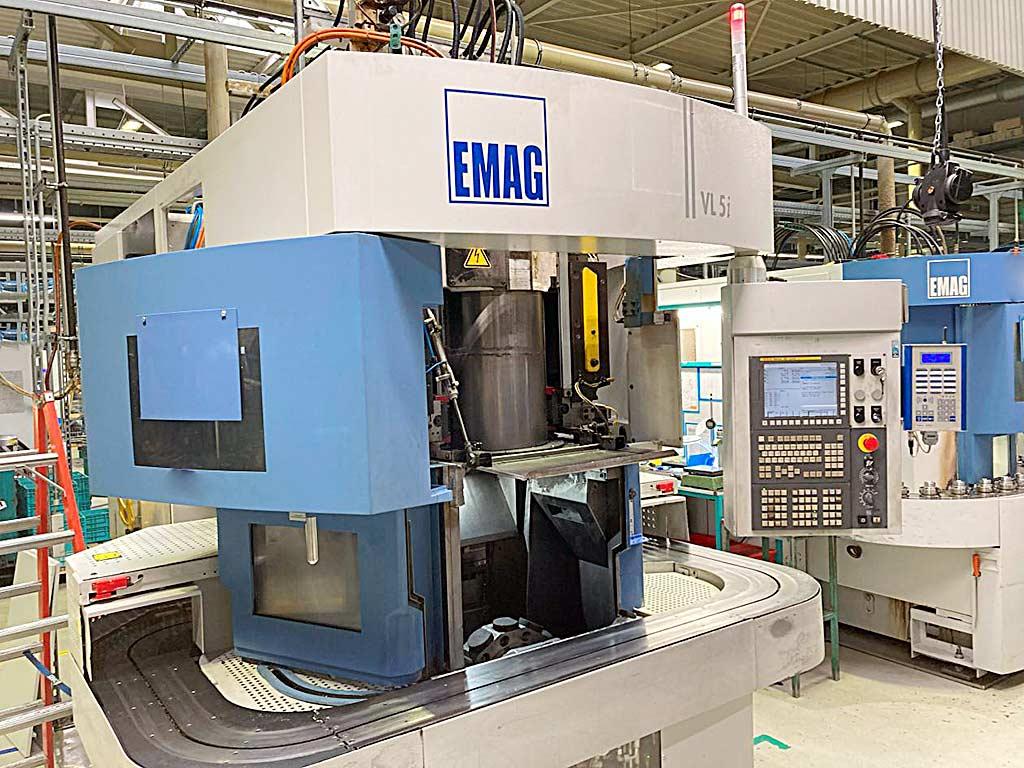

CNC Vertical Lathe Emag VL 5i
Specifications
Germany
Description

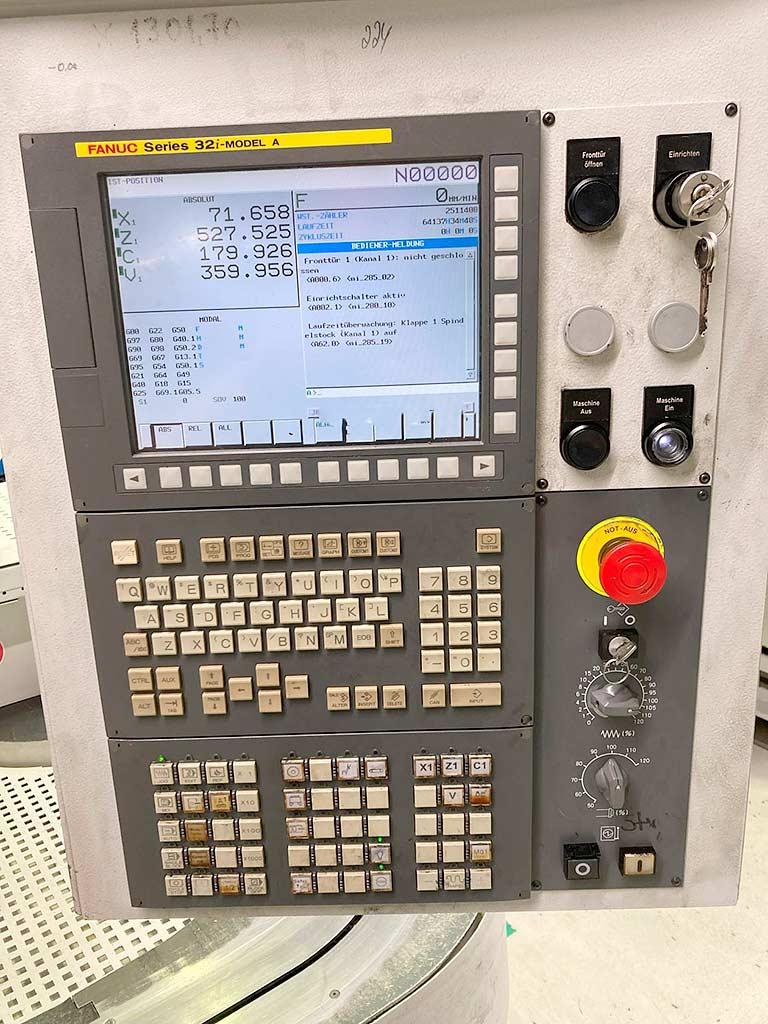

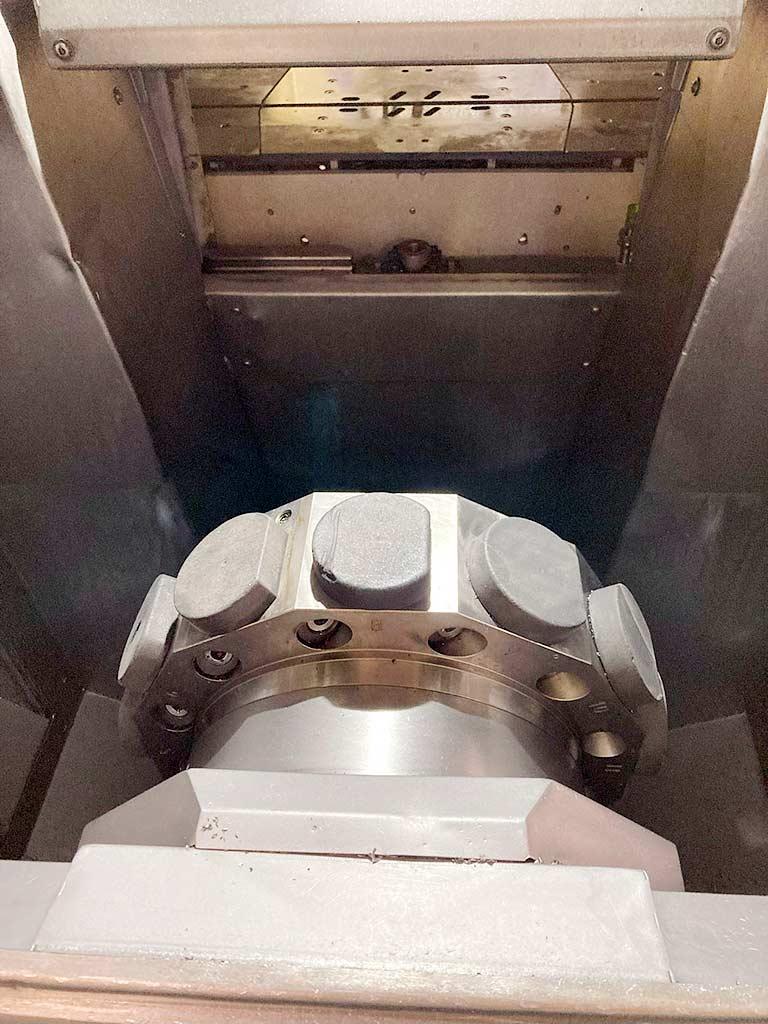

An Emag vertical CNC lathe is available. Clamping chuck diameter: 250mm, max. circulation diameter: 270mm, max. machining diameter: 250mm, max. machining length: 175mm, speed: 4500rpm, tool positions: 12, tool holder: VDI 40, travel X/Z: 660mm/300mm, rapid traverse X/Z: 60m/30m/min. Machine dimensions X/Y/Z: approx. 4300mm/1600mm/3300mm, weight: approx. 7500kg, control: Fanuc Series 32i-Model A, operating hours: 64137h. Including automatic loading and unloading with pick-up spindle and integrated part diverter and workpiece storage. Documentation available. On-site inspection is possible.
Additional Details
