Planing Machine Weinig Unimat 23 E
Specifications
Germany
Description

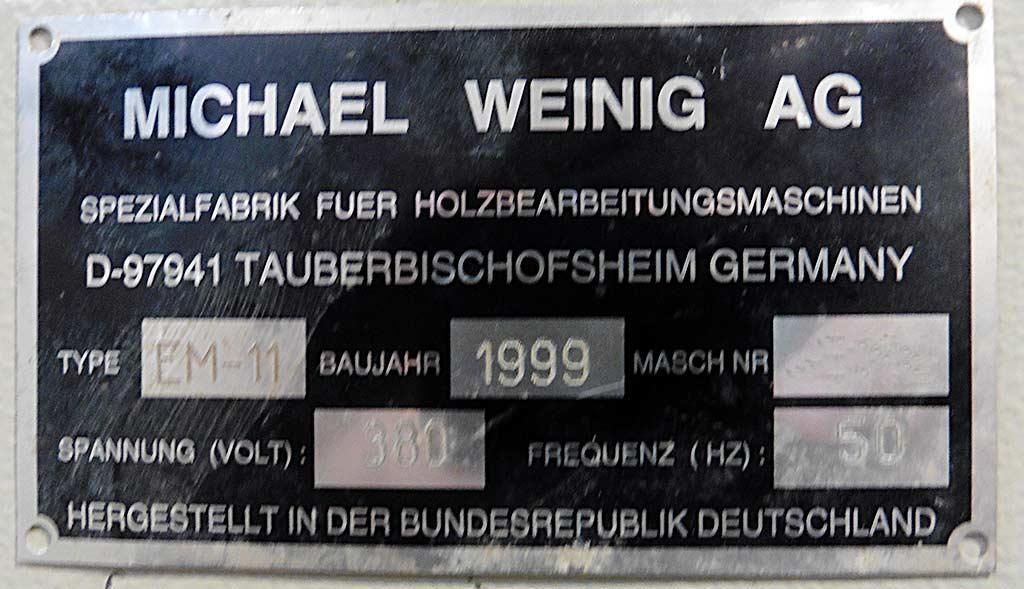

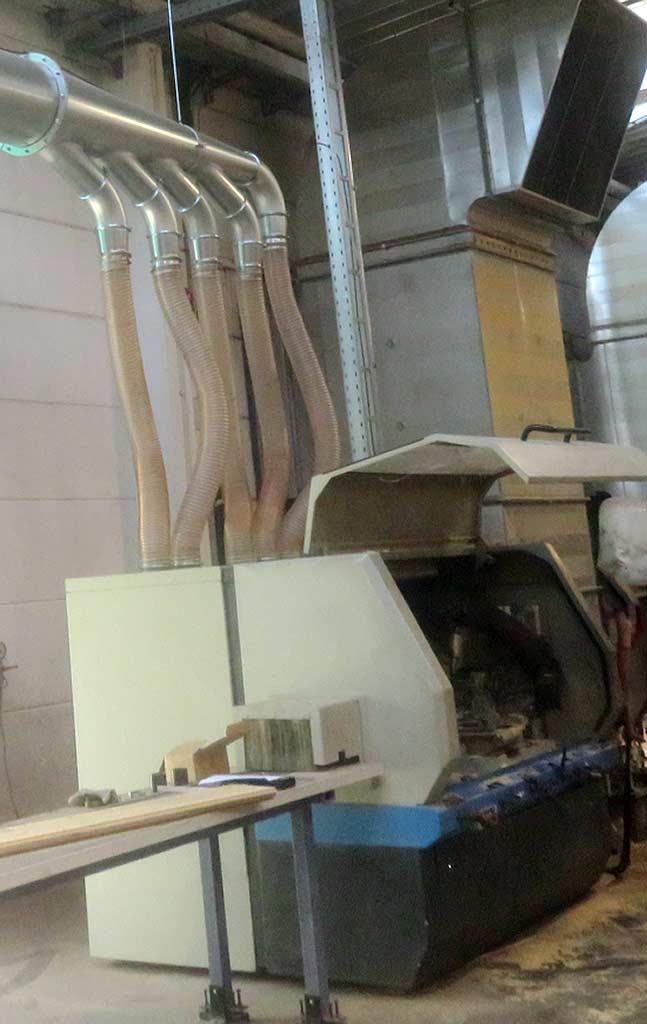

Working width: 230mm, working height: 160mm, number of spindles: 6, spindle diameter: 50mm, spindle power: 4x 5.5kW/2x 11kW, feed rate: 24m/min, input table length: 3000mm, vertical spindle axial stroke: 80mm, horizontal spindle axial stroke: 45mm. Connected load: 126kW, air requirement: 8400m³-9600m³/h, machine dimensions X/Y/Z: approx. 3500mm/2000mm/1800mm, weight: approx. 3500kg. Including Weinig EM-11 slide-in unit and suitable distributor for the extraction system. Documentation available. On-site inspection is possible.
Additional Details
