CNC Fineblanking Press Feintool GKP-F 160/GKP-F 250

Germany

Description

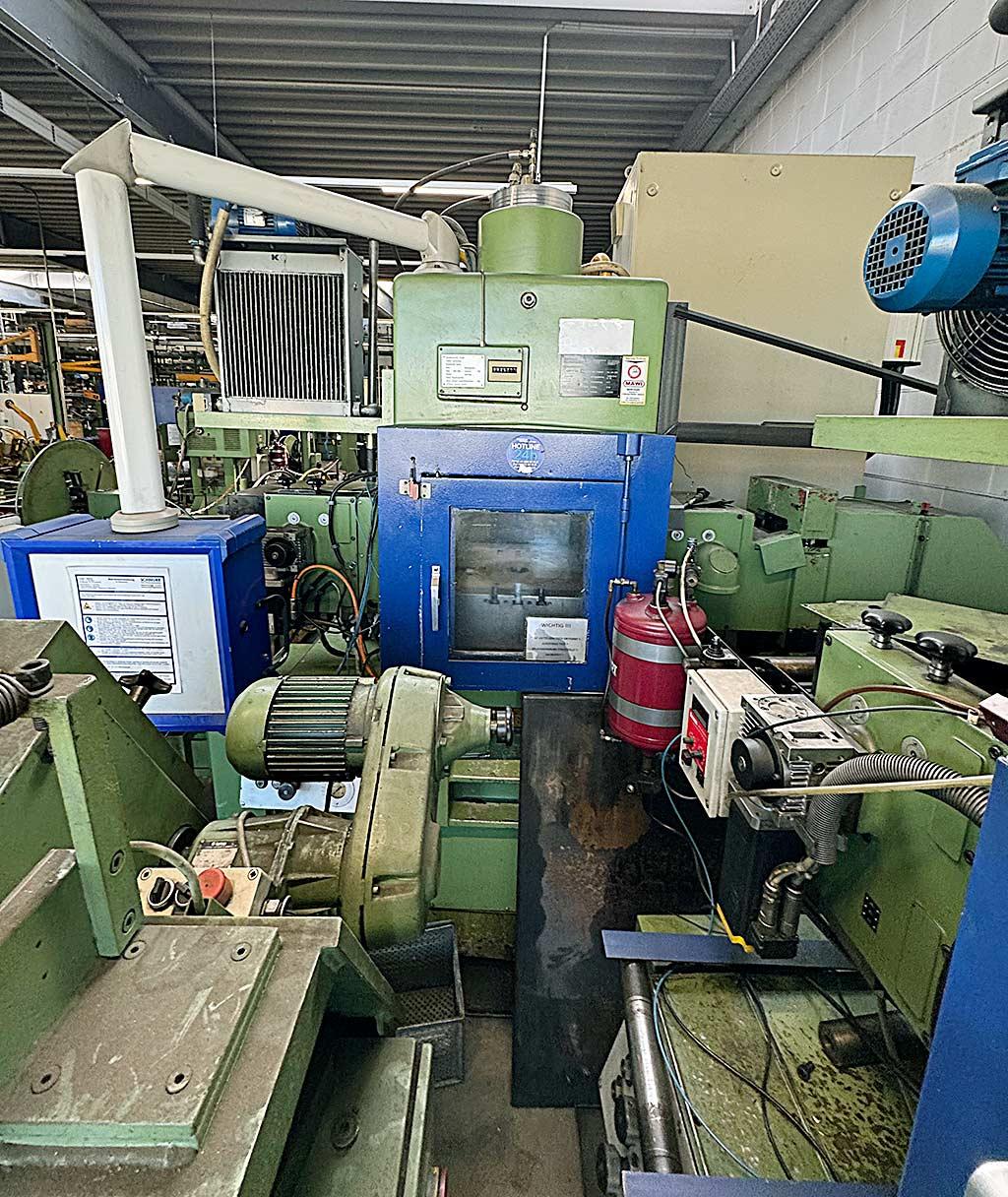

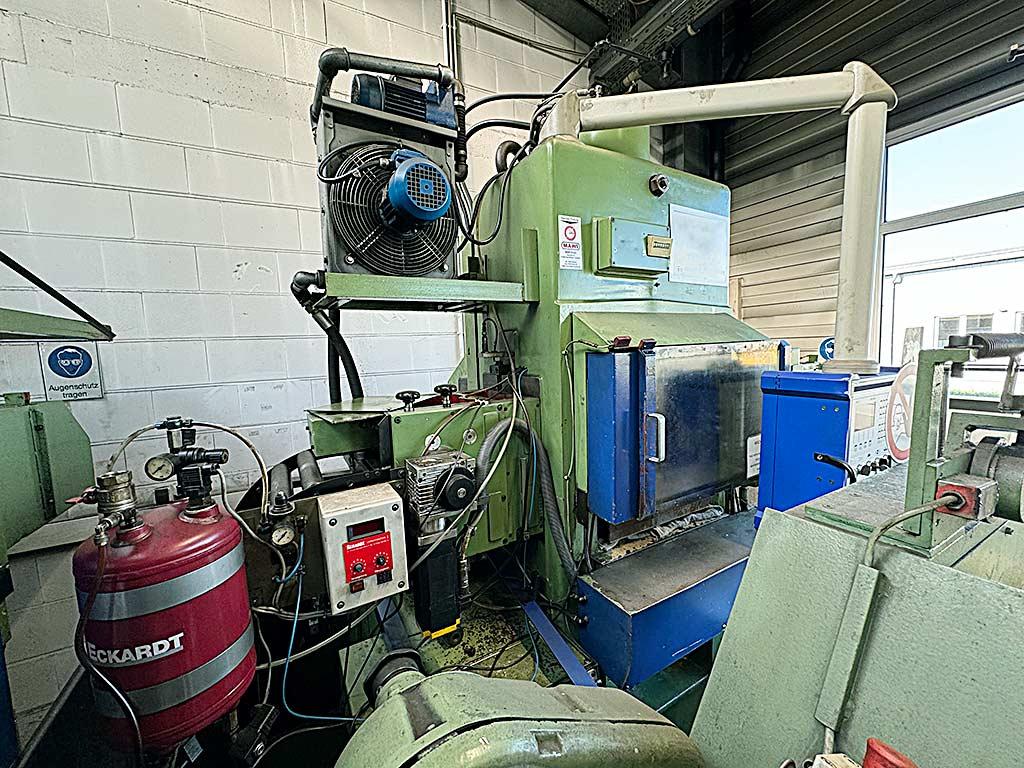

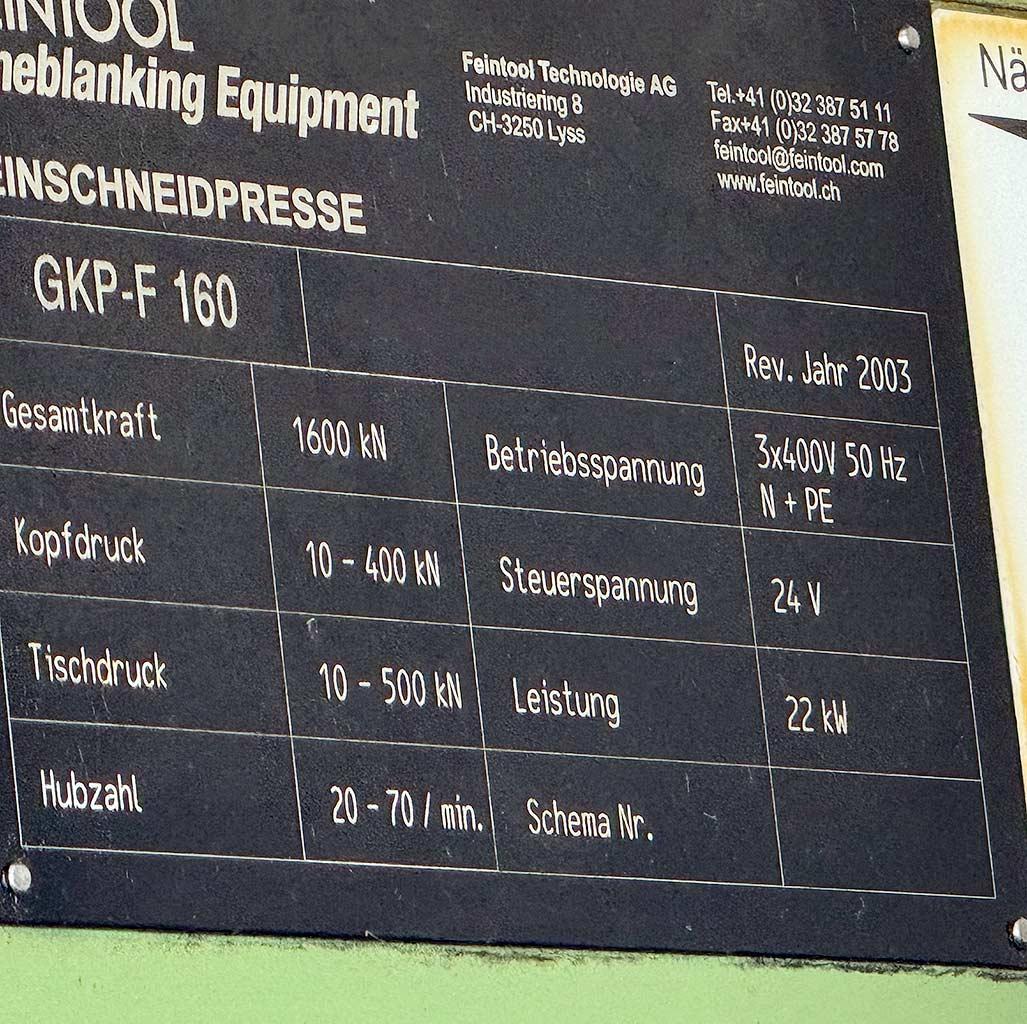

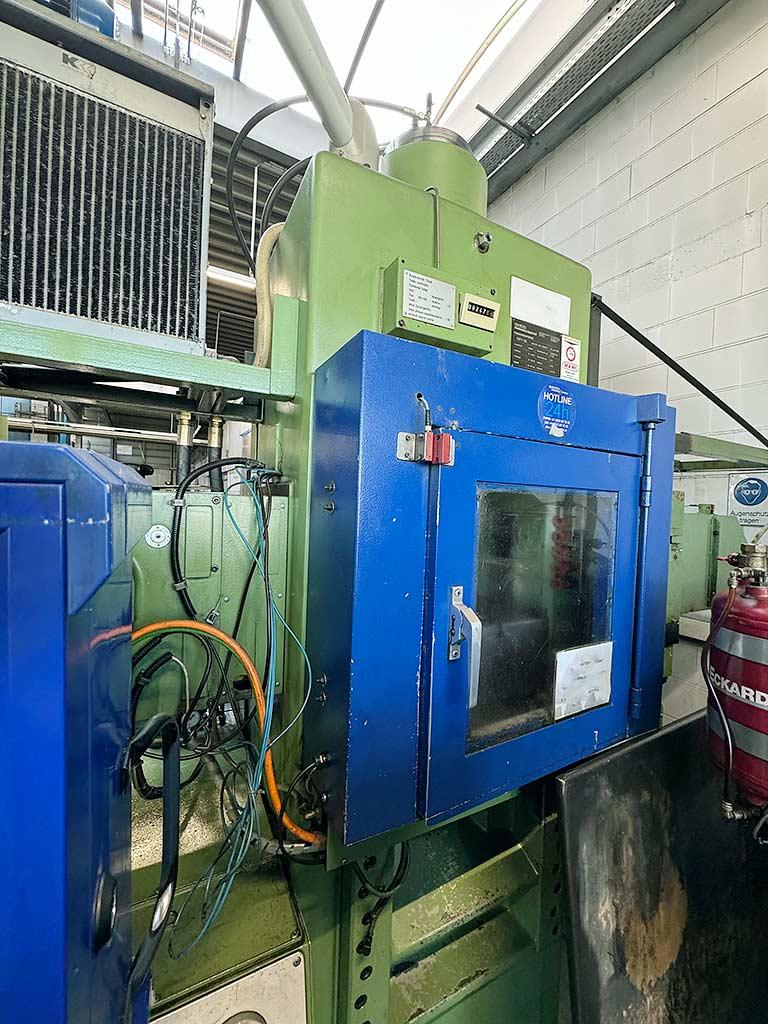

There are 3 retrofit Feintool fineblanking presses with controls from Pneutronik available. 1) Feintool GKP-F 160, year of manufacture: 2001, cutting force: 100t, total pressing force: 160t, head pressure: 40t, table pressure: 50t, stroke rate: 70/min, power: 22kW, max. material thickness: 6mm, stroke height: 62mm, machine dimensions X/Y/Z: approx. 1800mm/1800mm/2800mm, weight: approx. 9000kg, control: Pneutronik. 2) Feintool GKP-F 160, year of manufacture: 2003, cutting force: 100t, total pressing force: 160t, head pressure: 40t, table pressure: 50t, stroke rate: 70/min, power: 22kW, material thickness: 6mm, stroke height: 60mm, machine dimensions X/Y/Z: approx. 1800mm/1800mm/2800mm, weight: approx. 9000kg, control: Pneutronik. Presumably there is bearing damage to the flywheel. 3) Feintool GKP-F 250, year of manufacture: 2000, total pressing force: 250t, head pressure: 75t, table pressure: 75t, ejector force: 18t, material thickness: 10mm, lifting height: 61mm, machine dimensions X/Y/Z: approx. 2100mm/3100mm/3200mm, weight: approx. 14500kg, control: Pneutronik. Presumably there is bearing damage to the worm shaft. Documentation available. On-site inspection is possible.

Additional Details
