Clamp Jaw Elevator Gronemeyer

Germany

Description

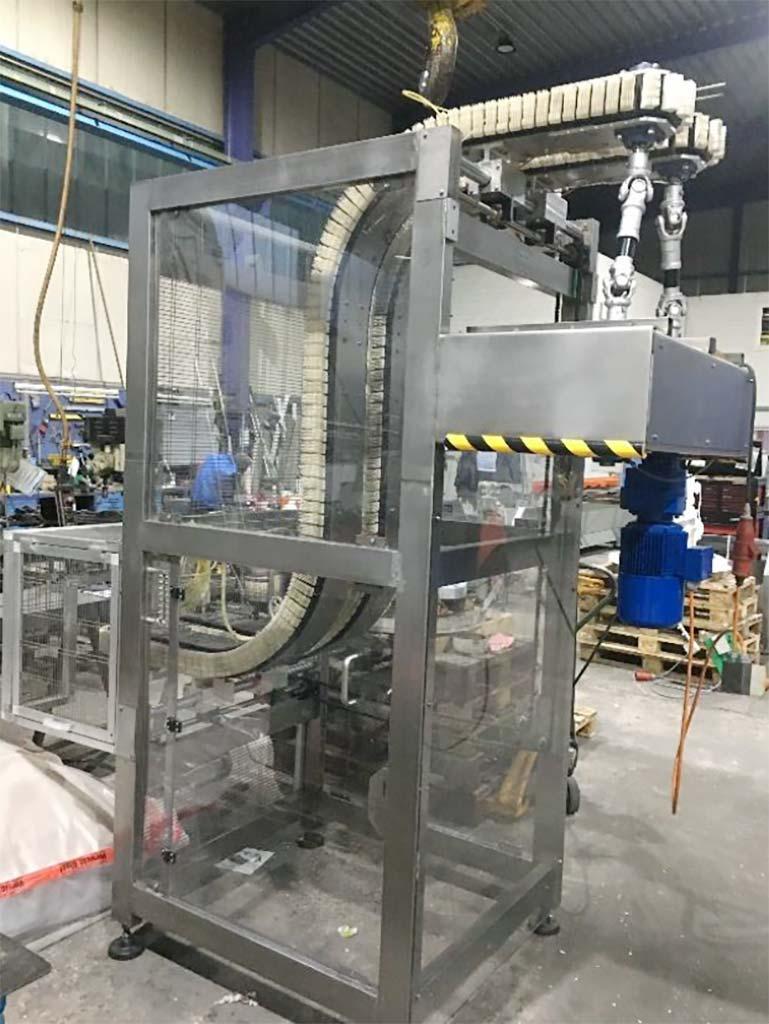

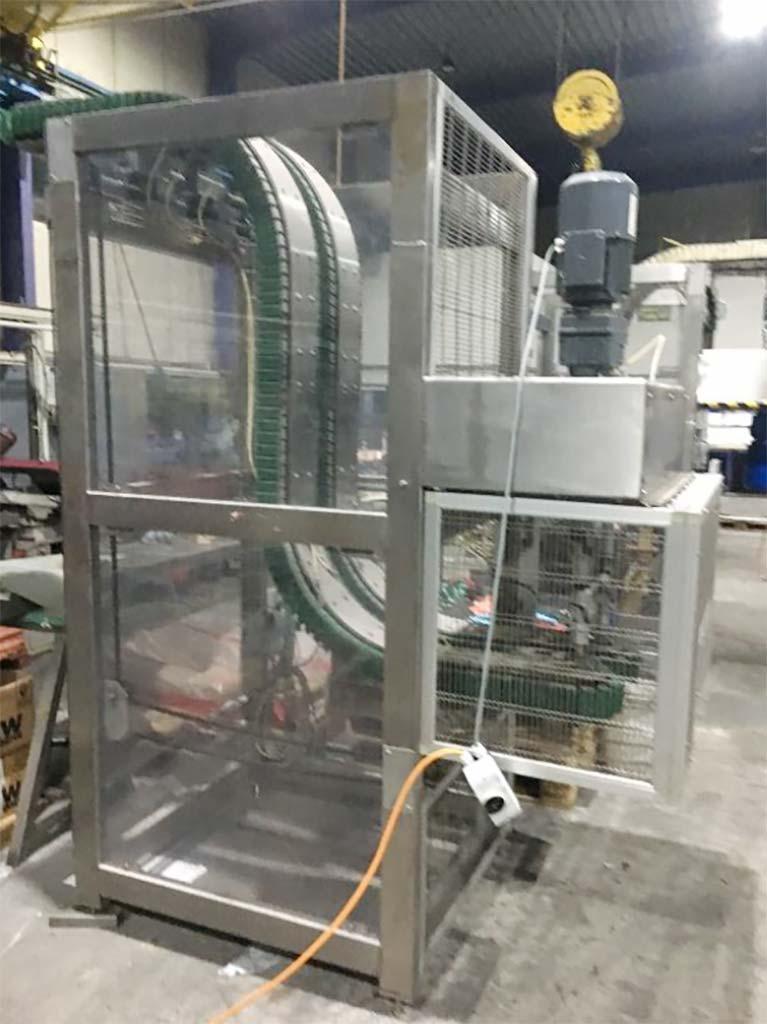

A vertical upward clamping jaw elevator and a vertical downward clamping jaw elevator in stainless steel design are available. This is a conveyor system for overcoming height differences in production lines. Bottles, jars, cans and also cartons etc. can be conveyed upwards and downwards. (1) Upward elevator, output: 14,000 cans/h (empty containers open), speed: 25m/min, format diameter: 100mm, format height: 50-80mm (400g), total length with infeed and outfeed section: 2500mm, frame width: 1050mm, infeed height: 900mm, outfeed height: 2600mm, height difference: 1700mm, drives: frequency-controllable, motor power: 1.1kW. (2) Downward elevator, output: 14,000 cans/h (empty cans open), speed: 25m/min, format diameter: 100mm, format height: 80mm (400g), total length with infeed and outfeed section: 2500mm, frame width: 1050mm, infeed height: 900mm, outfeed height: 2600mm, height difference: 1700mm, drives: frequency-controllable, motor power: 1.1kW. On-site inspection is possible, were completely overhauled in the past.
