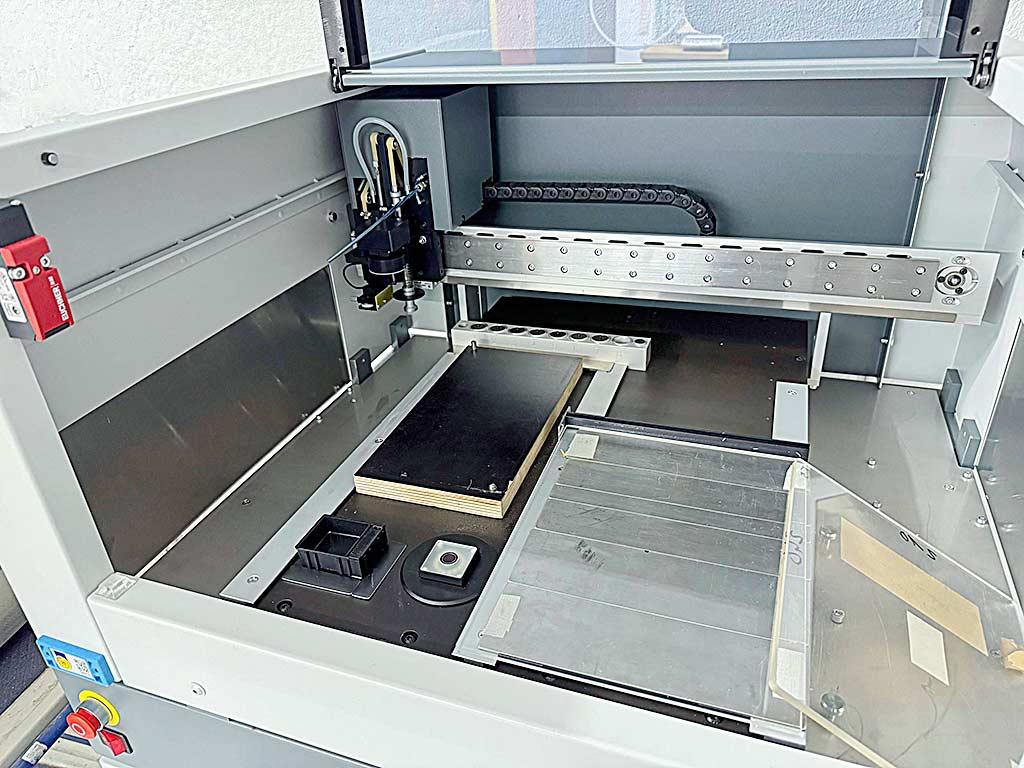

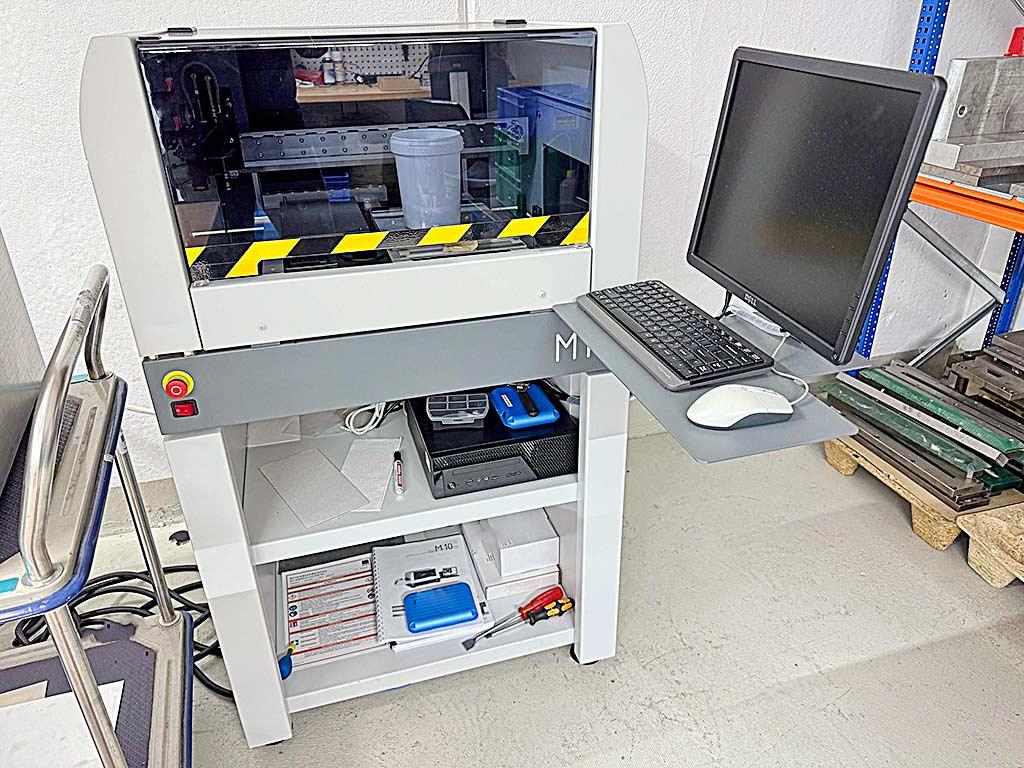

Pick-And-Place Machine Mechatronika M10V

Germany

Description

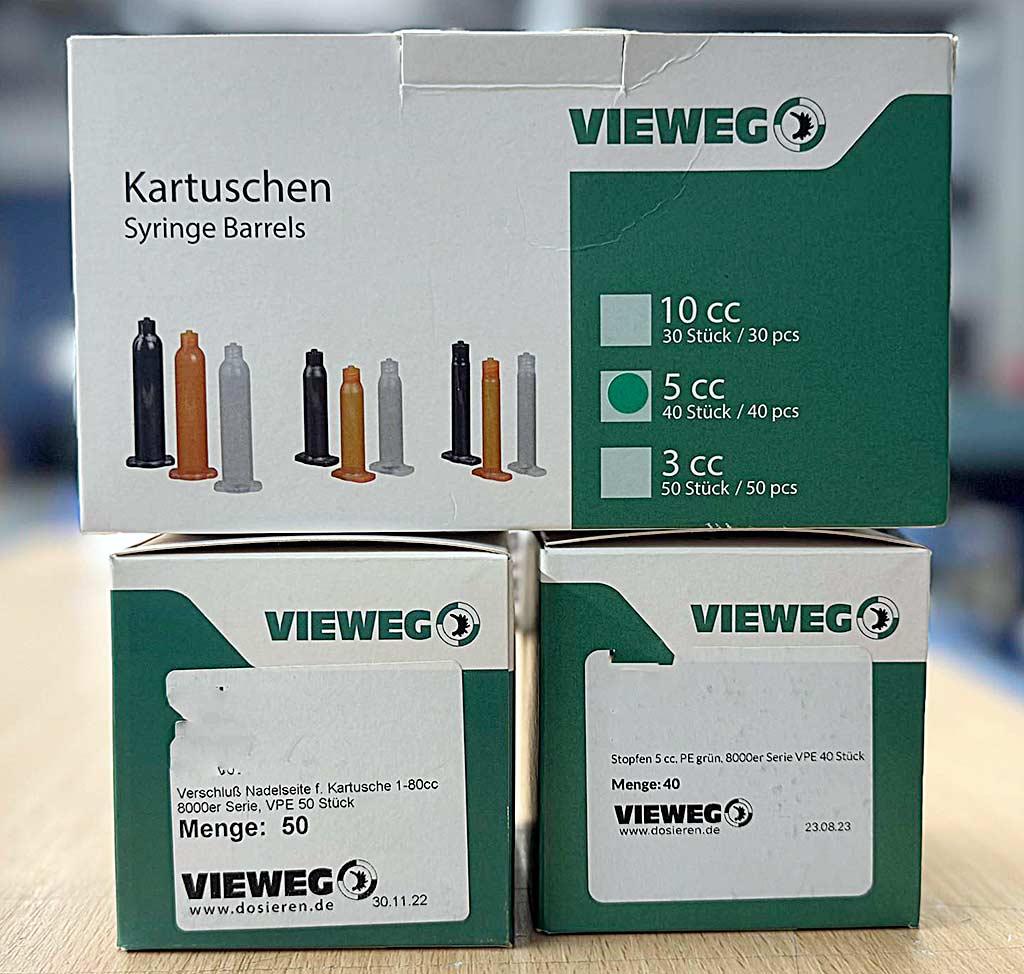

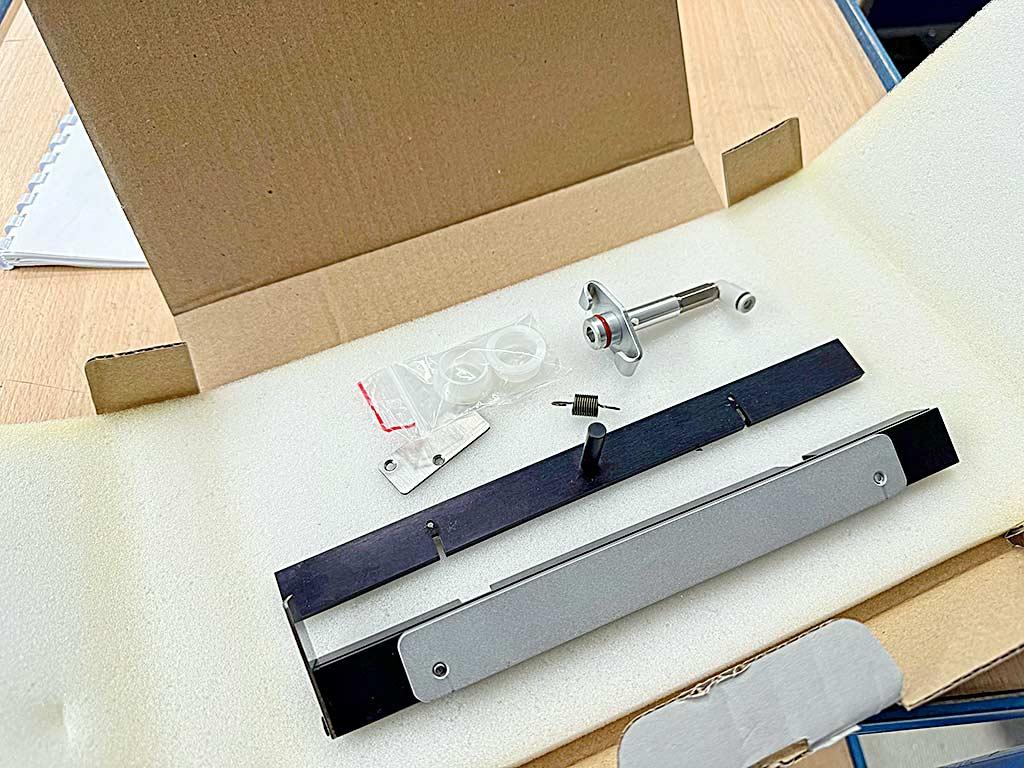

A Mechatronika pick-and-place machine is available. Placement capacity: 1500/h, max. PCB dimensions X/Y: 300mm/400mm, component range: 0402 to 30mm/30mm, min. connection pitch: 0.5mm. Tape feeders: 8mm/12mm/16mm/24mm/32mm/44mm, max. number of 8mm tape feeders: 32, bar feeders: SO4 to PLCC84, component centering: optical (vision). Tool changer: 8, resolution X/Y: 5µm, angle resolution: 0.045°/step. Machine dimensions X/Y/Z without feeder: approx. 750mm/830mm/550mm, machine dimensions X/Y/Z with all attachments: 1700mm/1000mm/550mm, weight without feeder: approx. 70kg, operating hours: approx. 300h. Including base frame, computer unit, monitor, accessories and VS dosing unit for the fully automatic, program-controlled application of solder paste or adhesive from cartridges (5cm³/10cm³). Documentation available. On-site inspection is possible.
